metal shaft / slide / single
metal shaft
Z185 series

Length: 50 mm - 200 mm

58 HRC or 1.2842 substance used for Z180/...

steel shaft / precision / single
steel shaft

In a short amount of time, this smart and skilled company can produce shafts to meet all customer requirements. Shaft end-facing female threads, mill length shafts, retaining ring undercuts, threaded journals, flats and annealed downstream ...

steel shaft / precision / single
steel shaft

Due to their self-contained mounting and minimal installation effort, the eLine linear bushings and shafts are perfect for cost-effective applications. A clearance-free version of the linear sets and linear bushings are supplied. These ...

stainless steel shaft / slide / single
stainless steel shaft

Rexroth has manufactured this array of products to satisfy the demands of numerous systems and machine suppliers relative to greater performance in reduced spaces. These miniaturized configurations are accessible in seven different sizes ...

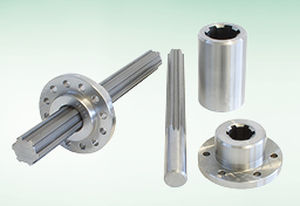

splined shaft
splined shaft

Diameter: 0 mm - 200 mm
Length: 0 mm - 2000 mm

plastic shaft / splined
plastic shaft

Traditionally, a solid steel shaft reaching the full width of the machine with several polyurethane tyres attached and a bearing at each end to support it would have been used. But through extensive R&D and close collaboration with our ...

metal shaft / ball splined
metal shaft
SSP

Diameter: 4 mm - 25 mm
Length: 200 mm - 2000 mm

The NB BALL SPLINE consists of a spline shaft with raceway grooves and a spline nut. The spline nut consists of an outer cylinder (main body), retainer, side rings, and ball elements that are designed and manufactured to achieve a reliably ...

See the other products
NB
metal shaft / ball splined
metal shaft
SPR series

Torque: 2.4 Nm - 4.8 Nm
Diameter: 20 mm - 102 mm
Length: 25 mm - 127 mm

The NB ROTARY BALL SPLINE nut consists of a spline nut and a rotating portion using cross rollers. Reduced Number of Parts Because of the single-body construction consisting of the rotating element and the spline element, the number ...

See the other products
NB
metal shaft / splined / with linear motion
metal shaft

Diameter: 4 mm - 100 mm

The NB BALL SPLINE is a linear motion mechanism utilizing the rotational motion of ball elements that can sustain loads and at the same time can transfer torque. It can be used in a wide variety of applications including robotics and ...

See the other products
NB Europe
metal shaft / splined / with linear motion
metal shaft
SSP series

Torque: 0.74 Nm - 17300 Nm
Diameter: 10 mm - 127 mm
Length: 16 mm - 248 mm

The NB BALL SPLINE is a linear motion mechanism utilizing the rotational motion of ball elements that can sustain loads and at the same time can transfer torque. It can be used in a wide variety of applications including robotics and ...

See the other products
NB Europe
steel shaft / ball splined
steel shaft
PowerTorq™ series

PowerTorq!" Ball Splines are convenient and efficient devices that allow friction free linear motion while transmitting torque. Because of their reliability and high efficiency, they are utilized to replace conventional splines. In a ...

steel shaft / precision / single
steel shaft

Diameter: 0.25 in - 4 in

Nook HG Shafting, made from high quality alloy steel, is manufactured and stocked for immediate shipment in our Cleveland, Ohio facility, in diameters from 1/4 to 4 inches. Stainless Steel shafting is available from 1/4 thru 2 inch diameter. ...

single universal joint
single universal joint

Diameter: 0.38, 0.5, 0.25 in

Specification AS AS 4283 Specification ASME ASME B107.10M

single universal joint / for socket wrench
single universal joint
J07570A

Diameter: 0.75 in

•Tight tolerances for snug fit on fastener. •Used wherever powered drive tools are used to install or remove fasteners. •Designed to withstand the high torque and force associated with impact tools in repetitive application. •Features ...

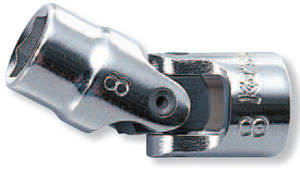

single universal joint / for steel / for socket wrench
single universal joint
A6710DM series

Diameter: 0.25 in

Swivel sockets, 1/4" square drive Bi-hex profile, metric sizes Not suitable for machine operation High performance alloy steel High polished finish ISO 1174 DIN 3120 Thin-walled These sockets are applicable to nuts and bolts used in the ...

connecting rod
connecting rod
SBCR

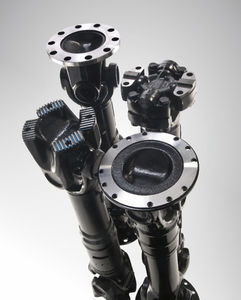

double universal joint
double universal joint
UJ series

Renold's Ajax full line of universal joint assemblies range from 4 to 30+ inch diameters, with misalignment capabilities of up to 30 degrees. Renold offers both Metric and English designs with standard slip centre sections, or special ...

metal shaft / for profiles / with flange
metal shaft
P3G, P4C

The PG3 and P4C are profile shaft or positive drive shafts with hub connections that are constructed in a variety of sizes and designs making then readily made for transferring torque while also providing optimal sliding action whenever ...

steel shaft / plastic / ceramic / splined
steel shaft

Diameter: 3 mm - 50 mm
Length: 20 mm - 900 mm

Shafts Case Hardened & Ground Plastic Rod Stock Ground Ultra Ground

single universal joint
single universal joint
T4696

Heavy duty chrome vanadium construction for superior strength and durability.

steel shaft / precision / single
steel shaft

The precision steel shaft manufactured by RBC is designed for rollers, needles, pins, needle thrust bearings, and thrust washers. This device is ideally used for fast turnaround times, large inventories, and engineering support. It ...

connecting rod
connecting rod

This connecting rod is utilized in the shaping of parting planes, such as the fracture surface, profile, dowel pin, dowel screw, and groove. It ensures to yield either strength, angle, torque, or any combination of those. It also provides ...

metal shaft / universal joint / double
metal shaft
EN series

Torque: 210 Nm - 2546 Nm

Continuous operation data and conditions, working angle 5°, average life 1000 hours. The drive shaft is fitted with an "ECS" device for easy coupling with the PTO. The operations of coupling and uncoupling the transmission shaft and ...

See the other products
Comer industries
metal shaft / drive / single
metal shaft
VP series

Torque: 296 Nm - 2546 Nm

The VP STANDARD SERIES PTO driveshaft is composed of two single cardan joints. The first table below shows the complete range with technical data of nominal power and torque, referred to a rotation speed of 540 and 1,000 rpm. The VP ...

See the other products
Comer industries
stainless steel shaft / frame
stainless steel shaft

Design: Sturdy stainless steel sheet Rungs: Perforated U-profile 30 x 30 x 30 mm Material: Stainless steel 1.4301 / ASTM 304 Width: 150 mm Ref. No.: 9697-03 Width: 300 mm Ref. No.: 9697-04 Material: Stainless steel 1.4571 / ASTM 316ti Width: ...

metal shaft / hollow
metal shaft
ZA series

Torque: 10 Nm - 4000 Nm
Diameter: 40 mm - 200 mm
Length: 110 mm - 6000 mm

Balanced clamping hubs with one radial screw per ISO 4762. Intermediate tube section supported by gimbals within the clamping hub. Mounting and dismounting accomplished through the removal of the intermediate tube section. Temperature ...

See the other products
R + W Coupling Technology
metal shaft / hollow
metal shaft
ZAE series

Torque: 10 Nm - 800 Nm
Diameter: 40 mm - 133 mm
Length: 100 mm - 6000 mm

Balanced split clamping hubs with two radial clamping screws ISO 4762. Intermediate tube section supported by gimbals within the bellows. Lateral mounting and dismounting accomplished due to split hubs. Temperature range: -30° C to ...

See the other products
R + W Coupling Technology
