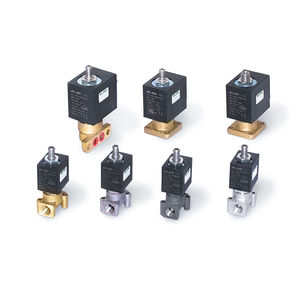

Solenoid valve with BRASS and STAINLESS STEEL 316 body.
3 ways Normally closed and universal.
Seals: Buna (NBR), Viton (FKM), EPDM, Ruby.
Coils: Standard, Bistable, Explosion proof
Port size 1/8", 1/4" and socket.
Fluid temperature up to 180°C.
The 3 ways direct acting range is suitable for actuators control, and in application directly in contact with the process fluid (ais, gas compatible with valve materials, water, steam, liquids compatible with materials). THe class H coils permit to work up to 180°C and bistable coils allow low energy consumption for portable applications or where temperature increase must be avoid. The explosion proof coils works in potential explosive environments.
|
|
Technical data
Fluid: water, air, neutral fluids
Ambient temperature: -10 to +50 [°C]
Voltage: 230 [V], 50 [Hz]; 24 [V] DC
Coil power: 8,5 [VA]; 6 [W]
Protection enclosure: IP 65
Duty rating: always
Mounting position: optional
Materials
# seal - NBR
# body - brass
|
|
|
|
|
|
In an ever increasing typology of applications, is by now necessary avoid the oxidation involves any part of plant and instrumentation.

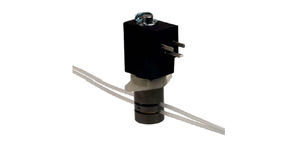

To meet this requirement, SIRAI® has designed a new solenoid valves series, characterized by the high quality of body material, made in PPS.
Besides solving definitely the problem of oxidation, these solutions allow to reduce the limescale.
The choice of an high quality polymer, particularly resistant to chemical and physical aggressions, allows to use these valves for a wide range of fluids, including low-pressure steam. PPS, furthermore, offers a good level of tolerance to ultraviolet rays and flames exposition.
These features, together with other peculiarities of the project, make these valves the best solution for several applications, especially in the field of small sterilizing autoclaves.
Solenoid valves are available in different versions: 2/2NC, 2/2NO, 3/2, 1/8” threaded or barbed ports. Also the electrical part draw up at the same level of high quality standards.
The compact coil, with a perfect balance between power absorption and magnetic performance, is available in “F” or “H” class, also homologated according to the main international standards.
|
|
|
Alcon 3-way General Purpose Solenoid Valves are ideal for mixing, diverting and venting applications. The U31, U32 and U33 Series feature a compact design available in a wide range or orifices. These valves are zero pressure rated and offer a choice of valve materials for its body and seals.
|
|
normally closed
TYPE: B919/920/921
TECHNICAL SPECIFICATIONS
Media: water, oil, air
÷ +130°C
Media temperature: -10°C
Ambient temperature: -10°C
÷ +50°C
Body material: brass (CW617N EN 12165)
Orifice material: stainless steel (AISI 303 EN 10088-3)
Operator material: stainless steel
Seal material: FKM
Coil power: AC 10VA (holding)
AC 16VA (inrush)
DC 7W
Protection class: IP 65 (with connector)
Standard manual override
|
|
|
The VV061 series is a direct operated 3-way solenoid valve designed for 4 and 8 station units with integrated compact manifold, valve, circuit board, base and fittings forming a single compact unit. VV061 series model has an optional power saving circuit that can be used for long-term continuous duty. This unit is available with one-touch or barb fitting and an optional connector cable with lengths of 300, 600, or 1000mm.
|
|
Media: air – water – gas – light oil - vacuum
Pressure range : 0 to 15 bar max
Media temperature : 100° C max
Ambient temperature : -10° to +50° C max
Media viscosity : 40 centistokes max
Mounting : any position
Weight (including coil) : 280 g
Opening or closing time : 20 milliseconds maximum
|
|
|
3/4" high capacity (DN22, kv=105 l/min) universal solenoid valve, operating pressure up to 2 bar in all directions (3/2 NC, 3/2 NO, collector, diverter).
|
|
3/2 way Solenoid Valve
direct acting solenoid valve DN3, fast acting, for neutral medium like air and water
port connections G1/4, body in brass, NBR seal,
circuit function: power free - outlet balanced, Pressure range 0 - 10.0 bar, Voltage tolerance ±10%,
Ambient temperature max +55°C / 131°F, with flat seal and fixing screw
Standard version
Protecting class IP65, with cable plug for cable-ø7 mm, Medium temperature: 0°C / 32°F up to +80°C / 176°F
|
|
Features :
‧ATEX Ex certified components approved for hazardous locations:
‧Corrosion resistant construction with standard manual override.
‧Direct mounting conforms to Namur VDI / VDE 3845 standard.
‧5/2 and 3/2 function selectable via 180° rotation of single adapter plate.
‧Exhaust feedback - provides spring chamber with instrument air preventing corrosion.
‧Wide operating temperature range -4°F to +122°F [-20°C to +50°C]. Optional Low Temp to -40°F [-40°C]
‧Also available: Intrinsically Safe and CSA/FM Explosion proof.
|
|
