Unidrive SP Modular 45kW – 1.9MW
200V/400V/575V/690V
Modular high power performance AC drive
The Unidrive SP Modular Drives Range offers the same advanced feature set as the panel mount drives but with additional power system fl exibility. Drive modules may be arranged to provide a common DC bus system with or without an active input (regenerative, 4 quadrant operation). Very high current motors may be controlled using a multi-drive modular arrangement.
Applications
The Unidrive SPM drives are suitable for applications in both commercial and industrial applications where power scheme flexibility and regenerative energy saving provides an operational advantage.
Benefits
Unidrive SP Modular offers maximum power system design flexibility. Drive modules can be connected together in a variety of ways to create common DC bus systems, active input systems for returning excess energy to the power supply and parallel drives for high power motors. All drive modules are compact for easy handling.
Modular building blocks
The Unidrive SPM range comprises key modules that can be combined elegantly to achieve your design criteria with maximum economy.
|
|
|
Baldor Drives now offers a complete solution to your motor control needs. From basic analog soft starts to full fledged Vector technology, Baldor offers high performance products in an easy to use interface. Drives start at 0.37kW and continue up to 600kW (800Hp). Custom controls can be built up to 1125kW (1500Hp). Each control is designed and manufactured to be the most reliable on the market. Baldor also offers drives from IP20 open type through to fully enclosed IP66 hosedown type units.
|
|
|
|
|
|
Commander SK
General Purpose AC Drive
0.25kW to 132kW (0.33 to 200HP) 100V / 200V / 400V / 575V / 690V
COMPACT TO FIT...
Commander SK is a compact drive -
A compact footprint with space saving features.
Commander SK gives you back valuable space with its compact footprint and extra features that can eliminate the requirement for additional components such as EMC filters.
In simple applications the onboard PLC feature saves you money by removing the need for an external PLC and power supplies. Integrated fieldbus options minimise the need for external I/O to interface with the drive.
SIMPLE TO USE...
Commander SK is an easy drive - easy to connect, easy to configure and easy to install.
Easy to connect - All connectors are generously sized and clearly labelled.
Easy to configure - The configuration settings you need for most applications are detailed on the front facia of the drive.
Easy to install - Flexibility allows you to install the drive in the best way for your application: All drive sizes can be mounted on a flat surface; DIN rail fixing integrated on small sizes; Provision for through hole mounting is standard above 4kW. This allows the heat from the drive to be dissipated externally meaning the size of the cubicle can be greatly reduced
Power to perform
Commander SK performs - Reliable and productive with exceptional motor performance as you would expect from a Control Techniques drive.
|
|
|
|
|
|
Affinity
Dedicated HVAC/R Drive for Building Automation and Refrigeration
1.1kW to 132kW (1.5hp to 200hp) 200V / 400V / 575V / 690V
IP20 (NEMA 1) and IP54 (NEMA 12)
Affinity – A dedicated HVAC/R drive
Affinity is Control Techniques’ dedicated HVAC/R drive, designed specifically to meet the needs of consultants, contractors and owners of commercial buildings. A comprehensive product line incorporates special drive functionality and accessories to simply and efficiently solve your HVAC/R applications.
Drive for a sustainable future
Affinity addresses the challenges for both today and the coming years. It is created with more than 30 years of drives experience and based on new research that considered the current and future issues and trends in the HVAC/R industry. Affinity incorporates the features you need to be at the forefront of building technology in relation to sustainability, reliability, communications and performance.
Helping you to save energy, day after day
Affinity allows you to minimise wasted energy throughout your buildings by optimising the pump or fan speed to match the environmental conditions within the building. This helps to reduce your energy costs and your carbon footprint. Software tools help to analyse the potential energy savings and can provide the justification to make the capital investment with a known payback period.
|
|
|
|
|
|
Unidrive SP
Free Standing
Fully Engineered Cabinet Drives
90kW to 675kW (150hp to 1000hp)
380 to 690V 3 phase
Unidrive SP Free Standing is a range of compact AC drives for high power motors in the range 90kW to 675kW.
The hard work has been done
Unidrive SP Free Standing drives are fully engineered and tested drive cabinets for AC input AC motor output configurations. Proven design and international approvals release your engineering resources to focus on your application.
Ideal for fans, pumps, extruders
Unidrive SP Free Standing drives are suitable for higher power applications, both commercial and industrial.
Much more compact
Unidrive SP Free Standing drives are up to 50% smaller and are significantly lighter than competitors’ ‘compact’ drive cabinets. This makes Unidrive SP Free Standing the obvious choice where space is a problem.
Proven reliability
Unidrive SP Free Standing utilises mass produced modules of proven design and reliability. The modules and cabinets are assembled using a sequential build process that eliminates build variation and provides consistently high quality. Excellent thermal and electrical design and computer modelling has ensured the drives have a long and productive life with trouble free operation.
Easy to maintain
Compact size and innovative design enables the drive modules to be easily accessed and removed for servicing or replacement. Standard modules ensure ready availability of components.
The Unidrive SP range
Unidrive SP Free Standing is a part of the Unidrive SP family of high performance drives: Unidrive SP Panel Mount 0.37kW - 132kW & Unidrive SP Modular 45kW – 1.9MW
|
|
With their cutting edge technology, the Gefran-Siei ARTDrive series of inverters incorporates all the needs of systems integrators, panel builders and machine manufacturers to guarantee the best control solutions in modern industrial automation systems.
A wide range of motor ratings, power supply settings and sector-specific configurations make this a universal solution for all control architectures.
|
|
|
|
|
|
INGEDRIVE® is a family of low- and medium-voltage, modular AC drives, for demanding single-motor or multi-motor applications. They can handle and control synchronous motors, asynchronous induction motors, and permanent magnet motors. These drives are suitable for four-quadrant operation, driving and braking in both rotation directions.
INGEDRIVE®’s modular design enables it to cover a wide range of powers and voltages while its intuitive structure makes it easy to use and maintain.
Years of experience have made it possible to incorporate advanced vector control via optic fibre for two-level rectifiers and inverters for low-voltage equipment and three-level ones for latest generation semiconductors, IGBTs, HV-IGBTs and IGCTs, the result being a safe, flexible and user-friendly interface.
INGEDRIVE® is available with powers from 250 kW up to 27 MVA, and from 400 V up to 4.16 kV, offering great performance, robustness, reliability, and long life expectancy.
The family’s energy-efficient design is a huge factor in reducing energy consumption.
|
|
- DIGIDRIVE SK: variable speed drive - 0.25 to 132 kW
Motor control : U/F Induction mode, open loop vector control mode
Main supply :
Single phase 110V up to 1.1 kW
Single phase 230V up to 2.2 kW
Three phases 230V up to 30 kW
Three phases 400V up to 132 kW
Three phases 575V up to 110 kW
Three phases 690V up to 132 kW
- UNIDRIVE SP: Universal Variable Speed Drive - 0.37 to 132 kW
Motor control : U/F Induction mode, open loop vector control mode, close loop vector control mode, servo, synchronous
Main supply :
Single phase 230V up to 1.5 kW
Three phases 230V up to 45 kW
Three phases 400V up to 132 kW
Three phases 575V up to 110 kW
Three phases 690V up to 132 kW
- PROXIDRIVE: IP66 Variable speed Drive - 0.37 to 7.5 kW
Motor control : U/F Induction mode, open loop vector control mode, close loop vector control mode, servo
Main supply :
Three phases 230V up to 4 kW
Three phases 400V up to 7.5 kW
|
|
Vacon variable speed AC drives
- a perfect choice
To choose the right Vacon variable speed AC drive for your needs, the experienced Vacon personnel is pleased to assist you in making the right decision. We know there are several issues to consider. Therefore, we have the know-how and willingness to help you to concentrate on the essentials.
What kind of an AC drive do you need?
|
|

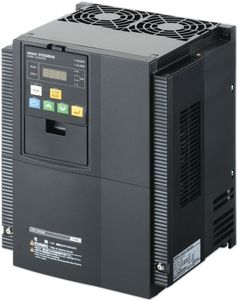

Advanced AC Drives for Excellent Speed and Torque Regulation.
3G3RX Features:
- Open-and Closed-Loop Vector Control for high performance applications requiring excellent speed and torque regulation such as extruders, winders, and packaging machines.
- High starting torque: 200% at 0.3 Hz (Closed loop) allows zero speed load holding
- Combine AC drive with an encoder for feedback to perform low precision positioning applications.
- Overcurrent and Overvoltage trip suppression reduces nuisance tripping
- Restart Function allows automatic recovery from momentary power loss
- Built-in Radio Noise Filter lowers noise impact on other drives and equipment
|
|
POWERDRIVE: Variable speed Drive - 45 to 1300 kW
Motor control :
- U/F Induction mode
- Open loop vector control mode
- Close loop vector control mode
- Synchronous
Main supply :
- Three phases 400 V - 45 up to 900 kW
- Three phases 525 V - 160 up to 1300 kW
|
|
|
|
|
|
Easy to plug, and easiest to play

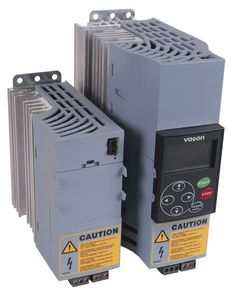

The Vacon NXL is a powerful and compact AC drive for industrial and residential purposes in the power range from 0.25 to 30 kW.
The space-saving bookshelf design with high protection classes, versatile control and programming capabilities offer an optimal solution for all operating environments. Installation, connection and commissioning procedures are extremely quick and convenient with instructions attached to the unit.
Thanks to an extremely effective design, everything is included as standard. The units can be installed on the wall without additional cabinets because of high protection classes. The RFI filters and brake choppers are always integrated. The standard units fit almost everywhere in both industrial and residential areas. The integrated AC choke is the most effective way to protect the drive against the overvoltage spikes and to reduce the stress on supply transformers, cables and fuses.
More features, more performance
No additional cabinets required
Everything integrated as standard (dust/water protection, RFI filter, AC choke, brake chopper)
Easy to install, easy to use
Low noise (both drive and motor)
Large amount of control possibilities (via I/Os, field buses or display panel)
Large amount of features (e.g. fully programmable I/O, autoidentification, PID controller, flying start)
High performance
Convenient installation and programming
The installation and programming is extremely quick and convenient with the help of the credit-card-size Quick Guide. The programming is often just a selection of load type and fine-tuning of the motor nominal current and speed.
|
|
|
|
|
|
The Vacon NXS is a compact AC drive in the power range of 0.37-560 kW and supply voltages of 208-690 V for heavy use in machines, buildings and all branches of industry.
The robust design incorporates effective protection against supply network disturbances. Trip-free operation is also guaranteed due to sophisticated motor control principles and motor/drive protection features, component selection and effective cooling.
The reliable choice
Enclosure classes of IP21 and IP54 and integrated high-level EMC filters make the Vacon NXS suitable for all environments.
The Start-Up Wizard and the standard All-In-One Application Package make parameter setting extremely easy in all cases, from simple to complex.
The wide and flexible standard I/O and option for five I/O boards provide versatile controllability. The most common fieldbus options are also available.
The modular design of the Vacon NXS brings several advantages: the control terminals are safely separated from power terminals,upgrading the control inputs and outputs is easy and convenient, replacing the cooling fan (the only regularly replaceable component) is fast, the display panel can be utilized for parameter copying, etc.
|
|
|
|
|
|
The Vacon NXP is a state-of-art AC drive for use in all applications where robustness, dynamic performance, precision and power are required.
The quality and reliability of a machine or a process is in most cases the result of a precise and dynamic control of AC motors. The Vacon NXP has been designed to provide the best possible control under all circumstances and thus to ensure a high operational quality and availability for the entire lifetime of the system.
The dynamic choice
A forerunner in designing and manufacturing AC drives, Vacon has developed innovative solutions and leading-edge technology for demanding applications and high powers.
By bringing these solutions to the customer the Vacon NXP offers new opportunities and helps to create the best and most innovative products and to reach the most challenging targets.
The superlative in performance
Complete power and voltage range
Wide set of applications adapts the Vacon NXP to virtually any need
Controls induction and permanent magnet motors
Dynamic open and closed loop vector control
Complete range of communications and I/O options
Fast drive to drive communication
|
|
|
|
|
|
|
The RM 220E regulator is an electronic speed variator for the MINI MOTOR single-phase asynchronous motor of the ACR / ACER / PAR / PAER / MCR / MCER series. Speed variation is obtained by varying the power supply voltage to the motor at the right moment. The retroaction control makes it possible to maintain a constant rotation speed of the motor in line with the variation of the load applied. Speed regulation is obtained by means of a potentiometer fitted on the front panel of the unit, and 4 incorporated trimmers are used for regulating: The acceleration and deceleration ramps, the response time and maximum speed, and master or slave selection. This speed regulator can be supplied in the RM 220E panel version with the possibility of inserting an ID speed indicator as an option. It is also available in the open version RM 220E/G for electrical board or cabinet fitting. The RM 220E regulator conforms to tests prescribed by product standard CEI EN 61800-3 dated 09/96 and has been designed to operate in industrial environments. It is not therefore suitable for use on low-voltage public networks supplying power to homes.
|
|
The MININVERT 370 and 740 are static frequency converters with PWM microprocessor system, which make it possible to obtain high performance features such as speed control in retroaction and position control. These models have been designed to activate small three-phase motors with power between 10 and 370 W (½ HP) for the 370 model, and up to 740 W (1 HP) for the 740 model. They can be panel-mounted as well as with the normal attachment inside the cabinet using the
related supports. A particular feature is that of position control, which is handled entirely by the inverter and can be controlled in various ways (see the table of technical characteristics). The frequency converters comply with CEI EN 61800-3 electromagnetic compatibility standard.
|
|
Variable Speed AC Drives ERCFW09 Series
The ERCFW09 Series of Variable Speed Drives incorporates the world’s most advanced technology in drives for three-phase AC induction motors.
- Power Rating 1.1kW-1100kW/1.5HP-1500HP
- Flexible control options with Vectrue Technology™ control
- More compact, economic solution utilising Optimal Braking™ technology
- Optional PLC functionality built-in
- Detachable SMART keypad with dual display (LCD and LED)
- Variable and constant torque ratings
- On/offline PC programming utilising SuperDrive Software
- Fieldbus communications
Applications:
- Fans/Exhaust
- Centrifugal pumps
- Metering & Process pumps
- Centrifuges
- Mixers
- Extruders
- Injection Machines
- Calenders/Pullers
- Winders/Unwinders
- Cut and Welding
- Machines
- Granulators
- Vibratory Feeders
- Dynamic Separators
- Conveyors
- Washers/Driers
- Air Conditioning Units
- Rollout Tables
- Enamellers
- Commercial Elevator
|
|
|
|
|
|
AF-300 G11 General Purpose Drive
The AF-300 G11™ drive brings the latest power and control technology to general industry, constant torque applications. New soft-switching technology lowers installed cost by allowing the AF-300 G11 drive to be used with a standard non-inverter duty motor in many applications.
Features and Benefits:
Pre-loaded motor parameters and factory defaults
Out-of-the-box installation
Dynamic torque vector control
Smooth, precise, and efficient motor operation
Modbus RTU or other optional protocols
For simple connection to process controller
Pattern Operation
Allows up to seven stages of pre-programmed accel/decel and speed patterns for batch process
New generation IGBT
Reduced electrical noise and less voltage spiking
Online tuning
Provides continuous check for variation of motor characteristics during running of high-precision speed control
Intelligent and back lit display keypad
Accepts commands from local or remote keypad or from facility management systems
Has copy function in six different languages
Applications:
General industry machinery
Commercial consumer
|
|
A long-time leader in providing reliable, power control solutions, Rockwell Automation® offers an industry-leading family of drives. Designed for powerful performance and flexible control, the Allen-Bradley® PowerFlex® family of drives is geared for motor control applications ranging from low to medium voltage.
PowerFlex drives meet industry needs of solution providers, OEMs and end-users for applications ranging from 0.2 kW (0.25 hp) to 6,770 kW (9,000 hp). Our Component Class drives offer cost-effective motor control, geared for machine-level and stand-alone applications. Our Architecture Class drives provide superior application flexibility and control system integration for a broad range of power offerings.
|
|
The VLT® 2800 series is among the smallest multi purpose drives in the market. Designed for space saving side-by-side mounting. Choose to have it with e.g. Motor Coils, RFI filter, LC+1B filters.
The VLT 2800 is an advanced and versatile drive, easy to operate.
The quick menu includes all parameters basically needed for commissioning the drive. Offers fast installation and service.
|
|
Micro Series: 1/2 through 60 HP
Full metal NEMA 1 or NEMA 4/12 enclosures. Intuitive alphanumeric
display for programming and set-up. Built-in thermal overload
protection and heavy-duty wiring terminals. With these industrial-duty
features, and many others, SPEEDMASTER® Micro Series inverters
set the standard for out-of-the-box functionality. Plus, their modular
design reduces manufacturing cost and enhances reliability, making
our Micros among the most cost-effective full-featured drives. Best of
all, LEESON’s customer-friendly inventory approach allows the flexibility
to purchase quantities large or small to meet immediate needs.
|
|
Variable Frequency Drive / Inverter
Starvert series is one of leading variable frequency drive(AC drive). Basic function of AC drive is to transform DC to AC electronically and controls the speed of motor by changing voltage and frequency inputted from common power(AC220V/440V). Starvert series offers wide lineup to satisfy various industrial-needs. With LS Starvert series, you can be benefited from energy-effective and environment-friendly automation system.
|
|
ARIDYNE®2 is Emerson Motor Technologies’/USEM’s new rugged yet simple to setup range of Sensorless Vector Drives. With our 100+ years of motor design and manufacturing experience, who better to trust with your VFD requirements! We understand motor system performance and reliability better than anyone and have put that knowledge into bringing you this friendly yet powerful AC drive – the VARIDYNE®2.
Applications: Ideal for Pumps, Blowers, Conveyors, Mixers, and much more
Operating Environment:
* Ambient temperature -10°C to 40°C
* Electromagnetic Immunity complies with EN61800-3, EN61000-6-1 and EN61000-6-2
* Humidity 95% maximum (non-condensing)
* Electromagnetic Emissions complies with EN61800-3 (second environment) as standard.
* Complies with (with optional footprint EMC filter) EN61000-6-3 (residential) and EN61000-6(industrial) generic.
|
|
YASKAWA Electric, as a motor control pioneer, has led the industry by commercializing numbers of AC Drive drives incorporated with first-in-the-world innovative technologies.
These technologies have widely penetrated into the industry as de facto standard (global standard). The quality, performance and capability of them have been recognized by customers worldwide and we maintain the top share of the global market.
|
|
G5 Drive 600 Volt
2 - 200 Horsepower General Purpose Vector Drive
The G5 Drive 600 Volt produces an output of adjustable voltage and frequency to control the speed of a squirrel cage induction motor. This PWM design provides low motor noise and high starting torque. Current overload rating is 150% for 60 seconds. The drive provides 3 modes of control and speed accuracy to suit application requirements; V/Hz (2%), sensorless vector (0.1%), or flux vector control (0.01% with motor-mounted encoder and drive-mounted PG-X2 card required).
This product may also be labeled GPD515/G5.
|
|
|
|
|
|
AV-300i High Performance Drive
The AV-300i is an exceptional drive. A quick glance shows the sleek, ergonomic design that makes it stand out from the crowd. Taking a closer look at the AV-300i shows the impressive performance and flexibility in a compact package that suits your application. With innovative modes of operation like sensorless flux vector control and scalar V/Hz, the AV-300i is the perfect solution for any control system.
Features and Benefits
* GE Control System Toolbox Software
Combined configuration, trend recording, and operator interface
* Start-up Wizards and Sef-Tune Screen
Quickens and simplifies start-up
* Virtual keypad that is also backlit and removable
Allows operators to control drive from PC screen as if using keypad on drive itself provides easy viewing and access
* Graphic Monitoring of Drive Variables
Expedites start-up and displays drive's parameters and functions
* Open Architecture
Allows connection to communication protocols
Integrates with PLCs and operator interfaces
* Optional DGF Programmable Application Card
Develop customized control functions and execution blocks
Applications
* Stand Alone
* Paper, Converting, and Processing
* Plastic, Rubber, and Processing
* Textiles, Printing, Metals, and Metal Processing
Specifications
* 460 VAC .75 - 200 Hp
|
|
VAT 20 Mini-Micro Drive
The VAT 20™ drive is designed for use in small machines such as fans and conveyors, as well as other machines in which motor speeds can vary. The VAT 20 series is available in ten models, from 1/4 to 3 hp, allowing you to select the model that best suits your application.
Features and Benefits
* TB_WEB006_PRODUCT_NAVIGATIONBuilt-in terminal block
Requires only power and motor connections for use
* Easy-to-use keypad panel
Program drive and set output frequency
* UL listed Motor Thermal VAT 20 Overload
Protects motors from overload without External overloads
* 540TB_WEB006_PRODUCT_NAVIGATION3 Preset Speeds
Allows simple multiple speed selection
* DC Injection Braking
Allows deceleration without use of external braking resistors
* DIN Rail Mounting
Available with optional kit
|
|
AF-300 M$11 Micro Drive
The AF-300 Micro-$aver II™ has the functionality you would expect in larger standard drives. Torque vector control, automatic tuning, auto-restart after momentary power failure, and extensive diagnostics are just a few of the seventy-nine standard features available in the AF-300 M$ II™ .
Features and Benefits:
Small Footprint
Suited for OEM designs where space is a premium
Latest IGBT Technology
Reduces noise while improving torque characteristics
Large Overload Capacity
Supports shifts in operating torque demand of 150-200%
Specifications:
230 VAC .25-5 Hp
460 VAC .50-5 Hp
|
|
T-T Electric proposes a series of Titan Drives with a power range of 0,75 to 300 kW for the wall-mounted version and 400 to 800 kW for the stand-alone cabinet version.
Titan Drive includes numerous functions as standard in order to precisely meet all application requirements.
4 controls in 1 drive - the ultimate drive for all applications:
1 Standard V/f control
2 V/F control with PG feefback
3 Sensorless flux vector control
4 Flux vector current control with PG feedback
TITAN Drive can be applied to a wide range of applications from servo-like precision machinery to multiple motor drives.
|
|
|
|
|
|
|
OS3 drives can be directly connected to the 3 phase supply network. They operate with a nominal 400V to 480V AC power input. This characteristic allows the product to be used in applications in a variety of geographical locations without need for a transformer to adapt to the local power source. The drives have an internal supply derived from the 3 phase to feed the control’s electronics. This feature allows dynamic breaking in the event of interruption of the power network. The control’s electronics are also supported by an external 24v d.c. supply. During the dynamic breaking phase, energy accumulated by the load is dissipated across internal breaking resistors. For extremely heavy work cycles an external breaking resistor can be connected in place of, or in parallel with the internal resistors. In common with most drives, the high-tension bus is accessible through a connector, this allows the use of external supplies containing breaking resistance. Various motors with different technologies can be controlled, such as permanent magnet motors, brush-less motors, induction motors and variable reluctance motors. The standard transducer is a sinusoidal encoder (Sin-Cos). Programmable inputs and outputs increase the drive’s flexibility. The OS3 family of drives is available in 2 different families : family A includes three power size 3/6A , 5/10A and 9/18A connected to the three-phase power supply with a voltage level between 220 VAC and 480 VAC +-10%. Family B includes three power size 5/10A , 10/20A and 15/30A connected to the three-phase power supply with a voltage level between 380VAC and 440VAC +-10%.
|
|
... see all the products in the category
AC drives
|
|
|
