The Dytran pressure sensor model 2180C is a high intensity acoustic sensor ideal for measurements involving gas turbine combustor dynamics. It features a top TNC electrical connector, a 1-1/8-12 mounting thread, and a stainless steel diaphragm. The 2180C has a charge sensitivity of 700pC/psi and a range of 10 psi (191dB). This all-welded stainless steel sensor can monitor pulsations, turbulence, a noise in hydraulic and pneumatic systems as well as detect pressure fluctuations in exhaust systems, compressors, turbines, pumps and pipelines. To learn more about the 2180C, please visit the Dytran website or email us.
Key Features
- Top TNC connector
- 700pC/psi sensitivity
- 10 psi (191dB) range
- Charge mode
- Can operate up to +400°F
- All stainless steel construction
- Hermetically sealed
Potential Applications
- Gas turbine combustion dynamics studies
- Pressure fluctuation measurements in exhaust systems, compressors, turbines, pumps and pipelines
|
|
Model 130A40
Low-profile surface pressure microphone and preamp, 45 mV/Pa, prepolarized
Nominal Microphone Diameter: 1/4"
Frequency Response Characteristic: Pressure
Electrical Connector: (Output) 10-32 Coaxial Jack
|
|

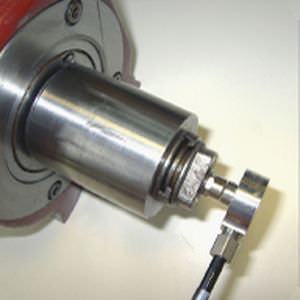

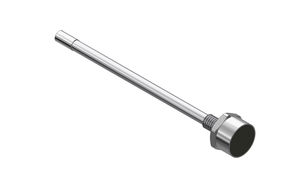

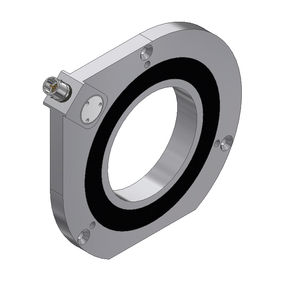

Using acoustic technology to detect subtle changes in the sounds produced during grinding, these systems produce extremely precise feed rate control when the wheel is touching the part or the dresser.
Acoustic systems are particularly useful for preventing collisions and detecting machine and tool abnormalities, chipped grinding wheels and dresser faults.
|
|
Model 103B01
Acoustic ICP® pressure sensor, 3.3 psi, 1500 mV/psi, integral 2-wire cable, accel. comp.
Measurement Range: (± 5 V output) 3.33 psi (181 dB)
Sensitivity: (±15%) 1500 mV/psi (217.5 mV/kPa)
Low Frequency Response: (-5%) 5 Hz
Resonant Frequency: >=13 kHz
Electrical Connector: Integral Cable
|
|
The Model 567M7 High Intensity Acoustic Sensor (Microphone) is designed for the measurement of gas-borne sound in industrial applications. The sensor was designed for use in corrosive environments that are compatible with the type 316 stainless steel diaphragm. Model 567M7 incorporates a 2-pin MIL-C-5015 connector interface. When combined with its all-welded construction, the sensor provides a true hermetic seal. Electrically, this device comprises sensing elements of piezoceramic material in a balanced and floating configuration to provide enhanced rejection of electrical noise associated with many industrial environments.
- SENSITIVITY: 1100pc/psi
- MAX PRESSURE: 550psi
- FREQUENCY RANGE: 5.2Hz to 5KHz
- ELECTRIAL ISOLATION: Yes
- CONNECTOR: 2 Pin MIL-C-5015
- MOUNTING: 1.125-12 UNF-2A Straight Thread
- Details: High Temperature Sensor
|
|
|
|
|
|
The Genesis speaker microphone is the most rugged in OTTO’s speaker microphone line. The Genesis is designed to be a watertight unit with excellent audio performance. The Genesis also offers an optional watertight accessory jack to support a full range of audio accessories including Skull and Throat Microphones and other headset options. This unit is designed for rugged environments including Public Safety Markets (police, fire, SWAT and EMT services), maritime law enforcement, high-end industrial and military users.
Features:
* Removable front grill to easily wash away dirt and debris
* Optional Watertight (plugged or unplugged) accessory connector
* A dual grill which provides immersion & high pressure water seal
* Fully sealed per IP68 (Submersed in 1 meter water for 31 minutes)*
* Large snap-action PTT button to accommodate fire gloves and other protective gear
* Reduced gain on microphone that helps reduce ambient noise
* Speaker always remains active
* Durable design and construction to meet MIL-STD-810 specs
* Heavy-duty cable assembly with strain relief for demanding applications
* Clothing Spring clip which can be positioned 360 degrees
* Flexible design to fit most portable radio configurations
* Optional top mounted antenna connector
* Optional emergency button
* Optional accessories including Throat microphones, Skull microphones, Ranger headset and others
|
|
The AKU2000 is a surface-mountable, digital-output silicon microphone which is optimal for use in microphone array applications where a high of degree noise immunity is required. The AKU2000 integrates an acoustic transducer, analog pre-amplifier, and a 4th order sigma-delta modulator on a single chip. The output of the microphone is Pulse Density Modulated (PDM), or a single-bit digital output stream that can be connected to downstream electronics for a high degree of design flexibility and freedom.
BENEFITS OF THE AKU2000
- Surface-mountable and automated pick & place compatible
- Robust digital-output immune to RF and EM interference enabling increased audio design flexibility and signal integrity
- Shielded cabling not required for signal routing
- Small form factor enables placement in thin profile areast
|
|
|
|
|
|
The AKU2004 is a top ported, surface mountable, digital output microphone
designed for microphone arrays integrated on camera modules. As a full Voice-to- Bits™ digital audio solution, the AKU2004 handles the analog voice signal arriving at the transducer through several levels of on chip processing until the voice signal is digital and ready for interface formatting. For the manufacturer, this translates to a microphone array solution that is virtually immune to all forms of Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI) while at the same time decreasing design complexity and improving time-to-market.
BENEFITS OF THE AKU2004
- A complete Voice-to-Bits™ digital audio solution virtually immune to all forms of RFI/EMI, eliminating the need for shielded cables.
- Frequency and phase-matched for optimal integration with Microsoft Vista's audio algorithms or other noise suppression / beam forming software.
- Top ported for single-sided board designs
- Surface mountable for standard automated manufacturing flows
- Tri-state output for single line multiplexing
- User Selectable L/R option for Single SKU inventory management and
manufacturing Reliability.
|
|
The AKU2103 HD (High Definition) Digital Microphone is a surface-mountable, silicon microphone with a guaranteed wideband frequency response enabling a true HD voice experience for VoIP and other speech applications.
BENEFITS OF THE AKU2103
- Guaranteed wideband frequency response and digital-output leads
to true HD voice experience for end-user
- Optimized for use with Microsoft Vista™ audio applications
- Robust digital-output immune to RF and EM interference
- High PSR eliminates the need for a regulated power supply
- Small form factor enables placement in thin profile areas
- Surface-mountable and automated pick & place compatible.
|
|
|
|
|
|
The AKU2001 is a surface-mountable, digital-output silicon microphone with a tri-state output, allowing the outputs of two microphones to be multiplexed together and share a single data line. The AKU2001 integrates an acoustic transducer and a 4th-order sigma-delta modulator on a single chip. The output of the AKU2001 is Pulse Density Modulated (PDM), or a single-bit digital output stream that can be decimated by a digital filter in downstream electronics such as an audio CODEC, DSP, or base band processor.
BENEFITS OF THE AKU2001
- Digital-output microphone designed specifically for optimal performance and design simplicity of microphone arrays
- Ideal for use with Microsoft Vista™ audio applications
- Surface-mountable and automated pick & place compatible
- Robust digital-output immune to RF and EM interference enabling increased audio design flexibility while reducing design complexity
- Tri-state output reduces number of wires required
- Shielded cabling not required
- PSR eliminates the need for a regulated power supply
- Small form factor enables placement in thin profile areas
|
|
|
|
|
|
The M4260 is the ideal measurement microphone for the XL2. Operated with 48V phantom power the M4260 is an extremly accurate and stable measurement microphone.
The servo-loop output stage design supports long cable connections between the analyzer and the microphone - up to several hundred meters. M4260 is also recommended and easy to use in conjunction with PC based measurement systems with high quality audio cards.
Technical Data M4260
Microphone Type 1/4”, omni-directional, free field transducer
Sensitivity (20 ±2) mV//Pa, (-34 ±1) dBV/Pa @ 1 kHz
balanced output
Freq. Response 100 Hz - 1250 Hz ±1 dB
20 Hz - 20 kHz ±3 dB
in accordance with IEC61672, class 2
Peak Input 130 dBSPL @ 1 kHz
Noise floor 30 dBSPL, A-weighted
Load Conditions 20 - 200 kOhm balanced,
Power Supply +48 V Phantom power required (supplied by XL2)
Dimensions ø 22 x 150 mm, ø 0.87” x 6”
Weight 100 g ( 3.5 oz )
Temperature 0° to +45° C (32° to 113° F)
Humidity 90 % R.H., non condensing
Conforms to the Normative Standards EMC-Directives: 89/336, 92/31, 93/68
Harmonized Standards: EN 61326-1.
|
|
The M2010 and M2015 are compact and accurate measurement microphones for acoustics, R&D and production. They are particularly suited for applications with restricted space available. The microphones M2010 and M2015 are optimised for a flat, free-field response in the audio range 20Hz - 20kHz.
Microphone Characteristics
* 1/2” omni-directional pressure microphone
* Flatness Class 1 (IEC 61672-1)
* Phantom power 10 - 48 VDC
* Measurement range typical
M2010: 24 - 145 dBSPL
M2015: 34 - 155 dBSPL
Detachable Cable
The detachable microphone cable at the pre-amplifier simplifies integration into mechanical fixtures, such as robotic arms.
Packaging
The microphone includes a wind screen, a microphone stand and an individual calibration certificate with individual frequency response chart and sensitivity.
|
|
Roga MI-17 ICP® (IEPE) measuring microphone - Description:
These 1/4"- ICP® (IEPE) measuring microphones are pressure transducers. The model MI-17 have integrated electronics, and can be delivered with sensitivities from 10 to 100 mV/Pa at tolerances of within ± 5 %. Special custom versions are also possible. Power supplies for the microphones can be either a constant current source of 2 - 6 mA (standard version) or a constant voltage source 4 - 30 Volts. Normally the microphones are fitted with BNC-connectors (fem.) allowing standard BNC-BNC cables to be used. Other connectors such as TNC, SMB, Lemo or ìdot are also available on request.
These microphones are quite suitable for array applications.
ICP ® is a registered trademark of PCB Group Inc.
|
|
Ultrasonic PD Sensor LDA-5/S used for PD detection during in-service inspection of high voltage (HV) equipment
Applications
Detection of partial discharges (PD) for in-service inspection of high voltage (HV) equipment, such as HV transmission lines, power transformers and gas insulated switch gears (GIS)
Interpretation of the acoustic emission (AE) with measuring frequencies about 100 kHz
Combined with electrical PD detection, the AE technique represents a cost-effective procedure for PD fault location
Specifications
Measuring frequency appr. 40 kHz
Amplification > 80 dB
Voltage supply 7,5 - 9,5 V
Mean current consumption < 5 mA
optional: Lasermodul available (current consumption appr. 80mA)
|
|
| ... products without technical information |
| |
|
|
|
|
The BinMaster 3DLevelScanner utilizes a 2-dimensional array beam-former that sends very low frequency, dust-penetrating acoustical pulses and receives echoes of the pulses from multiple points on the surface of the material in the bin. The 3DLevelScanner offers multiple point accuracy as the device takes measurements from multiple points versus a single point, thereby taking into account variations that can occur on material surfaces. Standard ultrasonic, radar or cable-based units measure just one point and determine a single distance, while the 3DLevelscanner takes measurements from multiple points within the bin, ensuring greater accuracy.
The low frequency technology penetrates dust, making it suitable for environments where ultrasonics and radar may fail. It is unaffected by material type and is appropriate for powders, granulates, pellets and other solids with no need for special calibration. Employing non-contact measurement, it is suitable for foods, chemicals and pharmaceuticals. There is no risk of moving parts coming into contact with bin material. It offers long measurement range of up to 220 feet and is appropriate for tall bins (taller than they are wide). Three independent transducers promote accuracy and system redundancy, making it one of the most advanced technologies available.
The 3DLevelScanner provides the user a scaled 4-20mA output that can represent either the product or headroom volume. Using an optional HART or RS-485 connection, the user can also connect to the scanner using the 3DLevelManager software. This advanced software allows the user to view real-time data from the scanner and make configuration changes remotely from a PC.
|
|
|
|
|
|
Gobius is installed and ready to use in 30 minutes!
Gobius is the first level indicator in the world that measures the contents of tanks in stainless steel, steel, aluminum, plastic and fibre glass from the OUTSIDE. Gobius is reliable, regardless of the tank’s size, shape, or amount of deposit on the inside of the tank wall. Level indication conducted from the outside of the tank means contact free measurement. The advantages of this is highly appreciated by the pharmaceutical, chemical and food industries, where demands on handling of corrosive and sterile liquids are very high.
Very easy to calibrate
No tanks look the same. There are always differences in e.g. size, construction, thickness and age. In order to compensate for these differences you have to calibrate the tank before you start to use your Gobius. However, the calibration only takes a few seconds, all you need to do is to press a button while the tank is full or empty.
The Gobius Technology (patented)
Level indicator Gobius is based on our innovative Gobius Technology, best described as ”knock and listen”. Every sensor that is placed onto the tank wall consists of a shaker and an accelerometer. When the shaker creates a vibration in the tank wall, the accelerator measures the size of the vibration and passes the data on to the control unit. Each sensor is only 26 mm high with a diameter of 70 mm.
Complete system
On the sensors there are strips of tape that are provided to attach the sensors directly onto the surface of your tank. All necessary cables and plugs needed to connect the sensors and panel with the control unit and to external systems are included.
|
|
The APM 3DLevelScanner™ is an innovative new family of devices that continuously measure level, volume and mass of materials inside a silo or an open bin.
The 3DLevelScanner S measures practically any kind of solid material, stored in
practically unlimited variety of containers, including large open bins, bulk solid storage rooms and warehouses.
The 3DLevelScanner is unaffected by conditions such as dust and filling noises and can and have a measuring range of up to 70m.
|
|
APM's 3DLevelScanner provides an innovative measurement method that takes the guesswork out of measuring the level, volume and mass of materials inside a silo or open bin by generating 3D maps of the contents.
The ultimate true level measurement.
- non-contact measurement.
- unaffected by conditions such as dust and filling noises.
- 3D mapping of the content surface.
- measures an unlimited variety of containers including large silos,
large open bins, bulk solid storage rooms and warehouses.
- measuring range up to 70 m.
- dust-Ex approval.
The 3DLevelScanner™ employs an array of microphones that measures and maps the entire surface area, and a patented algorithm that processes this information and generates a 3-dimensional map.
This unique device can then accurately determine the volume and mass of material, enabling an unrivaled degree of process measurement and inventory control.
|
|
The 3DLevelScanner can measure the level, volume and mass of materials in new applications that prior technology could not reach.
It measures practically any kind of material stored in practically an unlimited variety of containers, including large open bins, bulk solid storage rooms and warehouses.
3-dimensional mapping delivers true and absolute surface level with taking care of loads that randomly form over time inside silos.
|
|
The APM 3DLinkPro provides state-of-the-art GSM/GPRS wireless communications with all APM products. I significantly enhances customer service by providing the following key benefits:
- Easy software upgrades
- Remote analysis of data
- Remote diagnosis of system performance
- Remote system configuration
The possibility of such remote access is especially adventageous in situations where traditional wiring would require considerably more work and expense - where units are installed far from home base and/or over a broad terrain.
|
|
|
|
