Odour-filtration for supply and exhaust air in domestic and technical applications.
To be used for in air conditioning plants for the removal of smells and odours in public buildings, airports, offices and industrial premises.
Activated carbon filter with base plate and cylinders made of galvanised or stainless steel
- Cylinder filled with activated carbon granulate
- Exchangeable cartridges can be regenerated
- Simple replacement thanks to bayonet coupling
- Plates are also available with 4, 6 or 8 hole configurations, depending on your specific needs.
|
|
|
Filter systems especially made for the laser industry. Suction systems for laser jobs with i.e.metal, wood, plexiglas and gum (cutting, welding, marking etc.)
|
|
|
ACS carbon filters are used to adsorb gaseous odours and impurities from the air stream and are available pre-assembled as either cartridge filters or panel filters or alternatively supplied in loose bulk form as well as carbon coated foams and synthetic media. The cartridge shown here is particularly abrasion resistant whilst offering low air resistance. Along with standard grade carbon a comprehensive range of impregnated carbons is available in various particle sizes. For the more demanding of applications the range is completed by chemical adsorption and oxidation filters incorporating specially designed granules.
|
|
Honeycomb activated carbon filter mesh is made by loading activated carbon on polyurethane materials,which has carbon content of about 35-50% and excellent adsorption functions. It can be used for air purification such as getting rid of volatile organic compounds, dust in the air, smoke, adors and pollutants such as toluene , and formaldehyde. It is mainly used for air cleaner, air condition and etc. It is easy to be made into any shape ,has low resistance of airflow and pressure falloff.
Material characteristic:
Width: 3-20mm
Pore Size: small middle large
Benzene Adsorption Capacity: 25-32%
Gas Resistance: 1.0m/Sec
Pressure Falloff:4mm:42Pa
20mm:98Pa
|
|
Applications
Clean room technology
Production facilities, air-conditioning and ventilation technology
Consumer products and electronic devices
(e.g. cooker hoods, vacuum cleaners, mobile room air systems, laser copiers, laser printers)
Advantages
Clean room technology:
Reducing the number of rejected parts
Lowering production costs
Increase process reliability
Improving product quality
Avoiding corrosion
|
|
Activated carbon filtration :
To elîminate odours and VOC. The filter cells can be regenerated simply by repladng the carbon.
|
|
OdorBan Carbon Pleated Panel Filters
For odor and fume control our "OdorBan" products are an efficient and economical solution. "OdorBan" pleated panel filters fit existing filter housings thus eliminating the need for costly equipment changes. "OdorBan" pleated panel filters add to the benefits of "OdorBan" pad/roll media by increasing surface area for extended service life, lower pressure drop and even greater removal efficiency. OdorBan filters are now rated MERV 8 per AHSRAE 52.2.
OdorBan Bulk Rolls and Inserts
For odor and fume control our "OdorBan" products are an efficient and economical solution. "OdorBan" pads and rolls are polyester filter material with carbon bonded to every fiber. Even distribution of small carbon particles insures good removal efficiency of odors and fumes. "OdorBan" pads and rolls fit existing filter housings thus eliminating the need for costly equipment changes.
|
|
PROTECT VENTSORB® 60
The PROTECT VENTSORB® 60 is simple activated carbon adsorber designed for treatment of air and gases for a range of applications.
The PROTECT VENTSORB® 60 is effective at purifying air streams with relatively low concentrations of Volatile Organic Carbons (VOCs) as well as odour forming and corrosive compounds.
The unit is preloaded with activated carbon for the specific application and is ready for immediate connection and start up.
|
|
The PROTECT VENTSORBs® are a range of activated carbon adsorbers designed for treatment of air and gases for a range of applications. They can be delivered as standard or regenerable option – For CENTAUR®.
The PROTECT VENTSORBs® are effective at purifying air streams with relatively low concentrations of Volatile Organic Carbons (VOCs) as well as odour forming and corrosive compounds.
The air or gas flows through the unit in an upflow direction and the unit is normally utilised as the end of pipe. The outlet should be monitored periodically to check the activated carbon is achieving the treatment objective. For larger flows or duties, a number of units can be used in parallel.
|
|
Nano-Tio2 was deposited on the surface of filter in various material, that has better absorption than activated carbon. Nano-Tio2 visible-light-induced photocatalysis may decompose deleterious gas such as formaldehyde, benzene, ammonia, nicotinism, etc., and sterilize air which may contain germs suspended therin, deodorize air. Light accelerant is harmless to the human body, and last permanently. Photocatalyst Filter ismainly used in sterilization of air machine.
Odor decomposing rate is more than 96%.
Bactericidal rate is more than 99%.
|
|
-Aluminum foil mesh with high absorption efficiency for oil smoke;
-Size depending customers demand;
-Safety level: UL Certificate, Class 1 and Class 2
|
|
Hi-efficiency filter
This product can filter effectively dust particles and bacteria above 0.3 micron under rating air flow , and can restrain the reproduction of bacteria.
This product can be widely used in ventilation project, operation rooms in hospitals, asepsis room, food factory, semi-conductor parts factory, pharmaceutical factory, air-conditioning for home, central air-conditioning, air fresher and other places with strict air cleanness.
|
|
| ... products without technical information |
| |
Active Carbon
Carbon Bed Filters are of vertical fabricated construction generally mounted on skirts.
In operation, the process fluid enters the filter above the bed, through the inlet nozzle and via radial distribution lateral, designed to ensure an even flow distribution over the top surface of the carbon.
The contaminated medium passes through the granular activated carbon bed, where the impurities are attracted to the very high surface area of the Carbon.
The carbon bed is supported on a graded 'Silex' base consisting of a course and fine layer of which will fully support large volumes of carbon.
|
|
Activated Carbon Water Filter FR
Fiber Glass Reinforced Plastic (FGRP) composite vessels are 1/3 the weight of carbon steel, strengths are directly comparable to steel, no maintenance & high aesthetic appearance.
• High performance Composite material
• Thermoplastic liner of polyester – wall thickness 3.8 mm to 7.6 mm as per vessel diameter
• 100 % corrosion resistant
• Excellent bonding between inlet & PE liner
• Better curing at high temperature
• 200 mm to 1,000 mm diameter
• All are top opening & dia 450 mm onwards top & bottom opening
• 450 mm onward flange fitting
• Operating Pressure – 10.5 kgf/cm2
• Operating temperature – 490 C
• 250,000 times cycle test from 10 psi to 150 psi
• Vessels are NSF & PED certified
|
|
|

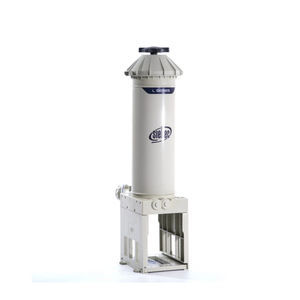

Carbon treatment filtration systems are designed to carbon treat and filter bright nickel, acid copper, tin and zinc, ferrous chloride, copper pyrophosphate, cyanide copper, zinc, cadmium and silver, lead-tin fluoborate and most other plating solutions.
|
|
This water filtration equipment is recommended for the removal of unpleasant tastes and odors, dechlorination, or organic contaminant adsorption. Depending upon the exact application a variety of carbon types can be used.
ADVANTAGES:
- Materials and Coatings Selected to Withstand Corrosive Environments
- Reliable, Low Restriction Valves
- Distributors Allow Operation Over Wide Flow Rate Range
- Standard Designs Reduce Cost and Delivery Time
- Simple Operation Reduces Operator Training Requirements
- Efficient Adsorption Tailored For Each Applications
|
|
|
The PTU range of modular pressure adsorbers are designed specially for drinking water treatment. Individual units contain up to 40m³ of Filtrasorb type granular activated carbon and can treat from 30 to 250m³/h depending on the applications. Multiple units have been installed to treat over 30,000m³/day. The PTU range are designed for simple installation and removal of granular activated carbon for reactivation. All materials and product comply with the relevant drinking water regulations. PTU systems have been installed at over 40 water works in the United Kingdom, Benelux and Scandinavia.
|
|
|
|
|
|
The CYCLESORB Service is a mobile adsorption service combining adsorber and transport vessel for the treatment of liquid streams.
The Cyclesorb ® are pre-loaded with carbon and delivered to a site. The unit is operated until saturation of the activated carbon. A second unit is then delivered at the same time that the exhausted unit is picked to minimise transport.
Once the unit is returned to a Chemviron Carbon facility it is discharged of spent carbon, cleaned, checked and refilled with virgin or reactivated carbon.
The CYCLESORB ® units come complete with piping, valves and connections suitable for immediate connection to the stream to be treated. The frame for the unit allows it to be placed on a suitable flat and hard surface.
The liquid is pumped through the units in a down flow direction. The outlet should be monitored periodically to check the activated carbon is achieving the treatment objective by regularly taking samples.
The benefits of this service include:
Simple installation and operation - The units are designed for connection with flexible hosing and come with the activated carbon installed. No carbon handling is required as the unit is simply exchanged.
Rapid installation - CYCLESORBS are normally available from inventory, ready for immediate startup and operation.
Low capital expense - CYCLESORBS are supplied on a service basis requiring no capital expenditure.
Partnership - Chemviron Carbon supply both the system and reactivation service and therefore have a vested interest to ensure the system fully meets the requirements.
|
|
|
The DISPOSORB AND MINIDISPOSORB vessels are small disposable granular activated carbon adsorbers designed to be used as liquid phase pilot units for the removal of colour, taste, odour and pesticides in industrial purification and municipal applications. The units can also be utilised for small flow applications common in the chemical and pharmaceutical industries.
|
|
Activated Carbon Filter System
- Dechlorination
- Activated carbon
- Timer-controlled
- Field of application: 1.5 m³/h - 8 m³/h
|
|
MultiMaster Vario Active-Carbon Cartridge System CKG
The CKG mounting frame is manufactured from galvanized steel. As an alternative, 1.4301 steel is possible.
Special features:
- Mounting frame for 16 active-carbon cartridges
Application:
- Filtration of odours and pollutant gases
Technical data:
- Air-flow rating: 1,000 – 144,000 m³/h
- Filtration rating: Up to 99%, depending on the length of the contact period and on the type of pollutant gas
- Maximum operating temperature: 40°C
- Maximum relative humidity: 70%
- Weight (mass): 305 - 1324 kg
|
|
| ... products without technical information |
| |
Product Name: Ceramics filter
Product Note: Special structure ceramic filters
Adsorption fish flavor
Size depending customers demand.
About Products: The special structure will enlarge the touching area of air flow in maximum, so that it can improve the decomposition efficiency of stinking and odor. With the theory basis of touch-catalysis, this product will decompose harmful and stinking smell including sulfureted hydrogen and amine under low temperature.
This product is mainly adopted for the removing of strange smell in barbecue, also in refrigerator and preventing rotting of foods with strange smell removing and freshness-keeping effect.
Different types are available according to the requirements
|
|
|
|
