95510255 - RID-LPX Power Supply
The low power supply RID-LPX is a stand-alone unit to support the RID 512 and RID 1640 detectors with four different voltages. The power supply supports 230 V ±10% at 50 Hz and 115 V ±10% at 60 Hz and 50 Hz respectively. Three lights at the backside are showing the status of the three voltages.
Even though the industrial grade RID-LPX power supply is well suited for the requirements of the RID 512 as well as the RID 1640 series of detectors, it is strongly recommended to use the medical grade RID-EP power supply for the RID 1620 and 1640 ES series as well as for all applications requiring medical grade approval.
|
|
AC-DC Power converter
Advantages
Power converter, supplies DC-standards fans from AC power
Parallel use of several fans possible
Idle- and short circuit protected
Protective insulation conforms to VDE
Attractive and practical design
Features
Input voltage 198 … 154VAC
Output voltage 12VDC ±5% (5VDC and 24VDC optional)
Max current 1A
Efficiency >90%
Operating temperature range from -10 up to +85°C
|
|
Features :
- Universal AC input / Full range
- No load power consumption<0.3W
- Pass energy star level (CEC) for full series
- Meet energy star level (CEC) for full series
- Meet EISA 2007(Energy Independence and Security Act)
- 3 pole AC inlet IEC320-C14
- Class power ( with earth pin)
- Protections: Short circuit / Overload / Over voltage
- Fully enclosed plastic case
- LED indicator for power on
- Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
- Pass LPS for full series
- 2 years warranty
|
|
* Universal input 90 ~ 264V AC
* Over load, short circuit protection. Auto recovery start up.
* AC inlet IEC 320~C14
* With LED indicator
* UL, cUL, TUV, CB, CE approved
|
|
A compact Wall Mount Switchmode AC-DC Adapter designed for worldwide applications. Featuring over voltage, short cirsuit and open circuit protections and UL/cUL, CE & TUV safety approvals. The interchangeable AC plugs make the EA1015-AR Series ideal for portable applications that target the consumer market such as MP3 players, mobile phones etc. and for corporate appications that target the worldwide market, such as POS.
* Universal AC input 90 to 264V AC
* Low ripple noise
* Output voltage available from 3V to 5VDC, maximum 2.5A
* Over voltage, short circuit protections
* Safety: UL/CUL,CE,TUV,DoIR, C-Tick
* EMI/EMC: FCC part 15 class B and EN 55022 class B
* AC plugs: USA,TUV,UK,SAA PIN
|
|
4 Watt Flip-Plug Compact Adapter
Features:
- No Load Power Consumption < 0.5 Watt
- Low Leakage Current
- Flip Plug Design
- Low Cost
- EISA Compliant
Applications
- Wireless Communications
- Portable Equipment
- Peripherals
- PDA
Safety Approvals
- cUL/UL
Mechanical Characteristics
- Length: 69.4mm (2.73in)
- Height: 25mm (0.98in)
- Width: 48mm (1.89in)
- Weight: 145g (5.12oz)
|
|
PPT10 Series 10 Watts, Single Output, Interchangeable AC Input Plug, Flying Lead Ouput
PPT15 Series, 15 Watts, Single Output, Interchangeable AC Input Plug, Flying Lead Output
|
|
Desktop Switching power supply
Electrical caracteristics:
- Universal input: 90-264 Vac
- Single input: 230 Vac
- Frequency: 47.63 hz
- Output: Single or multiple voltage
- Efficiency > 70 %
- Working temperature: 0-40 C
- Storage Temperature: 0-70 C
|
|
Wall plug adapter
- Safety transformers
- Power max: Dc 6 VA
- Inlet with plug EUR,USA, UK, JPN, AUS
|
|
| ... products without technical information |
| |
Properties:
Design ==> Adjustable direction screw-in socket
Construction ==> L shaped
Connection 1 ==> BSP cylindrical outer thread
Seal type ==> Thread socket with O-ring + spacer diaphragm ring Connection 2 + 3 ==> BSP cylindrical outer thread
Seal type ==> 60° inner cone
Material ==> Steel
Surface protection ==> electro galvanised, yellow chromized
|
|
sf 900
Weld Nipple
sf 900 OS
Weld Nipple
for Orbital Welding
sf 902
Reducing Weld Nipple
Cone Sealing Connections
The products sf 900, sf 900 m, sf 902, sf 929, sf 9P DKO, sf 9 DKO and sf 9 DKO 90 have an O Ring with 24° cone, suitable for fittings with Port form W to DIN 3861 and nut to DIN 3870 Form A2.
Orbital welding
sf 900 OS, sf 906 OS and sf 907 OS are designed for orbital welding. The weld end is square, free of burrs and without a bevel.
Materials
Weld nipples: AISI 316Ti
Seals: Perbunan (NBR) as standard,
Viton on request.
|
|
|
|
|
|
There are two main styles of hybrid adapters:
Flange-to-Flange adapters: These fittings allow transitions between two dissimilar flange families - for example a CF flange to an ISO-QF. Common applications for these fittings include retrofitting an existing vacuum system or adding gauges and instrumentation. A&N produces the following vacuum flange families:
-- CF (Conflat, Del-Seal)
-- ISO QF (NW, KF) and ISO LF (ISO K)
-- ASA/ANSI (ASA 150)
-- ULRIC

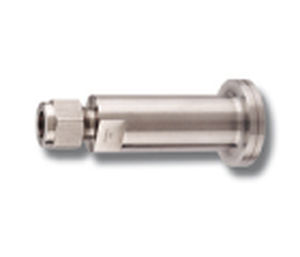

Flange-to-Fitting adapters: These fittings allow transitions between standard vacuum flanges and a variety of specialty fittings employed in a vacuum system. An example of this is a QF flange to VCR® fitting. Common uses for these fittings include the introduction of process gases into a chamber or the addition of gauges or instrumentation. These specialty process fittings include:
-- Hose adapters NPT
-- Swagelok®
-- VCR®, Male and Female
-- VCO®, Male and Female
-- Quick Disconnects
-- Baseplate adapters
-- Ball sockets
-- Welch pump adapters
|
|
HV Fittings description :
VG Scienta offer a comprehensive range of high vacuum fittings and components manufactured to the highest standards.
All components allow quick, easy and repeatable leak free joints and are designed for complete modularity for building simple high vacuum backing or pumping lines.
Features :
- Wide range of KF and ISO fittings and components for all common sizes
- Compatible with all other manufacturers of HV components
- Vacuum rated to 10"s mbar
- Bakeable to 200 °C (150 °C sustained)
- Choice of Vitoii and Nitrile sealing materials
- Leak tight to lxl0'10 mbarls"1
|
|
|
Fabricated to order from high-strength steel, Dresser Style 128W Flange Adapters afford the engineer a complete size range up to 24%u2033 diameter in steel, cast-iron and a-c pipe sizes. Flanges can be supplied to AWWA specification C-207 as well as other U.S. and international standards. The compression end of the adapter has a Dresser coupling type design utilizing a wedge gasket for an efficient, leak-proof seal. Insulating designs can also be furnished.
|
|
Material: Steel
Specifications:
» Thread 1 Type: Male JIC
» Thread 2 Type: Not Applicable
Master SKU: 6840
Compliance: Code 61
|
|
Sanpress-Flange adapter,
with SC-Contur,
gunmetal, with press connection,
with loose flange PN 10/16,
made of steel, black powder coated
Profipress XL-Flange adapter,
copper,
with press connection,
with loose flange PN 10/16
made of steel black powder coated
Profipress XL-Flange adapter,
copper,
with press connection,
with loose flange PN 10/16
made of steel black powder coated
Sanpress XL-Flange PN 16,
gunmetal,
with female thread
|
|
| ... products without technical information |
| |
The GP-IP(USB)FL can connect a measuring instrument to a USB port on your PC via GPIB communication. One of the major features of this product is a simple look as it can connect them using a general USB cable in place of a GPIB cable. As the product itself is a USB device, you can easily and quickly install it on your PC. This means you can use the product to enable GPIB communication even from a notebook PC with no expansion board slot or a space-saving PC with few expansion slots via IEEE-48. The product supports USB 2.0 to enable communication at high speed (a maximum of 480 Mbps). The product is bus-powered from the USB port and thus requires no external power supply, resulting in its compact design and best suited for use in a narrow space with a small number of wall outlets available.
|
|
The VCDS is a single-width, C-size VXI module that adapts most B size VME modules for use in a VXI mainframe. The VCDS is a functional replacement for the Colorado Data Systems Model CDS 73A-851.
The VCDS adapter maintains the VMEbus environment, timing, and backplane by buffering the VME address bus, data bus, and control signals and routing them to the installed VME module.
The VCDS supports seven interrupt levels, IRQ1 through IRQ7. The VCDS has an Interrupt Select Switch for each level on the VXIbus. The switches determine if the installed VME module will act as an interrupt handler or an interrupter, for each of the VXIbus interrupt levels.
|
|
We can offer following interface adapters for your solutions:
* NARS-1F with D15 male / D9 female -connectors, 650 mA fuse, including power supply wires and programming switch
* NARS-1F-4A similar than NARS-1F, but with 4A fuse (to be use only with Epic)
* NARS-2 with D15 male / screw connectors, 650 mA fuse adapter for RS-422 / 485 interface.
* NARS-2-4A similar than NARS-2, but with 4A fuse (to be use only with Epic)
* NARS-1F-4A-SC D15 female / D9 female -connectors, 4A fuse, 2.1 mm DC socket
|
|
VXI InterConnect Solutions
Virginia Panel solutions accommodate a wide range of ATE chassis sizes/configurations including PXI, SCXI and VXI applications. These solutions afford modular flexibility and address a wide range of signal, power, coaxial, fiber optic and pneumatic I/O requirements. High performance cable assemblies and patchcords ensure quality connections and fast assembly of your Mass InterConnect Solution.
9025 VXI- 25 Module
Pre-wired InterConnect adapters act as a compact funnel for wiring directly to VXI cards
9050 VXI - 50 Module
Plug the connectors on the back of the funnel to the VXI card and the test system is ready to use
9075 - 75 Module
Time saving with rapid changeover
|
|
| ... products without technical information |
| |
|
|
