A complete line of precision air conditioning systems to cool data centers and critical systems with precise, reliable control of temperature, humidity and air flow.
Liebert DS - 60Hz: Precise control of temperature and humidity for mission critical equipment. Flexible configurations, energy efficient and advanced controls and digital scroll make the Liebert DS perfect for sensitive electronics. 28-105kW (8-30 tons) downflow & upflow models.
Liebert XD - high density supplemental cooling for very dense computing environments. Scalable platform offers ultra flexibility.
Ceiling and wall mount cooling systems. |
|
SYBCT models: Two stage monobloc absorption chillers, whit INVERTER power modulation, gas or diesel fired, cooling and heating function.
Cooling Capacity: 16kW, 23kW, 70kW, 115kW
Heating Capacity: 16kW, 23kW, 70kW, 115kW
|
|
COMMON FEATURES

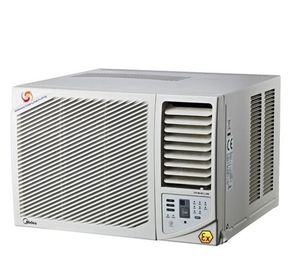

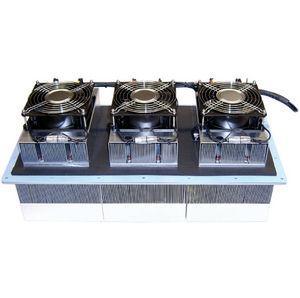

They are specifically designed to cool switchgear or analysis
cabinets in Hazardous areas.
All electromechanical components are certified ATEX, Zone II type Eex-d B or C.
The standard housing is made with AISI304 stainless steel, and upon request AISI316.
The components must be wired at customer care to the cabinet.
As option is available an Eex-d commandbox to control the airconditioner. Upon request other power supplies or temperature classes are available. |
|
Air condensation can operate at temperatures up to 71 °C.
Air condensation technology can be used to air condition a cabinet when there is no industrial water supply.
Apex Technologies is the first to market a range of very high temperature air condensation air conditioners, specifically suited to extremely difficult industrial environments (foundries, forges, iron and stell market, thermal treatement, ovens, cranes...)
This technology is fully compatible with the features of other vertical air condensation air conditioners in our range: cutout, wiring, components, operation without air filters thanks to very wide blades, separation of air flow... |
|
All APEX air-conditioning units are HOMOLOGOUS for the motor industry and are recognised as being among the best performing, above all in harsh environment, such as workshops, factories, forges, foundries, blacksmith's and paint shops.
APEX condensers are specially designed and installed to operate WITHOUT FILTERING ambiant air. Their surfaces and installation are one of the key points in the overall performance of the entire APEX range.
We have developed a specific range of air-conditioning units for outdoor and marine applications. They are portable and/or suitable for operating in all weathers. |
|
The APEX range of roof-mounted cabinet air conditioners automatically includes a UNIQUE fixing frame to reinforce the cabinet roof and keep it flat.
This avoids the "bowl" phenomenon that occurs with use and causes seepage of oil condensation, etc.
Your cabinet's leaktightness is further guaranteed by a polyurethane seal heat-sealed to both faces of the frame.
The electrical and cooling components of this range of horizontal air conditioners are identical to those of the range of vertical air conditioners. |
|
+ filterless maintenance-free
+ cooling performances 600...2000 W (L35/L35)
+ space-saving ex./internal mounting
+ flat design-sheet steel housings
+ customer specific painting
+ stainless steel models
+ Microprocessor controls
+ R134a refrigerant
|
|
The Econoclim® are air conditionining units whose operating principle is based on adiabatic cooling. The evaporation of a small quantity of water
requires removing the vaporization heat from the ambient atmosphere, which has the effect of cooling the air. This is exploited in the Econoclim®
unit in order to reduce the temperature of your factory.
Environmental protection:
The evaporation air conditioning units do not use any refrigerants and only consume their own energy, water and electricity. These are simple devices using natural processes.
Economy:
The investment and operating costs are much lower than with the installation of conventional air conditioning.
Efficiency:
The hotter and drier the intake air, the greater the reduction in temperature.
Purification of ambient air:
100% frech air is taken from outside before being distributed in the factory. Frech air is constantly being circulated.
Comfort:
The reduction in temperature and improvement in relative humidity provides comfort for people. Furthermore the evaporation air conditioning units have low energy consumption and are very quiet. |
|
+ filterless maintenance-free.
+ cooling performances 600...2600 W (L35/L35)
+ space-saving recessed mounting
+ flat design sheet steel housings
+ customer specific painting
+ stainless steel models
+ Microprocessor controls + R134a refrigerant
|
|
Mini size Maxi cooling for small enclosures
+ filterless maintenance-free
+ cooling performance 200...500 W (L35/L35)
+ for external, internal & top mounting
+ flat design sheet steel housings
+ customer specific powder coat painting
+ stainless steel models
+ Micro-processor controls
+ R134a refrigerant
|
|
Filterless cooling via the cabinet roof
+ filterless maintenance-free
+ cooling performances 200...3000 W (L35/L35)
+ space-saving top mounting
+ stainless steel housings available
+ Microprocessor controls
+ R134a refrigerant
|
|

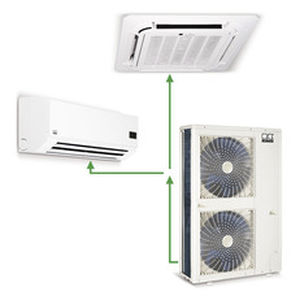

Twin energized mono-split : electrical cooling / natural gas heating
for commercial or industrial buildings.
Optimization of power (100% heating / 50% climatization)
Internal unit is designed for ceiling mounting :
Esthetism
Low noise level
Internal unit includes gas fired exchanger + R410A coil + centrifugal fans + filter.
External unit R410A type is for cooling only, compressor scroll, helicoïd fan
Regulation is controled with field bus thermostat, for 8 units max. |
|
The thermal management program is a computer-aided calculation system for switch cabinet air-conditioning.
It takes care of all the worries associated with production standstill caused by overheated switchgear systems.
The program contains databases of the Eldon enclosures, their dimensions, the conditioning devices (filter/fans, cooling units, heat-exchangers) and a selection of the most used electrical components with their heat dissipation. Additional databases can be created within the program.
After having chosen the enclosure type and size, given all the environment conditions (enclosure situation, required equipment temperature, ambient temperature and heat dissipation), the program will propose the most appropriate conditioning solution. A calculation report can then be printed.
To allow the installation study of the cooling devices on the enclosures in the early stage of a project, dimensional drawings of all the devices will be provided in CAD system DXF and AutoCAD file formats soon. You can find the different dimensions in our datasheets.
Download our easy to use Calculation Model in www.eldon.com |
|

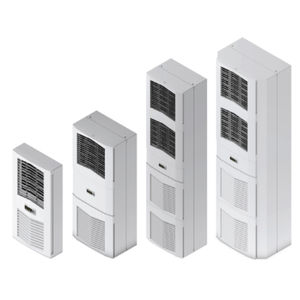

SLIM-IN Line
Door/Wall mounting System description
Specifically developed for door or wall mounting, the air conditioners of the series SLIM-IN cover a cooling capacity range from 850W to 2500W.
They are available in 230V (and some items in 400V).
Common to most of the SLIM-IN models is the Maintenance Free concept.
All models are equipped with an electronic board (not for EVE08).
::Reciprocating hermetic compressor with thermal amperometric protection ::Ecological R134a refrigerant, CFC free ::Condensing and evaporating heat exchange coils in copper pipe with aluminium fins ::Internal and external fans on ball bearings with internal thermal protection ::Electronic board EBB (For EVE08 Internal mechanical thermostat set at 35°C, dead band 4°C) ::Power supply wire 3m long ::Steel sheet front cover powder painted RAL 7032 orange peel ::Zync plated frame
Optionals
::Stainless steel frame and front cover ::Not standard colour (RAL) ::Electronic board EBB (not available for EVE03) |
|
Heat problems in data centres can only be avoided through the implementation of new modular climate control concepts. Due consideration must be given to parameters such as temperature, humidity, the velocity, pressure and direction of air flows, as well as the heat losses of the installed components.
Rittal RimatriX5 offers the solutions:
- Passive cooling (utilising the ambient air)
- Active, rack-specific cooling
- High-performance cooling for temperature-neutral data centre expansion
In each case, the systems are tailored exactly to your specified wishes and application requirements, taking into consideration all ambient conditions. Software-assisted planning tools minimise investment outlay and provide for maximum peace of mind. |
|
Stylish new round flow cassette with a 360° radial airflow pattern from Daikin is industry first.
A unique and attractive ‘Round flow’ R-410A ceiling mounted cassette with a 360O radial airflow pattern will shortly be unveiled by Daikin Europe N.V. The new round flow cassette is available in thin body FCQ-C and high COP FCQH variants for integration with Sky Air systems and thin body FXFQ-P for use with VRV systems.
High year round comfort stems from the round flow cassette’s many new features, which include improved and uniform airflow and temperature distribution, lower air velocities and less draughts as a result of increased horizontal airflows. Reduced temperature differentials across the conditioned space improve the thermal comfort index and considerable energy savings with COPs among the highest in the industry. Improved control for Sky Air compatible models stems from the incorporation of a humidity sensor and these models also offer standard connection to the DIII net without the need for an adaptor.
|
|
| With a compact design the 600mm x 600mm ceiling unit neatly fits inside a standard ceiling module which minimises any installation work. The user can select between 2-way, 3-way or 4 way operation of auto swing louvers. With the twisted wing design of the compact turbo-fan the noise level is just 25dB (sleep mode). |
|
Our new floor standing unit FVXS-F is both stylish and highly energy efficient.
We have introduced a new floor standing R-410A indoor unit. Visually striking and highly energy efficient, the unit, designated FVXS-F, has a new and easy to clean flat front panel with side inlets in place of the traditional front grille, giving it a real sense of slimness.
FVXS-F comes in 25, 35 and 50 sizes with substantially increased COPs and EERs when coupled to the new RK/XS outdoor units. All FVXS-F models are suitable for both ‘Pair’ and ‘Multi’ connection. Furthermore, innovative design of the overall casing enables its ‘build in’ depth to be adjusted to suit site installation conditions. All models have category ‘A’ energy efficiency ratings.
Low operating noise stems from the use of a 5-speed, silent operation fan, with a maximum setting that can be selected for rapid cooling.
Operating flexibility and controllability are improved by a new and attractive remote controller, which features a weekly timer allowing 7 day programming with 4 different options per day and a ‘copy’ function enabling any programme to be replicated on any day or days as required.
The unit comes complete with a number of other important features, including an energy saving ‘econo’ mode, which reduces power consumption and avoids overloads when other home appliances are in use at the same time.
|
|
| This unit's lambada-shaped heat exchanger has a wide suction area which increases the air intake enabling the unit to adjust to the room temperature quickly. The output is a powerful sweeping airflow eliminates that dead zones and improves the cooling and heating effect while the trapezoidal blades cut the air diagonally to minimise air resistance, which reduces noise and improves efficiency. For easy maintenance the unit has a washable carbon and anti-bacteria air purifying filter. |
|

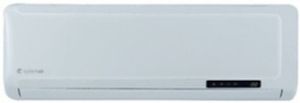

| The Summit range is an DC inverter PAM driven heat pump system operating with R410a and available with wall mounted indoor units giving 2.0Kw, 3.5Kw, 3.5Kw or 5.0Kw cooling (nominal)capacities. |
|
| The Set Free FXN is a 3 pipe heat recovery VRF system operating on R410A this allows independent temperature control of up to 32 indoor units with simultaneous heating and cooling from one outdoor unit. Outdoor units range from 14-85 Kw cooling (nominal) and indoor units range from 2.2-14.1Kw cooling (nominal). Available in wall mounted, cassette, ducted, ceiling suspended and floor standing(cased or uncased) this is an extremely versatile range. |
|
Liebert XD™ System
Liebert energy-efficient and flexible high heat density cooling solutions are available with Open or Closed architecture and Pumped Refrigerant-based or Water-based technology.
Liebert XD refrigerant-based cooling modules work as a system to support the hot aisle/cold aisle approach to cooling high heat density data centers. The modules provide focused rack cooling, enhancing a room precision cooling unit, such as a Liebert DS system. Pumped refrigerant is ideal for use around electronic equipment, operating at low pressure in the piping circuit, and becoming a gas at room conditions. |
|
|
|
