RTK Instruments launch their world exclusive SIL725 Safety Annunciator, designed and manufactured to provide a high safety integrity for critical alarm applications and for use as a component part of a safety instrumented system.
Reliable - The SIL725 Annunciator is third party certified by SIRA using the CASS methodology to a safety integrity level of SIL2 to IEC61508. The unit uses our field proven multi-redundant design to ensure there is no single point of system failure.
Flexible - The modular construction of the SIL725 Safety Annunciator allows units to be assembled in almost any size and shape to suit the customers’ requirements. Units can be constructed from a single alarm channel to a maximum of 128 channels, in any format, with ultra-bright LED illumination as standard and with a choice of two window sizes and six colours. The unit can be panel or 19” rack mounted or fully integrated into wall mounting or floor standing enclosure.
Configurable - Each individual alarm way is fully configurable from the front, using the integral configuration module. This allows the user to select many different features giving thousands of possible combinations. This combination of user flexibility and SIL2 certification is a world exclusive feature which will be very valuable to all those involved in instrumentation for the worldwide process industry.
SIL2 Outputs – The SIL725 Annunciator has common safety related relay outputs which are SIL2 compliant. These can be used as part of a safety instrumented system. Each Annunciator can have up to two Horn relays and two Group relays and each alarm channel can be configured to drive any of these common relays.
|
|
|
|
|
|
The 725B Combined Annunciator and Event Recorder brings you the most advanced alarm monitoring system available today, offering you the best combination of reliability, flexibility and usability plus a low cost of ownership.
The 725B Annunciator uses CANBUS® communication technology coupled with RTK Instruments%u2019 unique multi-redundant (no single point of system failure) design. The 725B can be supplied as a stand alone Annunciator or with an integrated 1ms Event Recorder, allowing the user to analyse the exact sequence of events following a plant breakdown.
All alarm windows are illuminated by high reliability, ultra-bright white LEDs offering a maintenance-free solution. To reduce installation time and costs, the 725B can be supplied with integral, universal Power Supplies to connect directly to 85-264VAC or 88-360VDC.

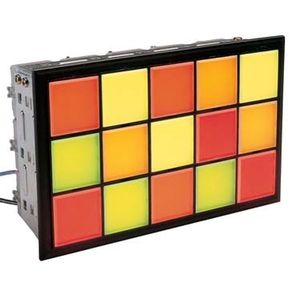

The modular construction of the 725B Alarm Annunciator allows units to be assembled in almost any size and shape from one to 256 channels in a single housing with a choice of window sizes and colours.
Each alarm channel is fully programmable using the RTK supplied configuration utility and a standard USB programming port to connect directly to a PC or laptop.
|
|
|
|
|
|
A hazardous area Annunciator offering all the features and benefits of a safe area Annunciator from RTK Instruments
RTK Instruments’ NEX7250 Alarm Annunciator is a feature rich annunciator suitable for use in Zone 2 hazardous areas and designed to Type ‘n’ standards.
Designed to ATEX Directive 100a in accordance with EN50021:1999, the NEX7250 is based on the field-proven Series 725 Annunciator. Systems are available in a range of sizes and formats from 2 to 120 windows, in a choice of three different window sizes and six colours. Windows are illuminated by ultra-bright, ultra reliable LEDs.
As with all RTK’s range of Annunciators, ASIC technology is used in the NEX7250 to maximise reliability. This multi-redundant design ensures no single point can cause failure.
The standard unit comprises a wall mounting steel enclosure with hinged acrylic viewing window sealed to IP54. Options include panel mounting versions or stainless steel enclosures.
The NEX7250 is fully field-programmable for all standard ISA sequences plus a range of options. Units are equipped with dual common alarm and dual horn relays as standard. Options for RS485 serial interface and individual repeat relays per channel are also available.
RTK Instruments, as major suppliers of industrial alarm systems and components for safe and hazardous area, can also supply complete alarm systems and help with all industrial alarm applications.
For further information, please visit our website www.rtkinstruments.com or e-mail: enquiry@rtkinstruments.com or call our Sales Team on 01423 580500.
|
|
The RTK System 9000 Alarm Annunciator offers the latest in combined ASIC/micro-controller technology to provide an annunciator of unparalleled reliability and programmability. The system gives complete flexibility and total security at an unmatched price.
Total integrity is provided by the unique "no master module" principle, with the "no master" PSU and communications. The flexibility offered is also second to none, with easily configurable setup of hundreds of options including alarm sequence, time delays, relay operation, first-up grouping, functionality, communications etc. The range of displays to match the System 9000 is extensive, from the low cost Series 300 to flexible window size lamp arrays, mosaic mimic diagrams and hard wearing single piece mimics.
|
|
|
|
|
|
Flexible Alarm System supplied ready to mount on site

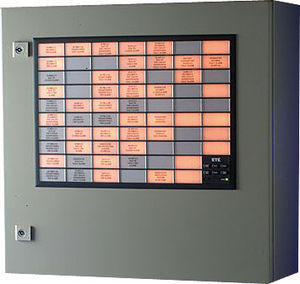

RTK Instruments now offer a Wall Mounting Annunciator range which is supplied as a finished Alarm System ready to mount onto a wall or vertical structure. The system is a fully operational Annunciator System complete with MCB, Power Supply, audible, control pushbuttons and terminals. The System can be supplied with a choice of different Annunciators depending on the application requirements, such as the 725B Alarm Annunciator/Event Recorder, the SIL725 Safety Annunciator, the Series 725 Programmable Annunciator or the UC625 Compact Alarm Annunciator.
All alarm ways are wired to terminals ready for direct connection on site through the bottom un-drilled gland plate. All that is required is the connection of the supply voltage and the alarm contacts. The Annunciators can be supplied in a variety of different enclosure materials: stainless steel, mild steel coated in epoxy polyester in light grey or glass reinforced polyester. The wall mounted boxes are all equipped with a means of mounting directly onto a wall or frame. Depending on the size and weight of the box, this will be through internal mounting holes or external mounting brackets. The Annunciator can include a Power Supply, DC/DC Converter or battery backed standby supply.
The standard protection of the box is IP55 but the front of the Annunciator itself is sealed to IP41. Alternative arrangements can be provided to give an IP54 or IP65 protection of the whole assembly.
RTK Instruments is a leading supplier of Alarm Annunciators and systems, Event Recorders and Hazardous Area Notification equipment.
|
|
|
|
|
|
Alarm Annunciators
The robust PCA 5000 promises plant operators in the process industry, panel builders and systems integrators in the power generation and distribution industry, the reliability they expect from a market leader in process critical alarms. Prompt delivery satisfies both new project requirements and the replacement of existing installations.
Each alarm module in the PCA 5000 operates independently, providing redundancy protection and reliable alarming -even in the event of serious plant shutdown. The readily accessible terminals of the PCA 5000 reduce installation time and optimise cost efficiency. Its integral keypad can be duplicated remotely for flexibility of installation and operation.
Offering the simplest programming on the market today, the system is accessed via an electronic key for added security. A user-friendly interface makes it easy for engineers to carry out fast, error free programming.
The PCA 5000 is compliant with the ANSI/ISA standard "Alarm Sequences and Specifications 18.1 1979 (R1992)". Optional output relays, 4 system relays and 8, 16, or 24 alarm inputs can be incorporated.
|
|
|
|
