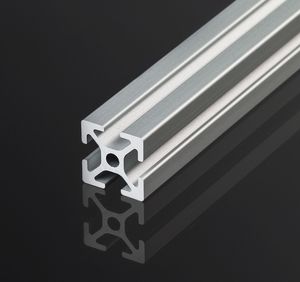

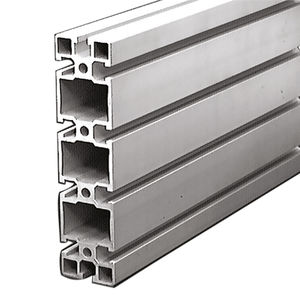

The MCS range offers a wide range of manufacturers of aluminum profile sections, connecting elements and accessories. These components allow an infinite possibility of frames to be constructed for use in industrial machinery, guarding, storage and display applications.
Profiles can be machined and accurately cut to length to customers' specifications by Hepco, and are available on very short delivery times. The aluminum components are manufactured to very close tolerances and then clear coat anodized - this ensures that frames are both accurate and corrosion resistant. Accessories include handles, feet, professional hinges, sliders and panel fixings.
Features and Benefits:
• High quality components offering price savings over similar competing systems
• MCS gives cost-effective design and build when compared to conventional welded fabrication
• Lightweight rigid profiles in a wide range of sizes offering high load carrying capacity
• All elements are reusable, and simple additions can be made to existing designs
• Interior brackets allow assembly without machining if required
• Full cutting and machining service available from Hepco with fast turn-around on all orders
• Interchangable with frame building systems from other manufacturers
|
|

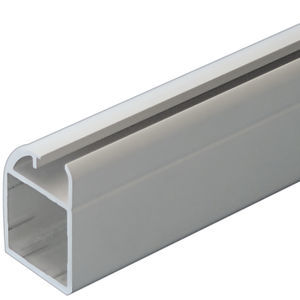

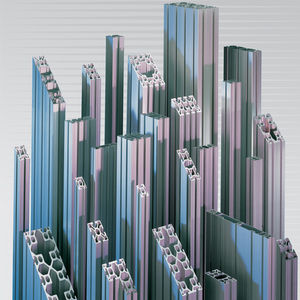

| With over 100 strut professional profiles, we offer you the world's largest modular profile system for a wide variety of applications. Bosch Rexroth's profile groove has become a worldwide standard and there are 6 different profile series in our modular profile system with the finest graduation on the market. Another advantage: all of our profiles are compatible. |
|
A comprehensive system of professional profiles together with an enhanced range of fixing elements including brackets, flexi manufacturer of connectors and accessories to enable complete frames to be constructed by the customer from components or supplied flat packed for simple re-assembly. In addition we will ship completed frames to your requirements designed on our in house 3D drawing package. Reduced material costs, improved flexibility and assembly time savings are available with the use of aluminium profiles over steel for constructing machine frames and machine professional fencing requirements can be fulfilled using elements from our Machine Fencing System.
- Wide range of profile sections with Tee slots or plain sides
- Custom designed 3D frame design and build service
- Supplied in component form, flat packed for re-assembly or completed frame
- Profiles allow the fixing of linear systems
- Fencing system available for machine protection
- Range is constantly being developed with new components being added |
|

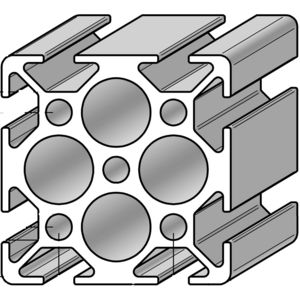

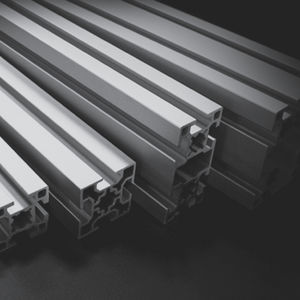

We can offer aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, professional fasteners(t-nuts, t-bolts, subsequent nuts etc.), leveling feet, professional hinges.
Our products are compitable with BOSCH, MAYTECT, ITEM, MINITEC,FATH. Since made in China, they are really in good quality but competitive prices. |
|

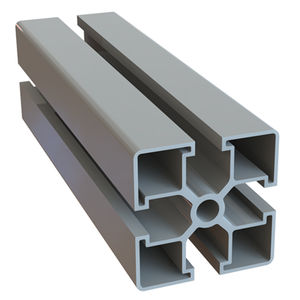

| Using high-tensile aluminium profiles, any type of structure can be assembled cleanly and rapidly without further surface processing. All profiles are anodized and are produced with modular dimensions to ensure that they are compatible with specific Lines. |
|
aluminum framing for factory automation

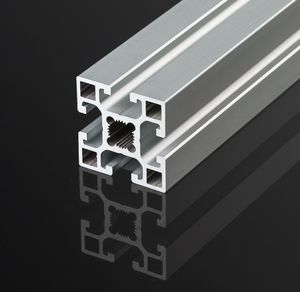

We can offer the best China-made aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, professional fasteners(t-nuts, t-bolts, subsequent nuts etc.), levelling feet, professional hinges.
We have ten years experience in this field and got a well reputation in Chinese market. Since the year 2008, we begin to step into International market. International quality, Chinese prices, believe that we can bring to you more suprise. |
|

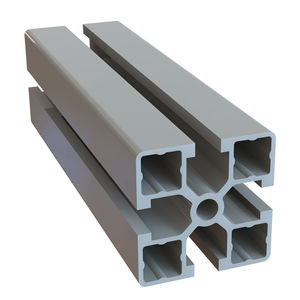

| Using high-tensile aluminium professional profiles, any type of structure can be assembled cleanly and rapidly without further surface processing. All profiles are anodized and are produced with modular dimensions to ensure that they are compatible with specific Lines. |
|
FIPA offers two different profile series: the small SLine and the rugged Xine.
The strengths of SLine lie in handling plastic parts, especially lightweight ones, while XLine is particularly useful for large grippers and heavy workpieces.
Advantages of the SLine:
> M5 threads for secure and durable connection.
> Basis for grippers ranging to 1 m and a professional bearing capacity to 5 kg.
Advantages of the XLine:
> M8 threads for secure and durable connection even with large loads and high acceleration levels.
> Basis for grippers ranging from 1 m and/or a bearing capacity from 5 kg. |
|
ALUMINIUM PROFILES - Anodized
...for machine building , work tables, machine tables, housings and frames.
e.g.: Stand Profiles PS-Profiles
- For fast and easy assembly of housings, tables and frames
- Aluminium, anodized
- Made according to DIN EN 12020-2
- Light, compact, solid
- High stress-resistance

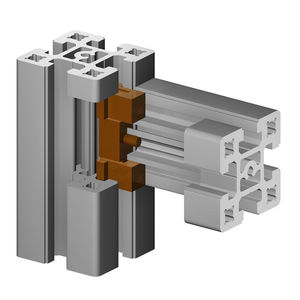

- With our fast-clamped connections very firm, stress, reversion and bending resistant profile connections are produced by means of profile bore holes and clamping pieces
- Cut to size on request
e.g. as

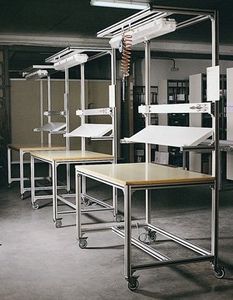

Machine and Mounting Tables
... for precise and safe clamping of devices and fixtures for measuring, checking, testing etc. |
|

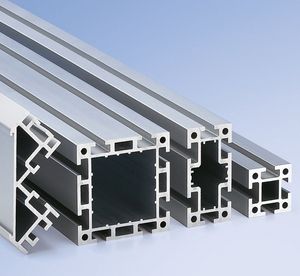

The section for panel isel are sections out of aluminum, light and very resistant, they are appropriate well for fast and simple constructions of frameworks, tables and frames.
As private individuals, the sections for panel are adapted for the visual aspect. They support larger loads.
Connections for shaped isel for the sections for panel allow, starting from shaped holes and of screws with six hollow pents, to carry out connections with the sections for amount PS 50 and PS 80, very solids resisting torsion, traction and folding.
|
|
A range of aluminium closed, 1/2 closed, opened and housing professional profiles with their accessories.
A system built around standard M8 screws and nets which combines simplicity of assembly and a very great rigidity.
A minimal maintenance for a maximum durability. |
|
| The two manufacturers of aluminum profiles carrying with angle bored fixing, are connected by a flexible professional insert "Synca" resistant to wear, the weather changes and temperatures. The insert can be replaced at any time without damage on the surface of the adjacent ground. |
|
- Overmeasure Achievements: chassis, housing, fitted latticework on protector, professional workstation...
- Studies/Plans CAD 3D
- Important Stock
- Delivery in kit or turn-key |
|
More than 170 sections: 7 groups of
Section: 16 20 30 40 45 50 60
Profiled ¼ of round - 2 or 3 grooves
Heavy sections to 100 X 300 mm
Sections light, special, hexagonal, octagonal, rounded or cylindrical.
A system of assembly by anchoring allowing all the evolutions or modifications and all the cuts of angles.
Services:
·Cross
·Machining
·Assembly
·The Council - studies starting from schedule of conditions - establishment in 2D or 3D
Many essential accessories for your applications of:
·Cartérisation
·Work station
·Frame machine
|
|
The sections aluminum constitute one of the basic elements of the kit of construction MB which is also composed of end and professional fasteners.
Out of anodized aluminum, the sections are equipped with grooves in particular allowing the installation of the fasteners. These grooves can be stopped thus offering a smooth section which prevents any penetration of particles, ideal for applications in cleaning room.
Profiled with various and many sections: of 20x10 with 320x160. |
|
More than 35 sections: 2 groups of
Section 30 and 40 mm
Profiled especially conceived for applications in washing room.
The faces of the sections are smooth manners to avoid any zone of retention and to facilitate cleaning.
The universal or standard assembly can be supplemented by the addition of a part of junction making it possible to remove the zone of retention related to the round shapes of the sections.
Application: cosmetic, pharmacology, agroalimentary, medical
|
|
| ... products without technical information |
| |
aluminum framing for factory automation
We can offer the best China-made aluminmum extrusion profile and accessories of MODULAR ASSEMBLY SYSTEM, including 20mm, 30mm, 40mm,45mm,50mm,60mm profile and connection elements, professional fasteners(t-nuts, t-bolts, subsequent nuts etc.), levelling feet, professional hinges.
We have ten years experience in this field and got a well reputation in Chinese market. Since the year 2008, we begin to step into International market. International quality, Chinese prices, believe that we can bring to you more suprise. |
|
- Frame-machines
- Chassis/Housings
- Enclosures
- Latticed Protector
- Setting in conformity
- Ergonomics
- Various Supports
- The Council/Definition
- Study/plan CAD 3D
- Delivery in kit or turn-key |
|

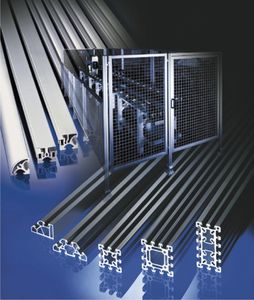

Realization to measure of frames and cartérisations of machines starting from the sections aluminum. By combination of basic elements, of connection on the ground and fixings of panels, it is possible to create the protections in conformity with the safety regulations standards or adapted to the specifications of the users.
Possibility of carrying out doors beating, sliding, or guillotines with electric safety or not.
Delivery in kit or assembly.
|
|
The structure is made of a base with a sliding upright in its rear section. Both are in electrowelded steel duly stabilised after each work phase to ensure that there is no interior tension; they are sized to guarantee stability and precision during machining operations.
|
|
-Storage/Sawing Systems with combined cantilever arm and cassette storage. Operating gantry crane fully automatically transports individual bars to an integrated CNC-saw and restores remnants automatically.
-The inventory control computer keeps quantities automatically up to date, therefore highest possible reliability and minimum idle times due to perfectly coordinated individual components.
-A sawing center replaces as many as 3 to 7 stand-alone industrial saws
-Material weight up to 2,5 tons/individual bar
-Diameter of bars: 20 - 320 mm
-Fully automatic handling of bars with a length of 0,45 - 12 m
-Integrated KASTO-Band or Circulars Saws, optional with carbide blades
-Short chip-to-chip time when changing bars
-Duo-systems combine cantilever arm and cassette storage
|
|
PHANTOMATIC ISOLA T4 STAR
Cnc machining centre with 4 controlled axes, designed for machining bars or work pieces of aluminium, PVC, light alloys in general and steel. It has 1 or 2 tool magazines with 6 places; both magazines can accommodate an angle milling head and a milling machine cutter. Besides, the continuous rotary work table (CNC axis) allows working at any angle between 0° and 180° and on both ends with angular machining head with double exit, with table at 0°. |
|
Since the last years, the market made a big jump forward: with the building industry no more just windows and professional doors but also curtain walls, fi re stop heavy doors, industrial and garage doors, various elements for shops furniture; with the industry (such as industrial and commercial vehicles, railway, nautical, aerospace, lighting and furniture), aluminium pays a great role having heavily replaced other materials.
The answer to these new and numerous requirements is the Cnc machining systems: very fl exible machines with and high technological standard, that can replace different traditional machines.
Tekna s.r.l. leader for the manufacture of Machining equipment, does not consider itself a simple supplier of producer goods, but develops with the client a real partnership relation aiming at a reciprocal business
development.
|
|
|
|
