Bearing Tube ø 60 x 7

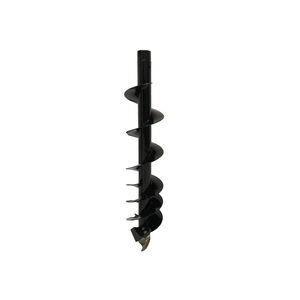

Drilling Augers with hexagonal joining ø 110 D (mm): 110 L (mm): 1000
Drilling Augers with hexagonal joining ø 190 D (mm): 190 L (mm): 1000
Bearing Tube ø 38 x 5
Drilling Augers with square joining ø 76 D (mm): 76 L (mm): 1000
Drilling Augers with square joining ø 85 D (mm): 85 L (mm): 1000
|
|
Hydraulic hole diggers - TRH range
- Can be adapted on many carriers thanks to the various linkages and assembling parts (possible on automatic module).
- Hydraulic engine of high quality.
- Thanks to the speed reducer-reverser gear that ensures a maximum power of the hole digger.
- Easy to mount.
- Quick auger change thanks to the hexagon or square drives.
- A wide range of augers.
- More than 40 models of augers, from 100mm up to 1500mm available and interchangeable.
|
|
Augers 100mm to 1.5M in Diameter
Building quality Augers since 1981, all Digga Augers are designed heavy duty and feature ideal flight pitches to provide maximum soil removal in all ground conditions. Fitted with a range of wearparts to suit most ground conditions. Ideal for Augering, tree planting, sound barriers, foundation drilling and more.
A complete range of Premium & Custom built augers and extensions to drill in earth, clay, shale, fracturable and most rock conditions. Custom Built Bitumen, asphalt and concrete are our specialty. With a full range of auger to drive adaptors, Extensions up to 4 metres standard and telescopic available
Made to suit machines 750kg up to 50T
Available Diameters from 100mm to 1.5M
|
|
|
Diggas range of Supa Drives provide the most versatile selection of supreme planetary drives combining greater power and speed than ever before. Select from a choice of Single Speed, Dual Speed or the Latest most advanced drilling system on the market today Multispeed. Up to 12 combinations of Torque and Speed to deliver the most efficient performance on the market today. Fully Australian made with Heavy Duty Digga Manufactured Planetary Gearbox
|
|
|
The Digga Mega drive range is not for the faint hearted and is the ultimate in Mega high torque performance up to 300,000Nm. Incorporating leading edge design Technology, a choice of Single Speed, Dual Speed, or the latest in advanced drilling Multispeed. Delivering up to 12 levels of Torque and Speed for the ultimate in drive technology and performance. Customised units are our speciality. Fully Australian made with Mega Heavy Duty Digga Manufactured Planetary Gearbox
|
|
Drive Units for Machines 750kg to 50T
Digga%u2019s New Generation Premium Drive range for the ultimate in performance, quality and cost effectiveness. 27 years of design and development has produced the highest quality range of drives on the market today. Outstanding performance and warranty guaranteed.
Digga%u2019s Unique Coding system matches the Auger Drives to Machine Tonnage. Eg; 6 tonne machine = PD6, for lighter duty go down a model ie PD5. For heavier duties go a model up ie PD7
%u2022The most extensive and highest quality range on the market today. Fully Australian Made
%u2022Fully serviceable gearbox, Incorporating a quality Digga manufactured planetary gearbox and powered by Eaton hydraulic motors.
%u20223 Year Gearbox Warranty
Machine Suitability: 750kg to 5 tonne including Mini Machines, Skid Steer Loaders, Excavators, Telehandlers, Truck Cranes, Wheeled Loaders, Front End Loaders and Tractors
|
|
HYDRAULIC AUGER DRIVE UNITS LOWE
TS-series augers for tree and shrub planting:
diameters 457, 610, 762 and 910 mm/length 1,07 m
|
|
“Digga’s New Generation Premium Drive range for the ultimate in performance, quality and cost effectiveness.”
26 years of design and development has produced the highest quality range of drives on the market today built Aussie tough by tough Aussies.
Easy drive selection – the New Generation drives are optimized around the tonnage of your machine ensuring more accurate selection.
* Digga, New Generation, compact high torque gearboxes for machines up to 10 tonne (PDD - PD10)
* Digga, New Generation, compact high torque gearboxes for machines from 11 to 50 tonne (PD12 - PD50)
* Powered by the new DIGGA/EATON Char-Lynn Bell Series hydraulic motors, the most sophisticated hydraulic motor - high torque, high efficiency performance.
* Full range of output shafts available upon request.
|
|
POST HOLE AUGER
Turn your fencing and hole boring jobs into a one-man operation. You'll dig holes with plumb line accuracy regardless of the ground conditions thanks to the auger's double pivot mounting system. Powerfull and fully reversible, you'll appreciate the auger's high torque, heavy-duty drive system which makes light work of the toughest conditions. Wide choice of auger bit diameters and styles allows you to tackle any job.
|
|
Continuous Helicoid Drills
The continuous helicoid drills are available diameter 63 mm to the diameter 254 mm in the lengths standards 1m or 1m 50. Other lengths are available on stock or request. Us to consult.
The couplings of the drills are of hexagonal type (21mm, 29mm, 41mm, or 51mm). A complete range of tool drill is available for each type of ground: Tail of carp, tool tungsten, Bulldog tool, tool DP rock'n'roll. .etc.
All our drills are built according to the most modern methods of welding and profit from the last developments in this field. It will be also noted that all our drills are reloaded (stellited) out of anti-wear hard metal.
|
|
Hollow Drills
The use of the hollow drills is a innovating method of casing to advance making it possible geotechnical industry to tube a drilling of method of rotation simple without the preliminary use of a flushing fluid like the air, 'water or muds of drilling. This technique largely used in the world makes it possible in particular quickly to implement by the interior of the drill of the coring bits intact samplers (CEI) or to carry out the installation of unconstrained piezo on the environment.
One will retain in priority the internal diameter of the drill for the choice of the model. The peripheral tool of the hollow drill is designed to optimize the conditions of drilling and to ensure one optimal lifespan.
The hollow drills are available in the standard diameters 82mm interior X 175mm external, 111mm X 194mm, and 159 mm X 254mm. It can be provided tools lost usable in the formations which allow it in order to save time on the installation of the drill.
|
|
Drills with Injection
The drills injection are available diameter 63mm to the diameter 254mm in the lengths standards 1m and 1m 50.
Threadings of the drills injection are conventional threadings type DCDMA.
Used to support the use of a flushing fluid like the water or the mud of drilling, the drills injection also allow the grouting of cement.
A range of tools drill laid out with the injection is available in the most current diameters.
|
|
Excavators 4.5T to 8T and Backhoes
• Highest standard of quality and service
• Competitive pricing
• Fast delivery times
|
|
Micro Excavators 750Kg to 1T
Drilling Diameter 100 to 300mm
S1/S2 Auger Range
• Highest standard of quality and service
• Competitive pricing
• Fast delivery times
|
|
Mini Excavators 1T to 5T
• Highest standard of quality and service.
• Competitive pricing
• Fast delivery times
|
|
Excavators 8T to 20T
• Highest standard of quality and service.
• Competitive pricing
• Fast delivery times
|
|
Fleximaster
Suitable for quick release mounting on backhoe loaders and hydraulic excavators, the Fleximaster hydraulic rock drilling module transforms digging equipment into a versatile drill rig. Self-contained and compact, the Fleximaster drilling system offers the immediate power of hydraulic drilling without the expense of additional machinery.
|
|
|
|
|
|
EXCAVATOR
MOUNTED DRILL
Dawson’s excavator mounted drilling machine has been designed to fit via an adaptor plate to the stick arm of an excavator and runs via the flow and return lines that normally supply the bucket.
There are five models to choose from starting at 17,500 N/m up to 48,500 N/m that cover a wide range of applications from drilling precise holes in many varied ground conditions, subject to the auger/drill bit, through to stirring the ground prior to using a Dawson EMV vibro piling machine.
By selecting the correct drill bit combined with the down-crowd force of the excavator the EMD will make light work of the most demanding conditions.
Another benefit of the EMD is that because its mounted on your excavator you can drill vertical holes, anywhere the excavator goes. It’s ideal for drilling over casings, on railway embankments, under bridges, or near power lines, + anywhere with low headroom constraints.
Key Features
. 5 models to choose from 17,500 to 48,500 N/m torque
. Easy to fit to a wide choice of Excavators
. Drill over obstructions, under low bridges, On inclines that
traditional rigs cannot do.
. High Power to weight ratio
. Compact, robust, reliable
. Connects in place of bucket, using the flow and return lines
. Standard hexagonal drive shaft 80mm – 100mm
|
|
Drill rig
Fields of application
- Civil engineering
- Underground mining work
- Trench digging
- Gallery construction
Features:
- Blasthole drilling
- In-hole drilling
- Separate air/water flushing device
- Radio remote control
Benefits:
- All from a single source
- Optimally balanced process
|
|
The MONTABERT CPA rock drill attachment can easily fit to carrier from 15 t to 35 t:
The CPA 225 can easily fit to carrier from 12 t to 25 tonnes
The CPA-XTend for excavators from 22 t to 35 tonnes
|
|
HEM-40ED Soil-Nailing Drill
The HEM-40ED is a drill designed to install soil nails and tiebacks in a single-pass. The 40’ drill stroke allows for rapid installation, smaller crews and quick movement between holes. There are many different hydraulic rotary heads and drifters available for mounting on the HEM-40ED to solve most drilling applications.
Specifications:
* 40’ drill travel with 5’ crowd cylinder
* Maximum allowable torque is 8,000 ft/lbs
* Pullback is either 9,000 lbs. or 12,000 lbs.
* Approximate drill tool weight 5,000 lbs.
* For use on 20 ton or larger excavator
* Radio Controls Standard
* Machine must be plumbed with auxillary hydraulics
|
|
HEM (Hydraulic Excavator Mount)
The HEM is TEI Rock Drill’s most popular drill. Mounted on excavators 12 ton and larger these machines will handle any of the drifters or rotary heads manufactured by TEI. These machines operate completely off the excavators hydraulic system.
Drill mast are available with up to 20’ drill travel, torques are available up to 10,000 ft/lbs. This drill tool makes great use of the excavators reach. It is possible to drill above the rig or below it making this type of drill perfect for retaining walls, over the road drilling or multi-pass blasting.
|
|
MME (Mini Excavator)
The MME is TEI’s answer to mini equipment lines of today. Made for 5-ton excavators this is a lightweight attachment made to operate the TE250 drifter, RDS250 rotary head or S83 pneumatic drifter.
Radio controls, 360 degree positioning, mast with 10 foot stroke and on-site training in the USA are all standard with the MME line of drills. This is a very handy tool for pipelines, foundations, anchors and small diameter blasting.
|
|
Digga Ramdrill PHD and Ramdrill PHD XD
The safest most powerful planetary drive attachment for tractors on the market today. Eliminates the need for PTO shaft drive.
Hydraulic ram provides maximum down pressure for the drill utilising the full weight of the machine.
Features:
* Quality Digga Planetary Drive
* Requires two sets of remotes
* Full power in forward and reverse
* Hydraulic Down Pressure (up and down)
* Extra Heavy Duty Frame
* Adjustable stabilizer legs for easy fitment and storage after use
* Available in 50hp and 75hp
|
|
HCM (Skid Steer Drill)
The HCM line of drill tools is manufactured using the universal skid steer mounting plate. This allows the HCM to be attached to almost any skid steer manufactured today. Using the hydraulic of the skid steer the HCM can be attached or detached in less than five minutes.
This drill uses five-foot drill pipes or steel and can be fitted with single or double clamps depending on use. This type of drill is popular for micropiles, geothermal, fencing and blasting contractors.
|
|
|
|
|
|
Ramdrill PHD, Ramdrill PTO and 3PT Linkages
The Original Down Pressure Drills, the safest most powerful planetary drive attachment for tractors on the market today. Designed for post hole boring/augering drilling the Ramdrill design can utilise either a PTO driven gear box or a Digga Hydraulic gearbox, eliminating the need for PTO Shaft. The hydraulic ram provides maximum down pressure for the drill, utilizing the full weight of the Machine.
Standard 3PT Linkage also available.
• Heavy Duty Frame to suit both CAT 1 & CAT 2 Tractors
• Hydraulic Down Pressure (up and down)
• Adjustable legs for easy assembly & storage
• 3 Different build options for each of the Gearboxes
• Hydraulic or PTO Drive interchangeable
• Full power in both forward and reverse
RAMDRILL PHD
• Optional Dual Hydraulic Cylinders for raising, lowering extending and retracting the ramdrill boom
• Solenoid option for easy alternating between front and rear hydraulic cylinders
• Hydraulic Gearboxes available in 75hp and 100hp
RAMDRILL PTO
• PTO Gearboxes available for 50hp and 75hp Tractors
• Lighter Frame with Narrower 3PT Linkage to suit the smaller light weight tractors
Machine Suitability: Tractors with 3 point linkage, or 3 point linkage adaptor with a minimum of 2 double acting auxiliary ports.
|
|
Instruction
* Load, transport and discharge with precision materials (concrete, sand, gravel...)
Specifications
* Auger driven by an oil bath bearing
* Auger opening synchronized with distribution
* Level indicator - left or right discharge
Advantages:
*Fast and regular distribution with extension chute
Steady bucket with 5mm hardox thick (GDL 0,70m3)and 10mm for GDL 1,6m3
Safety : machinery handler in the traffic direction
Technical information :
Width : 1,50 m and 2,10 m
Volume : 0,70 m3 and 1,60m3
Details : water volume : 550 and 1100L
|
|
|
|
