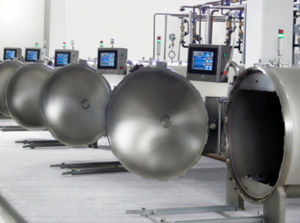

Internal dimensions :
Ø=1000 mm x L=1700 mm
Working temperature : 250°C
Working pressure : 10 bars
Computer system :
By specific software and supervisor
|
|
|
|
|
|
LABORATORY AUTOCLAVES
Priorclave offer a choice of laboratory autoclaves from 40 to 700 litres and above, suitable for a wide range of applications.
They are available in different loading formats; Bench Top, Top Loading, Front Loading, Large Capacity Rectangular. All Priorclave Laboratory Autoclaves include the following unique features:
- TACTROL microprocessor control system, developed specifically for the control and monitoring of Laboratory Autoclaves
- Easy to use, just set the temperature and time required, select any options needed and press start.
- Self-monitoring systems, with pre-set actions for events such as power failure or low water levels and other events. A full log of autoclave activity is held in the system and can be downloaded for diagnostic or monitoring purposes
- High visibility display panel easy to set and use with digital displays providing information on status
- Optional program memory, Printer and Serial or USB connection
- Biocote® Anti-Microbial Surface Coating providing a 2nd line of defence, to minimise cross contamination risks.
- A range of options and accessories to help you to get the most from your chosen model including:
- Vacuum systems for improved air removal
- Drying systems
- Steam and water jackets (rectangular models only) for improved performance
- Baskets, Sterilising Containers, Loading Trolleys etc.
Full spares and service backup from an in-house service team and fully trained distributor technicians.
|
|
Internal dimensions :
Ø=1000 mm x L=1600 mm
Working temperature : 200°C
Working pressure : 10 bars
Control system :
By specific software and supervisor
|
|

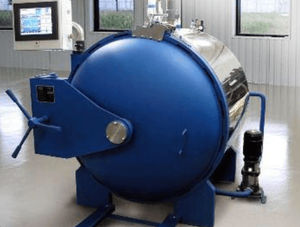

Internal dimensions :
Ø=1500 mm x L=3000 mm
Working temperature : 250°C
Working pressure : 10 bars
Control system :
Regulation by industrial programmable controller and supervisor
|
|
Internal dimensions :
Ø=2500 mm x L=2500 mm
Working temperature : 250°C
Working pressure : 10 bars
Control system :
Regulation by industrial programmable controller and datas safety
|
|
|
|
|
|
BENCHTOP COMPACT 40 PRIORCLAVE LABORATORY AUTOCLAVE
Compact Priorclaves allow flexible operation for the low volume user, usually only available in larger units.
- 40 litre capacity (up to 11 x 1 litre bottles or 7 x 1 litre conical flasks)
- Bench mounting
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138oC – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel shelves
- Stainless basket and stainless waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories
|
|
|
|
|
|
DOUBLE-DOOR, PASS-THROUGH LABORATORY AUTOCLAVES – CIRCULAR SECTION (380/415V, 10.5kW)
Where a clean room or containment suite is being installed it is often an advantage to install a through-wall autoclave to ensure containment. Priorclave manufacture Pass-through autoclaves with circular chambers in 150L and 200L capacities. Double Door Priorclaves have interlocks to prevent both doors being open at the same time as this would breach the integrity of the site. They also have an interlock to prevent the door at the unloading end from being opened until the sterilisation cycle has been successfully completed and the load is safe to pass into the unloading end.
Pass-through Priorclaves include all the features of the Front Loading Range.
Priorclave are pleased to offer our uniquely comprehensive design and advisory service to help you to correctly specify and design and autoclave to suit your particular requirements.
Each site is different with the requirement for doors to be hinged to swing in different directions and with the location of the required services. Final manufacture therefore requires full details of the proposed location and operation routines. This can be achieved by a site survey by one of our representatives or by the supply of detailed drawings.
|
|
|
|
|
|
FRONT LOADING PRIORCLAVE LABORATORY AUTOCLAVES
A firm favourite in laboratories throughout the food, drink, dairy, health and pharmaceutical industries, these autoclaves and are particularly useful for autoclaving heavy or bulky items.
Models are available in 100, 150 and 200 litre capacities and for electrical or direct steam heating.
- 500mm Dia. Cylindrical Chamber
- 7 or 10.5kW electric or direct steam heating
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Castor mounted for ease of positioning
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming
- Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
Q63 LARGE CAPACITY FRONT LOADING PRIORCLAVE LABORATORY AUTOCLAVE
Designed to give the advantages (more difficult to overload and lower costs) of Priorclave’s cylindrical section autoclaves but with a higher capacity the Q63 autoclave is ideal for autoclaving heavy or bulky items.
- 630mm Dia. Cylindrical Chamber
- 320 Litre Capacity
- 21kW kW electric or direct steam heating
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Castor mounted for ease of positioning
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming
- Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|

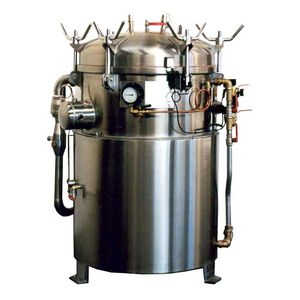

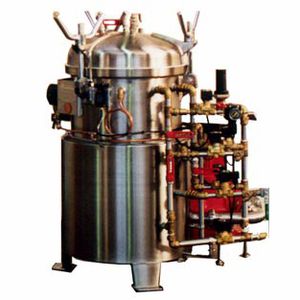

Used for research, pilot plant, or production applications, AE's Threadless Pin Closure is designed for rapid opening and closing along with high cycle life. To operate the vessel, simply remove the pin and raise the cover. This is a very easy closure to automate. With sizes up to 30" (762 mm) and pressures to 150,000 psi (10,300 bar) this is a versatile design for many applications.
|
|
|
|
|
|
New OPAL range of laboratory autoclaves
This entry-level, four option range starts with a 35L Bench-top model and includes 55L and 95L top loading models. A 125L Bench-top model with optional mounting stand completes the range.
They have been specifically designed to perform everyday laboratory autoclaving functions such as growth media preparation and laboratory waste sterilisation. It is intended to enable laboratories, with a more basic need, to perform these operations within their own laboratory to specific requirements, without unnecessary expenditure on additional functions and control systems often fitted as standard on today's autoclaves, for more exacting procedures.
All autoclaves in the range feature automatic free steaming and a thermal safety lock and are managed by a slimmed down version of Priorclave's tried and tested TACTROL microprocessor control system. They will operate up to 138oC - 2.4 Bar.
The models are based around Priorclave's existing product range and so are fully compliant and CE marked in accordance with the European Pressure Equipment Directive (97/23/EC) and other relevant directives and standards.
|
|
|
|
|
|
RECTANGULAR SECTION VERTICAL POWER DOOR PRIORCLAVE LABORATORY AUTOCLAVES
Perfect for high volume throughput as well as large bulky items, these autoclaves combine a huge internal capacity with a small floor area.
The Priorclave Hydraulic Power Door mechanism enables the door to be opened and closed at the touch of a button.
A fixed door seal is used for reliable, trouble free operation.
- 230, 285, 350, 450 & 700 litre capacities (Intermediate and larger capacities also available)
- 3 Year Guarantee on door seal
- Powerful heaters for shortened cycle times
- 21, 31.5 or 42kW (380/415V) electric or direct steam heating
- Steam Jacketed versions available (steam heated models only)
- Fully settable up to 138oC–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Media Warming & Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|

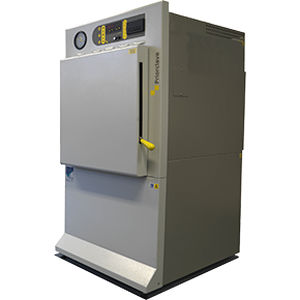

RECTANGULAR SECTION PRIORCLAVE LABORATORY AUTOCLAVES
Perfect for high volume throughput as well as large bulky items, these autoclaves combine a huge internal capacity with a small floor area.
- 230, 285, 350, 450 & 700 litre capacities (Intermediate and larger capacities also available)
- Compact design – 235 and 350 models will fit through standard door
- Simple, hand wheel door closure (with patented Priorclave safety mechanism – Also available with vertical sliding door closure
- Powerful heaters for shortened cycle times
- 21, 31.5 or 42kW (380/415V) electric or direct steam heating
- Steam Jacketed versions available (steam heated models only)
- Fully settable up to 138°C–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- Two non-tipping shelves
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Media Warming & Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Stainless steel baskets, waste containers and loading trolleys available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
DOUBLE-DOOR, PASS-THROUGH LABORATORY AUTOCLAVES – RECTANGULAR SECTION (380/415V, 21, 31.5 or 42kW)
Where a clean room or containment suite is being installed it is often an advantage to install a through-wall autoclave to ensure containment. Priorclave manufacture Pass-through autoclaves with rectangular section chambers in 400 to 100 litre capacities. Double Door Priorclaves have interlocks to prevent both doors being open at the same time as this would breach the integrity of the site. They also have an interlock to prevent the door at the unloading end from being opened until the sterilisation cycle has been successfully completed and the load is safe to pass into the unloading end.
Pass-through Priorclaves include all the features of the Rectangular Section Range.
Priorclave are pleased to offer our uniquely comprehensive design and advisory service to help you to correctly specify and design and autoclave to suit your particular requirements.
Each site is different with the requirement for doors to be hinged to swing in different directions and with the location of the required services. Final manufacture therefore requires full details of the proposed location and operation routines. This can be achieved by a site survey by one of our representatives or by the supply of detailed drawings.
|
|
|
|
|
|
COMPACT 60 PRIORCLAVE LABORATORY AUTOCLAVE
An ideal solution for the laboratory with occasional or low volume autoclaving requirements the Compact 60 allows flexible operation for the low volume user, usually only available in larger units.
- 60 litre capacity
- Floor standing with lockable castors
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138°C – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel mesh baskets and a load support plate
- Stainless steel waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories
|
|
|
|
|
|
TOP LOADING PRIORCLAVE LABORATORY AUTOCLAVES
A firm favourite in laboratories throughout the food, drink, dairy, health and pharmaceutical industries, these autoclaves feature a 500mm vessel diameter enabling low loading heights for increased operator comfort. Models are available in 100 and 150 litre capacities and for electrical or direct steam heating.
- Compact for where space is at a premium
- 7 or 10.5kW or direct steam heating.
- Fully settable up to 138C–2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5/10 program memory
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming and Delayed Start
- Fan cooling
- Timed Freesteaming
- Thermocouple port and test port
- Load support plate and 2/3 baskets
- Stainless steel waste container available
- Full range of options and accessories
- Vacuum models available (liquid ring vacuum pump)
|
|
|
|
|
|
BENCHTOP COMPACT 40 PRIORCLAVE LABORATORY AUTOCLAVE WITH VACUUM
Compact Priorclaves allow flexible operation for the low volume user, usually only available in larger units. These units include a vacuum system and pulsed freesteaming to assist with steam penetration in difficult loads. The vacuum system can also be used for fast vacuum cooling (Non Liquid loads only)
- 40 litre capacity (up to 11 x 1 litre bottles or 7 x 1 litre conical flasks)
- Bench mounting
- Specification includes a Diaphragm Vacuum Pump, Pulsed Freesteaming and a 5-programme memory.
- More flexible than fixed cycle sterilisers for laboratory and mixed load use
- Fully settable up to 138oC – 2.4 Bar. 1-999 minutes
- TACTROL microprocessor control system with optional 5 or 10 program memory and optional Printer
- BioCote anti-microbial surface coating – unique to Priorclave
- 12 months parts and labour warranty (parts only outside the UK)
- 10 year or 10,000 cycle pressure vessel warranty
- Thermal interlock for safety with liquids in sealed glass containers
- Pressure interlock
- Quickseal Series II single action closure
- Media Warming facility
- Delayed Start facility
- Fan assisted cooling
- Timed Freesteaming
- Thermocouple port and separate test port
- Two stainless steel shelves
- Stainless basket and stainless waste container available
- Operation from standard 13 Amp socket (UK)
- Full range of options and accessories – including vacuum assisted drying
|
|
Autoclaves 25 to 110 litres
• Very easy to use
• Intuitive programming
• Quicklock rapid opening/closing lid
Steam condenser included.
Polished stainless steel chamber.
Rapid cooling. All models come on wheels.
These autoclaves have been designed to offer user comfort and a maximum performance level.
8 customised programs.
High-precision temperature and pressure monitoring by the dual sensor system.
Safety: CE, TüV, EN 61010-2 (thermolock cannot be opened until the pressure has been equalized and the media temperature has fallen below the reference value).
Complete documentation with optional printer.
|
|
|

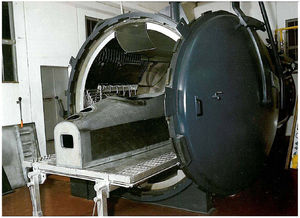

Autoclave manufacturer for the aerospace and composite industries . Any kinds of diameter from 500 mm up to 8 500 mm.
|
|
MAGNABOSCO AUTOCLAVES is a branch of MAGNABOSCO ENGINEERING GROUP
founded in 1960 by Mr. Giuseppe Magnabosco.
The carbon-fibre autoclaves manufactured by our company are the realization of
many studies and researches followed for a long period, focusing especially on heating
process, temperature uniformity, autoclave pressurization and vacuum system.
The first autoclave was built in 1963 and total units manufactured till January 2008
is over 1500, whose more than 300 are for composite materials. We produce some
versatile machines, allowing different types of working, by changing temperatures,
pressures and times very easily.
|
|
Processing parameters with operational temperatures in excess of 600 degrees C and pressures of 68 Bar are available where processes require it. With heating options include electric, oil, steam or Aeroform’s patented, award winning gas fired Radiant Tube Heating Technology that offers energy cost savings of up to 70% over other forms of heating.
|
|
|
Our new range of autoclaves has been carried out, keeping in mind the most advanced technologies to garantee machines of highest working safety, less working costs, short heating times, reduced overall dimensions, long life.
|
|
Front Loading Autoclaves - Circular Section
Ideal for all Laboratory Applications
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Advanced Water Cooling, Pulsar Free Steaming, Data Recording devices etc.
120 - 330 Litres - Front Loading
Fully Programmable Touch Screen Controller
PIN Restricted User Programming
Holdwarm / Delayed Start
Timed Free Steaming
Base Shelf
Full Range of Options & Accessories
Suitable for a wide range of Laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
Selecting an autoclave is an important long-term investment decision. Choosing the right sterilization system will have a positive impact on performance and efficiency. The Touchclave-Lab range is provided with a host of features specifically designed to improve throughput and usability
Touchclave-Lab sterilizers are built to BS2646:1993, BS3970 and HTM2010 (option). All pressure vessels comply with the European PED 97/23/EC and are independently tested to PD5500:2000 Cat 3 along with other international standards. LTE also supplies sterilizers to meet the requirements of many other standards and guidelines, including HTM2031, EN285, cGMP and EN12347. Call our technical team or sales office to discuss your requirements.
|
|
Top Loading Autoclaves
Ideal for all Laboratory Applications
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Advanced Water Cooling, Pulsar Free Steaming, Data Recording devices.
90 - 130 Litres - Top Loading
Fully Programmable
PIN Restricted User Programming
Timed Free Steaming
Electro Polished S/Steel Chamber
Holdwarm / Delayed Start
Full Range of Options & Accessories
Suitable for a wide range of Laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
Available with various options and accessories, including Assisted Air Cooling, Load Sensed Process Timing, Data Recording devices etc.
There are two version of the Compact autoclaves:
Classic Version
Ideal for all Laboratory Applications, especially Liquid Loads, Media etc.
This is the ideal model for all standard traditional laboratory sterilization procedures. Water fill is manual; during the cycle condensate leaves the vessel via a silicone tube that is connected to a heat resistant bottle. Ideal for use with media or liquid loads.
AutoFill Version
Ideal for all Laboratory Applications - AutoFill is fitted as standard
A pulsed-heat drying system, which is adjustable in 5 minute steps, is available when running a non-fluid cycle. The integral reservoir, once filled, provides sufficient water for up to 20 cycles; moreover, the same container also acts as a collection vessel for both condensate and water which is returned from the autoclave chamber at the end of the cycle.
|
|
Top Loading Vacuum Autoclaves
Ideal for more demanding Laboratory applications.
The addition of a vacuum system enhances pre-sterilization air removal and greatly reduces cycle times. Post vacuum drying (in conjunction with the optional heated jacket or external vessel warming) greatly improves drying performance.
Available with various options and accessories, including Air Ballast, CAT III Compliance, Full Heated/Cooling Jackets, Load Sensed Process Timing, Data Recording devices etc.
110 & 130 Litres - Top Loading
Touch Screen Fully Programmable Controller
Vacuum Pulsing
Integral Steam Generator (unless direct steam)
Electro Polished S/Steel Chamber
PIN Restricted User Programming
Delayed Start
Full Range of Options & Accessories
Suitable for a wide range of demanding laboratory applications
Guaranteed precision and versatility in sterilization
Ultra Quick Swiftlock Door Mechanism
|
|
|
|
|
|
Food processing and pharmaceutical industries

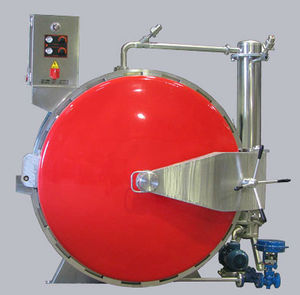

LAGARDE® offers a wide range of retorts in all sizes
- STATIC retorts
From a diameter of 1,300 to a diameter of 2000 mm
- PENDULAR -TILTING retorts
- ROTARY retorts
From a diameter of 1,300 to a diameter of 1800 mm
- PILOT units, static or rotary
With a diameter of 900 mm
Other equipments
LAGARDE® offers a range of other associated equipments :
Handling Accessories
- Rectangular baskets and stackable trays or drawers-style structures designed specifically for your packagings
- Trolleys
For sterilising retorts in MANUAL mode
- Lifting Tables manually operated
- Loading systems, either semi or fully automatic for the loading of baskets
- Unloading systems, either semi or fully automatic for the unloading of baskets
- Retorts Supervision
For sterilising “turnkey projects” with fully AUTOMATED retorts installations
- Conveyors and shuttles for the loading and unloading of the retorts and the handling of baskets
- Automatic loading systems
- Automatic unpacking systems
- Retort Supervision
|
|
|
|
