-Feeders: The feeder works by taking up the sheet metal supplied by the decoiler or straightener and regulating the exact quantity that should be furnished to the press at all times. By using CNC technology (numeric computer control) the process can be parametrized so that it is possible to program maximum speed, acceleration / deceleration and with the position in either millimetres or inches. To see figure

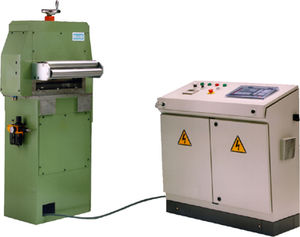

-Feeder/levelling machine: This machine is an evolution of the above and today most feeders incorporate the levelling function. As its name indicates, its purpose is to level out the sheet metal that, due to the slightly convex morphology, it adopts on the coil. Therefore, it is necessary to flatten the sheet metal so that it is absolutely level on reaching the press. Otherwise, the quality of finish produced by the feeder-levelling machine would not be obtained.
|
|
|
The SpeedFeeder is specially designed for quick and easy handling of sheet metal parts in presses and other metal processing machines. Up to 4 units can be mounted on the same Y-beam. With the units connected to one control system the axes can be synchronized to provide parallel operation.
|
|

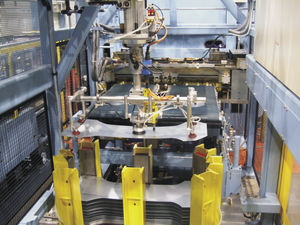

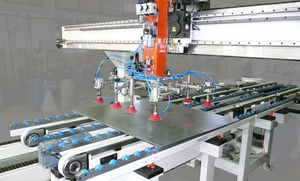

Blank loaders
to feed single presses and press lines. The cut blanks are delivered to the blank loader as a stack. After blank isolation the top blank of the stack is lifted by suckers or magnets to be transported to the transfer equipment or to a conveyor belt.
If required we can guarantee a production without interruption during stack exchange.
The transfer operation of the blanks from stack to the transfer system or conveyor belt can be realized with feeder or robot. In both cases, a continuous production are possible.
|
|

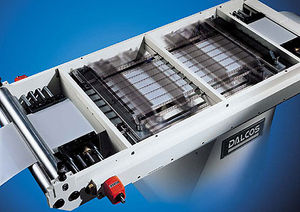

The patented clamp feeder VEGA Bialternato® has unique characteristics that put it at the top in terms of precision and versatility.
Using CNC grippers means that all materials, even the most delicate, with thickness ranging from 0.2 to 2mm, can be processed mar-free.
|
|
DESCRIPTION:

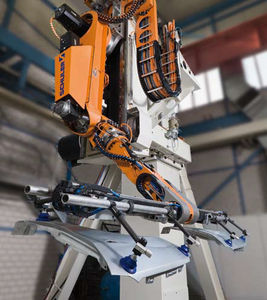

Conceived by specialists in the automation of work on press, the automatic chargers Norda bring an answer to all the requirements:
- High Production pace.
- Tooling and Staff safety.
- Accuracy of mouvement
- Greasing and separation of the blanks.
- Reliability of the production.
- Simplicity of the adjustments.
NORDA builds its chargers in series under patent and sell them in the whole world. The hundreds of solved cases and a close cooperation with the customers make of it the leader of the automation of the presses in Europe.
FEATURES:
The charger is a specialized robot which supplies the presses intelligently. The horizontal adjustments of translation for the loading of the presses vary according to the models from 300 to 1100 Misters the charger takes in the store a sheet metal or an already worked part and carries out of it the transfer to a station of centering where the part is positioned precisely. At the same time, the part previously centered is taken and transported until on the outiil. The charger control then the press and starts again a new cycle.
The movement of the mobile arm of the charger traverses a trajectory in "U" reversed. The movement is carried out by a device actuated by ensuring motor reducer raised speeds, of the accelerations and decelerations controlled with a constant precision.
The charger also carries out controls in the course of cycle: catch of the part, ejection out of the tool, sunchronism with the press...
The flexibility is ensured by a system of vertical regulation of the charger allowing the fast adaptation to a change of tool.
|
|
Electronic roller feed units
Dreher roller feed units stand out for high precision and constant feed exactness at a high dynamic force. Roller feed units can be delivered for a strip width until 2000 mm and a strip thickness from 0,1 to 10 mm for co-ordinated roller diameters.
Pneumatic strip feed units
The cost-effective well-tried alternative to roller feed units disposing of an integrated sequentiell phase control and guaranteeing easy installation, precision and product assurance. These units can also be used for foils, sensible strip material, stripe and wire profile material.
Number of strokes: 1200 1/min
Precision: +/- 0,025 mm
Minimum set-up times by easy adjustment
Easy strip insertion
Mechanic intermediate release device
Feeder with linear motor
High precision feeder for very large strokes and for more flexibility in the production.
Particularly suitable for:
- the feed of three dimensional parts
- Large strokes
- For sensitive and coating strips
- Flexible feed length
|
|
| ... products without technical information |
| |
Millennium® M-2010 Dispensing System
The high-performance Millennium® M-2010 system incorporates field-proven Millennium process control of fluid delivery and software-managed temperature control. The platform%u2019s low-inertia, closed-loop, 3-axis motion system offers fast, smooth acceleration and the dispensing precision to handle the most challenging dispensing applications. The Millennium® M-2010 dispensing system delivers unparalleled high speed and accuracy for today%u2019s most demanding surface mount adhesive (SMA) applications.
Features
- Asymtek%u2019s exclusive Fluidmove® for Windows XP® (FmXP) software provides quick and accurate programming control
- Non-contact jetting reduces time spent programming standoff locations, as well as time between assistance
- Fast motion acceleration (2g peak), with up to 1 m/s X-Y velocity for high throughput with ± 0.025 mm repeatability
- Compact footprint (1.65 m2) conserves factory floor space
- SMEMA-compatible Multimove Conveyor software conveys parts simultaneously, not sequentially, enhancing yield
- Improved throughput using pipelined fiducials
- Data-driven, offline programming with the CAD Import program using CAD-generated data
- Network interface card included, allowing connection to a local Ethernet network
- SEMI-S2 compliant, ergonomic flat-panel display and integrated keyboard
Recommended Applications
- Solder Pastes
- Silver Epoxy for Die Attach
- Surface Mount Adhesives
System Pumps
DJ-9000 DispenseJet® The Latest Jet Technology
DV-7000 Heli-Flow® Pump
|
|
All you need is here
epMotion automated pipetting systems will make you see things in a new light. Whether it's sample or reagent transfer, assay set-up or nucleic acid extraction, all your routine pipetting tasks will be automated with more precision and safety than you ever experienced before with manual pipetting. With four models, two instrument sizes and multiple pipetting deck combinations to choose from, epMotion is the perfect companion for your workload.
epMotion automated pipetting is unique
* Flexible - Unlimited applications from cell culture to qPCR in 96, 384-well or single tubes
* Accurate - From 1 µl to 1000 µl - the most accurate automated pipetting solution available
* Easy to use - Ready to go in less than one day – installation and full training in one morning
Feel safe it's Eppendorf
epMotion automated pipetting is the natural step. It's precision is based on the successful Eppendorf pipetting technology. Since introducing piston stroke pipetting technology in 1961 Eppendorf has become the leader in pipetting. Accuracy and quality - epMotion inherited our genes.
Why automated pipetting?
* Reproducibility over millions of pipetted samples
* More precise than manual pipetting
* Frees lab personnel from the bench
* Easier to handle than complex robotic systems
|
|
|
The Flexispense M is the best choice for dispensing in HTS applications. The computer controlled plate centring mechanism makes plate loading for a robot very easy. A wide range of solvents, acids, bases and other aggressive liquids can be dispensed with confidence since the liquid path is completely inert and the adjustable pump speed allows for a wide viscosity range.The Flexispense M is also very fast, filling a 1536 well plate within 40 seconds. The pressure-free pump system allows to switch between different reagents using an external valve. The Flexispense M is featuring a 16 channel manifold with disposable tips for 384 and 1536 well plates.
|
|
Economy models in the 111 Series hold from 30 to 90 cubic feet of loosefill. Heavy-duty 211 Series deluxe models have 60-160 cu.ft. capacity.
Dispensing valve choices are the Square Valve® with a 49-square-inch opening and the six-inch Scissor Valve which rotates 360 degrees. Additional valves and tubing are available.
Streamline packing operations. A FLO-PACKER® dispenser eliminates loosefill waste by automatically returning overflow material into its storage bag for reuse. The FLO-PACKER dispenser's 140 cu.ft. capacity means fewer refills, and the auto return lets dispenser bags be filled without lowering. Stand-alone unit adapts to any packing line. Just put it in place, plug it in and it's ready.
|
|
|
UltraSpense 2000 is the answer to the increasing demand for an automated yet affordable dispenser for 96 and 384 well microplates. High accuracy and precision dispensing into deep well or low profile microplates, coupled with low dead volume and easy programming makes UltraSpense 2000 the ideal solution for virtually all dispensing applications. Dispense a wide range of solvents, acids, bases and other aggressive liquids with confidence through the completely inert liquids path. Optimize performance for a wide viscosity range through the adjustable pump speed. Ultraspense is very fast and accurate; dispense 100 ìl into each well of a 96 well plate within 14 seconds with better than 0.5% C.V. precision.
|
|
Satellite Paste Applicators are designed to complement an existing heat source, such as furnace or induction. These freestanding units apply single, multiple, or "ring shape" paste deposits onto assemblies. Cycling is automatic and error-free with an operator removing the pasted part and loading it into the adjoining heat source.
Applicator guns can also be mounted to a robot to apply a detailed combination of paste dots and stripes to a particular part. After the pasting cycle, the part is joined to its companion members and fixtured to the subsequent heating and cooling sequence.
Dual station system utilizes rotating mandrel technique to apply 360° stripe of Fusion Paste onto part joint area.
|
|
Mediajet – the automated Petri dish filler
Two applications – one system: MEDIAJET is a compact, automated Petri dish filler that requires only minimal bench space in the laboratory. It can easily be converted into a test tube filler.
Incorporating a new mechanical dish guidance system, monitored by a set of sensors throughout the filling process, the compact MEDIAJET is the first system to provide truly reliable, walk-away operation. Operational downtime and media loss due to 'dish jams' resulting from variations in the diameter, shape and rim profile of the disposable plastic Petri dishes are completely eliminated.
For every lab involved in culture media production, the TUBEFILLER option is the perfect expansion to the functionality of MEDIAJET, as it allows conversion into a test tube filler in just a minute. This unique solution from INTEGRA Biosciences is making MEDIAJET the most versatile system for media dispensing in the market. TUBEFILLER is the alternative to the tedious and time consuming work of manual tube filling. It is designed for the continuous processing of racks for test tubes of various diameters and therefore suitable for a wide range of dosing applications including the production of agar slants, broth cultures or NaCl dilutions.
|
|
Axiom X-1020 Dispensing System
The Axiom%u2122 X-1020 system is designed to meet high-volume dispensing requirements for inline semiconductor package and printed circuit board assembly. The X-1020 system offers precise control over positioning accuracy using sealed glass linear encoders.
Features
- Provides enhanced fluid dispensing control with choice of jet or pump: DJ-9000 DispenseJet, DP-3000 linear positive displacement pumps and DV-7000 Heli-flow%u2122 pumps
- Supports a full range of applications, including flip chip and CSP underfill, dam and fill, die attach, and thermal compounds
- New, unique CAN bus architecture for efficient operations now, and simplified integration for future improvements
- Closed-loop linear-encoded X-Y positioning system with fast-motion acceleration ensures high throughput
- All new and enhanced pattern recognition system with red/blue LEDs for a larger dynamic range of lighting
- No periodic calibration required
- No special needles required
- Backwards-compatible software %u2013 customers can use existing dispensing programs
- Many Asymtek pumps already work with the X-1020 %u2013 protecting investments in pumps and valves
Recommended Applications
- Underfill for flip chip and chip scale packaging
- Chip Encapsulation
- Dam and Fill
- Solder Paste
- Thermal Compounds
Productivity Enhancements
- Dual Lane Configuration
- Loaders/Unloaders
- Film-Frame Wafer Handler
- Dual-Action Dispensing
- Dual-Simultaneous Dispensing
- Low Fluid Sensors
- Custom Heated Tooling (impingement or contact)
- Process Development Hot Plate
- SECS/GEM Interface Software
- Slim Line Height Sensor
|
|
APS300
Automated Pourer Stacker
The APS300 is a compact automated pourer/stacker designed to provide an efficient hands-free plate preparation. Easy to use, the APS300 ensures a high level of productivity, traceability and security at a moderate cost. All user interfaces and features will help to increase productivity and provide optimal working conditions. For total traceability, the optional ink-jet printer prints directly on the side of the petri plates.
Single carousel with a capacity of 320 plates Ø 55 or Ø 90 mm
Pouring rate up to 750 Petri dishes per hour
Hands-free and automated operation
Easy programming, alphanumerical display and keypad
Store up to 40 user programs
Easy-Load pump for fast tubing loading
Intelligent alarm management
Optional ink jet printer for perfect traceability on the side of the Petri dish
Optional ticket printer
Specific versions for the food, water and clinical laboratories available
The APS300 has been designed to pour and stack automatically up to 320 Petri dishes without any operator intervention once the carousel has been loaded and the programme started. Inverted plates are simply ignored and stacked empty without any operation interruption.

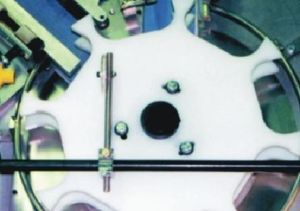

The transfer disc can be easily removed for cleaning
|
|
| ... products without technical information |
| |
- Designed for speed, stability, and convenience.
- Improving screw driving speed and work efficiency by
integrating pneumatic/ electrical screwdriver, high-tech
automatic feeder, and high precision jaw.
- The jaw is customized by particular screw and working
environment to provide a stable operation.
- Standard pneumatic screwdriver; optional models by
customer also available.
|
|
The improvement of productivity, quality and customization along with a close customer association, has been the driving force in the development of the CP screwfeeder range.
Cost effective solution
- Our screwfeeder range is an assembly of modular parts
- Each part of the assembly is a standard module
- Each module is easy to change thus provides a flexible solution
Servicing
- Simple procedure to order via the CP Application Center
- All module parts in stock
- Easy to install: no special tools required
- Mechanical assembly components fully designed with 3D CAD system (proe, step or iges format) based also on your 3D specifications.
|
|
Autofeed hand screwdrivers and fixed screwing units represent the first step of assembly automation.
They are simple and reliable systems where the screw or the nut is automatically fed into the driver collet head.
The automatic down stroke, featured also by the manual system, reduces operator's fatigue increasing dramatically assembly rate and productivity.
|
|
Cordless Auto Feed Screwdriver
BFR440
Fast Charger, Battery Cartridge, Philips bit
FEATURES
Quick Shooting
Rotational speed has been drastically increased up to 4,000rpm from 2,000rpm of our predecessor model 6835D, ensuring smooth screwdriving and high operation efficiency.
|
|
DS300-S2
Capable of driving all SENCO® DuraSpin screws from 1-5/8" - 3" in length, this tool is ideal for wood screw applications. The SENCO DuraSpin™ DS300-S2 collated screw system comes conveniently assembled to a rugged 2,500 rpm SENCO screwdriver. The DS300-S2 comes complete with the DuraSpin collated screw feed system mounted on a screwdriver, a flooring extension, a rugged carrying case, and two spare bits.
Features:
Patented SENCO DuraSpin feed system drives screws quickly and efficiently without jams or misfeeds.
Ergonomic design - May be used with a one-handed or two-handed grip. Cushioned second hand grip provides added comfort and reduced exertion.
Flooring extension included - Allows screws to be driven efficiently from a comfortable standing position.
Easy Depth-of-Drive Adjustment - Just turn the thumb screw to regulate the precise amount of countersink.
Quick Release - Feed system snaps off to give easy bit access.
Adjustable Nose Piece - Easily adjusts tool for screw sizes from 1-5/8" - 3" (41 mm - 75 mm).
Super-Tough Drive Bits - Outlasts the competition.
SENCO's Full One-Year Warranty.
Modular design - Snaps together with or without flooring extension, quickly and easily, with no tools.
|
|
HSP Handheld Screwdriver
with automatic feed system for screws and headless pins
- Compact and ergonomic design
- Automatic bit stroke
- Short changeover times
- Maximum flexibility
|
|
Course of the cycle:
to position the gun of screwing
to press on the bar of release
the screwdriver goes down without rotation and s%u2019engage in the head from the screw
l%u2019embrayage s%u2019enclenche;
the screwdriver and the screw start to turn
the screw is then tight with the predetermined couple
to slacken the bar, the screwdriver goes up
the following screw is automatically brought in the head of screwing lasting l%u2019operation.
Options:
Control rotation with message OK/NOK
Jaw with pawl for maintained apparent screw
Modulate d%u2019aspiration for screw with heavy head and points of screwing d%u2019accès difficult Grand d%u2019accessoires choice
|
|
| ... products without technical information |
| |
|
|
