High performance machine for 5/6 mm plastic strap
- For small to large packages
- Up to 70 cycles per minute
- Very easy handling, cost effective
- Additional machines: see "More information..."
- Machine, strap and after-sales service as a total package
- Brochure available under "More information"
|
|
High performance machine
- With integrated roller conveyor
- For mail order houses and general purpose applications
- Use of PP strap, widths from 5-12 mm
- Additional machines: see „More information...“
- Machine, strap and after-sales service as a total package
- Brochure available under “More information…”
|
|

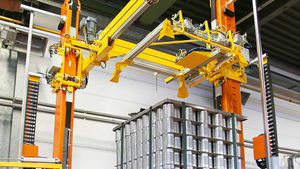

CMR CAM 2S
AUTOMATIC VERTICAL STRAPPING MACHINE
This machine carries out automatically the toroidal strapping of skeins and It is designed to be combined with vertical winding machines.
|
|
- Designed and manufactured using highest quality components.
- Different strapping heights easy to set by pressing a button while the machine is in the desired position. Ten different programs available with ten different strapping heights for each.
- Remote control available.
- Warning light system.
- Compression system in the arch compacts load and guides the strap to the correct position.
- Mechanical tension adjustable through a holding strap system to get the highest tension.
- Reisopack model 1900 head set in aluminium ensures long life of the machine.
- Approximate production 60 pallets per hour.
- Security system under the arch. If the machine contacts anything while moving down to the ready position, it immediately stops and returns to home.
|
|
High performance automatic strapping machine. Very fast. Maximum reliability even when working with 6 mm. strap.
Designed and manufactured using highest quality components.
- Aluminium head set and tension roller treated ensures long life of the machine.
- Tension electronically adjustable through a magnetic clutch to get the strongest tension without any physical effort.
- Electronic control of the tension, heating, cutting and length of the strap.
·Adjustment of the cooling after sealing to get better sealing quality, especially for hard packages (wood, iron, etc).
- Light and easy to move because of its two fixed and two revolving castors.
OPTIONS:
- Available in a range of different dimensions of arch (from 650 mm. to 2500 mm. in width and high).
- Single phase version 220 v.
- Pneumatic press or subjection packages system.
|
|
MOSCA- strapping machines are series-produced based on a modular principle. Sturdy design. Program- controlled integration in conveyor lines. Fully automatic horizontal strapping in various height- positions. Easy TEACH-IN programming. Designed as two -guide-pillar system, carried out as heavy duty steel costruction. Fully electrically driven. Strap despenser for slack accumulation and take-up of excess strap. Easy and fast reloading of coils. Particularly suitable machine for automatic strapping of pallet loaded goods of stacked boxes, trays and blocks. Friction- weld sealing.
Different Models, KOV 315 Basic Model:
- Laterally friction- weld sealing » Height moveable, horizontal arch
- Friction- weld sealing unit, moveable laterally to the package
- Operator panel with electrical and electronic controls
|
|
AUTOMATIC STRAPPING MACHINE KZV-112
Machine Description:
MOSCA vertical strapping machine, laterally moveable. Modular design, sturdy welded construction in small-scale production. State-of-the-art manufacturing technique with perfect possibilities of variations to suit a special customer need. The portal design offers a low construction depth with the advantage of a top-lying, electrically driven movement. The line can be mounted independent of the conveying system installed below it. Sealing unit mounted on the lift truck, which will be driven by a vertical column via a DC motor with worm gear and rack.
The proven strap dispenser KA-400 E is installed on the moving device and guarantees an optimal strap guiding during the work process.
|
|
MCB
The Mosca MCB squaring and strapping system is the newest generation of corrugated bundle squarer- strappers form the Company that developed the integrated squaring-strapping concept. The MCB features fast automated setup changes, smooth bundle control and transport jsing variable frequency drives and the latest in brushless dc technology for extreme strap sealer reliability and low maintenance. Throughput capability is 27 bundles per minute. Straps are applied in the direction of bundle travel.
|
|
|
|
|
|
The MODEL 06 automatic strapping machine is suitable for the horizontal strapping of palletized products . The strapping level is adjustable and straps can be applied to one or more pack layers according to the degree of pack stability required. The machine can be free-standing or easily installed into automated pallet handling system . Use of polypropylene and polyester heat seal strap for automatic machines according to the type of head mounted;.
Easy and secure strap tensioning. The set value is controlled by a loading cell that checks the effective tensioning and can be easily regulated from the board by means of a potentiometer.
Constant tensioning, irrespective of dimensions and type of pack;
precise welding temperature controlled by means of a thermocouple and digital heatregulator; seal joint efficiency of 90%;
transversal shift of the strapping head during the strap tensioning so as to ensure equal tightness on the corners of the product and consequent greater stability; multiple sectors of new design which improves the sliding of the strap inside the channel thereby increasing its potential performance; perfect strap positioning on the horizontal surface assured by the strap guide unit; extreme maintenance ease. The eventual extraction of the strapping head of the machine is facilitated by the rapid attachment features and the rapid connection electrical fittings.
The machine is fitted with intrinsic safety devices in compliance with current legal requirements
|
|
|
|
|
|
AM800 Series - Automatic horizontal strapping system
Fully-automatic horizontal steel strapping machine
FROMM Steel strapping machines are suitable for applications in the forest products-, metals-, building products- and general bailing- and unitizing industries.
Tension speed:120 mm/s
Strapping dimensions:9.5 - 32.0 x 0.50 - 1.00 mm
Strap tension:max. 18000N
Sealing method:Sealless joint
Average seal strength:up to 80%
Advantages
- Fully automatic machines reduce the total strapping time substantially compared to
manual operations
- Under normal circumstances labour work is completely eliminated
- The rugged fully automatic machines have been designed for continuous and shift
operations demanding a high working reliability
- A very wide variety of different fully automatic machines meeting the requirements
of all major industries including a broad range of options are available
- Customer friendly control system; keyboard and display show all information and
messages in the language required by the customer
- Every fully automatic machine is built for the specific requirements of the customer
- After sales service is guaranteed by our FROMM subsidiaries and distributors
|
|
|
The strapping machine mod.06RP è is ideal to strap horizontally all types of palletized products that need to be kept together during transport and handling. The new rack type lifting system, guarantees perfect positioning of the strapping arch on the horizontal plane and a considerable precision and reproducibility of strapping heights.
|
|
RECORD
Economical machine especially suited for strapping voluminous packs and pallets. The strapping head is placed on the side of the machine frame.
The sealing head guarantees high seal efficiency for PP or PET strap.
Admitted strap size : 9 - 12 or 16 mm width.
OPTION :
- Automatic sword permitting passage of the straps through the pallet beams.
- Sealing head movable
- Automatic roller conveyor.
|
|
The automatic strapping machine mod. 078 is ideal to vertically strap pallets or stacks of corrugated carboard that need to be kept compact and together during transport and storage.
It can either be combined with automatic lines in which it exchanges input and output signals or it can work separately.
|
|
|
The automatic strapping machine is especially suitable for applications in book trading, paper and cardboard industry, bookbinding, box factories: it stands out for the high strapping speed and thus for the high number of strapping cycles per minute, always keeping the highest performance. On request, the machine can be customized according to the client's need. After a package has been placed into desired strapping position, the foot switch initiates the cycle. Strap is automatically fed, tensioned, sealed and cut-off
|
|
* The machine JUNIOR stands out through its simplicity, its low weight, its reliability, the easy operation and maintenance.
Operation :
The operator places the plastic strap around the pack.
Tensioning and welding are then started automatically.
Admitted strap size : 9 - 12 or 16 mm width.
* The machine SENIOR, simple and robust, enables the strapping of packages with different shapes and different dimensions without any handling of the strapping band during operation.
Operation :
All the functions are started by means of a start button on the control panel, a foot pedal or an automatic switch on the table.
Admitted strap size : 9 - 12 or 16 mm width.
|
|
The automatic strapper Cyklop CX 89 II is suiable for strapping packages, mail-boxes or other products such as printed matter.
This machine can be used in various industries. The Cyklop CX 89 II strapper is a reliable machine with low maintenance requirements but simple to operate.
|
|
|
|
|
|
PM309 - Automatic plastic strapping machine
The enhanced machine model for wide strapping
Characteristics
Strapping qualities: Polypropylene (PP)
Strapping dimensions: widths / thicknesses: 8.0 - 12.0 mm/0.55 - 0.75 mm
Strapping tension: adjustable, 70 - 700 N
Sealing method: heat welding
Power supply: 230V / 50Hz, 1 phase
Power consumption: 1.2 kWh
Strapping speed: 2.1 sec./cycle (approx. 29 strapping cycles/min.)
Dimensions:
- length 1430 mm
- width 620 mm
- table height 810 mm
Machine net weight: 220 kg
Max. package weight: 100 kg
Min. package size: 130W x 20H mm
Arch size: 850 x 600 mm standard
Temp. of working environment: 5 ~ 40°C
Advantages
- Proven quality
- Competitive price
- CE certfied
- Bundles and cartons can be strapped very easily and quickly
- User-friendly and easy strapping coil change
- Easy operation, simple maintenance
- Electronic outside tension control
- Tension can be easily set with a dial
- Mobile, on wheels with brakes
- Auto strap reefed
- Strap end ejector
- Short feed sensor and foot switch included
|
|
The LB-2000 strapping machine provides high-speed, jam-resistant operation for a wide range of general purpose applications, including mail room operations, apparel manufacturers, distribution centers and printed forms manufacturers. The LB-2000 cycles up to 52 straps per minute, and uses 5mm and 6mm Dylastic polypropylene strapping
|
|
|
The automatic strapping machine mod. 043 è it is ideal to vertically strap products transported on belt conveyors or motorized rollers. It automatically vertically straps products, in a predetermined position, with a variable length and width without any length limitation.
|
|
MD-V
The MD-V is a fully automatic vertical strapping machine designed to offer exceptional levels of machine availability. It also offers a wide choice of machine options – enabling it to be customised to the exact requirement of your packaging operation. Based on a robust, welded box section construction, the strapping head is mounted securely within the machine. Packs are transported into position along a guide rail by the customer conveyor system. The MD-V has the flexibility to use either polypropylene or Tenax® polyester strap in 9, 11, 12, 13 or 16 mm widths – giving it the capability it to pack everything from cartons, boxes and containers to timber and metal products. The strapping head is also available in two versions to suit different strap materials and widths
|
|
The LB-2330 operatorless strapping machine provides high-speed, jam-resistant operation for a wide range of appliance packaging applications. The LB-2330 cycles up to 52 straps per minute, and uses 5mm and 6mm Dylastic polypropylene strapping.
|
|
JN-85WHM Features:
New innovative design for horizontal strapping applications with chain driven vertical movement.
Photocell adjustable strapping height adjustment & package positioning.
Horizontal movable strapping head (100-200mm) can move approach the package and tightly strap.
Exhaust of strap detective function to notice by warning
lamp.
Incorrect strap feeding detective function to notice by
warning lamp.
The Arch Size is custom made to user requirements.
Can equipped with optional function such as head
temperature auto controlling device and special custom
strapping configuration.
P.E.T strapping system is available as an option.
Specifications
Arch Size 1250W x 1200H mm
Tension Strength Max. 70Kgs (Higher tensioning is optional request.)
Strap Width 9-19mm
Sealing Method Heat Sealing
Sealing Head Strok 1500mm
Power Supply 220/380/415V 50/60Hz 3Ph
Dimensions 1700W x 1080D x 2300H mm
Machine Weight 485Kgs
|
|
JN-85YMA
Features:
- The machine utilizes a fixed rail for sealing head travel (200-300mm), ensuring close proximity of the sealing head to large packages, and a tight strapping effect. It is equipped with pneumatic cylinder to drive hydraulic movement system.
- This machine is designed for large packages that can align to the sealing head (area).
- Installation with conveyor and photocell is essential.
- This machine requires compressed air source to drive an oil cylinder and makes machine move stable.
- Equipped with warning alarm and buzzer to notice failures of feeding strap.
- P.E.T strapping system is available as an option.
|
|
|
The Power master 10481 is a high performance strapping press of the most recent generation, manufactured in our plant in Wuppertal. With an infinitely adjustable compression automatic height seeking of incoming loads for faster troughput and numerous variations of pallet and load handling equipment for feed, center and turn the Sander power master can be integrated very easy in automatic packing lines. As a special feature the electric motor driven compression platen includes a permanent accurate compression sensing which is a requirement in the corrugated and paper industry. This ensures an intermittent further compression cycle. Both PET or PP strapping material can be used with the machine. The Sander GS-41 strapping head guarantees a solid vibration seal joint without any emissions of vapors.
|
|
JN-85PBTAPN
Features:
- Suitable for bigger carton/ paperboard or pre-transported forming-case strapping.
- Equipped with 2 sets of photocell and light-duty air-pressing bar.
|
|
M.J. Maillis polyester and polypropylene strapping machines have an extremely robust construction, and include fully automatic, vertical and horizontal strapping and compression systems. These low maintenance machines employ a sphosticated sealless joint technology. Typical applications include the distribution of timber, brick and block, paperboard, and domestic appliances.
Features include an exceptionally sturdy construction; a modular, low maintenance design; operating reliability; the option of conveyor-driven and non-driven systems; a near silent belt drive; and automatic height -seeking of incoming loads.
|
|
JN-85PPRM
Features:
- Dual selection of package height when using different pallets. When strapping on close-based pallets, the machine can rise to let the strap guide going through the pallet to strap.
- Suitable for strapping on the light bulk cargoes, such as beverage can or bottle packaging.
- Can be combined with stretch wrapping machine.
- Other Instruments can be selected as an option.
- The actual specifications, including Arch Size or conveyor height is depend on order request.
- P.E.T strapping system is available as an option.
|
|
M-60AXPB-AP-2HT
Features:
- Equipped with light duty air pressure. (Pressure: 6 kg/cm2(Bar), Cylinder: inner ø50 mm, Stroke: 550mm).
- Suitable for strapping cartons, paper boards or pre-transported formative case, etc.
- According to requirements, additional functions such as to delay the strapping are available.(Optional)
- Arch size is optional to fit various size of package.
- The other details are as same as M-60AXPB-2HT
|
|
Stand alone, mobile machine
- For small to medium volume of packages
- User friendly, fast strapping speed
- Use of PP strap, widths from 5-12 mm
- Machine, strap and after-sales service as a total package
|
|
Stand alone, mobile machine
• For small to medium volume of packages
• User friendly, fast strapping speed
• Use of PP strap, widths from 5-12 mm
• Machine, strap and after-sales service as a total package
|
|
|
|
