HIGH CAPACITY

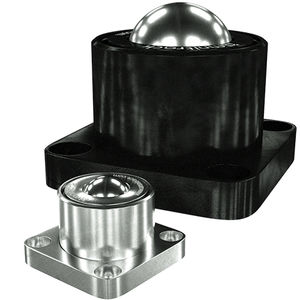

The patented recirculating-ball principle affords high precision and load carrying capacity at any angle of inclination. Shock-absorbing and 'friction-less' load capacities from 30 - 2000 kg (75-4480 lbs)

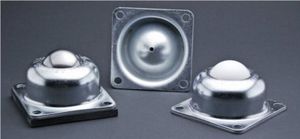

MEDIUM DUTY
A simple cup-and-ball design with load capacities from 20 - 500 kg. These offer good performance in the movement of loads in any horizontal direction. Many popular metric configurations available.

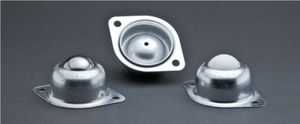

LIGHT DUTY
Suited to light hardware applications, these pressed-steel units offer an economic, alternative handling solution. Available in many different configurations, offering load ratings of 20 kg {44 lbs} to 120 kg {264 lbs}.
|
|
Material Options - standard materials are of high-grade steel with outer housings zinc-plated for standard corrosion resistance - we also offer 3 further levels of resistance to corrosion to handle the most difficult working environments:
1. Stainless steel balls only.
(Add suffix 'A' to part number)
2. Arduous conditions - specially treated steel housing with stainless
steel load-bearing parts. (Add suffix 'Z' to part number)
3. All stainless steel construction.
(Add suffix 'SS' to part number)
Note: Non-marking Nylon 66, Acetal or Phenolic Resin balls are
available, together with other special order materials, upon request.
|
|
High capacity ball transfer units the practical design and exceptional endurance of our high capacity range can (in most sizes) be easily dismantled for cleaning/examination for extended longevity. With full parts
back-up and a factory refurbishment option on most models -right back to 1954 - we are a family owned & run company that value the concept of service, performance and delivery.
|
|
|
Our pressed steel range of units are ideal for ball 'up' use in light-duty applications. The internal hemispherical cup is heat treated for resistance to wear. Lubricated for life, with alternative material options in most sizes to permit a long service life despite adverse operating conditions.
|
|
|
Medium duty units have been designed to withstand impact damage through misalignment of the conveyed item and also incorporate a resistance to shock loads applied to the main ball. Medium duty units have the internal hemispherical form machined directly into the solid steel base. The load-bearing base is then carefully case hardened for wear resistance and provides for smooth movement in any direction. All units with a main ball larger than 19mm are fitted with a felt seal to reduce dirt ingress.
|
|

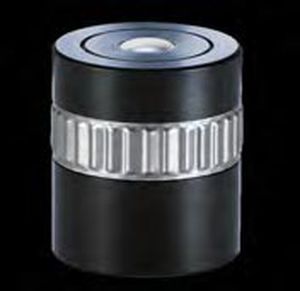

Versatile spring loaded units which are pre-loaded to support from 23 to 2036 kgs.

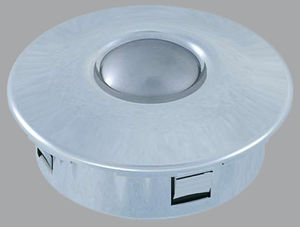

Integral moulded Nylon seal and zinc plated housing for corrosion resistance. Available in different forms, with or without additional fixing flange. Load at maximum deflection from 32 to 2036 kgs.
|
|
|
Ball transfer units provide instant directional change and are manufactured to meet the highest standards of performance in load transfer applications
|
|

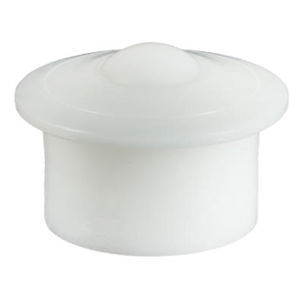

Balls with shouldered cylindrical base
Removable balls, simply encased in holes.
This positioning makes it possible to obtain a very reduced height of the scheme of work compared to the scheme of work.
Exist with the ball "mother" diameter 15 mm, 22 mm, 30 mm and 45 Misters Charge unit with 10 to 610 kg.
|
|

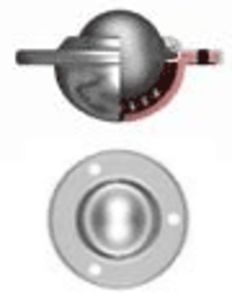

Balls to flange. The embedding of the balls in the support allows a weak going beyond compared to the plan of fixing.
Fixing by screw, rivets or bolts Balls Standard 31,35,36 and 38 or fast fixing by springs Standard Ball 33.
Recommended for the handling of the loads to flexible base of sole type of containers or aluminum pallets.
|
|

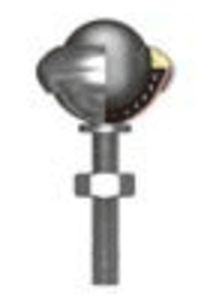

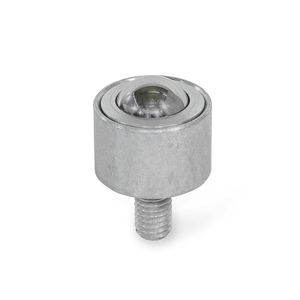

Balls to threaded rod
Economic fixing: a simple hole for the passage of the stem is enough. Balls in heightening compared to the plan of fixing, their brought closer positioning allows the handling of small parcels. Reversed, as casters, these balls facilitate the orientation of pieces of furniture or light apparatuses on short distances.
|
|

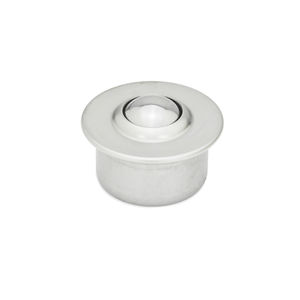

Series 5500, Ø ball = 25.4mm
Steel , Stainless steel or Technopolymer
with bottom flange
with top flange
with threaded pin M8
|
|
- static load range up to 150#
- Carbon & Stainless steel models
- Frantz quality
- Plasic major balls
- American made quality
- Price competitive
- Corrosion resistant
- Hundreds of applications
- Tough, robust design
- Versatile & durable
- Frantz grade 1000 balls
|
|
- static load range up to 150#
- plastic major balls (3 types)
- hundreds of applications
- versatile and durable
- american made quality
- carbon and stainless steel models
- price competitive
- corrosion resistant
- tough, robust design
- Frantz grade 1000
|
|
Multi-direction moving of loads.

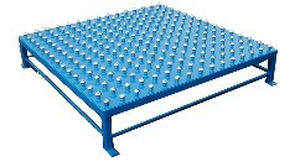

Handling table made of steel balls for loads up to 60 kg/m.
Produced according to your dimensions.
|
|
| ... products without technical information |
| |
Multi-direction moving of loads.
Handling table made of steel balls for loads up to 60 kg/m.
Produced according to your dimensions.
|
|
Track rollers are self-retaining, single or double row units with particularly thick-walled outer rings. These bearings can support axial forces in both directions as well as high radial forces. The bearing outer rings have a crowned or cylindrical outside surface. Designs with a crowned outside surface are used where there is misalignment in relation to the raceway and edge stresses must be avoided. The track rollers are available with an inner ring, with a stud and with a plastic tyre on the outer ring.
|
|
| ... products without technical information |
| |
|
|
|
|
Rotary Pneumatic Vibrators are used on bins and hoppers to avoid bridging or rat holing, as flow aids, as well as for compacting, sorting, dissolving and cleaning applications and for the improvement of material flow on chutes, screens and vibrating tables
Vibration with the OT-type is generated by a turbine with integrated flyweights which rotates on two oversized ball bearings
- Available in 12 different sizes;
- Oil-free operation possible;
- Maintenance-free;
- Low noise level;
- Operating temperature: from -4° F (-20°C) to 250° F (120°C).
In OR Roller Vibrators vibration is generated by a rotor which describes an eccentric movement inside a steel race. OR Roller Vibrators generate very high frequencies and centrifugal forces with low consumption as compared to the force given.
- Available in 8 different sizes;
- Oil-free operation possible;
- Maintenance-free;
- High centrifugal force;
- Low noise level;
- Maximum operating temperature: 390° F (200°C).
S-type Ball Vibrators consist of an anodized aluminium body inside which a steel ball rotates on a specially hardened and ground steel ring.
- Available in 8 different sizes;
- Oil-free operation possible;
- Maintenance-free;
- High centrifugal force;
- Low noise level;
- Operating temperature: from -4° F (-20°C) to 250° F (120°C).
|
|
|
|
