Sanders
The sanders are available in various models, suitable for metal finishing and woodworking applications.

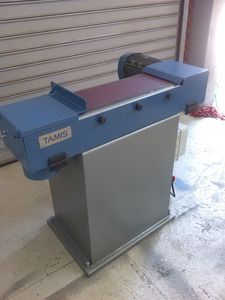

Belt sanders
The Red Rooster belt sanders are suitable for nearly all materials, e.g. steel, aluminium, plastics and wood and for use as a de-burring method
in difficult access fettling applications. All belt sanders are executed with safety handle and adjustable silencer.
|
|

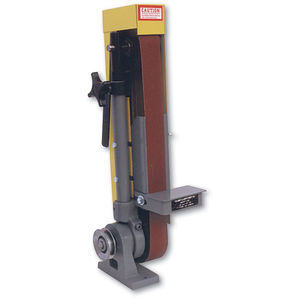

2FSM 2" Sander Multi-position vertical or horizontal
2" x 48" belt, Vertical or Horizontal Position.
1/2 HP motor, 3450 RPM, direct drive, 5" contact wheel
Tilt work table, removeable platen
Full hinged OSHA guard for quick belt change.
Pre-set belt tension, one knob belt tracking.
4500 SFPM belt speed, WT. 48 lbs.
Model: 2FSM
Other products available:
|
|
S6MS, 6" belt sander
Industry standard. 3 HP !! Real workhorse !! Every shop needs one !! Also available in 5 HP and in 6" x 60" belt!
6" x 48" belt, variable positons, direct drive, 1 lever quick belt release !!!
Cast iron frame, Full OSHA safety guard, Heavy duty steel stand.
3 HP motor 3450 RPM, 1 phase or 3 phase, manual switch, 3500 SFPM
Reversible platen 6 1/2" x 14"
Cast iron work table 6" x 10" with 1/2" x 1/8" slot
Option: JIC controls
Model: S6 sander head only, less motor
Model: S6M-1 3hp, 1 phase, 220, LESS stand.
Model: S6M-3 sander, 3 hp, 3 phase, LESS stand
Model: S6MS-1 , 3 hp, 1 phase, 220 volt, w/Stand ( 110 volts @34amps)Model: S6MS-3, 3 hp, 3 phase, 220/440 volt, w/Stand
Model: S6MS-5 5 HP, 3 PH other features same as above.
Model: S660MS 6" x 60", 3 hp, other features same as above.
Other products available:
|
|

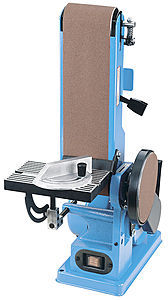

S612 & S612V Combination Sander With Vacuum !! 3 HP !!! Made in USA!!! 6" x 48" belt, 12" Disc, Vacuum Base
Available with OR without dust collector. 3HP 1PH 220 OR 3HP 3PH 220/440 volt. ( Specify voltage) Manual switch with overload protection.
Built in 100 CFM dust colletor base with cartridge filter.
Quick change belt, pre-tensioned one lever belt change...FAST !!
Models:
- S612-1 No vacuum, 1 phase/220 volt
- S612-3 No vacuum, 3 phase 220 or 440 volt
- S612V-1 Vacuum base, 1 phase/220 volt
- S612V-3 Vacuum base, 3 phase 220 /440 volt
Dimensions: L12" x W14" x H60", Weight: 500 lbs.
Specifications:
Belt Sander
Work Table- Cast iron 6" x 10" with 1/2" x 1/8" slot
Platen- Steel 6-1/2" x 14"
Belt- 6" x 48" - 2800 SFPM
Disc Sander
Work table- Cast Iron 8" x 14"
Disc- 12" aluminum disc, 5/8" arbor Speed- 2500 RPM
Other products available:
|
|
S14HW, 14" Wet Horizontal Belt Sander
Also available DRY !
Great for getting parts FLAT !!
14" x 103" belt
3400 SFPM
Steel platen 14-1/2" x 36"
Work surface 14" x 32"
Air tension on belt, 0-55 PSI reqd.
20 HP, 3 PH TEFC
Mag controls with jog, 24 volts at pushbutton
L 64" x W 31" x H 35"
Wt: 1900 lbs
Model: S14HW, 14"x 103", 20 hp.,220/440/60hz 3 ph. 24 volt at switch.
10 gal. coolant tank & pump.
Model: S14HD, as above, less coolant tank & pump.
Other products available:
|
|
|
|
|
|

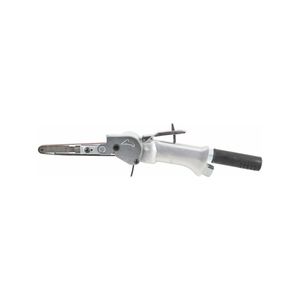

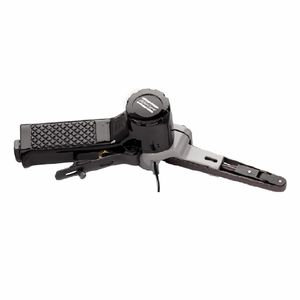

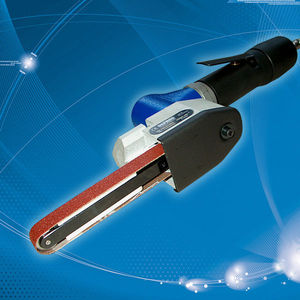

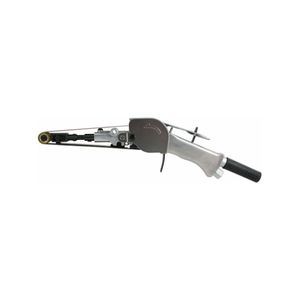

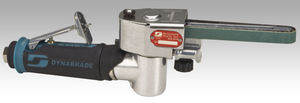

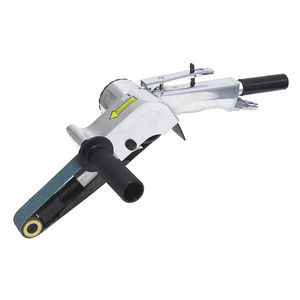

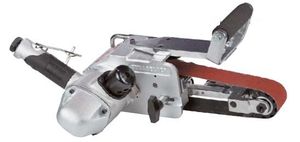

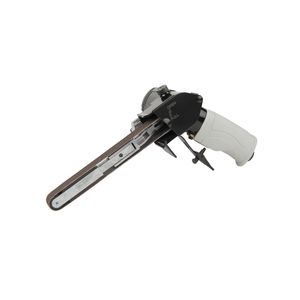

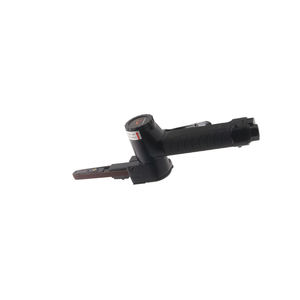

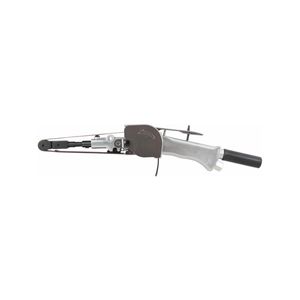

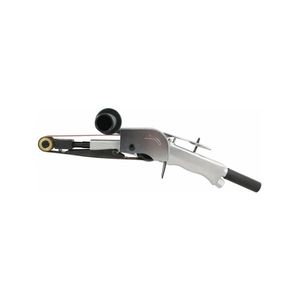

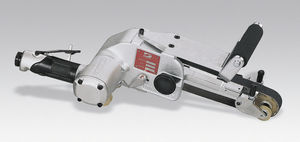

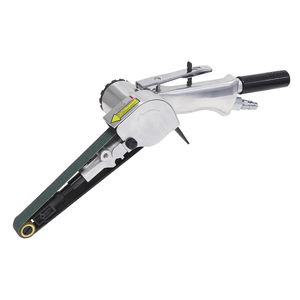

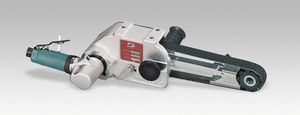

Pneumatic Belt Grinders:
BSR 10 A
Technical Data:
Output: 185 Watt
Belt speed: 17 m/s
Band width: 10 mm
Band length: 330 mm
BSR 20 A
Technical Data:
Output: 295 Watt
Belt speed: 25 m/s
Band width: 20 mm
Band length: 330 mm
BS 6 N
Technical Data:
Output: 185 Watt
Belt speed: 18 m/s
Band width: 6 mm
Band length: 330 mm
BS 10 N
Technical Data:
Output: 185 Watt
Belt speed: 18 m/s
Band width: 10 mm
Band length: 330 mm
BS 20 N
Technical Data:
Output: 295 Watt
Belt speed: 42 m/s
Band width: 20 mm
Band length: 520 mm
BS 30 N
Technical Data:
Output: 515 Watt
Belt speed: 36 m/s
Band width: 30 mm
Band length: 540 mm
Benefits:
- Reversible (clockwise / counter-clockwise operation)
- Slight heat development and excellent grinding performance because the grinding belt is cooled during rotation
- High removal rate in a short period of time
- Fast and easy change of grinding belts without additional tools
- 3-point grinding belt support
- The grinding arm rotate through 360°
- Ergonomic design
- High grinding performance since the abrasive belt is cooled during rotation
- Abrasive belt can be exchanged within seconds
Areas of Application
For grinding and deburring jobs in mould making, container and machine building, foundries, metal and plastics processing industry, etc.
|
|

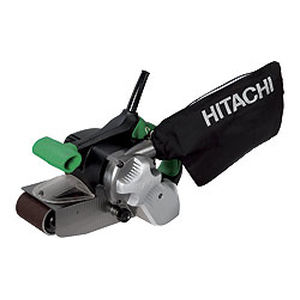

Model: HBS 1000 E
• Powerful 1010 watt motor
• Electronic speed for control and optimum results
• Clamping lever for easy, tool free changing of sanding belt
• Externally accessible brushes for easy replacement
• Control wheel for precise adjustment of sanding belt
• Compact design, ideal for sanding close to edges
• Die-cast construction for high strength and durability
• Dust extraction, with dust bag or absorption system
|
|
Technical Data:
1 Working Width (mm) 50~1300
2 Working Thickness (mm) 5~70
3 Working Length (mm) ¡Ý500
4 Working Precision (mm) ¡À0.1
5 Motor of Abrasive Belt (KW) 37+30
6 Speed of Abrasive Belt (m/s) 20¡¢12
7 Abrasive Belt Size L¡ÁD (mm) 2620¡Á1330
8 Working Pressure (MPa) 0.4~0.7
9 Compressed Air Consumption (m3/min) 0.6
10 Feeding Speed (stepless speed variation ) (m/min) 6~20
11 Motor for Auto-feeding System (KW) 7.5
12 Elevator System for Work-table (KW) 1.5
|
|
| ... products without technical information |
| |
three heads wide belt sander for wood,calibrating+calibrating+polishing
Technical Data:
1 Working Width (mm) 50~1300
2 Working Thickness (mm) 3~100
3 Working Length (mm) ¡Ý500
4 Working Precision (mm) ¡À0.08
5 Motor of Abrasive Belt (KW) 22+22+15
6 Speed of Abrasive Belt (m/s) 20¡¢20¡¢12
7 Abrasive Belt size L¡ÁD (mm) 2265¡Á1300
8 Working Pressure (MPa) 0.4~0.7
9 Compressed Air Consumption (m3/min) 0.9
10 Feeding Speed (m/min) 5~30
11 Motor for Auto-feeding System (KW) 4
|
|

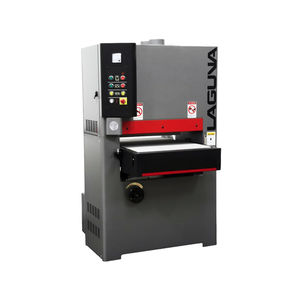

wide belt sander
R-P=contact roller+polishing pad
calibrating and fine pollishing to achieve better surface effect
heavy duty machine body guarantee stablity and durability
main parts are from German,Japan,USA to make good performance
customize furniture wide belt sander (furniture sanding machine),especially sanders other's manufacture can not manufacture
Parameter Data:MMH529R-P
1 Working Width (mm) 100~900
2 Working Thickness (mm) 3~100
3 Working Length (mm) more than500
4 Working Precision (mm) about 0.08
5 Motor of Abrasive Belt (KW) 22+15
6 Speed of Abrasive Belt (m/s) 18.5, 12
7 Abrasive Belt size LXD (mm) 2200X930
8 Working Pressure (MPa) 0.4~0.7
9 Compressed Air Consumption (m3/min) 0.6
10 Feeding Speed (stepless speed variation ) (m/min) 3~14
11 Motor for Auto-feeding System (KW) 2.2
12 Elevator System for Work-table (KW) 0.37
We product wide belt sander with working width from 600mm to 2000mm
|
|
|

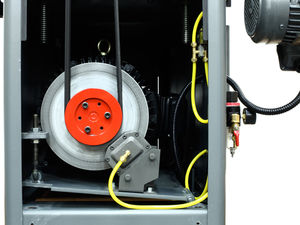

THE MACHINE FRAME IS MANUFACTURED OF HEAVY DUTY STEEL PLATE TO MINIMIZE VIBRATION AND DEFLECTION. ALL PARTS OF THE MACHINE CAN BE EASILY OBTAINED FOR MAINTENANCE AND SERVICE. UNDER THE SANDING AGGREGATE AND THE PRESSUREROLLERS, IT’S THE STABLE FEED TABLE. AROUND THE TABLE, IT RUNS AN ENDLESS ANTI-SLIP CONVEYOR BELT. THE DRIVE IS POWERED BY A STRONG FEED MOTOR AND A VARIABLE SPEED CONTROL FROM 4 TO 16 METERS PER MINUTE. THE CONVEYOR BELT IS ADJUSTABLE WITH AN AUTO TRACKING UNIT. THE SANDING BELT RUNS AROUND THE CONTACT DRUM AND THE TENSION (OR IDLE) ROLLER. THE TRACKING OF THE SANDING BELT IS ACHIEVED BY AN ELECTRIC-EYE.
|
|
two sides,two heads,calibrating and polishing wide belt sander
Technical Data
1 Working Width (mm) 80~1300
2 Working Thickness (mm) 0~150
3 Working Length (mm) ¡Ý860
4 Working Precision (mm) ¡À0.1
5 Motor of Abrasive Belt (kw) 55¡Á2
6 Speed of Abrasive Belt (m/s) 20
7 Abrasive Belt size: L¡ÁD (mm) 2800¡Á1360
8 Motor for Upper-body Elevator (kw) 2.2
9 Feeding Speed (stepless speed variation) m/min 6~35
10 Motor for Auto-feeding System (kw) 7.5
11 Working Pressure (Mpa) 0.5~0.8
12 Compressed Air Consumption(m3/min) 1.1
|
|
Wide Belt Sander,Wood Sanding Machine,Heavy duty double sides four heads wide belt sander
MMH5813DR-RP
Technical Data
1 Working Width (mm) 80~1300
2 Working Thickness (mm) 0~150
3 Working Length (mm) ≥100
4 Working Precision (mm) ±0.1
5 Motor of Abrasive Belt (kw) 90×2+75×2
6 Speed of Abrasive Belt (m/s) 30
7 1st Abrasive Belt size: L×D(mm) 2800×1360
8 2nd Abrasive Belt size: L×D (mm) 3080×1360
9 Motor for Body-Elevator System (kw) 3
10 Feeding Speed (frequency conversion) m/min 6~35
11 Motor for Auto-feeding System (kw) 18.5
12 Working Pressure (Mpa) 0.6~0.8
13 Compressed Air Consumption (m3/min) 2.5
We product Wide Belt Sander,Wood Sanding Machine with working width from 600mm to 2000mm
www.bonasun.com
|
|
Heavy duty wide belt sander,double sides,four heads
Technical Data
1 Working Width (mm) 80~1300
2 Working Thickness (mm) 0~150
3 Working Length (mm) ¡Ý860
4 Working Precision (mm) ¡À0.1
5 Motor of Abrasive Belt (kw) 75¡Á2+55¡Á2
6 Speed of Abrasive Belt (m/s) 25
7 1st Abrasive Belt size: L¡ÁD(mm) 2560¡Á1360
8 2nd Abrasive Belt size: L¡ÁD (mm) 2800¡Á1360
9 Motor For Upper Body Elevator (kw) 2.2
10 Feeding Speed (stepless speed variation) m/min 6~35
11 Motor for Auto-feeding System (kw) 15
12 Working Pressure (Mpa) 0.5~0.8
13 Compressed Air Consumption(m3/min) 2
|
|
