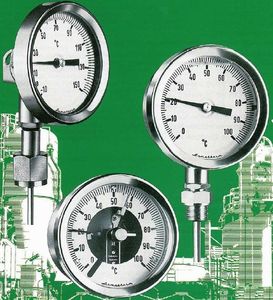

Badotherm contact gauges are manufactured with two types of switching methods. A SPDT micro switch build on the movement or a precision contact system. The micro switch can have a factory set point or with a on-site adjustable set point. The precision contact systems can be delivered as a magnetic, electronic, or inductive system. All gauges, contacts and wiring comply with the latest standards.
|
|
|
|
|
|
Available Models
ADJ Series Adjustable Bimetallic Thermometers
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a versatile case and stem that can be adjusted to almost any angle for easy viewing.
BAC Series Bimetallic
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a 90º back angle, rear threaded union connection design. These thermometers, with 316 stainless steel wetted parts, are rugged and commonly used in industrial, pulp and paper, food and beverage processing, HVAC, and OEM applications.
BOTC Series Bimetallic
U.S. Gauge offers 3" and 5" heavy duty, industrial bimetallic thermometers with a threaded union connection and straight form design. These thermometers, with 316 stainless steel wetted parts, are rugged and commonly used in industrial and OEM applications.
BACO Series Bimetallic
U.S. Gauge offers 2" heavy duty, industrial bimetallic thermometers with a standard rear 1/4-18 NPT connection. These thermometers, with 304 stainless steel construction, are rugged and commonly used in light industrial and OEM applications. The thermometers may be silicone filled for additional vibration dampening.
POC Series Testing Thermometers
U.S. Gauge offers a pocket sized thermometer used by inspectors, service and maintenance personnel, and technicians for general checking in food service, refrigeration, air conditioning, hot asphalt, and food processing applications.
|
|
¡Ü Material of Case & Cover: 316 stainless steel
¡Ü Material of Stem: 316 stainless steel
¡Ü Lens: Glass, safety galss available
¡Ü Housing Enclosure: IP65, liquid filled available
¡Ü Type: AY/AI/AY-QS
¡Ü Range Limit: -50¨¬C to 600¨¬C
¡Ü Stem Dimensions: ©ª4,6,8,10mm available
¡Ü Stem Length Limit: 65~1000mm
£ External Zero Adjustable
¡Ü Accuracy: ¡¾1% (FS)
¡Ü Over Range Protection: 130% FS
¡Ü Dial Size: ©ª3",4",5" available
¡Ü Process Connection: 1/2"NPT standard, others available
|
|
Bimetal pipe mounting thermometers TBA 72
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TBA72
Bimetal thermometers TB-FIX ø 80 - 100
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TBFIX-TBHA
Small Bimetal Thermometer ø 32
Fields: Machine and Process Industry, Power Plants and Distribution, Automotive Industry
Type TB 32
|
|
KLT RXX - 2008/05 E
Application:
Bimetal thermometer is certain for contact measurement of temperature ofgaseous or liquid media.
Suitable for industry, heating, water supply, air-conditioning, pneumatics.
|
|

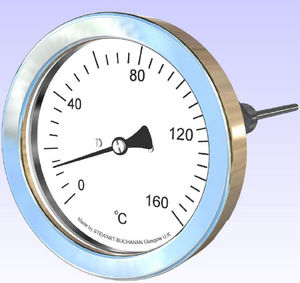

Models- 975, 2050
Stainless Steel Thermometers
Temperature element
(a) Bi-Metal System
(b) Inert Gas System
Case
AISI 304 Stainless Steel
Bezel Stainless Steel (Bayonet type).
Weatherproof Construction
Dial
White Aluminium (Black Printing)
Pointer
Black Aluminium
Window
Sheet Glass
Standard Size
100, 125,150mm
Accuracy class
1% Gas filled 1.5% Bi-Metal
|
|
|
|
|
|
Dresser Instruments pioneered the easy-to-read Maxivision® dial on the Ashcroft® bimetal thermometer. The Ashcroft® Maxivision® dial eliminates parallax error and can be read at any angle making it the easiest-to-read dial on the market today.
Ashcroft® bimetal thermometers are manufactured at an ISO 9001 certified facility in Stratford, CT to ASME B40.3 Grade A accuracy of 1% of span. The Ashcroft® bimetal thermometers come in 2", 3" and 5" dial sizes and in Farenheight, Celcius or dual scale ranges. Various configurations are offered with hermetically sealed cases such as lower, rear or everyangle connections with a tamper proof case or an external adjustment, depending on your needs. Standard stem lengths range from 2 1/2 through 24 inches while non-standard stem lengths up to 60 inches can be custom made. Trained product specialists are available to assist in the selection of thermowells for applications where the bimetal stem will be exposed to pressure, velocity or corrosive fluids.
|
|

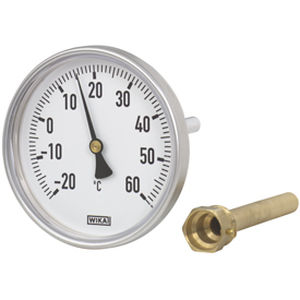

Measuring range -30 ... +50 up to 0 ... 500 °C
Connection back or bottom
smooth, G1/2 AG, flange, megnetic case,
st. st., steel, copper alloy
Housing Material aluminum or macrolon
Diameter of housing 63, 80, 100 mm
Accuracy class 2,0
Option gliding pointer
|
|
Description & Features:
• A general purpose, tamper-proof, 304 stainless steel thermometer
• Hermetically sealed case
• Bi-metallic sensing element for reliable readings
• Back connected
• Stem length from 2.5" (63mm) and up
• ±1% accuracy
• Anti-parallax dial that reduces operator reading errors
• Lexan® lens
• 1 year warranty
Applications:
• Heating, ventilation, air conditioning, food processing, wastewater, industrial processes, compressors
|
|
|
Bimetal strips are used in temperature-measurement technology firstly as „sensors“ for bimetal thermometers and secondly as switching elements in temperature switches. Both processes are used in the Temperature Measurement Technology Division at tecsis.
|
|
|
Bimetal thermometers are applied for industrial temperature measurement in liquid or gaseous media. This model with stainless steel bayonet ring case is mainly used in the chemical industry, petrochemistry, and in the food and beverage industry.
|
|
