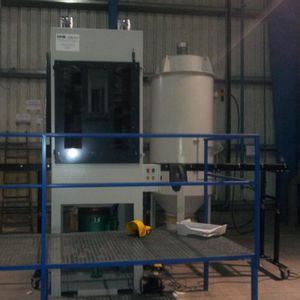

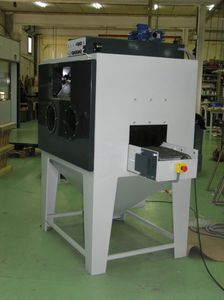

AUTOMATIC SAND-BLASTING FOR SMALL PARTS
mod.TAP4
- Work cabin dimensions LxDxH mm: 625 x 600 x 500
- Outer dimensions LxDxH mm: 2400 x 2300 x 2320
- Max weight capacity in belt: 70 kg
- Max volume capacity in tumbler: 31 cu. dm
CHARACTERISTICS
- Belt unit for automatic processing of small metal parts
- Processing of long pieces
- Cyclone for grit separation and recovery
- 4 sand blasting guns
- Automatic movement by electronic control
- Automatic blow
- Operator interface PLC
- Belt rotation speed adjustment
- Automatic inversion for piece unloading
- Machine can operate with pressurized or vacuum systems
OPTIONAL ACCESSORIES
- Filtering cabinet
- Wearproof inside coating
- Automatic opening/closing with safety mechanism
TECHNOLOGY
The TAP4 is specifically designed for the treatment of long pieces and small and medium-sized pieces. The cabin has a load capacity that is higher than the tumbler units.
An ultra-wearproof rubber belt forms a cradle to hold pieces. The movement of the belt and the tabs in the belt impart the rolling of the pieces, which together with the alternating moving of the guns, guarantees 100% coverage of the surface of parts to be treated.
|
|
Pulsar VI Suction & VI-P Pressure Blast Cabinets
Slightly larger than a Pulsar III. The Pulsar VI (Suction) & Pulsar VI-P (Pressure) feature a flanged mounting on the reclaimer that can accept a suction or pressure blast system. The VI-P incorporates a 1 cubic foot capacity blast machine to hold enough media to blast continuously for up to 30 minutes. Overall dimensions are 84" H, 52" W x 71" D. Working chamber dimensions are 43" H x 50" W x 39" D.
|
|
|
|
|
|
SMALL AND MEDIUM-SIZED SAND-BLASTING
mod.S28
- Work cabin dimensions: LxDxH in mm: 2800 x 1400 x 1400
- Outer dimensions LxDxH in mm: 4850 x 2450 x 3000
mod.S32
- Work cabin dimensions: LxDxH in mm: 3200 x 1600 x 1600
- Outer dimensions LxDxH in mm: 5250 x 2650 x 3200
CHARACTERISTICS
- Cube shape of cabin allows optimum maneuverability
- Double work station
- Cyclone for grit separation and recovery.
- Front door for quick loading/unloading parts
- Side door for loading/loading heavy parts
- Machine can operate with pressurized or vacuum systems
OPTIONAL ACCESSORIES
- Filtering cabinet
- Manual rotary table
- Automatic rotary table
- External table support
- Additional work stations
- Automatic linear drive of guns
- Operator interface PLC
- Cyclone for management of several guns
- Wearproof inside coating
TECHNOLOGY
The cabin has three work stations and three doors for access: the side door positioned on the left side of the machine enables the rotary table to slide out for loading of the pieces with a higher weight and larger overall dimensions; another two doors are installed at the frontal work stations and enable the movement of the smaller sized pieces. On the right side of the cabin is the third work station.
The plant can be activated by each station or by several stations simultaneously, thereby reducing the duration of the treatment when a group of operators are performing the process at the same time.
|
|

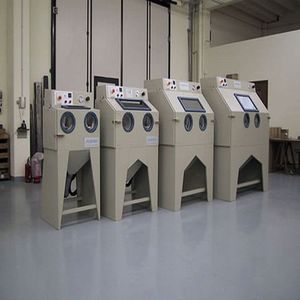

MANUAL BLAST CABINETS
Recognised worldwide as the highest quality available, Guyson Euroblast® systems come in an extensive range of sizes with a variety of options on blast guns and nozzles, turntables, cyclones and filtration systems. Available as suction feed or pressure feed, depending on your requirements.
|
|
Guyson's range of Tumbleblast® machines includes the T40 and T50, which offer cost effective blast finishing for batch processing. Tumbleblast systems are ideal for cleaning, deburring, deflashing, cosmetic finishing or surface treatment on small metal components such as screws, bolts, nuts, washers, circlips, fastenings etc.
* Fast cycle times
* Repeatable process quality
* Safe and easy to operate
|
|
ST 1200 J SB
The track assembly enables the cabins to be loaded with heavy workpieces. Additional blow-off guns allow the quick cleaning of parts.
|
|
|

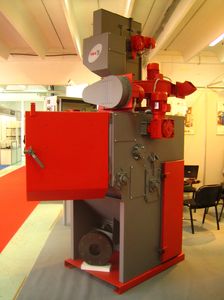

NICOLIS spin blasting equipment is used for automatic precision blasting of large runs of work-pieces up to 250 mm diameter. Their automatic operation guarantees a uniform appearance after blasting delicate mass-produced components.
|
|
|
ALMCO Model ATB-7 shown with process chamber in closed/operating position (inset). Shows patented Smartwheel™ blasting wheel. Photo at right shows the ATB-7 with process door open, displaying peforated, center tracking rubber tumbler belt. Unit is equipped with a Donaldson Torit 5 HP, 1400 CFM dust collection system.
|
|
|
|
|
|
The Aerolyte Bicarbonator Pressure Blast Cabinet is designed specifically for use with sodium bicarbonate media for degreasing, cleaning, and paint stripping. Soda media is non-toxic, nonhazardous, and soft, making it ideal for delicate substrates; and it is water-soluble simplifying the process of residual media removal and disposal.
Safety
- Door interlock system interrupts blasting when either door is opened
- Optional time-delay locking system keeps doors locked for predetermined time
- Double-wall, insulated doors reduce exterior noise
- Industrial-quality lift-off hinges allow easy door removal
- Full-opening doors maximize work chamber capacity and ease loading large parts
- Light fixture (dual 15-watt fluorescent lights) gives bright illumination and stays cool
Productivity
- Unique air logic system maximizes air and media flow for blasting
- ASME-code pressure vessel, 0.5 cuft capacity, with 1/2” piping
- Industrial-quality, coupled two-braid blast hose and tungsten carbide nozzle
- Reverse-pulse cartridge dust collector immediately evacuates spent media and ensures optimal visibility for blasting; traps 99.7% of dust down to 0.5 micron
- Air-activated ball valve keeps blast machine under pressure to maintain efficient work flow when frequent start/stop is necessary.
Convenience
- Tilt-out window allows tool-free glass changes in minutes
- Easy-to-reach pressure regulator, gauge, and electric switch
- Built-in air gun conveniently located inside allows part blow-off inside cabinet
|
|

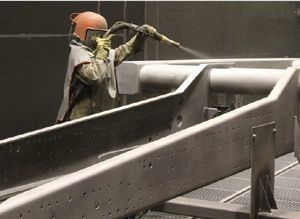

Free jet blasting room completely equipped with dust connector and abrasive recuperation system.
For big parts, like trains.
|
|
|
|
|
|

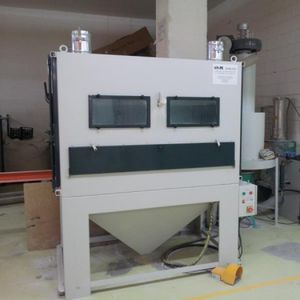

SMALL AND MEDIUM-SIZED SAND-BLASTING
mod.S11
- Work cabin dimensions: LxDxH in mm: 1100 x 1100 x 1100
- Outer dimensions LxDxH in mm: 2650 x 1265 x 1940

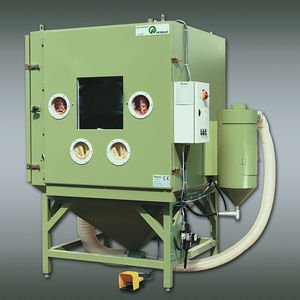

mod.S14
- Work cabin dimensions: LxDxH in mm: 1400 x 1400 x 1400
- Outer dimensions LxDxH in mm: 3250 x 1565 x 2340
mod.S16
- Work cabin dimensions: LxDxH in mm: 1600 x 1600 x 1600
- Outer dimensions LxDxH in mm: 3650 x 1765 x 2650
CHARACTERISTICS
- Cube shape of cabin allows optimum maneuverability
- Cyclone for grit separation and recovery.
- Front door for quick loading/unloading parts
- Side door for loading/loading heavy parts
- Machine can operate with pressurized or vacuum systems
OPTIONAL ACCESSORIES
- Filtering cabinet
- Manual rotary table
- Automatic rotary table
- External table support
- Automatic linear drive of shot-peening gun
- Operator interface PLC
- Cyclone for management of several guns (max 10)
- Wearproof inside coating
TECHNOLOGY
These models have been designed to treat different materials and pieces that are to undergo aesthetic finishing processes (to create a satin finish or antique effect), cleaning to eliminate welding oxides and make surface even and surface preparation for later coatings. These plants’ special characteristic is that they are designed to work both with vacuum or pressurized systems and with all types of abrasive grits, such as corundum (aluminum oxide), cast iron, steel, plastic, and balls in glass, ceramic or steel.
|
|

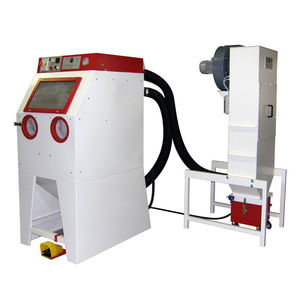

Injector blasting cabinets
Available in a wide range of dimensions
Standard models with a range of accessories
Custom-made equipment to customers' specifications
Special equipment such as rotary baskets, rotary tables, satellite tables, moving nozzles etc.
|
|
ST 1000 D PS
Tried and tested in 1000 installations, we deliberately paid attention to a stable and space-saving design of our injector cabinet. The smooth-running, non-tilt roll-fronted door provides full access to the blasting room which is equipped with a stable work grate. A large viewing window with quick-change glass screen in the folding frame provides an excellent view of the workpieces to be processed. Our special dust extraction with filter cartridges and anti-glare illumination of the blasting room guarantee a clear view, even during continuous blasting. Servicing the system is quick and unproblematic
|
|
Dry sand blast cleaning room to projection of the type "overpressure" high output with generator and separate dust extractor with cartouches.
Cabin of great volume (1300 X 750 X 850 mm)
Broad door for the passage of the parts to be treated on the right. A plate on swivelling arm or rails facilitates the loading of the heavy parts.
The generating unit dust extractor allows a sorting, a ventilation and a projection of the abrasive of high efficiency and thus ensures a production 20% higher than the concurrent machines.
|
|
Blast cabinets are the workhorse of the abrasive blasting world. They are an economical, versatile piece of equipment that can be used for many different shapes and sizes of work, as well as a multitude of different abrasives and applications.
Cabinets can first be separated into suction and pressure systems:
-Suction systems utilize the venturi principle to deliver the abrasive to the blast gun via suction (hence the name) where it is combined with your compressed air source and propelled against the work piece.
- Pressure systems use a pressurized vessel to contain the abrasive. In these systems the abrasive is metered into the compressed air stream at the pot, and travels the length of the blast hose and out of the nozzle under pressure.
|
|
Blast cabinets are operated from the exterior. During blasting, spent blast media is recovered by an efficient reclaiming system and recycled. Dust, fine particles and debris are carefully separated from reusable blast media.
Blast Cabinets are available in various sizes with internal working dimensions from 920 mm
to 1500 mm.
The viewing window is slightly angled for operator convenience.
Blasting is initiated and stopped by means of a foot-operated valve.
|
|
Finally a machine of good quality at price moderated, in conformity with the European standards!
The technique and the equipment of Eco Air 1000 will be appropriate to you. Its innovating design will hold all your attention.
|
|

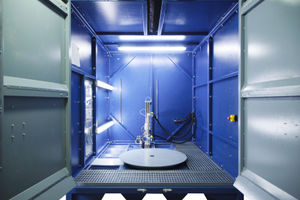

Standard jet plant with extendable turntable, for the crane loading. Plant is equipped with a four-wheel pistol movement and turntable drive.
|
|
|
|
|
|

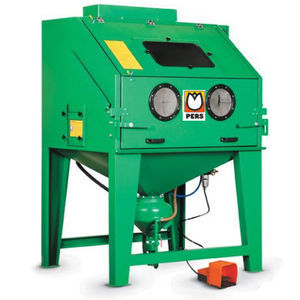

Blasting Range - Pressurized Blasting Cabinet
With the possibility of employing a wide range of abrasive materials such as, for example: carbon steel grit, stainless steel, aluminum oxide, sand, glass micro spheres etc., this equipment is appropriate for medium to heavy works in the surface preparation for the application of coatings or cleaning of parts, matting, removal of old paint, lamination scale, forgery, foundry, deoxidization, decoration, engraving, shot peening etc.
The CMV pressurized cabinets have a pressure vessel designed to operate with pressure of up to 6.5 Bar (94 PSI), built according to ASME standard, revision 2001, section VIII, division I, and meet the most important international safety standards such as, for example, the 97/23/EC and the Brazilian NR-13. The pressure vessel is welded by the submerged arc process by qualified welders, and all equipment is hydrostatically tested at a pressure of 9.8 Bar (141PSI). The blasters are also equipped with the following original accessories: pressure regulator, manometer, inspection window, air intake valve piloted by the pedal valve, pop-up valve built in polyurethane with a semi-spherical shape that insures better sealing, an air dosing spherical valve, a depressurizing valve, also piloted by the pedal valve, a centrifugal moisture separator, an abrasive material dosing valve with a calibrated hole, which foregoes the need for adjustment, with a very low maintenance cost, an anti-static blasting hose and a venturi type blasting nozzle in tungsten dicarbide.
|
|
