- TECBOLT Blind Rivet Bolt
Steel, Domehead, zincplated
- TECBOLT Blind Rivet Bolt
Stainless Steel, Domehead
|
|
ARNOLD Fastener Express finds its basis in the thinking behind Rapid Prototyping. The Functional Prototyping service model adapted by ARNOLD makes it possible to reduce development and production times by up to 75 per cent – with no detrimental effect on quality. With Fastener Express ARNOLD is in a position to manufacture and supply customised complex fasteners within three weeks.
by minimising administration work
by feeding the incoming order straight to technical assessment
by simultaneously translating the three-dimensional CAD data into the product
machining replaces tool design and procurement
|
|
Whether it is a question of bolts with head or without, with one, two or more turned grooves, with or without pin hole, with or without thread - mbo has got most of them.
Of steel and stainless steel, in all sizes, immediately from stock. In particular the standardized DIN parts are available in practically all sizes from DIN 1433 to DIN 1445 and from DIN EN 22338 to DIN EN 22341. In diameters from 4 mm to 100 mm and in lengths from 20 mm to 200 mm. At mbo you can even get those DIN bolts which are no longer to be found in the official standard lists.
Special parts to customer's drawing or sample are no problem. We have been producing bolts here for 40 years. Why don't you profit from this experience?
|
|
• Huck Huck-Spin
-High tensile friction grip fastener
-No pin-tail - reduced wastage
-No pin-tail – low noise installation noise
-No pin-tail – no pinbreak: increased corrosion resistance
-Semi-automatic tooling installation – minimises installation time
-Unique helical lock groove - Holds pins and collar in place prior to installation
-Pin head style – Flanged hexagonal, flanged round
-Collar style – Flanged hexagonal, flanged round
-Materials - Steel
-Diameters – 6.4, 7.9, 9.5 12, 14, 16, 20 mm
|
|
Wing screws / nuts
Four-stars screws / nuts
Knurled thumb screws,
Knurled nuts...
Hex cap nuts...
Material : Head black nylon, Insert zinc-plated steel.
|
|

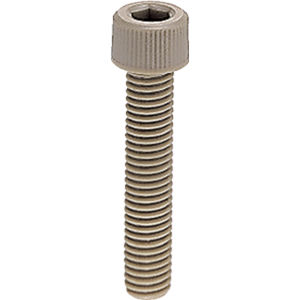

Socket head screw - metal
Group 340
# Made from stainless steel or mild steel (M4-M5)
# Finish: metal or zinc
# According to DIN912, NF E25-125, ISO 4762
Flat head machine screw - metal
Group 341
# Made from stainless steel or mild steel (M3-M5)
# Finish: metal or zinc
# According to DIN965, ISO 7046
|
|
The advantages of ATP as compared to
screw connections:
75 % less assembly time
No assembly errors
Not dependent upon pretension loads
Displacement-controlled pressing
Employment of favorably-priced resources and tools.
|
|
Threaded bolts to DIN 1445 are available in standard or stainless-steel versions with diameters from 8mm to 20mm.
The best example of an ideal area of application is the conveyor belt. The seat of the roller bearing is often secured with a stud bolt. There are good reasons for this. First of all a stud bolt is easy to install. It only needs to be secured on one side, for example, with a nut. Secondly it is absolutely free from twisting and in addition has smaller tolerances than its “smooth brothers“. This guarantees reliable guiding of the belts.
|
|
UNISORB® VECTOR® Bolts :
Made from high quality forged steel, VECTOR® Bolts have a series of angular facets which resolve vertical stress forces into a cone-shaped pressure pattern. An advantage of this unique design is the increased contact area between the bolt and the grout. The wedge shaped design on the bottom of the bolt transfers the tensile load of the stud into a lateral compressional load in the foundation, assuring maximum pull out strengths.
The increase in load transfer to the foundation results in a reduction of the embedment depth required to obtain full strength of the anchor. This reduction in required embedment depth lowers the installation cost by reducing the core drilling and grouting requirements.
VECTOR® Bolts are available in several metric diameters and lengths in a 90,000 psi minimum tensile strength material.
|
|
• Huck Huck-Fit
-10.9 grade large diameter Lockbolt
-High tensile friction grip fastener
-Unique helical lock groove - Can be used as a Fit up bolt
-Unique helical lock groove -Holds pins and collar in place prior to installation
-Can be removed with conventional tools
-Pin head style – Flanged hexagonal
-Collar style – Flanged hexagonal
-Materials - Steel
-Diameters – 12, 14, 16, 20, 24, 27 mm
|
|
• Huck C50L
-8.8 grade large diameter Lockbolt
-Made to British Standard B7805: Part 2: 1997 - a mark of quality, safety and performance
-High tensile friction grip fastener
-Thread head variety available for rail track applications
-Pin head style – Round, truss, countersunk, thread head
-Collar style - Standard, flanged, low profile
-Materials - Steel, stainless steel, aluminium
-Diameters – 12.7, 15.9, 19.1, 22.2, 25.4, 28.6, 31.8, 34.9 mm
|
|
• Huck C6L / C120L
-The Original Huck Design
-5.8 & 8.8 grade small diameter Lockbolt
-Made to British Standard B7805: Part 1: 1997 - a mark of quality, safety and performance
-Wide flange collar available on C6L - enables installation into non metallic materials
-Pin head style - Brazier, truss, countersunk.
-Collar style- Standard, flanged, wide flanged and low profile
-Materials - Steel, stainless steel, aluminium (C120L steel only).
-Diameters - 4.8, 6.4, 7.9, 9.5 mm
|
|
High strength, vibration resistant lockbolts with high, controlled clamp.
Key features and benefits
High strength, high speed assembly
High shear and tensile strength
Excellent vibration resistance
Consistent, high performance
Large diameter option from 13mm to 25mm (1/2" to 1") with tensile strength of over 300kN for heavy engineering applications
TIR approved - easy to inspect for tampering
Robust and rugged installation tools
Assembly materials
Avdelok® can be used to fasten:
Metal to metal
Assembly applications
Automotive
Building and construction
Bridge building
Cabinets and enclosures
Commercial vehicle bodies
Fencing
Mining
Railways
Reefer cool and dry freight containers
|
|
|
Blind bolts are a rapid fixing system for assemblings that require high mechanical strength or that are subject to high vibrations. This system is composed of a bolt and a collar. Fixing takes place when collar spread itself on bolt's lock rifling. They are realized in several lengths and diameters, on the basis of the grip range ; in steel and aluminium.
|
|
Large diameter Avdelok® lockbolts are heavy duty, two piece fasteners designed to provide exceptional high strength, secure assembly. Quick and simple to place yet lasting for years, they are the ideal solution where spot welding is not practical or possible.
Key features and benefits
Exceptional shear and tensile strength
High speed assembly
Consistent, high performance
Robust and rugged tools
Excellent vibration resistance
Ease of inspection
Tamper resistant
TIR approved
Assembly applications
Transportation (Heavy Vehicles)
Railcars
Construction (Bridge Building, Renewable Energy Farms)
Heavy Equipment
Containers
|
|
Our more than 36 years’ experience on the market for stainless steel fasteners is brought to bear with particular force in this product segment.
All of the articles with relevance to fastening technology – from the traditional screws and nuts in thousands of individual models, through washers, retaining rings and keys in many versions, right up to bolts, split pins and rivets in just as many variations – can be delivered.
Both the parts standardized in accordance with DIN or ISO and the non-standardized fastening elements (e.g. chipboard screws, mushroom head screws, washers) are available.
Stainless steel remains the material of choice for most of the Lederer customers. Hardly any other material can boast its defining properties, such as corrosion resistance, long lifespan and non-magnetizability. And not least, the optical impression made by a mirror-fi nished stainless steel fastener infl uences the choice of material more often than one would suppose.
|
|
|
Parker-Kalon® manufactures a variety of specialty screws for industrial, construction and automotive use. They offer a wide range of product for numerous applications.
|
|
Hexagonal, cylindrical and countersunk heads ; metric and self tapping screws, socket set screws, hexagonal domed cap and flange nuts, washers, pins, threaded rods, rings, eye nuts, turnbuckles, jaws.
Perfect for fixings subject in atmospheric environment, thanks to their high rust resistance.
Available in stainless steel AISI 304 and 316.
|
|
Wichard offers a comprehensive range of U-bolts which can used in fastening applications.
> Available also in watertight version
> Several sizes: dia 4 mm to 12mm
> Outstanding breaking loads
> Manufactured in grade 316L stainless steel
Wichard propose une gamme complète de cadènes fil utilisées dans le cadre d'applications d'ancrage:
> Disponible soit en fil simple, soit en version étanche
> Nombreuses tailles disponibles: diamètre 4 à 12 mm
> Très bonnes charges de rupture
> Fabriquées en inox 316L
|
|
• Huck Magna-Grip
-Huge grip range – Accommodates a wide variation in joint thicknesses - 14.3/23.9
-One pin and one collar cover a wide variety of applications – reducing the risk of incorrect
fastener installation
-Wide grip range minimises fastener inventory
-Flush pinbreak – No catching on clothes, skin or goods.
-Pin head style - Button, truss, countersunk, rivet, broad truss
-Collar style - Standard flange, medium flange, wide flange
-Materials - Steel, aluminium
-Diameters - 4.8, 6.4, 7.9, 9.5 mm
|
|
JHFHB-M8-50
THREAD SIZE: M8*1.25
THREAD CODE: M8
LONG "L" :50
MIN.SHEET THICKNESS: 2
HOLE SIZE IN SHEET 0.08: 8
MaxHole In Attach.Parts: 9.5
H ±0.25: 12.5
S Max.: 3.5
T Max.: 1.78
MIN.DIST. HOLE C/L TO EDGE : 12.7
other sizes are fully available:
256, 440, 632, 832, 024, 032, 0420, 0518, 0616
M2.5, M3, M3.5, M4, M5, M6, M8, M10
JFH,JFHS,JFHA,JTFH,JTFHS,JHFH,JHFHS,JHFHB,JFH4.
Features:
1. They are applied on sheet with thickness over 0.02 inches/0.76 mm.
2. Carbon steel, stainless steel and aluminum material are available.
|
|
|
It is a quick and safe fixing system. It gives answer to assembling problems on plates, folded sheet metal and thin walls, even when already painted. Self clinching are usually press-applied. They can be studs, nuts, stand offs or captive fasteners. They are available in steel, stainless steel and zinc plated steel.
|
|
KFH
Studs for mounting into P.C. boards which can be used as solderable connectors as well as threaded fasteners. Thread sizes #4 to #10 and M3 to M5.
FH, FHS, FHA, TFH, TFHS, HFH, HFHS, HFHB, TPS
External threads in sheets as thin as .020" / 0.51 mm. Included are flush- mounted studs, studs for thin sheets, high-strength studs, BUSBAR® studs, studs for stainless steel, and non- threaded alignment pins.
FH4
For installation into stainless steel sheets as thin as .040"
FHL, FHLS
Installs closer to the edge of a sheet than standard studs without causing that edge to bulge. Flush-head for sheets thickness .040"/1mm and greater.
HFED
These self-clinching studs have an enlarged head diameter that provides high-strength in sheets as thin as .040"/1mm. Dog point allows for easy nut positioning and engagement.
|
|
Overview
Developed to be molded into plastic and replace metal stamping and fastener assemblies, PlasTORX® studs are engineered to provide high resistance to rotation and pull-out, ensuring a high-performance assembly. Its hex-lobular design helps reduce stress risers, so it can be used in materials susceptible to cracking or breaking.
Features
Hex-lobular TORX® configuration
Flange on top of head
Threaded shank for nut member
Designed to be molded directly into component or carrier strips
Benefits
Allows multiple fasteners to be installed at one time, increasing assembly efficiency
Provides maximum resistance to rotation and pull-out
Ideal for materials susceptible to cracking
Design Guidelines
Sizes: M4 - M12 (#8 - 1/2")
Lengths: Per customer design
Thread Styles: Machine screw; others as specified
Specials: Completed assemblies available
|
|
Stainless steel shoulder screws are one of the most popular parts sold by mechanical drive components expert, Ondrives Ltd of Chesterfield, England.
The extensive range sells well as the majority of products are held in the thousands in stock making it easy for customer's to achieve their just-in-time requirements. The minimum order charge is only £7.50 too which enables customer's to order very small quantities for prototypes, etc in the first instance or as spares.
This precision range is available in both 303 and 416 grade stainless steel and all have socket heads as standard. Also available on request are slotted or cross recessed head types, please ask our sales department for a quotation.
Shoulder diameters range from 3.987mm upto 11.978mm at the largest and shoulder lengths vary from 4.013mm to 30.013mm.
Discounts are given for larger quantities, so always check with sales for the best prices!
|
|
Description Shoulder bolt Stainless steel Cr 17%
Reference 1031-5-6
Material Stainless steel Cr 17%
Please select one table row below:
D L (mm
M5 6
M5 8
M5 10
M5 12
M5 16
|
|
Alumina ceramic fasteners are now available from mechanical drive components specialist, Rino Industries Ltd of Chesterfield.
This special material enables continuous use at 1500ºC offering excellent electrical insulation and resistance against heat and chemicals. They may be used in heat resistant applications such as hot water and chemical pumps as well as electronic applications such as electrical transformers and computer equipment but as heat and chemical resistance varies with the usage environment, it is necessary to test in advance under actual conditions. As with all ceramics, care must be taken when handling, as ceramic screws do break easily the company states.
Slotted flat fillister head machine screws, hexagon headed bolts, hexagon and Dihedral nuts are all available as standard and sizes range from M3 to M10.
|
|
|
A full range of plastic screws with a good resistance to liquids , in a wide range of colours.
|
|
Please use the link to check our full range of Screws,Bolts & Threaded Rod.
We can also custom mould if you require a special size or configuration.
|
|
Transparent screw
Group 170
# Made of polycarbonate (PC)
# Colour: natural
# High transparency
Transparent screw
Group 170-2
# Made of polycarbonate (PC)
# Colour: natural
# High transparency
|
|
|
|
