AUTORADIAL

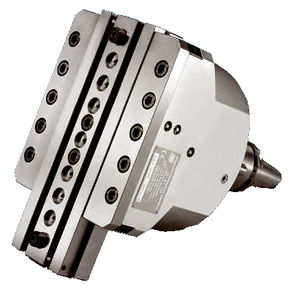

AUTORADIAL offers a range of facing heads with automatic feed and a rapid return of the tool slide without having to stop or reverse the spindle of the machine tool.
- automatic working feed of the tool slide
- rapid return of the tool slide
- reset of the automatic feed.
AUTORADIAL heads are applicable on machining centres and on NC machines, without the need of any electronic interface. They automatically execute a working cycle of advance and return.
They automatically execute a working cycle of facing and record spiral cutting on valve body grooving both on ID or OD. The heads are produced in three models: AR100, AR125 and AR160 and are supplied with one feed rate gear. A total of six different and interchangeable feed rate gears are available upon request.
|
|
BENZ GmbH Werkzeugsysteme is one of the leading companies in manufacturing of Live tools for a vide variety of lathes. Decades of experience and high quality standards form the basis for a sophisticated range of products. The skilled and motivated BENZ team accompanies you from competent evaluation to fast and reliable order processing up to the final product.
The name premium stand for the new cor product range for live tools from BENZ. The
most comon machine- and revolver types are taken into consideration.
plus high quality through X-line gear technology
higher torque, higher revolutions (rpm), smoother and more quiet running
less heat development, less susceptance for failure and smaller design
plus high readiness to deliver
in stock or deliverable on short notice
plus attractive pricing
serial production
plus innovation
geometry and weight optimized, new design
|
|
|
|
|
|
Seco Tools EPB boring heads cover the entire 0,3-2155 mm (inches: .012-84.843) diameter range. These tools achieve positioning accuracy, hole diameter precision and flexibility.
AXIABORE FINE BORING HEADS
Fine boring heads with axially fitted tools
Ø 0,3 - 108 mm (inches: 0.12 to 4.25)
AXIABORE / AXIABORE PLUS
The AxiaBore and AxiaBore Plus offer boring capacities from 2 to 108 mm with two boring heads.
AXIALIBRABORE / AXIALIBRABORE PLUS
High speed machining, up to 1500 m/min, can be performed using the Axialibrabore™ and Axialibrabore™ Plus.
NANOBORE
For extremely small diameters, e.g. watch making, micromechanics or aerospace industries, Nanobore A 760 01 offers unique possibilities
ROUGH BORING HEADS
The A750 rough boring heads are developed for highest possible boring performance: diameter capacity of 18 to 205 mm (0.7 to 8.07 inches).
BRIDGE BARS AND JUMBO BRIDGE BARS
Seco Tools has a complete range of Bridge Bars and Jumbo Bridge bars for large diameter boring, overturning and grooving.
RADIAL TYPE FINE BORING HEADS
The radial type of fine boring heads consist of two ranges: 9 pre-balanced and 5 balanced.
CUSTOM MADE BORING SOLUTIONS
Seco Tools has solid knowledge and experience of custom made boring solutions.
|
|
Mechanical heads
First of all the milling heads must be reminded, starting from the universal continuous positioning head (TUPC), real jewel of FPT family.
This very innovative concept has characterised FPT products since 1994, making the difference in terms of exploitatation of the machines, of machining quality and low cost management, and saving tools, clamping systems and time.
|
|
SENSITIV T-TA
SENSITIV T-TA offers a range of facing and boring heads with manual and automatic feed.
easy to handle, flexibility of use and high precision in machining are the strongest points of the SENSITIV T-TA, which operate without having to stop the spindle of the machine tool. These heads can be used on milling machines, boring machines, jig boring machines track and radial drills.
SENSITIV T-TA performs external facing, back-facing, cylindrical and taper boring and internal and external grooving.
Four models are available: T100 with manual feed, TA120, TA170 and TA220, with two automatic feeds and a rapid return.
|
|
Because of their different design, large boring heads do not include Accu-set, Safety-set, or Speed-Set capability.
Two differents types:
- Direct Mount Large Boring Heads
- Adapter Mount Large Boring Heads
|
|
| ... products without technical information |
| |
Known for the crank-style multiple-spindle drill head, Zagar can place more drills, taps, reamers, and other rotating tools closer than any other manufacturer. Heads are also available with gear and flex drive spindles.
142 Spindle, 28” Square, Multi-Spindle Head
8 Spindle, 8” Square, Multi-Spindle Head with sealed linear ball bearing, guide post bushings
|
|
PITCH 25 mm, 30 mm or 32 mm
MAXIMUM RPM 10,000
MAXIMUM TORQUE 5 Nm
GEAR RATIO 1:1
WEIGHT 0 to 16 lbs.
TOOL OUTLET Weldon 10 mm / ER 16 Collet System ( 30 mm and 32 mm Pitch Only )

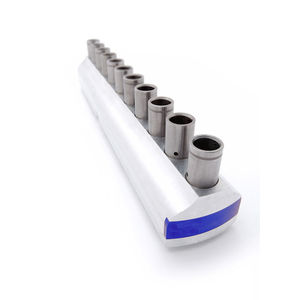

Benz vertical (or horizontal) multiple spindle drill head. Applications: light to medium line boring operations. Ideal for CNC machines which are not equipped with a dedicated drill head. This unit can be equipped with Weldon straight shank drill connections or ER16 nut and collets. It is available with 3 (three), 5 (five) or 7 (seven) spindles. In the horizontal configuration this unit is available as a single or double sided outlet. Pricing is shown for the 5 (five) spindle unit.
|
|
