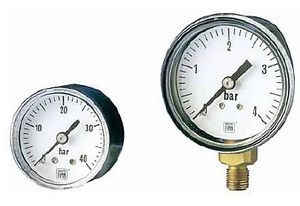

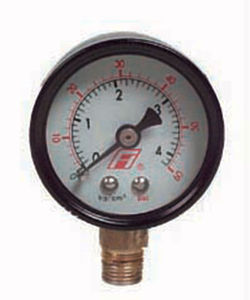

Bourdon tube pressure gauges
Especially designed in a variety of sizes and construction...
Pressure gauges are available in a variety of popular pressure ranges for
The 4285-9B inertrol alarm gauges are designed to alert the
user when pressure has fluctuated ±90 PSIG from the 300
PSIG factory setting. Under...
The Bourdon tube pressure gauge is equipped with a sealing diaphragm and is thus most suitable for foodgrade applications.
The minimized filling...
How to choose this product
A Bourdon tube pressure guage is an analog device whose mechanism is so widespread that often it is simply called a pressure guage.
These guages are suitable for use in any industrial environment. They function reliably under harsh conditions and can measure both very high and negative pressures. Since they do not respond well to rapid changes, they are best suited to situations where pressure remains relatively constant.
The Bourdon tube is a curved tube which straightens under pressure. A geared mechanical linkage transmits this movement to a needle, which indicates the pressure on a calibrated dial. The tube may be filled with liquid or gas, depending on the application.
How to choose
Choice will depend on conditions of use: typical and extreme values of the pressure to be measured, whether measuring gas or liquid pressure, operating temperature range and nature of the environment (clean or corrosive).
- Very precise
- Slow response
