The LF 3600 range, in nickel plated brass, is designed to convey fluids in moderately agressive environments or for food applications. The nickel plated brass components and FKM seals conform to stringent FDA requirements. Vacuum capability, working pressure up to 20 bar, working temperature from -20° to +120°C, for use with all types of calibrated tubing.
|
|
Imperial Push to connect fittings (NPT /Inch)
The PN is our “Automatic push-in fitting line” with NPT threads and INCH tube diameters. This line enables several quick connections and disconnections with calibrated plastic hoses at any time, at any stage of the pneumatic circuit and by simple hand movement.
The connection and the fitting tightness are made possible by the presence of a stainless steeI gripper and an ORING inside of the fitting so that once the tube is inserted to the bottom of the fitting, the stainless steel collet grips onto it and prevents it from being released. The tube disconnection is then made possible by pushing onto the outer metal ring called the release ring.
All PN fittings are brass nickel-plated.
|
|
Features and Benefits ...
- Compact Design: requires very little space, allowing neater control circuits and smaller equipment
- Lightweight: composite glass reinforced Nylon body keeps the fitting weight to a minimum
- Ease of Operation: connecting and disconnecting is quick and easy
- Ease of Installation: the internal hex allows easy installation of straight fittings even in hard to reach places
- Wide Selection: body configurations for most tubing sizes to meet all application requirements are available
- Ready to Use Threads: tapered threads are supplied with factory applied sealant and parallel threads include a captive "O" ring seal to assure leak free connections
- Contemporary Appearance: the modern and clean look of these fittings will enhance the overall appearance of the machine or equipment
|
|
|
Outstanding features: - Full passage - special clamping device with double effect for the verb luring of the hose - fastening and loosening of the hose with a handle - suitably for hoses of different materials (Pa, PU, teflon etc.) - small size - thereby small weight - modular structure ensures pipe connections also complicated - high throat with O-ring at the thread ensures close connections also a reuhen Obenflächen to leg.
|
|
Camozzi offers a large selection of fittings and accessories suitable for a wide range of applications.

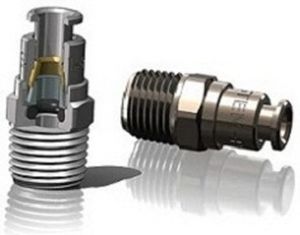

Universal fittings, super-rapid fittings, quick release couplings and accessories are available in different dimensions from M5 to G1/2. Our fittings range includes the patented and longstanding 'Sprint' system that guarantees tightening and facilitates the repeated removal and reassembly of the fitting.
|
|
|

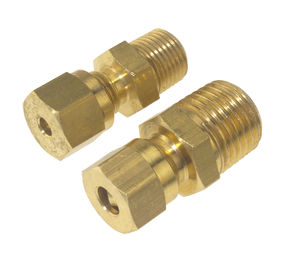

Legris brass compression fittings are compact and easy to assemble, provide excellent sealing qualities, and are suitable for use with various types of tubing. Excellent pressure (up to 14 bar nominal, 36 bar max) and temperature (-75C° to +120°C) performance.
|
|
Product Specifications
Temperature Range Brass Sleeve -40 ° F to 325° F
Material of Shapes (Elbow, Tees) Brass CA 377
|
|
|
|
|
|
General Description
The John Guest Water Trap Tee Convertor is a simple and convenient way of converting a standard John Guest 28mm Tee, Part No. PM0228E, to a Water Trap Tee.
When fitted, it will stop condensed water within the Air Ring Main Circuit from entering the vertical take off spurs.
It is important that the Ring Main has been installed with the correct fall and water drain points are regularly vented.
To Assemble
Use either John Guest 28mm Nylon Pipe Part No. PA-RM2823-3M-10B or standard 28mm copper pipe. The pipe should be cut squarely and be free of burrs.
The shorter spigot should be pressed into the pipe. When using copper pipe the fit will be loose, this will not affect the function.
The Pipe and Convertor should now be firmly inserted into the centre port of the Tee. Full insertion is required to correctly locate the Convertor and provide a water tight seal.
By turning the screw cap by approximately 1/4 turn (2 clicks can be heard) the collet is locked in place and further compression of the 'o' ring on the pipe is achieved.
Materials of Construction
This fitting is made of the following components:-
* The body is produced in brass
* The 'O'Ring is nitrile rubber
|
|
Push to connect fittings in brass nickel plated
The MA is our "Automatic push-in fitting" line. It enables quick connections with calibrated plastic hoses at any time, at any stage of the pneumatic circuit and by simple hand movement.
The connection and the fitting tightness are made possible by the presence of the stainless steel grip and of an Oring inside the fitting so that once the tube is inserted to the bottom of the fitting, the stainless collet grips onto it and prevents it from being released. The tube disconnection is then possible by pushing onto the outer metal ring, called release ring.
All MA fittings are brass nickel-plated
|
|
| ... products without technical information |
| |
Brass Fitting
- Push to connect
- Brass pipe
- Compression type
Product Specifications
- Temperature Range -40 ° F to 325° F
- Pressure 250 Psi nominal / 400 Psi Max
- Shape Material Forged SAE CA377 Brass
|
|

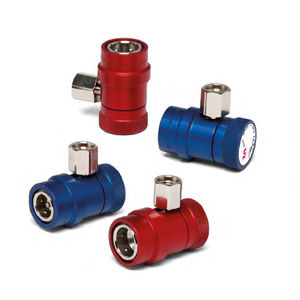

Parker's 5500 Self-Sealing Brass Couplings are used in fluid-transfer applications for easy maintenance on refrigeration and air-conditioning systems. Applications can also include marine refrigeration and air-conditioning systems, along with split refrigeration systems.
* Self-sealing upon disconnection maintains minimum inclusion of air and loss of fluid.
* Brass coupling provides corrosion resistance.
* Final metal-to-metal seal provides low leakage.
* Copper-sweat connections provide basic ends for brazing and eliminate the need for flux, simplifying the installation process.
* Panel mounting options are available for the unique needs of a unit.
Parker's FD57 Stub Kit Couplings are used in fluid-transfer applications for easy maintenance on factory pre-charged heat pump and split air conditioning systems.
* Easy installation of replacement units.
* Direct copper brazing capability.
* UL recognized
|
|
|
Tompkins Brass Adapters are made from CA360 Brass/Schedule 40. Rolled threads and one-piece design is perfect for all air/water-lower pressure applications (up to 2000psi) and Temperature ranges of -65 F to +250 F. Available in SAE 45 degree, JIC 37 degree, Hose Barb, compression, poly-flow, pipe, inverted flare, and poly-push with the broadest selection of jump sizes and configurations in the industry. Meets or exceeds all SAE standards.
|
|
