Model No BRX ... RX... RT...
We manufacture burners that are running with fuel oil, LPG, LNG or double fuel burner between the capacity of 30 kW / h to 22. 000 kW / h. For any detailed information about our burners please contact us and see our products from catalogues.
- DOUBLE FUEL MONOBLOCK BURNERS
- 2.500-22.000 Kw/h DOUBLE FUEL NATURAL GAS BURNERS
- FUELOIL BURNERS WITH ROTARY BOWL
- 350-5800 Kw/h NATURAL GAS BURNERS
- GAS PROSES BURNERS WITH SILICON CARBIDE HEAD
- GAS PROSES BURNERS WITH SILICON CARBIDE HEAD
- 70-420 Kw/h NATURAL GAS BURNERS
- FUELOIL BURNERS WITH ROTARY BOWL
- SPECIAL STENDER BURNERS
- NATURAL GAS PROSES BURNERS
PLEASE WRITE ALL ENQUIRIES IN ENGLISH ONLY
|
|
2.500-22.000 Kw/h
DOUBLE FUEL NATURAL GAS BURNERS
MODEL RX-RT
PLEASE WRITE ALL ENQUIRIES IN ENGLISH ONLY
|
|
DOUBLE FUEL,NATURAL GAS BURNERS WITH ROTARY BOWL -MODEL RFG 150-1250 MODULATING
FUEL OIL BURNERS WITH ROTARY BOWL -MODEL RF 150-1250
PLEASE WRITE ALL ENQUIRIES IN ENGLISH ONLY
|
|
1020 SERIES FTR COLD AIR BAFFLE BURNER
CAPABILITIES High heat release rates with moderate
air pressure Good turndown with flame characteristics and direction maintained Stable flame shapes tailored to the job
|
|
1480 SERIES HOT OR COLD AIR, HIGH VELOCITY, HIGH MOMENTUM BURNER
CAPABILITIES Suitable for low furnace operating temperature through 2500°F (1371°C) with standard design Standard burner designed for cold air or hot air to 800°F(427°C) operation Wide operating range from over 2000% excess air levels through excess fuel Very high velocity (momentum) burner Nominal capacity from less than 250,000 to 1.5 million BTU/hour at 10% excess air For use with most gaseous fuels with heating values above 250 BTU/cubic foot Suitable for most construction designs including light wall Custom engineered models available
|
|
1480 SERIES HOT OR COLD AIR,
HIGH VELOCITY, HIGH MOMENTUM BURNER
CAPABILITIES Suitable for low furnace operating temperature through 2500°F (1371°C) with standard design Standard burner designed for cold air or hot air to 800°F(427°C) operation Wide operating range from over 2000% excess air levels through excess fuel Very high velocity (momentum) burner Nominal capacity from less than 250,000 to 1.5 million BTU/hour at 10% excess air For use with most gaseous fuels with heating values above 250 BTU/cubic foot Suitable for most construction designs including light wall Custom engineered models available
|
|
1430 SERIES – HOT OR COLD AIR
ULTRA LOW NOX BAFFLE BURNER
CAPABILITIES High or low temperature furnaces High excess air 800% or more Ratio or tempered flame operation Suitable for fiber or dense refractory wall construction Gas only burner readily converted to dual fuel burner
|
|
2000 SERIES HTR® COLD AIR BURNER
CAPABILITIES High thermal release High temperature radiation without flame impingement Ability to place heat where required High turn down capacity Nominal capacity range 100,000 to 4.4 mm Btu/hr
FEATURES
Patented Stabilization Principle* high temperature radiation through high speed combustion Extra rugged port block and mounting plate construction Integral fuel orifices eliminates the need for individual gas balancing or throttle valves
|
|
1029 SERIES FUEL ENERGY COLD AIR BAFFLE BURNER
CAPABILITIES Luminous flames at all firing levels High release rates with moderate air pressure Turndown to 15 to 1 on ratio with flame characteristics and direction maintained
with gas Stable flames with lengths tailored to the
application
|
|
1360 SERIES UNI-HEAT® BURNER
CAPABILITIES High velocity, jet-boosted, high momentum burner Outstanding furnace and product temperature uniformity Shorter cycle times High furnace productivity Lower fuel consumption Suitable for fiber wall construction Low NOx emissions Simple combustion control Simple furnace pressure control Suitable for use with impulse control Maintains either an oxidizing or reducing furnace atmosphere No eye-irritating, odor-producing combustion products even at temperatures as low as 350°F (177°C) Designed for cold air applications. For alternative hot air burners contact Bloom. Furnace temperatures to 2200°F (1204°C) and higher with optional construction
|
|
2320 SERIES RECUPERATIVE
RADIANT TUBE BURNER, SUCTION TYPE
CAPABILITIES Quiet stable operation Uniform tube temperature Conversion of existing Bloom gas fired recuperative radiant tube burners to combination gas and oil firing easily accomplished Suitable for 5”(127 mm) and 7” (178 mm)
and larger I.D. ‘U’ tubes or ‘W’ tubes and
can be mounted on either leg of the tube
|
|
REGENERATIVE BURNERS
1150 SERIES ULTRA3 LOW NOXTM
1100 SERIES ULTRA2 LOW NOXTM
1080 SERIES ULTRA LOW NOXTM
CAPABILITIES World leading low NOx technology Reduced carbon monoxide and carbon
Dioxide emissions Increased production from existing furnaces Smaller furnaces in new facilities Stable operation from cold start through entire operating range Excellent turndown Custom engineered for the application
|
|
MAS Kiln Burner for Cement & Lime Kilns.
The patented kiln burner design offers a high flame adjustment range to set the flame according to the heat requirement of the kiln.
Fuels:
- Petcoke, Coal,
- Solid Alternative Fuels
- Liquid Alternative Fuels
- Fuel Oil #2 - #6
- Fuel Gas
The advanced design as multifuel kiln burner offers a high production flexibility.
Accessories:
- ignition burner
- flame monitoring
- automized burner dampers (remote control)
- telescopic pipe for coal feeding
|
|
The RatioMatic is a nozzle-mix burner designed for direct air heating, indirect air heating and oven applications up to 1800° F. (1000° C.)
The burner package includes a combustion air blower and an air:gas ratio regulator to allow firing over a wide gas turndown range at a controlled ratio.
This burner is available with the Eclipse HeatPak packaged valve train - flame safety option.
|
|
|
|
|
|
AH-MA Low Emission Air Make-Up Burners
Eclipse AH-MA burners are designed for trouble-free make-up or process air heating. They produce a uniform, odorless, and smokeless flame which is ideal for heating fresh air in make-up and process air heating applications. The AH-MA design provides stable operation over a wide range of velocities, inputs and fuels.AH-MA easily passes all global standards for indoor air quality through a wide operational range. It is ETL listed, complying with ANSI Z21.20 design standards, and is used in systems which meet ANSI Z83.4 / CGA 3.7
emissions standards for NOx and CO. The new aluminum burner body creates a lightweight, corrosion resistant burner. Divergent air wings are made of stainless steel. The burner bodies supply fuel to the center of the air wings to control the air and fuel mixture inside the burner and to optimize emissions and efficiency. AH-MA burners combine advanced engineering with installation and operational features that are truly world class.
|
|
Burner
PROCESS AIR HEATING BURNER 40 TO 1500 kW
The Thermigas process air heating burner offers unrivalled power and flexibility in use.
The principle of total premixing of the compact immersion tube offers the following benefits:
Optimum combustion and increased efficiency
Low rate of emission which enables use in direct heating
Conformity with the most stringent environmental standards
High resistance to external pressure fluctuations and homogeneity in combustion
Possible integration in systems with increased pressure drops
Robust stainless steel design
Reliability
Low maintenance cost
|
|

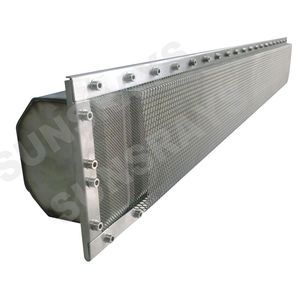

Eclipse Air Heat Burners are line type burners ideal for generating large volumes of clean, hot air. Applications include ovens, dryers, fume incinerators, and similar industrial equipment.
The "AH" models feature an integral combustion air blower mounted on the back of the burner’s steel case. By supplying the correct air volume and pressure to the burner, the blower allows stable operation over a wide range of duct velocities without installing a profile plate around the burner.
|
|
INDUSTRIAL BURNER DUOBLOCK BURNER
Production as per DIN 4787-4788 and European standards
CE and other certificates
- Low emission values
- Silent operation
- Superior Design
- High efficiency
- High technology
-Gas, light oil, heavy oil and dual fuel burners
|
|
BABCOCK WANSON designs and manufactures its own burners, to match its boilers with the best possible synergy.
User advantages :
- reliability and robustness ;
- total gas combustion, minimised CO generation ;
- shape of flame adapted to the boiler optimising the heat transfer (radiation and convection) ;
- NOx levels and exhaust gas figures derived from actual operating conditions ;
- electronic modulation of the combustion air fan to increase efficiency ;
- easy access to the various components ;
- extensions of guarantee up to 6 years ;
- range of modulation 1:8 ;
- noise level lower than 85 dB with full power, improved to 75 dB by additional silencing ;
- stated fuel consumption ;
- minimal fouling when used with viscous fuels.
|
|
For initial burner settings the burner can be adjusted either horizontally or along the kiln axis for hard burnable fuels.
The horizontal adjustment at the rear suspension is provided to consider the kiln rotation.
|
|

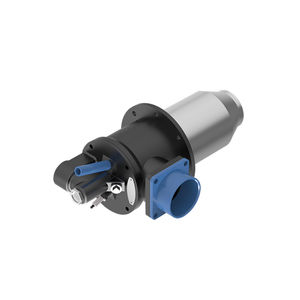

The ImmersoJet (IJ) is a nozzle-mix tube-firing burner that is designed to fire at high velocities through small diameter immersion tubes.
The combustion gases from the burner scrub the inner tube surface and produce high heat transfer rates. This, in combination with the high velocity flow through the smaller diameter tubes allows for system efficiencies in excess of 80%.
The smaller IJ tubes also have smaller bends which means less tank space is occupied by the tubes. With a combustion chamber that is integral to the burner body, the new version of the ImmersoJet can sit lower on the tank than previous IJ models.
This burner is available with the Eclipse HeatPak packaged valve train - flame safety option.
system.
|
|
MULTIFIRE® Industrial Burners incorporate a nozzle-mix refractory block design capable of "on-ratio" firing over a broad range of operating conditions. The dual fuel capability allows MULTIFIRE® Burners to fire on either gas or oil. Maximum application flexibility is provided with five different sizes and "on-ratio" capacities up to 17,500,000 Btu/hr per burner. In addition, MULTIFIRE® Gas Burners atomize fuel oils with
low pressure combustion air eliminating the need
for compressed air or steam.
|
|
Dual Fuel Burner
Gas & Light oil or Gas & Heavy Oil
Capacity range up to 40 MWs
All burners are designed according to EN
All components are from famous controls units manufacturers
|
|
These are burners with two progressive stages which, when used with a controler PID, becomes modulating.
The turndown ratio is 1 : 3 when they are burning oil and can reach 1 : 10 with gas.
For these two fuels, the management of the air-fuel mix can be mechanical, pneumatic (AGP® system) or electronic (GEM® system).
All our burners can be fitted with low NOx class III combustion heads, guaranteeing low emission in accordance with European standards EN 676 and EN 267.
The RTC® system completes the equipment of these burners.
It gives them:
- total accessibility, an essential characteristic of simple and easy maintenance: the combustion components are completely removed from the combustion head, regardless of its length, in a single manoeuvre,
- integral backup of the combustion adjustments,
- quick cleaning facilitated by compact mechanical components.
- time saving thanks to the use of standard bolts and unions.
|
|
|
|
|
|
More specifically adapted to the industrial process, these burners with separate fans are available with two progressive stages and are modulating, via the use of an electronic regulator (PID).
Minimum of 1 : 3 when burning liquid fuels and can reach 1 : 10 or more with gases.
The air-fuel mix can be controled mechanically or electronically (GME® system).
In order to guarantee the minimum level of polluting waste, these burners can be fitted with low NOx class III combustion heads, complying with European standards EN 676 and EN 267, or with a combustion gas recirculation (RGC® system).
They burn all current liquid or gaseous fuels. The can also burn all kinds of liquid or gaseous products either to benefit from their calorific energy or to dispose of them by pyrolysis (EDP® system). This can be done with the product alone or by mixing it in the flame.
The separate fan and the possibility of modelling the shape of the flame (FGV® system) means that CP burners can be adapted to the exact needs of the generator or industrial process.
This fan offers all the known advantages of separate treatment of the combustion air:
- increased accessibility to the heat generator,
- quieter operation either via fan speed control (Variatron®), or via a silencer on the air inlet,
- the possibility of reheating, drying or humidifying the combustion air.
|
|
|
|
|
|

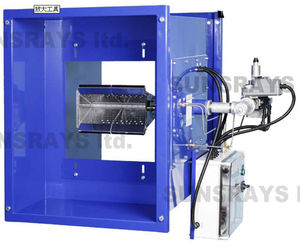

FlueFire Duct Burners
The Eclipse FlueFire is an in-duct burner which can be located directly in exhaust gas streams and is also suitable for fresh air operation or incineration applications. FlueFire burners consist of a rolled steel channel framework internally insulated and covered with a heat resistant sheet which is attached on the mounting frame and provided with expansion
allowance.
Burner modules are manufactured from high temperature alloy steel, precision cut by laser to ensure uniformity. This, together with the self-cooling design, enables the burner to function with inlet temperatures up to
700°C (1300°F) and outlet temperatures up to 1200°C (2200°F).Each burner module comprises a 6" stabilization plate perforated to create a local swirl in the turbine gas. Rows can be fired individually, or provided with vertical flame propagation plates linking each manifold row.
A turndown over 10:1 is generally obtainable across the full burner matrix without the need to isolate burner rows. This enables the burner to meet changing heat demands while maintaining uniform distribution across the duct area. The design of the FlueFire burner ensures intimate mixing of the turbine exhaust gases with the fuel which creates exceptional flame stability at 100Pa (0.4" w.c.) pressure drop across the burner even on low calorific gases, which in turn ensures clean combustion with low NOx emissions. This is achieved by swirling the turbine exhaust gases intothe gas jets.
|
|
Combustion Chambers
standard or custom-built combustion chambers.
especially designed to allow a flame inside
short heat-up and cool-down times
designed for optimum burner performance.
available in various materials.
adapted to customers process.
Commissioning & After Sales Service
MAXON combustion systems and equipment have been engineered for a minimum of maintenance.
MAXON can provide technical support during and after commissioning in almost every corner of the world through a broad international network of offices and representatives.
All MAXON offices have a stock of common spare parts, allowing MAXON to respond quickly to parts requests.
|
|
ECOSTAR DUCT, PROCESS BURNERS
Production as per DIN 4787-4788 and European standards
CE other certificates
- Low emission values
- Silent operation
- Superior Design
- High efficiency
- High technology
|
|
|
The M.A.S. injection system creates single air jets. Between these air jets zones with negative pressure are created. In this way hot secondary air is drawn strongly into the flame. Thus provides a quick and homogenous mixing of secondary air with fuel and combustion gases, a rapid ignition, a hot sharp flame, best heat transfer to the clinker bed and excellent burn out conditions.
|
|
|
|
