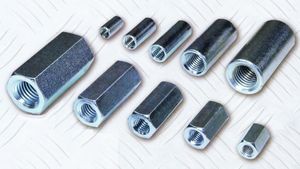

COUPLING NUTS
ROUND OR HEXAGONAL
FEMALE / FEMALE THROUGH
STEEL OR STAINLESS STEEL
FROM M4 TO M 12
|
|

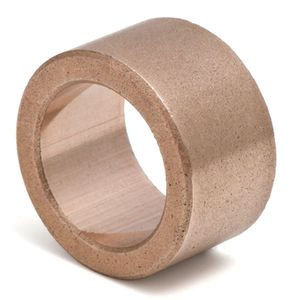

- Choice Guided Ejection Bushings ensure non-scoring
lubricity of bronze plating.
- Maintains alignment and supports ejector plate to
retainer plate.
- Reduces wear on ejection components.
- Wide range of sizes up to 1-1/2" ID.
- Steel, Non-Plated available upon request. |
|
General Fabreeka® bushing information:
- Minimum wall thickness of 3/32" is recommended
- Fabreeka® bushing ID is the same as the bolt OD, and the bushing OD is the same as the hole it will fit into.
- To facilitate inserting Fabreeka® bushings, they can be lubricated with a soap solution.
- In general, tolerances on rubber impregnated bushings need not be controlled to the same closeness as required for metal fits, since Fabreeka® is a compressible/flexible material.
- In general production, the tolerance on bushing dimensions is ±1/32". If closer tolerance is required, please contact Fabreeka's® Engineering Department.
Fabreeka® washers are used under the steel washers of the hold-down bolts of Fabreeka® mountings to absorb the rebound shocks and afford complete isolation by eliminating the transmission of vibration through the bolts and steel washers. It also aids in preventing the bolts from becoming loose. |
|
Taper bushing, Material Cast iron GG25, Type from 1008 to 5050

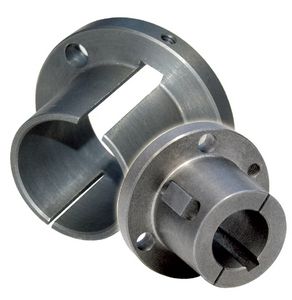

QD bushing, Material steel C45, Type JA,SH,SDS,SD,SK,SF,E,F
Split taper bushing, Material steel C45, Type G,H,P1,P2,B,Q1,Q2,R1,R2,S1,S2
|
|
ETP Bushings are the Ideal Locking Device for all Shaft-To-Hub Connections.
ETP Bushings feature a double-walled sleeve, pressure ring and tightening screws. They slide onto a shaft easily, and securely lock most shaft-mounted motion control components in position.
When the bushing screws are tightened the inner and outer walls of the bushing expand, forming a continuous, tight connection on shaft and hub.
|
|
