Optional extras for standard C-frame and double sided presses:
Ram guiding by 6 and 8 face slides.
Variable working speed.
Changing dimensional specifications.
Additional effects in the ram.
Increased performance.
Blanking damper.
Device for maintaining alignment between ram and bolster
(for double sided models).
10" colour control screen.
Virtual barriers.
Electronic feed and peripheral line (charger/destacker...).
Safety lock over the whole stroke.
Rapid die-changing system.
Hanging control console and many electrical control options.
Modem for remote maintenance.
|
|
|
|
|
|
Hydraulic C-frame blanking press (HZS)
Hydraulic C-frame drawing press (HEZ)
Standard version:
* Safety 2-hand control in accordance with UVV (German accident prevention regulations)
* Overrun control device NKS with electrical display
* Oil backflow filter with gauge
* Oil cooler (air / water)
* Engine hours meter, stroke counter
* Ram return stroke through pressure/time switch. The holding load of the ram can be selected under pressure between 0.3 - 3 secs.
* Force for ram and drawing cushion infinitely adjustable (approx. 10 - 100%)
* Ram speed infinitely adjustable in the drawing range (min. = pressing speed)
* Column-guided ram plate
Accessories:
* mechanical cushioning
* Light-barrier control with single and two-stroke, as well as protective barrier
* Motor-driven backward movement of the drawing cushion
* Mechanical stroke limitation of the ram, motor-adjustable
* Hydraulically controlled ejector in the ram
* Hydraulic tool clamping
* 6-fold guided ram / column-guided ram plate
* Automatic lubrication for ram and drawing cushion guides
* Oil cooler (air / water)
* Oil pan for oil leakage fitted underneath the press frame
|
|

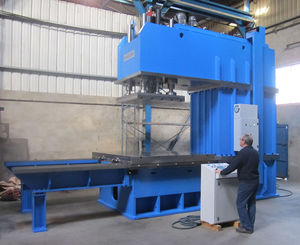

This model of press has been engineered for a big aircraft company to straighten wings and others parts.
The cylinder is fitted with a digital follow meter which indicates its position throughout its travel. On contact with the part to be straightened, the operator positions the zero point and from here uses this operation to follow the lowering of the cylinder on the meter. A bottom dead center can be programmed.
|
|
The MX340-G hydraulic press provides a wide range of matrices to cover the majority of requirements in any working situation.
We recommend that you consult the catalogue of available matrices and optional accessories.
The MX340-G complies with the European directives an regulations for the manufacture of MACHINERY.
|
|
* 60 Tn power.
* 450 x 600mm lower bench.
* 350 x 500mm supper bench, with double guidance.
* 225mm collar depth.
* 300mm upper bench route.
* 400mm opening between benches.
* 2 speeds, approximation and operation.
* Course control via end of track.
* Operation via double two-hand push button.
* Machine weight: 3,000Kg.
|
|
Neff C-frame presses
Efficient and versatile
Our hydraulic c-frame presses are valued for their high efficiency and versatility. Our wide range of equipment is also systematically geared to the requirements of our customers.
All c-frame presses can be operated in both manual and automatic mode. Moreover, they can be readily configured as assembly, drawing, high-speed, straightening presses or broaching machines.
|
|
AddisonMckee is pleased to offer a brand new line of c-frame hydraulic presses in 25-, 50-, 75- and 100-ton models. Utilizing proven and standard design criteria, AddisonMckee presses can be tailored to each customer’s most specific applications and feature heavy duty steel weldments and a superior guidance system that provides advanced precision and reliability.
Aware that one of the key considerations when choosing a hydraulic press is the amount of force necessary to perform the function required, as well as the operation speed desired, AddisonMckee models provide the best in value, speed, durability and reliability.
|
|
C-Type (Open Front)
Especially small-parts manufacturing
Easiness for handling
- RHCP 100
- 1.000 kN pressing capacity
- Double action (with die-cushion)
- CNC-control-system
- Cutting-Shock-Absorbing-System
|
|
|
|
|
|
NC and Conventionalm Hydraulic combine "C" frame presses
BuPower
BuPower has too many functions that combined from a lot of sheet metal working machines. BuPower is fast and user friendly when doing the work. Of course in high accuracy and efficiency.
Bending, punching, notching, cutting, forming and also more operations are available in Bupower.
BUTEK Company is a manufacturer of special purpose machines for Automotive Industries. BUTEK is experienced of sheet metal forming process and now we represent BuPower Combined Hydraulic Press Brake.
BuPower bring many choices to pres brake operators with NC and Standard types.
In all types you will find Standard device; stroke shaft and backguage; hydraulic pressure switch that can be easily set up by operator to reach the positioning and bending precision.
With robust "C" typemain frame and large work table is appropriate for different types of tooling.
Base of BuPower design is including safety, useful and serviceable use with standart and optional devices.
BuPower is a special design for our customers that are manufacturer of electric cabinetry, panel, medical equipment, industrial kitchen equipment, white goods, automotive industries and other OEM's
Optional Touch panel enables an easy achieve and control of all steps. Control panel can be inselection of different languages. It's possible to go help page at any time on the screen.
High Quality Ball screw and precise guide shafts are used at standard backguage in all types. This increases the safety and precision of BuPower
In order to get high quality products, standard and optional tools are specialy made. So, tools cabn easily be set up.
|
|
STANDARD FEATURES Steel welded frame
- Hydraulic system Bosch / Rexroth
- Electrical parts Siemens / Telemechanique
- Two hand control Start Button
- Emergency Stop Button
- Induction hardened and chrome plated column rods
- Two speed piston for moving plate at fast approach speed
- Automatic / Manual
OPTIONAL FEATURES
- Light curtain for safety
- Conformity to the EC Directives (CE)
- NC control
|
|
|
|
|
|
Hydraulic C-framed presses
Lower cost per part produced
The real saving here can be easily counted in production cost per part! The higher your hourly output is, the lower your unit production cost will be: in just a word, the advanced solutions built into Omera presses guarantee better productive performance.
Lower operating cost
Savings in operating costs are guaranteed because machine capacity can be exploited to the fullest without dead times caused by breakage or malfunction and maintenance operations can be programmed in advance with the assurance that everything has been made as simple as possible.
Quality = less production scrap, less wear on the dies
The first benefit of the trademark structural strength and constructive accuracy of Omera presses ensured by the highest design and manufacturing standards is the optimum performance of the tools, which can be translated in terms of defect-free production thanks to the uniform distribution of force throughout the productive process.
|
|
Today, our machines all are equipped with a terminal operator (IHM) of the tactile or traditional type. That makes it possible to safeguard the whole of the parameters of configuration, high race, slow speed, low of race and force (water pressure). The adjustment of the pushing force, as well as decompression are managed by a valve of pressure proportional.
By this principle, the changes of campaigns are simple and fast, we can safeguard approximately 50 programs according to the memory automat.
The hydraulic machines are equipped with distributers CETOP 06 or CETOP 10, the whole of the hydraulic material is assembled closest to the cylinder.
|
|
Models available:
=>Pressse hydraulic of 100 kN with butted of race and revolving plate.
hydraulic =>Press of stamping to swan neck doubles effect: 600 kN + 250 kN.
hydraulic =>Press 250 kN of rectification to swan neck to sensitive control.
|
|
| ... products without technical information |
| |
|
|
|
|
The various PCK-press models are designed to cope with the severest demands in the production field. The design of these presses combines strength and simplicity of use. They are easy to operate, easy to maintain, and carry all required safety monitoring devices for the safety of the machine and the personnel. The PCK-press can be used as a stand-alone press or can be incorporated into an automated production line.
Basic equipement, common to the whole range:
• Capacities from 630 to 3 200 kN.
• C-frame made of flame cut welded steel plate.
• Electro pneumatic clutch-brake combination.
• Variable stroke (semi-automatic adjustment).
• Motorised ram height adjustment.
• Hydraulic overload safety device.
• EC-approved.
Optional equipement:
• Modified dimensional specifications.
• Tool-clamps and die lifters.
• Tool loading arms.
• Pneumatic blank holder.
• Electronic roll-feeder or other feeding devices.
• Force indicator.
• PLC-control.
• Feed line.
• Finished part packaging and handling.
• Soundproof housing.
• Custom made modifications and designs.
|
|
|
|
|
|
Features and advantages:
CE certification.
Exceptional build quality and design for outstanding value
The press body's steel structure is welded and heat-treated to ensure maximum rigidity and durability.
The slide has 6 guiding surfaces with permanent central lubrication for high accuracy operation.
Highly rigid build and precise carriage guiding ensure very low tool (die) wear for maximum productivity.
Our 100-200 ton presses offer semi-automatic stroke adjustment, and the 250 tone and 315 tone models feature automatic stroke adjustment.
Motorized adjustment of carriage height on our 100-315 tone models
Hydraulic overload protection device after 63 tone models
All presses have a combined clutch-brake device.
All movable parts of the presses are reliably protected with cut-outs, shields and fences to ensure worker safety.
Reduced noise level and vibrations thanks to angular gear drive in oil bath.
High quality components ( pneumatic, hydraulic and electronic parts ) are procured from the leading European manufacturers.
Conceptually and technically advanced electronic control units are featured all our presses:
Control units are CE certified and fulfill the requirements of EN 954 group IV.
The control unit's components comprise of selected electronics from first-rate suppliers such as Telemechanique, Siemens, Preventa, and PILZ, providing safe and flawless performance in all operating modes.
All standard control units may be adapted to control any type of feeding lines according to client specifications.
|
|
6t / 15t
High performance, they will carry out your most demanding jobs accurately and reliably.
25t / 45t / 80t
Longlife work machines will give you unequalled productivity and quality gain for the future!
|
|
|
• Electro-welded steel frame • Alloy steel gear guard, oil-bath • Alloy steel cam shaft • Steel connecting rod • Electro-welded ram with 4 or 6 bronze guides • Pneumatic brake/clutch unit • Double mechanism valve • Control panel with leds for self diagnosis • Stroke counter • Reverse movement selector switch • Braking angle control • Automatic lubrification with adjustable flow and oil re-cycle • Extracting unit • Device for fast adjustment of ram • Accident protection devices • Balancing cylinders
|
|
The eccentric presses series "Swan neck” are realized in composed and normalized steel; they are strengthen to the most stress parts. This type of construction is apt to support particularly onerous conditions with a high degree of rigidity.
All the presses of these series are the fruit of a longest experience. Is for this reason that, they are studied in the way more rations them under l' aspect works them that under that one of the security.
In fact they are all certified " CE" and complete where previewed of: devices run change, adjustable hydraulic overload, motorized regulation ram, variable speed, accident-prevention photocells and all the devices previews into effect normative enforced.
|
|
