Schleuniger offers several automatic cutting machines (cutters) for high precision cutting of wires and cables of all types including cables with tough insulations, flat ribbon cable, glass optical fiber (GOF) and cables with plastic optical fiber (POF). Other tubed or profiled materials can also be processed.
Choose from several machines - depending on your processing requirements and diameter of material to be processed. From basic cutting machines (12 mm / 47'' outer diameter) up to high-performance cutters (25 mm / 1'' outer diameter). Material widths up to 100 mm (3.94'') can be handled.
Schleuniger also offers several pre- and post-processing equipment for an automatic production line. Choose from a wide range of prefeeders (dereelers), inkjet printers, hotstamp marking machines, coiling machines or stacking machines to automate your production.
|
|
|
The cutting tools have blades made of high tensile steel. The cutting edges are designed to make the cut surface as smooth and straight as possible, with the minimum force. We have two functional cutting and stripping tools, the SCT001 (0.5-6 mm²) and the Embla (0.02-16 mm²). For stripping the insulation from power cables there is the Tor stripping tool (ø 4.5-40 mm). The Oden stripping tool (ø 4.5-40 mm) is used among other things for signal, telephone and computer cabling.
|
|
AUTOMAT 300 is the latest product innovation by Meccanica Nicoletti and represents the most advanced step towards the full automatization of the cable warehouses.
AUTOMAT 300 is the most efficient and the fastest machine among the current ones available on the market.
With maximum speed of 300 m/min. compared with a standard winder, Automat 300 works 3 times faster
THE FUNCTIONS OF AUTOMAT 300
Automat 300 is able to fulfill the following functions by itself:
* loading
* unwinding
* measuring
* cutting
* reel/coil winding
|
|
Guillotine type hydraulic cable cutter for copper, aluminium or steel cables with maximum diameter of 25 mm.
The ergonomically designed moveable handle makes it possible to start cutting one-handed.
Quick opening and closing head, rotatable 180°.
Do not use this tool on live cables.
Automatic release with audible "click" in the event of overload.
Piston return by release trigger protected by moveable handle.
|
|
SP-02P Squeeze-Eze™ Power Pack
SP-02P is designed to use the identical jaws as the SP-01P, but delivers considerably more power for tougher applications. Made of durable aluminum, the tool is small (5 1/2" long x 1 3/4" diameter), lightweight (13 oz) and can be operated at air pressure of 60-100 psi (850 lbs. of cutting force). Will cut up to 0.10" soft steel wire.
A foot operated model is available (SP-02PF) which includes two (2) 5 foot air hoses and hex keys. Optional WS-2000 work station, A-202 bench stand and 105 four way footswitch are available.
As with the SP-01P, the SP-02P uses the jaw sets listed below. Jaws are optional. Order separate.
|
|
Ratchet cable cutter
KT471 - for 400 mm² copper/aluminium
KT551 - for 500 mm² copper/aluminium
KT501 - steel cable up to diameter 60 mm
|
|
SP-01P Squeeze-Eze™ Power Pack
This tool can develop 575 lbs. of force @ 80 psi and is designed to be used
with the jaw sets listed below. The tool is small (51/2” long x 1 1/2”
diameter), lightweight (11 oz) and can be operated at air pressures of 60-
100 psi. A built in adjusting screw controls the opening of the jaw.
All power packs sold less jaws. Order jaws separate.
A foot operated model is available (SP-01PF) which includes two (2) 5 foot
air hoses and hex keys. Optional WS-2000 work station, A-202 bench
stand and 105 four way footswitch are available.
|
|

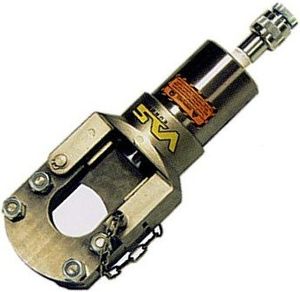

VAS CHCC-40
For cutting all kind of cables (telephone, aluminium, lead-lined copper, etc.).
The light weigth of the cable cutter heads and the possibility of using it independently from the rest of the system allow the cable to be used anywhere and in any position, such as post, power line pylons, shipbuilding industry, etc.
As the wire cutter head can be opened, it is inserted with great easy.
Equipped with a quick coupling to connect to any hydraulic pump with a maximum preassure of 700 bar.
|
|
|
|
|
|
Mechanical, thermal and chemical wire stripping processes cause damage to underlying wire that can affect electrical component performance and cause unacceptable conductor failures for aerospace, defense, medical, automotive, and other industrial companies using mission critical electronics. Manufacturers of these devices need to be aware that laser wire stripping technology is available that will guarantee the elimination of these problems. Applying CO2 laser light (10.6 microns wavelength) vaporizes wire insulation while being incapable of affecting the conductive wires. This wavelength of laser light is absorbed by the wire insulation and completely reflected by metal wire conductors. This technology eliminates the need for replacement blades and hazardous chemicals. Using lasers to strip wire yields the highest quality insulation and adhesive removal while delivering the absolute best quality and most precise wire stripping available.
Lasers can remove wire insulation from a wide variety of wire types including single core, multiple leads, twisted pairs, multi-cable, coaxial cable, and many others. Wires with diameters as low as 0.001 inches can be safely stripped. Tolerances for the laser can be held as tight as 0.001 inches. Single strand wires can be stripped in less than 1 second.
Virtually all wire insulation types can be removed using this laser technology. Wires are easily slit using this same CO2 laser. Straight, T-strip, Window slits, as well as, Spiral strips can be programmed to a controlled depth.
Our non-contact process yields the most flexible, highest quality, and most reliable laser stripping and slitting available.
|
|

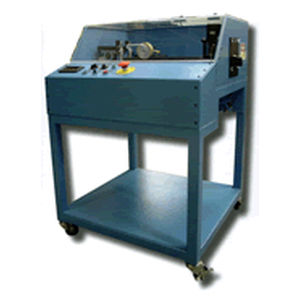

MOVABLE CABLE STRIPPER
-motive power : 3 hp (1 or 3 phase)
- Voltage : 220 v / 340v
- electric power : 2.2 kw
- Product Hight : 1200 mm
- Product Width : 580 mm
- Product Length : 900 mm
- Product Weight : 450 kg
Applying three different types of mechanism, the machine can strip exterior covering and interior covering of wire in accordance with the shape and size of scrap wire or defective wire.
For more detail, the machine is equipped with two parts being put together to make the stripping process to be effective: thickness selective stripping part and thickness adjustable stripping part. The thickness selective stripping part can cut and strip the interior covering of wire by selecting the thickness of interior wiring inserted into wire with the upper pressure roller of exterior covering cutting part repeatedly opening and closing. The thickness adjustable stripping part can strip the interior wiring by adjusting the cut depth according to the thickness of interior wiring.
|
|
CABLE & WIRE HYDRAULIC CUTTER
- motive powe) : 2 hp (1 or 3 Phases)
- Voltage : 220 v / 340 v
- Electric power : 1.5 kw
- Pressure of oil pressure pump : 240BAR
- Instantaneous pressure : 260BAR
- Capacity : ALP 1 AB-3(2CC)
|
|
General features
- Mark, strip and cut multiple gauge wire/cable in a fully automatic, high speed, computer controlled operation.
- Permanent, high contrast surface marks without damage on all insulations specified in SAE Aerospace Standards.
- Mark without masks...virtually any character, any font, any symbol.
- Strip with zero defects/damage to the wire core.
- Industry standard wire transport.
- Compliant with SAE Aerospace Standards.
|
|
|
|
|
|
PowerStrip 9500 automatic cutting and stripping machine for processing wires up to 12 mm (0.47'') in diameter with pull-off lenghts up to 200 mm (7.87'') on the right wire end (leading end) and 100 mm (3.94'') on the left end (trailing end).
Various models of the PowerStrip 9500 are available - from automatic processing of coaxial cables / shielded cables with rotary incision unit, to special Kevlar cutting head or integrated saw (e.g. for succoform or POF cables). Wire sizes from 0.03 to 25 mm² (AWG 32 - 4) can easily be cut, stripped and slit with unmatched precise Schleuniger stripping quality and high processing speed.
A multiple-blade system on the cutter head allows to use of up to 3 pairs of blades which can easily handle most cutting, stripping and slitting requirements.
The PowerStrip 9500 and all other Schleuniger automatic cut & strip machines can be integrated with various pre- and post processing equipment for prefeeding, marking / inkjet printing, coiling and stacking in an automatic production line. Programming can be either done directly on the PowerStrip 9500 itself or with the PC software Cayman with an easy-to-use graphical editor (WYSIWYG).
|
|
This model uses a completely new principle and is particularly suitable to cutting flexible hoses,
feeding electrical cables and plastic covered hoses…..
One by one or in small batches.
Easily transportable, the only power supply required is a simple 220 Volt single phase 10 Amp.
socket. This model is ideal for on-site work.
Technical specifications:
à Maximum cutting diameter : 50 mm.
à Bench-top model.
à Manual control.
à Single lever to bend and cut hoses.
à 2.1 kW - 230V - 50Hz single phase electric motor
à During the machine work, the control is held down by the operator.
à Bevelled cutting blade: Ø 200 x 1.6 x 30 mm.
à Dimensions: H 530 x W 430 x L 550 mm.
à Weight: 17 Kg.
|
|
|
This bench shearing machine cuts plastic covers and raceways up to 125 mm wide perfectly without burring.
|
|
| ... products without technical information |
| |
max. wotkplece size 28" x 14" x 10"
max. wotkplece weight 2.200 lb.
machine weigh 20.000 lb.
machine Hoot space 10" x 18"
SoctcK's Hybrid EDM combines The high speed of a Row voter jet with the high accuracy ot a Sodick wire EDM it can be used as a water jet ot wire EDM only. The Hybrid rs best used combing the speed ot the waterjet tor the toughing pass and the accutacy and suit ace obtained with the EDM finishing passes. Unlike EDM. a water jet can cut non conductive materials making the Hybrid a very vetsatle machine.
|
|
max. wotkplece size 28" x 14" x 10"
max. wotkplece weight 2.200 lb.
machine weigh 20.000 lb.
machine Hoot space 10" x 18"
SoctcK's Hybrid EDM combines The high speed of a Row voter jet with the high accuracy ot a Sodick wire EDM it can be used as a water jet ot wire EDM only. The Hybrid rs best used combing the speed ot the waterjet tor the toughing pass and the accutacy and suit ace obtained with the EDM finishing passes. Unlike EDM. a water jet can cut non conductive materials making the Hybrid a very vetsatle machine.
|
|
|
|
