- Wire rope systems -
For light energy supply systems with 1 to 3 cables. For applications which do not allow the installation of C-rails. Suitable for indoor and outdoor use.
- C-rail systems -
As energy supply system from light to heavy design. C-rail systems are used for very different applications: crane manufacturing, hoist units, transport systems, conservation technology, special engineering, etc.. C-rails are available in zinc-coated and stainless steel version. Special versions are available for explosion-proof areas. Suitable for indoor and outdoor use.
- Square rail systems -
Energy supply systems on square rail (diamond track) are predominately used on circular and curved tracks or in very dusty environments. These systems guarantee a perfect function even on variable levels. Our square rails are galvanized or made of stainless steel (only program 270). Special versions are available for explosion-proof areas. Suitable for indoor and outdoor use.

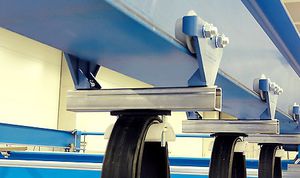

- I-beam systems -
Festoon-systems for I-beams carry flat and round cables for the transfer of electrical energy and data. Hoses are also carried for the directing of fluids, air or gases. Wampfler festoon systems are employed worldwide in steel mills, ports, zinc coating shops and compost preparation facilities, to name a few applications.
|
|
|
VAHLE cable carriers support power cables and hoses (for pneumatic and hydraulic applications) to mobile equipment. The carriers travel on flat flange or sloped flange I-beams. They comply with VDE and international regulations and support both flat and round cables.
|
|
Normal environment (bearings steel codes 220 or 223 bearings pressed sheet metal), wet or dusty (rollers full nylon assembled on axes stainless to add code 226).

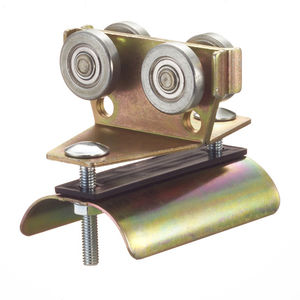

Carts for flat cables, round pipes or mixed.
Autocentreuse sheath = reduced wear of the carts (an exclusiveness normaf).
|
|
Adjustable carts with 4 rollers. Beach of adjustment of 50 with 135mm.
Wing higher than 135mm to consult us.
Reduced set-up time, carts run directly on iron.
Body galvanized steel. With epoxy protector or out of stainless to consult us.
Carts for flat cables, rounds, pipes or mixed.
Capacity of the carts: 30 kgs (rollers nylon, axes stainless) & 60 kgs (rollers & axes galvanized steel).
Version with chain of traction to consult us.
|
|

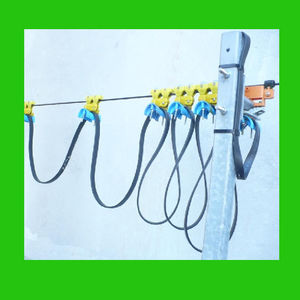

Economic system & reliable.
Reduced exposure time.
Require only one fixing at each end.
Use: normal, corrosive or very dusty environment.
Carts for flat cables, rounds, pipes or mixed.
To envisage a safety coefficient of 4 (breaking load ÷ 4).
Capacity of the carts: 5 kgs.
|
|
|
|
|
|
The CARS, ABLE System NORMAF, conceived for the provision of energy to movable elements, offer optimum solutions for a great variety of applications, such as facilities of crane and elevators, storage in height, machines of construction, facilities of transport, etc.
Our range of provision includes:
Cars on steel cable with diameters of 6, 8 or 12mm, with a lifting capacity of 5kg. by car and until a length of 130m without intermediate supports. Cars for round cables until 40mm. of diameter and planes until 75mm. of width.
Cars for profiles until IPE 270 or IPN 360, with a lifting capacity of 15 to 60kg. Length of the system until 30m. and limitless in reinforced version.
Cars for profile C, with a lifting capacity from 100 to 400kg, speed of use to 140m/min., Length of the limitless system with possibility of the circuit formed by curves. Cars for round cables until 40mm. of diameter and planes until 400mm. of width. Option of stainless steel material.
The ABLE CARS, system FESTOON, conceived for the provision of energy to movable elements that demands the heavy industry, offering by means of its robust construction, great security on watch still in very hard works.
|
|
|
VAHLE festoon systems support conductor cables, flat or round, and hoses (for pneumatic and hydraulic applications) to mobile equipment. The cable carriers are well guided in C-tracks, on diamond tracks or I-beams.
|
|
Woodhead's Festoon Systems provide a simple, inexpensive method of handling cables and hoses, but have special space requirements which must be considered to select the proper system. The height of the system is determined by the loop depth and the required working travel. A system with a greater depth will require fewer cars and less storage than a system with a shorter loop depth.
|
|
Power feed supply for Ibeam (IPN ou IPE)
for all mowing engine, machine, cranes,
standard application for inside or outdoor
version for flat, round or hose or twice
for Ibeam section 48 to 140mm
up to 140mm please ask us specia trolleys
version with 2,3 or 4 wheels
|
|
