Model CF
This model is a low-price Cam Follow having a driver groove or hexagon socket in the stud head. The all-stainless steel type (symbol M) is optimal for clean room applications since it does not develop rust from external atmosphere and generates little dust.
Model CFT
Basically the same as the popular type Cam Follower, this model is provided with tapped holes for piping on the stud head and the thread. It is optimal for locations where an integrated piping system for greasing is required.
Model CFH
This model can be installed in the same mounting hole as that of the popular type Cam Follower. Since the mounting shaft of the stud and the stud head are eccentric by 0.25 mm to 1.0 mm, the position of this model can easily be adjusted simply by turning the stud. Thus, it is a compact, highly accurate eccentric cam follower with an integral structure.
Model CFN
Based on the popular type Cam Follower, this model is incorporated with thrust load balls. It is capable of receiving an axial load generated by a mounting error.
|
|
|

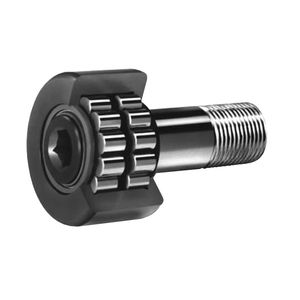

IKO Cam Followers are bearings with a stud incorporating needle rollers in a thick walled outer ring. These bearings are designed for outer ring rotation, and have superior rotational performance with a small coefficient of friction. Also, they are designed to have minimal radial internal clearance to increase the loading zone, and thus reduce the effect of shock loads and ensure stable long life. As studs already have threads or steps, they are easy to mount. Cam Followers are follower bearings for cam mechanisms and linear motions and have high rigidity and high accuracy. They are, therefore, used widely for machine tools, industrial robots, electronic devices, and OA equipment. Stainless steel made Cam Followers are superior in corrosion resistance and suitable for applications in environments where oil cannot be used or water splashed, and in clean rooms.
|
|
|
RBC produces a full line of cam followers from 1/2 to 10 inch outside diameter sizes. Technical innovation and cost-saving features have distinguished RBC cam followers from competitors. Contact RBC engineers for assistance in solving difficult bearing challenges in your application.
|
|
|
Standard stud,heavy stud,yoke type,caged roller followers.Patented RBC Roller, cylindrical roller cam followers,Hex lube uninersal cam followers, airframe track rollers
|
|
|
We offer a complete line of stud type and yoke type cam followers for industrial applications. These bearings are available in steel, stainless steel, and with engineered plastic internal bushings. We specialize in engineered cam followers to fit specific applications.
|
|

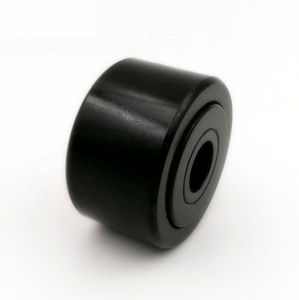

Cam rollers are non-separable radial ball bearings with extra thick-walled outer rings:
- Suitable for high radial loads, including shock loads
- Fitted with contacting seals (protection against contamination)
- Standards: DIN 616
- Series: 361200, 305700, 305800, 306700, 306800
- Application examples: cam drives, conveyor systems, etc.
|
|
W.M.Berg offers a variety of Cams including: Bearing Cam Followers and Adjustable Cam Assemblies offered in Pin hub and Clamp hub style. Cams are generally used to convert rotary motion into reciprocating motion. Cam Followers and Roller Bearing Cam Followers are designed for outer ring rotation. Cam Followers can be used with a choice of ball bearing or bronze bearing. Berg offers screw threads ranging from #4-40 to #3/8-16.
They combine high load capacity with low profile and low friction. Our variety in sizes allows a wide range of applications.
|
|
Find on stock our complete range of rollers of cam:
- Needle Rollers,
- Needle Rollers on axis with joints,
- Needle Rollers on axis without joints,...
|
|
| ... products without technical information |
| |
|
|
|
|
Kaller Roller Cams are used for piercing, trimming, flanging and restriking.
The Roller Cam can be mounted in both vertical and horizontal planes and contain an internal gas spring for slide return.
The KALLER Roller Cam is developed to meet the markets demand for a standard Cam unit. The Roller Cam unit is the ideal solution for a small compact and cost effective unit. The Roller Cam is available for a max. piercing force of 30 kN, stroke 50 and 80 mm and for a max. piercing force of 50 kN, stroke 50, 80 and 100 mm. All models are equipped with an oilless slide bearing and, for the return action a gas spring is emloyed, with a an initial force of 200 daN.
The contact force between the driver and the cam unit is taken care of by a heavy duty roller bearing. The driver itself is to be manufactured by the user to give the required movement scheme and the contact surface on the driver should be hardened in order to maximize the lifetime of the Roller Cam. The angle between the driver direction of motion for the Roller Cam is to be 50°.
The Roller Cam can be fixed to the tool with a key and/or two cylindrical pins. When in the right position, the Roller Cam must be bolted to the tool with 4 M8 cap screws. The screws can be accessed from the side and from the top.
|
|
| ... products without technical information |
| |
Model NAST
A separable type of bearing that combines a thick-wall outer ring, an inner ring and needle rollers equipped with a precision cage. Since the structure is simple, it allows high accuracy to be achieved at low cost.
Model RNAST
A bearing that combines a thick-wall outer ring, an inner ring and needle rollers equipped with a precision cage.
Model NART
This model is a non-separable type of bearing system whose inner ring is fixed to the side plates. Since the outer ring is spherically machined, it helps reduce a biased load.
|
|
CRES (Corrosion Resistant Engineered Solutions) CAMROL® cam followers from McGILL are designed to help solve corrosion problems. Processors of food, beverage and pharmaceutical products face the ever present challenge of providing wholesome products. Many processors have adopted HACCP (Hazard Analysis and Critical Control Points) plans to insure safe production. McGILL® CRES CAMROL® bearings join the EPT family of CRES solutions to help meet your needs.
More Corrosion Resistance: 440C Stainless Steel Components
Improved Sealing: LUBRI-DISC ® Seals
Quality Heat Treatment: Zone Hardened Stud
|
|
|
|
