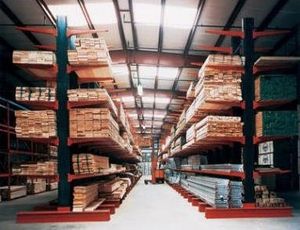

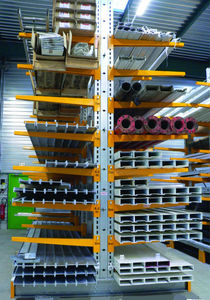

Cantilever racks
Cantilever racks are particularly suited for the storage of long goods and bulky parts. This kind of storage system allows the arms to be horizontally inserted into the vertical columns. Despite the heavy loading capacity of the arm, this remains flexible and moves sidewards and upwards when hit for example by a forklift truck. Arms and goods remain undamaged. The columns are punched every 100 mm in order to fit with the sizes of your existing warehouse. The arms can be adjusted without any use of tools. The cantilever racks can be used one-sided or double-sided, many variations are possible.
Continuous storage space for an optimised space requirement
Columns height up to 9 mtrs (further heights are possible)
Arm loading capacity from 500 kgs up to 15 tons per arm
Arm lengths from 600 mm up to 2,500 mm
storage levels adjustable each 100 mm
suitable for forklift truck and crane handling
|
|

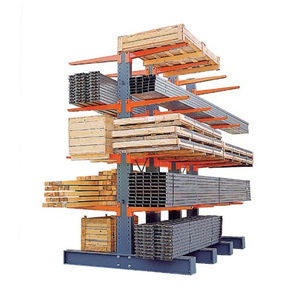

Cantilever racking is specially designed to store long items or items of varying length, such as metal beams, pipes, moulding, wooden planks, pipes, and metal and plastic sheets among other materials.
Depending on the height and weight of the merchandise, either light or heavy duty racking are available. Both can be fitted on one side of the structure only, or on both sides.
Advantages:
- Allows extra long items to be stored.
|
|
|
The cantilever racking META MULTISTRONG has proved of value with regard to the storage of long goods. The range includes small compact rack rows for light to medium heavy long goods and extends to super heavy duty racks for heavy bar and sheet materials. MULTISTRONG cantilever racks offer you a steady brand quality, numerous options for extensions and a quick access to the goods. By this way you increase your storage productivity.
|
|

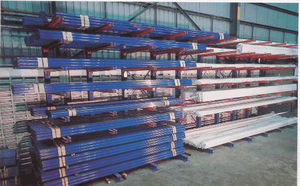

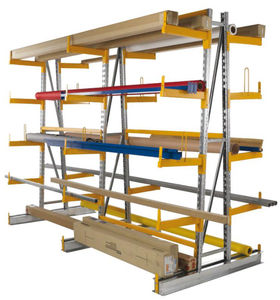

The most robust system for hand loaded storage of tubes,
sections, profiles and panels etc...
- Cold profiled 15/10 galvanised frames
- 20 or 15/10 profiled steel arms adjustable every 50mm
- 1300 wide, 2100 mm high. 4 levels of arms + base.
|
|
Racking compromises of frames and beams. Galvanised finish - Yellow beams RAL 1028
Maximum load capacity per frame: 7000kg with a first level at 1200mm
Maximum load capacity per level: 1600 and 2240kg
Level adjustable every 75mm
Length: 2700 or 3300mm.
Height 3000 or 4500mm
4 steel anchors per frame
|
|
|
We are a company specialized in the manufacture of Cantilever. Thanks to its broad line of goods, We are capable to offer a choice of approximately 50.000 columns with heights up to 12 meters and of approximately 5000 arms with different loads. The company has average data processing powerful which make it possible his/her collaborators to answer any request under 24 H.
|
|
for rigid long loads: arms with and without end stop
for flexible long loads, sections, profiles and bulky goods: arms with straight shelf levels
for ergonomically favourable picking at the place of assembly: arms with inclined shelf levels
for coils and vertically stored goods: tubular arms
boltless assembly and height adjustment of cantilever arms and shelf levels
high load capacities
high quality surface finish
all racking components fully comply with the latest health and safety regulations
|
|
It is an economical system ideal for storing long items by removing the uprights on the front.
Long and medium load item storage on arms : rods,panels, etc..
It can be adapted to all types of activities.
|
|

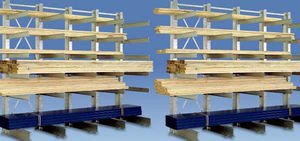

The Cantilever system is optimal for the storage of long and bulky materials; profiles, pipes, timber, mouldings, etc.. because no structural part interferes with the handling of the goods no matter how long they are.

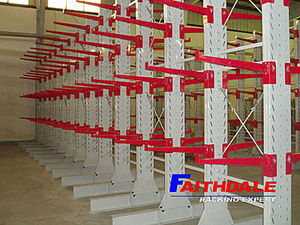

The Cantilever system is constructed from Vertical central columns with horizontal arms that are adjustable in height.
The easy adjustment of the height of the load level makes this system very versatile in front of the volumetric changes of the goods to be stored. The removal of all front supports, as in conventional racking, allows for direct positioning of differing length product and maximizing storage capacity.
The MECA Cantilever System is available either single sided or double sided with different dimensions.
We have a large range of arm and base lengths which gives our system more flexibility and suitability all types of applications whether they are large or small.
|
|

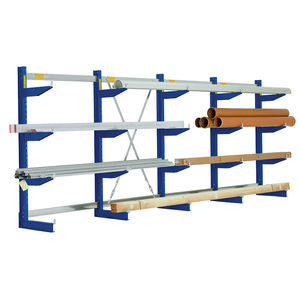

Cantilever racks give you clear frontal access to the storage levels. Unlike conventional racks, cantilevers have no vertical obstructions in the storage area. That lets you make full use of space from side to side on each level. Store items or materials of varying lengths without interference or modification to the rack.
Ideal for:
* Pipe and tubing
* Bar stock and rods
* Appliances
* Rugs and bolts of fabric
* Furniture
* Merchandise in large boxes
* Lumber and wood products
* TV's, stereos and electronic components
|
|
A complete programm from our own production is available to suit all your storage needs: from light to heaviest material, from simple racks to complete warehouses.
All Cantilever Racking is available in single and double sided version.
|
|
Storing steel calls for robust solutions.

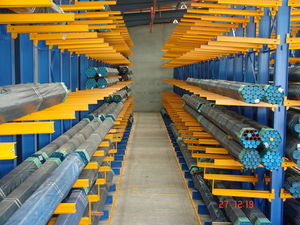

When planning for this steel wholesale store, storage requirements put on the racks by the stored material were heavily considered. Cantilever racks provided the perfect solution.

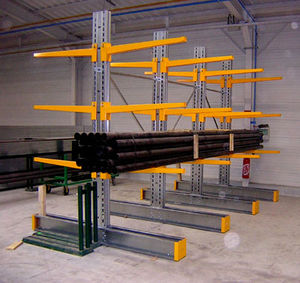

Steel in rods, tubes, and sheets: cantilever racks suit customer's storage requirements with the flexible and robust construction.
|
|
It is an economical system ideal for storing long items by removing the uprights on the front.
Long and heavy item storage on arms : rods, panels, etc..
It can be adapted to all types of activities.
|
|
Les bras sont réglables au pas de 100mm et sont verrouillés par une double clavette.
Ce produit est conforme à l'Eurocode 3 et est validé par les bureaux de contrôle.
|
|

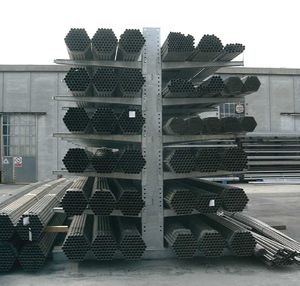

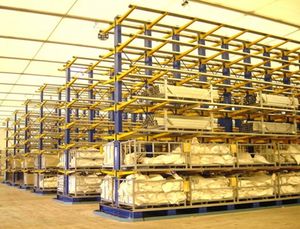

Roofed Cantilever Racking in open area
Cantilever racking in open area with different roof shapes and back cladding for protection against weathering. We have for all needs the right solution.
|
|
Mobile Cantilever Rack System.
The Meca Mobile rack system allows for optimal space utilization with in the warehouse area.
It allows direct access to all goods with the least amount of space used
The speed and smoothness of the system along with the quality of the design and engineered components will provide years of hassle free operation.
An additional cost between a mobile and static system will be soon forgotten with the added productivity provided by the mobile system.
|
|
Mobile Storage
ELVEDI mobile system almost double your storage capacity. Whether archive, pallets or long shape materials, whether light or heavy duty stock, we have the right solution for you.
|
|
Realization all dimensions, all loads
Possibility of adapting a roof to it.

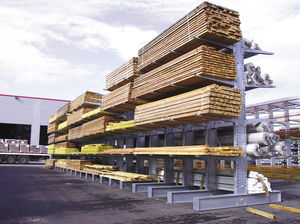

Use for long loads
Realization in hot profile allowing of the important loads.
This product gavanized hot with soaked allows stock; er of the products concrete
|
|
For your pipes PVC, tubes steels, beams and rafters wood, packages of panels of agglomerate or plasterboards...
The cantilevers meet all your needs for storage of long products.
Used in interior in painted completion or outside in galvanized completion, with or without roof, they adapt to all the constraints of environment and can protect your stocks.
Each project will find its solution through the many sections of columns and arm, with heights and loads going respectively up to 20 m and 3600 kg.
Dimensions:
- Length: up to 2500 mm
- Spacing: up to 3600 mm
- Height: up to 20000 mm
Options:
- Round Head of support
- Intermediate Smooth
- Removable Thrusts
- Shock-proof Protections
|
|
Link 51 has many years experience supplying map storage solutions to Museums and Record Offices all over the UK.
The solutions include a variety of applications such as bespoke drawestor units divided to segregate maps, cantilevered bays for extra large maps and Euro-shelving bays for large volume flat storage.
At Norfolk Record Office and East Anglian Film Archive, six plan chests were supplied with specially designed ‘drop-down’ fronts along with bays of Longspan heavy duty shelving for rolled and boxed maps.
CD Rom's of the Norfolk Record Office installation can be supplied on request. Click here for your free copy.
|
|
