Fixed correction devices
Automatic correction devices
Automatic correction devices of reactive power by filtering higher harmonics
Fixed correction devices by filtering higher harmonics
Electronic reactive power factor regulators
|
|

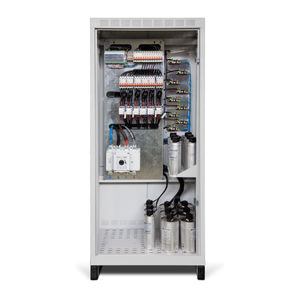

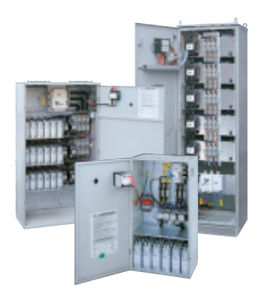

Capacitors banks for reactive power compensation from 5 to 900 KVar in a single metallic cover.
|
|
|

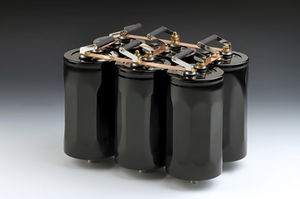

superior electrical performance / long life · terminated using low resistance copper buss strips · designed for various mounting configurations · banked to any capacitance value · from 10 to 20,000 volts · current up to 1000 amps RMS
|
|
Applications
To be mounted into electric normalized enclosures.
In electric networks systems without harmonic distortion.
Characteristics
To install with screw M8
NH hrc fuses
Cu billets to connection electric main circuit wires
Terminals connector to supplied circuit
Special three-phase contactors with domping resistors to limit capacitor's inrush current
"CRM" capacitors with discharge resistors
Standards : CEI 831,1/2 IS:13340/41
|
|
| ... products without technical information |
| |
Lifasa HV capacitor banks either fixed or automatic have the necessary elements for its assembling and adjustment for an optimal service and work of the capacitors in the network.
The election of the equipment, as well as its configuration and setting up, will depend on the network voltage, as well as the consumption of the loads in the installation.
|
|
Nominal voltage Un: from 10kV to 50kV 50/60 Hz
Capacitance: from 20nF to 200nF
Test voltage: up to 100kV 50Hz / 200kV DC
|
|
|

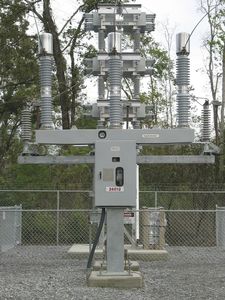

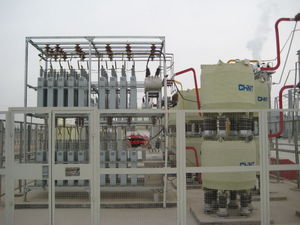

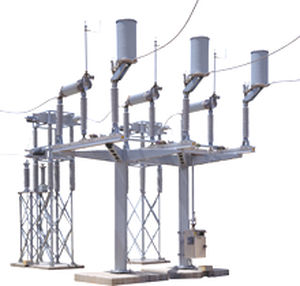

These power factor correction equipments are open-rack type and are for outdoor installations, where large blocks of three phase kVAR are required. Racks are shipped ready for field installation with base and inter-rack insulators, 8 foot substructure, interconnecting bus wire and other accessories for a three-phase equipment.
|
|
Features :MKP1840M: Miniaturized Metallized Polypropylene Film Capacitor
- Miniaturized with extensive voltage, pitch and capacitance ranges
- Voltage range: from 250 to 2000 VDC
- Pitch range: from 5 to 37.5 mm
- Capacitance range: from 0.001 to 6.8 µF
- RoHS-compliant
- AC and Pulse applications include: high frequency and pulse operations.
|
|
Capacitor banks Energy
Description

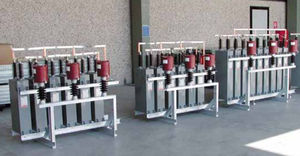

Medium voltage capacitor banks Energy are designed for power factor correction in electrical networks from 15 to 36kV. Global compensation offer from 600 kvar to 5 Mvar is composed of:
CP227 fixed capacitor banks
CP254 automatic capacitor banks
Technical data:
indoor installation
altitude less than 1000m
protection degree of the enclosure IP23
insulation voltage (kV):17.5, 24, 36
rated voltage (V):15000, 22000, 33000
|
|
|
|
