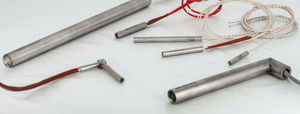

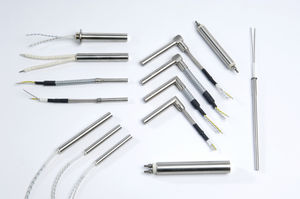

Cartridge heaters are cheap, robust and easy to install. Highly compacted they reach a surface watt density of up to 50 W/cm² and withstand highest stress. Apart from our broad standard range we also develop and manufacture cartridge heaters according to your special demands.
|
|
hotrod® cartridge heaters (type HHP and LHT) are core products of hotset´s tradition. Excellent knowledge, high-quality materials as well as the outstanding manufacturing guarantee long life and excellent product features.
By intensive cooperation – also with special applications – hotset gives again and again innovative impulses to its cartridge heaters with new technical features (e .g. humidity-resistant connection area).
By optimal production conditions of Hotset Malta Ltd. an unique price-performance ratio can be achieved for larger quantities. Hotset cartridge heaters offer high functionality and high production safety – driving quality!
|
|

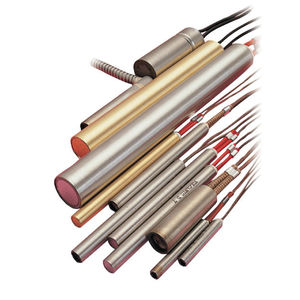

The Watlow FIREROD® heater enters its 50th year of industry leading expertise as the premier choice in swaged cartridge heating. With premium materials and tight manufacturing controls, the FIREROD heater continues to provide superior heat transfer, uniform temperatures and resistance to oxidation and corrosion even at high temperatures.
FIREROD offers many delivery programs to meet your needs: same day shipment, Ship-to-Stock or Just-in-Time. And our experience in customized engineering is reflected in over 250,000 FIREROD cartridge heater designs. Stock or made-to-order, the Watlow FIREROD delivers heat in a hurry.
Applications
Molds
Dies
Platens
Hot plates
Sealings
Fluid heating
Life sciences
Aerospace
Semiconductor
Foodservice equipment
|
|
Standard Construction Cartridge Heaters
High temp stranded flexible lead wires swedged into stainless steel sheath, welded end disk.
|
|
Premium Quality
Rugged Construction
120V & 240V Models Available
Reliable, Premium Quality
Rugged, Shock and Vibration Resistant
|
|
Watlow, a leading designer and manufacturer of heaters, controllers and temperature sensors, has added a miniature version cartridge heater to its existing line of FIREROD® cartridge heaters. The new 1/8-inch FIREROD cartridge heater features a unique swaged design, which maximizes heat transfer and allows for quicker response time. Additionally, its helically wound resistance wire produces higher watt densities and contributes to longer service life in space-restricted applications.
Applications
Medical
Analytical
Aerospace
Semiconductor
|
|
|
|
|
|
Marathon Heater India Pvt. Ltd. is a joint venture between Marathon Heater Inc., USA and Tempsens Instruments (I) Pvt. Ltd., India.for manufacturing of Cartridge heaters for industrial heating needs.
Hot Rods (High Watt Density cartridge heaters) are available in a wide variety of diameters and configurations. Specialized high temperature lead wires for temperatures up to 450°C are used in it.
High impact ceramic cap retards contamination is used for high vibration applications. There are Deep holes in cap which prevents fraying of leads when bent. Nickel- Chromium resistance wire provides maximum heaters life and evenly wound for even heat distribution. High Purity magnesium oxide fill selected for maximum dielectric strength & thermal conductivity highly compacted for maximum heat transfer. Protection Sheath SS 304, SS 306 & Inconel is available. TIG welded and disc to prevent contamination and moisture absorption.
Benefits of Hotrod over Local High Watt Density and Low Watt Density Cartridge Heater:-
It gives you much-much better life which reduces your breakdown time and Maintenance hours, No need to keep Spares in big amount.
High Wattage in lesser space reduces Heat up time; increase production Time.
Available with different Termination style, which fits it in different Applications.
Available with Inbuilt Thermocouple, so for small space there is no need to have additional hole for thermocouple.
Available in Three phase construction and Distributed Wattage for different Applications.
Other Different kind of Special Heater like Silicon Rubber Heater, Micro Tubular Heater and other Industrial Heaters are also manufactured by us.
|
|

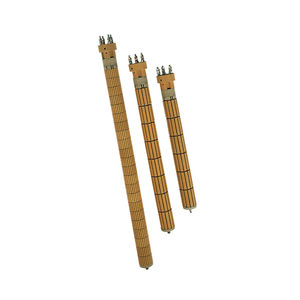

Calor cartridges
Modular conception
Ceramic cartridge heater
Several fixings and terminal casings
Tubes available in steel, stainless steel or titanium
Power from 0,5 kW to 9,5 kW
|
|
|
|
|
|
U.L. Recognized - E56973 C.S.A. Certified - LR-16386
Applications:Compressor Crankcase Heating, Copiers, Dies, Food Processing, Glue Pots, Heat Sealing, Hot Melt Adhesive, Labeling, Medical Equipment, Packaging, Photographic Processing, Plastic Molding, Platens, Wax Pots.
-Hotwatt Precision Cartridge Heaters provide localized heat to restricted work areas requiring close thermal control. Dies, Platens, and a variety of other types of processing equipment are efficiently heated. Closely controlled work temperatures up to 1250°F are obtained by a combination of heater location and proper wattage output.
-Basic designs are readily adaptable to a wide variety of special requirements, sizes, or ratings.
-Maximum surface temperatures up to 1250°F.
-Designations are etched on the sheath to preserve accurate shape.
-Heating elements arranged just beneath outside surface for maximum heat transfer, minimum core temperature and faster heating.
-Made in U.S.A.
-Where specified, units can be supplied liquid tight.
-Long, trouble free service.
|
|
Vulstar® cartridges are used to heat metal like moulds, dies, plates and bolts or liquid.
Supply voltage up to 450 V 1P or 3P.
Load up to 40 W/cm2.
Length from 25 mm to 2500 mm depending on diameter.
Diameter from 6,35 mm (1/4") up to 31,8 mm (2" 1/4).
Different types of connection to fit with the ambient temperature.
This cartridges can be provided with a thermocouple .
|
|
Magnum cartridge heaters from Durex are simply the benchmark of Industry. Packaging, Plastics Processing, Foodservice, and Process Industries alike look to our cartridge heaters as a reliable, effi cient, and cost effective heat source. Swaged-in designs are made for use in applications where high density, high temperatures, and long service life are critical to reduce downtime and minimize cost.
Features
UL/CUL Component Recognition Available
Rugged Dependable Heat Source
Temperatures up to 1500°F (820°C)
Many Diameters Offered as Standard
Metric Sizes also Available
Highly Compacted Unit Which Resists Shock and Vibration
Alloy Sheath for High Corrosion Resistance
Custom Manufactured to Speci fications
Typical Applications
Liquid Immersion
Plastic Molds
Dies
Labeling
Medical Equipment
Platens
Packaging Equipment
Hot Stamping
Sealing
Injection Molding
|
|
Type : Material : Hardness : Surface Treatment RoHS CAD Data
MCHZ 304 Stainless Steel - - Compliant
MCHZA 304 Stainless Steel - - Compliant
MCHZB 304 Stainless Steel - - Compliant
MCHZC 304 Stainless Steel - - Compliant
|
|
|
|
|
|
Applications:
Dies, Heat Sealing, Hot Melt Adhesive, Plastic Molding, Platens, Shoe Machinery.
U.L. Recognized - E56973 C.S.A. Certified - 016386-0-000
Features :
-Elements are designed for maximum: Watt density, temperature, heat transfer, and heater life.
-The useful life of a cartridge heating element is determined by how quickly the heat generated in the resistance
wire can be dissipated to the outside sheath. With low and moderate watt density elements, such as Hotwatt's
standard line, the conventional method of inserting helical coils in formed ceramics is an entirely satisfactory
method of construction because the wire temperature relative to sheath temperature even though considerably
higher, is still well within safe long-life operating temperatures.
-The Superwatt cartridge heater accelerates the transfer of heat from the resistance wire to the sheath. This is
accomplished by relocating the wire so that it is closer to the sheath; and swaging the outside diameter of the
heater, thereby compressing the magnesium oxide filler so that it becomes an improved conductor of heat from
the wire while maintaining its dielectric properties. (See diagram below). By improving the heat transfer rate, it
is possible to manufacture elements of higher densities because the differential between the wire temperature
and the sheath temperature has been minimized.
-Long, trouble free service.
-Made in U.S.A.
|
|
|
|
|
|
Applications
Dies, Heat Sealing, Hot Melt Adhesive, Plastic Molding, Platens, Shoe Machinery.
U.L. Recognized - E56973 C.S.A. Certified - 016386-0-000
Features
Elements are designed for maximum: Watt density, temperature, heat transfer, and heater life.
The useful life of a cartridge heating element is determined by how quickly the heat generated in the resistance
wire can be dissipated to the outside sheath. With low and moderate watt density elements, such as Hotwatt's
standard line, the conventional method of inserting helical coils in formed ceramics is an entirely satisfactory
method of construction because the wire temperature relative to sheath temperature even though considerably
higher, is still well within safe long-life operating temperatures.
The Superwatt cartridge heater accelerates the transfer of heat from the resistance wire to the sheath. This is
accomplished by relocating the wire so that it is closer to the sheath; and swaging the outside diameter of the
heater, thereby compressing the magnesium oxide filler so that it becomes an improved conductor of heat from
the wire while maintaining its dielectric properties. (See diagram below). By improving the heat transfer rate, it
is possible to manufacture elements of higher densities because the differential between the wire temperature
and the sheath temperature has been minimized.
Long, trouble free service.
Made in U.S.A.
|
|
|
|
|
|
U.L. Recognized - E56973 C.S.A. Certified - 016386-0-000
The Hotwatt Square and Rectangular Cartridge Heater is designed to distribute maximum heat within a desired area. Because they are completely enclosed, square units will furnish more usable heat for a given wattage than a comparable strip heater attached to the exterior of a mod, platen, or other equipment.
The units are inserted in a milled slot, permitting greater lengths than would be feasible with a drilled or reamed hole. Close dimensional tolerances are held to permit intimate fit for best heat transfer to surrounding medium.
Heating elements arranged just beneath outside surface for maximum heat transfer, minimum wire temperature, and faster heating.
Maximum surface temperatures up to 1200°F. Designations are etched on the sheath to preserve accurate shape.
Long, trouble free service.
Made in U.S.A.
Construction:
-Sealed end.
-Mica.
-Series 300 stainless steel sheath for non-oxidizing, stable service in cavities machined for them.
-Element wire situated in close proximity to outside surface for maximum heat transfer, minimum wire temperature, and faster heating.
-Magnesium oxide packing.
-Ceramic element support.
-Teflon insulated leads: 1/4" square.
Fiberglass insulated leads: 3/8" to 1/2" square, 1/4" x 5/8" and 1/4" x 1" rectangular.
|
|
The Revolutionary Watt-Flex®
Split-Sheath Cartridge Heater
* Maximizes Heat Transfer
* Reduces Maintenance Costs
* Reduces the Cost of Process Heating
Watt-Flex Cartridge Heaters run more efficiently, use less power and last up to 5 times longer than conventional cartridge heaters.
|
|
|
|
|
|
Higher Watt Density and Temperatures
Watt Flex heaters produce up to 50% higher warrantable watt-densities than conventional heaters and can operate at much higher temperatures - up to
1900 degF (1030 degC).
The Watt-Flex Cartridge Heater is a high-quality tubular heating element bent back on itself and swaged into a cylindrical format. Dalton manufactures heaters using only high-purity magnesium oxide, nickel chromium resistance wire and stainless steel terminals.
Special filling methods and equipment compact the magnesium oxide inside and around the resistor coil to extreme density. Swaging further compacts the magnesium oxide to virtually maximum density, which yields high dielectric strength and efficient internal heat conduction. Unlike conventional heaters, Watt-Flex cartridge heaters have no ceramic core that can crack during swaging.
The continuous coil and tightly compacted MgO assure highest watt-density and higher operating temperatures.
Watt-Flex Cartridge Heaters run more efficiently, use less power, last longer and are much simpler and faster to replace than conventional cartridge heaters.
|
|
