flow regulator valve / cartridge / proportional / pressure-compensated
flow regulator valve
C series, FE series

Pressure: 0 bar - 350 bar
Flow rate: 0 l/min - 120 l/min

Observe the recommendations given in the data sheet of the valve.The oil viscosity must be in the range of 10 mm²/s to 500 mm²/s. Recommended oil viscosity 46 mm2 /s (32 mm2 /s for Cartridge valves)

control valve / cartridge / in-line / ISO
control valve
KEL,KEC,KRA series

Pressure: 0 bar - 400 bar
Flow rate: 0 l/min - 350 l/min

Brevini Fluid Power catalogue Cartridge Valves / In-Line Valves Cartridge valves are basically composed of a cover and an operating unit insert in the ...

angle seat valve / pneumatic / shut-off / for hot water
angle seat valve
VZXA

Temperature: -30 °C - 200 °C
Pressure: 0 bar - 30 bar
DN: 13 mm - 50 mm

... G-thread to DIN ISO 228-1 or NPT-thread to ANSI/ASME B 1.20.1 or Rc-thread to DIN 10226-2 - Medium pressure 0 ... 30 bar - Valve function 2/2, NC (Normally Closed), NO (Normally Open), DA (Double Acting - Suitable for ...

pinch valve / pneumatically-operated / mixing / shut-off
pinch valve
VZQA

Temperature: 0 °C - 150 °C
Pressure: 0 bar - 6 bar
DN: 6 mm - 25 mm

... applications: the pneumatic pinch valve VZQA with silicone diaphragm comes in a normally open (NO) variant with a declaration of conformity in accordance with Regulation (EC) No 1935/2004 as well as FDA 21 CFR 177.2600. ...

cartridge valve / poppet / pneumatically-operated / for oxygen
cartridge valve
8 series

Temperature: 0 °C - 50 °C
Pressure: 3 bar - 6 bar
DN: 5 mm - 9 mm

... 8 pneumatic operated valves are particularly suitable for applications requiring high flow combined wtih compact design. The valve is pneumatic operated by electro-pilots which are dimensioned according ...

flow control valve / cartridge / unidirectional / in-line
flow control valve

Pressure: 250 bar
Flow rate: 20 l/min - 90 l/min

Cartridge valves are used in a wide range of applications such as agriculture, municipal, material hendling and costruction. The cartridges can be integrated in a customized block studied ...

pressure-control valve / cartridge
pressure-control valve

Cartridge valves are used in a wide range of applications such as agriculture, municipal, material hendling and costruction. The cartridges can be integrated in a customized block studied ...

metering valve / needle / pneumatically-operated / for oil
metering valve

Pressure: 6 bar - 150 bar

The Cartridge Chamber Metering Valve is based on a special principle. The metering chamber is an exchangeable cartridge contained within an aluminium valve body. There ...

cartridge valve / with integrated positioner / 2-way
cartridge valve
RSE series

Pressure: 350 bar
DN: 16 mm - 100 mm

... , 2 way cartridge valves, and are excellent for a vast variety of safety purposes. Outfitted with extra monitoring mechanisms, these cartridges valves also have a positioning ...

butterfly valve / servo-driven / flow control / cartridge
butterfly valve
DSHR series

Pressure: 420, 350 bar
DN: 40 mm - 160 mm
Flow rate: 1,450 l/min - 41,000 l/min

Servo Cartridge valves, also known as 2-way valves are throttle valves wherein the stage cone is built with a metallic seat that are used for directional flow control ...

proportional valve / butterfly / cartridge / low-pressure
proportional valve
PCME series

Pressure: 350 bar
DN: 16 mm - 50 mm
Flow rate: 200 l/min - 1,800 l/min

These MOOG proportional cartridge valves are controlled by low pressure and operate on a two-way system. They are also piloted throttle valves and the main stage cone follows the pilot ...

proportional valve / piston / hydraulically-operated / flow control
proportional valve
DPCME series

Pressure: 350 bar
DN: 16, 20 mm

... 2-way Screw-in Proportional Cartridge Valves can self-regulate the flow from port "A" to "B" with thier hydraulic design, that controls the flow rate with a current-controlled PWM signal. These screw-in ...

dispensing valve / pneumatically-operated / cartridge / high-performance
dispensing valve
Auto-Flo™

Pressure: 5,000 psi

The Nordson Auto-Flo Valves offer an accurate deposition and control for applications which need uniform bead and spray patterns as well as sharp material cut-off because of the automatic on/off valve. ...

ball valve / pneumatically-operated / control / cartridge
ball valve
060 Series

Pressure: 4.2 bar - 345 bar

... *: 4 lbs. (1.8 kg) *Standard stainless steel body Viscosity Range: Liquid to Paste Valve Height: 4.63" (11.8 cm) Valve Width: 2.25" (5.7 cm) Valve Depth: 2.25" (5.7 cm)

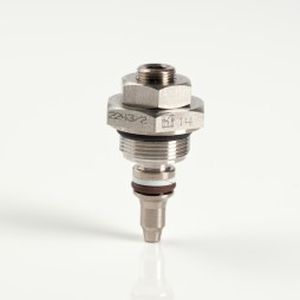

screw-in valve / poppet / pneumatic / hydraulic
screw-in valve
TVR400 series

Temperature: -20 °C - 200 °C
Pressure: 0.5 bar - 250 bar

WEH® Screw-in Valve TVR400, stainless steel - Series The screw-in valves of the WEH® TVR400 series are mechanical shut-off valves which allow the media to flow in the direction of screw ...

plug valve / manual / shut-off / for oil
plug valve
DVE

Pressure: 350 bar

... into hydraulic manifolds, the Cartridge Assembly DVE is a valve that throttles and stops the flow of liquid in both directions. It has a graduated turning knob and coded sprinkle for precise control flow. ...

hydraulically-operated valve / flow control / for oil / cartridge
hydraulically-operated valve
VST, VRF series

Temperature: -20 °C - 100 °C
Pressure: 0 bar - 350 bar
DN: 0.25 in - 1.25 in

Two-way and three-way flow regulators. Available with or without compensated function and with or without check valve. Flow rate from 5 to 150 l/min. Max working pressure 350 bar. VDF – Spool-type flow dividers and unifiers. Flow ...

gas valve / cartridge / aluminum / compact
gas valve
EV12

Temperature: -20 °C - 60 °C
Pressure: 0 bar - 12 bar
DN: 0.125 in

The cartridge Top-valve was especially developed for gas extraction from cartridges / bottles. The cartridge top valve can be combined with the cartridge ...

globe valve / manual / regulating / threaded
globe valve
9900P

Temperature: -10 °C - 130 °C
Pressure: 20 bar
DN: 0.5 in - 1 in

DZR brass automatic balancing valve Diameters from DN015 - ½" to DN025 - 1" With threaded union F/F ends (ISO 7/1 Rp) Wide range of flows available (see technical sheet) Valve bodies interchangeable with ...

globe valve / manual / regulating / threaded
globe valve
9900V/9905V

Temperature: -10 °C - 130 °C
Pressure: 20 bar
DN: 0.5 in - 2.5 in

DZR brass automatic balancing valve Diameters from DN015 - ½" to DN065 - 2½" Threaded union F/F ends (ISO 7/1 Rp) Wide range of flows available (see technical sheet) Available in the following versions: ● Fig. 9900V, ...

globe valve / manual / regulating / threaded
globe valve
9920/9925

Temperature: -10 °C - 130 °C
Pressure: 25 bar
DN: 0.5 in - 1 in

DZR brass ON/OFF automatic balancing valve Diameters from DN015 - ½" to DN025 - 1" With threaded union F/F ends (ISO 7/1 Rp) Wide range of flows available (see technical sheet) Available in the following versions: ● Fig. ...

globe valve / manual / regulating / cartridge
globe valve

Temperature: -10 °C - 110 °C
DN: 2.5 in - 12 in

... /UE) ● Flow range from 1,6l/s to 8,0l/s for DN65 e DN 80 (single cartridge) ● Higher flows available with the multi cartridge system for DN≥100 ● Minimum working ∆P depending on cartridge ...

poppet valve / pneumatically-operated / cartridge / aluminum
poppet valve
Poppet Valves

Humphrey poppet type, insert valves achieve fully ported, high flow performance relative to overall size. Cartridge construction permits compact mounting into handles and manifolds, eliminating tubing ...

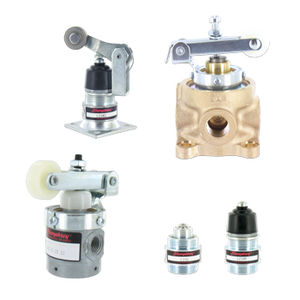

diaphragm valve / cartridge / 2-way / 3-way
diaphragm valve
Classic Diaphragm-Poppet Series

Humphrey offers you a variety of mechanical valves within the unique construction of the classic Diaphragm-Poppet Series, including cartridge style, insert valves. Choose diaphragm-poppet ...

plunger valve / manual / cartridge / aluminum
plunger valve
Poppet Valves

Humphrey poppet-style, cartridge valves achieve fully ported, high flow performance relative to overall size. Technically, a mechanically operated plunger valve, these cartridge ...

slide valve / hydraulic / cartridge
slide valve
DBV

Pressure: 420 bar
DN: 17.46 mm
Flow rate: 10 l/min

Pmax Input: 420 bar Qmax: 10 l/min Connections hydraulic: Cavity: /4“ - 16 UNF

slide valve / flow regulator / screw-in / cartridge
slide valve
VSK

Temperature: -30 °C - 120 °C
Pressure: 0 bar - 320 bar
Flow rate: 0 l/min - 10 l/min

... throttling orifices. Choose from two models; the screw-in cartridge valve or the cartridge. These have 06 size 06, pressure max of 320 bar and Qmax up to 10 L/min. The pressure compensated ...

slide valve / hydraulically-operated / adjustment / flow regulator
slide valve
SF22A-A2/H

Temperature: -30 °C - 120 °C
Pressure: 0 bar - 350 bar

The SF22A-A2/H 2 way cartridge flow control valve of Argo Hytos is a pressure compensated flow control valve that is installed on to hydraulic systems where minimal speed or revolution ...

hydraulically-operated valve / screw-in / cartridge / proportional
hydraulically-operated valve
E-VLSC-MC001-E1_B

Pressure: 35 bar - 350 bar
Flow rate: 0 l/min - 132 l/min

... -in Cartridge Proportional Valves (SiCV) from Eaton is designed to enhance the smoothness and accuracy of various pressure and flow applications. The valves turn out to be the perfect ...

hydraulically-operated valve / for oil / seat / cartridge
hydraulically-operated valve
KSDE.8

Temperature: -40 °C - 110 °C
Pressure: 500 bar
DN: 8 mm

... hydraulic valve from Bosch-Rexroth is built from component series B and is a size 8 product. This operates at pressure levels of up to 500 bar and has a maximum flow rate of 5 litres of flow per minute. It operates with ...

See the other products
Bosch Rexroth - Industrial Hydraulics
manual valve / seat / cartridge
manual valve
KSDER0

Temperature: -40 °C - 100 °C
Pressure: 350 bar
Flow rate: 20 l/min

■ Component series A ■ Size 0 ■ Maximum operating pressure 350 bar ■ Maximum flow 20 l/min ■ Cartridge valve ■ High Performance

See the other products
Bosch Rexroth - Industrial Hydraulics
pneumatically-operated valve / control / cartridge / for ink
pneumatically-operated valve
CV629

Pressure: 70 psi - 300 psi

... fluids, the CV629 is an exceptional device. This pneumatically operated valve is capable of dispensing glues, UV adhesives, solvents, inks, oils, silicon and so forth. The CV629 valve can be utilized ...

bidirectional valve / pilot / cartridge / for motors
bidirectional valve
DCB10-MC, DCB12-MC

Pressure: 315, 210 bar
Flow rate: 57, 85 l/min

... cylinder applications where directional valves (specifically proportional valves) are sensitive to flow intensification of powering the rod side. The DCB10-MC diverts flow directly to tank and bypasses ...

balancing valve / cartridge / for cylinders / actuator
balancing valve
CP448-1

Pressure: 350 bar
Flow rate: 20 l/min

This 3-ported, externally piloted counterbalance valve is 8-size, cartridge style, low leakage with hydraulic vent. The check section allows free flow from the directional valve (port ...

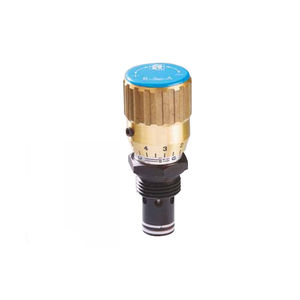

cartridge valve / manual / flow control / threaded
cartridge valve
FT 297/2

Temperature: -20 °C - 70 °C
Pressure: 320 bar
DN: 0.25 in

Microfine compensated flow control valves available from 1/4" - METRIC THREAD Max. working Pressure 320 Bar, adjustable oil flow rate from 0,5 to 2,5 Lt./min.

See the other products
F.lli TOGNELLA

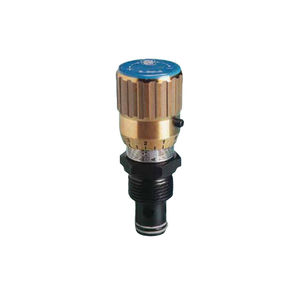

cartridge valve / needle / manual / flow control
cartridge valve
FT 264/2

Temperature: -20 °C - 100 °C
Pressure: 320 bar
DN: 0.125 in - 0.75 in

Double-acting flow control valves available from 1/8" to 3/4" - BSP THREADS. Max. working pressure 320 Bar, adjustable oil flow rate from 0,2 to 90 Lt./min. (depending on the size)

See the other products
F.lli TOGNELLA
