Andor's expertise in scientific performance optimization has been harnessed once again. Clara has been designed to deliver the highest sensitivity performance achievable from a high-resolution interline CCD camera.
Based around the popular ICX285 sensor from Sony®, the Clara is ideally suited to high-resolution cell microscopy and OEM applications. Andor's proven UltraVac™ process, alongside close attention to thermal management, has resulted in deep air cooling to -45°C for elimination of darkcurrent, complementing a unique read noise of 3e- @ 1 MHz.
More dynamic events can be followed with outstanding quantitative stability via low noise 10 or 20 MHz readout modes, the data channeled through a troublefree USB 2.0 interface. Andor's iCam technology enables market-leading acquisition efficiency through live cell microscopy softwares. The compact, robust design and accessible SDK, renders Clara ideally suited to OEM integration.
|
|
Lumenera’s new INFINITY2-2 digital CCD color or monochrome camera offers excellent sensitivity and high resolution. This is an ideal camera for brightfield, darkfield, and DIC imaging applications where higher resolution archiving and a wide dynamic range are routinely required. With 1616X1216 resolution and on-board processing, the INFINITY2-2 delivers outstanding image quality for a wide variety of scientific applications. Live video preview provides for real-time focus while auto exposure and auto white balance efficiently captures your optimal image. The INFINITY2-2 is fully supported by Lumenera’s INFINITY CAPTURE and INFINITY ANALYZE software. An intuitive user application provides camera controls while full integration to popular third-party imaging applications is available through our TWAIN drivers.
The USB 2.0 digital interface ensures a simple plug-and-play installation – and one standard cable minimizes camera clutter. No framegrabber required. The INFINITY2-2 camera is supported by an experienced team of technical support and imaging experts. We understand your imaging needs and are here to help you get the most out of your camera.
|
|

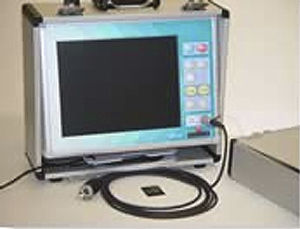

High resolution, video endoscopy camera for all kinds of endoscopes, borescopes, fiberscopes.
It has universal eyepiece connection and is equipped with focusable optical coupler for connecting it to eyepiece of your endoscope/borescopes.
|
|
Imaging Module - digital camera for integration
An Imaging Module for digital image acquisition by JENOPTIK is reliable and provide an excellent price-performance ratio. It combines many years of experience in the development, design and production of high-quality image acquisition systems for various branches of industry or science.
If you look for a camera for integration into your system solution, we offer a broad range of products. The OEM camera module can be based on CCD or CMOS Technoloy, can be monochrome or color, can provide cooling or not.
|
|
This iShot Imaging rugged, outdoor iBlock camera system integrates the Sony FCB-IX11A NTSC block camera into a water proof, submersible machined aluminum housing with 17 white light LED illumination, durable for a variety of punishing environments.
The illumination ring enhances the performance of the camera and increases the range of applications the camera can be used in by allowing the user to light up the target. Illumination is controlled through the required pendant (sold separately) which provides different stepped levels of light output.
A Turck water proof connector on the rear panel of the housing allows for the single, water proof cable to carry all of the required video signals and power to and from the camera and the pendant, recorder or display of choice.
The standard 1/4-20 mount bracket is located in the center on top of the housing allowing the camera to be positioned on a tripod or other positioning mechanisms.
|
|
This high-resolution USB 2.0 camera provides 15 fps at 1280x1024 pixels. Based on a quality 1/2" CMOS sensor with rolling and half global shutter - ideal for off-line inspection of stationary objects.
Unique 1.3 megapixel sensor provides sub-sampling and region of interest sub-window, with no blooming effects. I/O control for synchronization with strobe and peripheral devices.
Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application.
|
|
eyeMAX chip-on-the-tip technology sets new standards in laparoscopy with the latest generation CCD endoscopes. The image sensor, directly fitted within the distal tip of the endoscope, ensures clear and needle-sharp images.
The spirit of vision - Chip-on the tip endoscope. The 10 mm and 5mm laparoscopes are available with an angle of view of
0° and 30°.
Advantages
The 30° version has been provided with a mechanica l image correction system.
The direction of view can be turned through 360° b y rotating
this wheel.
The perfect depth of sharpness adapted for laparoscopy ensures relaxed simple handling during the entire duration of the operation.
Focussing is never required.
A high-contrast image is produced as only one group of optical lenses is located in front of the CCD sensor.
The camera cable and the light guide cable can be removed, which facilitates the hygienic reprocessing.
Two individually programmable buttons remotely control the functions
The unit can be autoclaved and is suitable for machine reprocessing.
|
|
The GigE uEye® HE industrial camera extends the broad range of USB industrial cameras by powerful models for sophisticated, complex machine vision and image processing applications. The bandwidth is 2.5 times higher than with USB and cable lengths up to 100 m are possible.
The GigE camera is a completely newly developed product whose rich set of features is based on customers needs and introduces a new performance class. The models are equipped with a C-mount lens connector with adjustable mounting dimensions. A symmetrical housing permits mounting at 90/180 degrees without having to create new holders.
Strong communicative skills are another strong point of the GigE camera. Besides a trigger input and a flash output, which are both optically decoupled, the newcomers have a RS232 interface and two GPIO ports that can be used either as digital inputs or digital outputs.
Inside the industrial camera two processor cores provide superior performance. The Plug and Play Camera Manager, self-developed by IDS, makes installation and integration just as easy as with the USB versions. The software development kit is identical, which means that upgrading to the GigE does not require any changes to the application and takes only a few minutes.
GigE uEye UI-6210HE industrial camera models, VGA (640x480)
- 1/2" CCD sensor, global shutter, progressive scan
- max. 75 fps; 122 fps in AOI-mode with 320x240 pixels
- Exposure: 40 µs - 630 ms (freerun mode)
- Binning horizontal and vertical
- AOI horizontal and vertical
- Multi-I/O-Interface
|
|
Lumenera offers innovative, high quality network cameras for security and industrial applications. With X4 to X32 greater resolution than typical CCTV, Lumenera's megapixel cameras provide outstanding picture quality and performance for demanding surveillance applications. Product line includes VGA through 11 mgapixel, PoE, intelligent camera models, ultra-wide dynamic range, 2-way audio, optional true day/night functionality, easy set-up and installation, color or monochome, analog video output for easy installation, auto white balance, auto exposure, DC auto iris, configurable compression ratio, I/O control of alarms, PTZ, lighting or other peripherals, integration with most digital or network video recorders, and much more.
Adjustable JPEG, MJPEG and H.264 compressed still-images or live streaming video are provided across a standard 10/100BaseT network interface.
Lumenera also offers high performance OEM camera models. As an OEM customer, leverage the success of Lumenera's. Customization options include hardware and software modifications, as well as custom enclosures, domes, etc.
|
|
The OSCAR family at a glance.
The AVT OSCAR family consists of three very compact IEEE1394 C-mount cameras, which are equipped with sensitive high-resolution, high quality sensors (CCD). Each of these cameras are available in color with IR cut filter. Operating in 12-bit mode (16-bit in High SNR mode), these cameras convince with their outstanding image quality under almost all conditions.
The OSCAR is equipped with an asynchronous trigger as well as true partial scan and integrates numerous smart features which are useful for image processing and microscopy. Three different resolutions of 3, 5 and 8 megapixels leave no wish unfulfilled and offer the right camera for all highly-detailed applications.
|
|
Lumenera's Lw235 High-Speed USB 2.0 Camera
This high-speed USB 2.0 camera provides 12 fps at 1616x1216 pixels. Based on a high-quality 1/1.8" CCD sensor with global shutter. Unique 2.0 megapixel image sensor provides higher dynamic range of 60dB during video capture. I/O control for synchronization with strobe and peripheral devices. Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application.
CAMERA SENSOR
Image Sensor 1/1.8" format, color or mono, 7.1mm x 5.4mm array
Effective Pixels 1616 x 1216, 4.40ìm square pixels
Frame Rate 12 fps at 1616x1216
Sensitivity High
Dynamic Range 60dB
White Balance Auto / Manual
Dimensions (W x H x D) 2.25 x 3.85 x 1.56 inches
Mass ~150g / 300g
Power Requirement External 5VDC, 800mA (included)
Power Consumption ~4.0Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Interface Connector Standard USB 2.0
Lens Mount C-Mount (CS-Mount option)
Frame Buffer 1 frame buffer (optional expansion to 6 frames)
|
|
See incredible resolution with this USB 2.0 camera, providing 3.5 fps at 4008x2672 pixels. Based on a high-quality 43.3mm CCD sensor with global shutter. Unique 10.7 megapixel sensor provides incredible sensitivity with large 9µm pixels and with 12 bit, >65dB dynamic range . I/O control for synchronization with strobe and peripheral devices. Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application. 3 different lens mount options available: Canon-Mount, F-Mount, K-Mount
CAMERA SENSOR
Image Sensor 43.3 mm (diagonal) format, color or mono, 36.1mm x 24.0mm array
Effective Pixels 4008 x 2672, 9.0ìm square pixels
Frame Rate 3.5 fps at 4008x2672
Sensitivity Excellent
Dynamic Range >65dB
White Balance Auto / Manual
Dimensions (W x H x D) Lw11059 – 3.25 x 2.98 x 5.59 inches
Lw11058 – 3.25 x 2.98 x 5.61 inches
Lw11057 – 3.25 x 2.98 x 5.56 inches
Mass 850g
Power Requirement External 12VDC, 2A (included)
Power Consumption ~18.7 Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Interface Connector Standard USB 2.0
Lens Mount Canon-Mount, F-Mount, K-Mount
Frame Buffer 1 frame buffer (optional expansion to 6 frames)
|
|
STINGRAY – The Transfomer Camera
The STINGRAY falls into the mid-range in terms of price, but offers a breadth of functions unrivaled in its class and an unbeatable price/performance ratio. The six different versions are equipped with a fast FireWire IEEE1394b interface and high-end CCD sensors in color with IR cut filter and monochrome with clear glas filter, with resolutions from VGA up to 2 megapixels. To meet the highest requirements in the industry, the STINGRAY comes optionally in a version with a copper daisy chain connection or 1 x copper combined with 1 x GOF connector (2 x optical fiber on LCLC).
The camera is loaded with typical AVT intelligent functions for image pre-processing, like look-up tables, shading corrections, white blance and 2 to 8x binning for enhanced photosensitivity. Grabber functions, including an internal memory and deferred transport mode, make the STINGRAY ideal for multi-camera operations, while the sequence mode enables lightning-fast parameter changes. The STINGRAY is designed to be modular and flexible, offering a wide selection of lens-mounts, sensors, case variations, interfaces and cable outputs, which can be flexibly configured using buildingblock principles.
|
|
Lumenera's Lw230 High-Speed USB 2.0 Camera
This high-speed USB 2.0 camera provides 12 fps at 1616x1216 pixels. Based on a high-quality 1/1.8" CCD sensor with global shutter. Unique 2.0 megapixel image sensor provides higher dynamic range of 60dB during video capture. I/O control for synchronization with strobe and peripheral devices. Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application.
CAMERA SENSOR
Image Sensor 1/1.8" format, color or mono, 7.1mm x 5.4mm array
Effective Pixels 1616 x 1216, 4.40μm square pixels
Frame Rate 12 fps at 1616x1216
Sensitivity High
Dynamic Range 60dB
White Balance Auto / Manual
Dimensions (W x H x D) 2.00 x 2.50 x 1.63 inches
Mass ~150g / 300g
Power Requirement External 5VDC, 800mA (included)
Power Consumption ~4.0Watts
Operating Temperature 0° C to +50° C
Operating Humidity 5%-95%, Non-condensing
Interface Connector Standard USB 2.0
Lens Mount C-Mount (CS-Mount option)
Frame Buffer 1 frame buffer (optional expansion to 6 frames)
|
|
The World's Smallest CCD Video Cameras.
Medigus offers micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest CCD camera. The cameras provide excellent image quality.
The cameras can be used for various inspection applications and are ready for OEM integration into various inspection devices.
|
|
AV40002.0 Camera technology offers:
- Higher read rates than lasers and competing solutions
- 1D and 2D barcode reading
- Image capture, archiving and offload capabilities with IDS
-Side-by-Side Detect
- Detect mutliple cartons in one read cycle
- Eliminate mis-sorts and mis-shipments
- Identify Side-by-side, end-to-end and stacked packages
Typical Applications Include:
- Distribution
- Postal
- Parcel
Outstanding Features:
- Unmatched read rates
- Unmatched reliability
- Simplified installation
|
|
CoolView T1000:
The CoolView T1000 is a high performance Electron Multiplied camera with extended cooling giving near single photon sensitivity. The resulting ultra high dynamic sensitivity makes the T1000 ideal for imaging extremely weak photonic emission in the UV, visible and NIR range. This high resolution, photon counting camera gives crisp fast images at low light levels plus high-resolution images, processed to 12 or 16 bits with the flexibility of windowing and binning coupled with software and hardware triggering.
CoolView FDI:
The FDI is a high resolution, high speed, digital imaging camera using a 1392 x 1040 interline CCD. The camera features a 20MHz read out rate and can integrate images on the CCD, for up to 10 minutes, with 12 bit digitization.
The FDI provides a flexible, high quality digital imaging solution, where high-speed digital imaging and operational flexibility is required.
FDI functions include binning, (windowing) sub-area readout and 'fusion driver' for up to 16-bit images.
|
|
OEM Solutions
When it comes to integrating vision or optical measurement capabilities into one's original equipment, picking separate components on the sole consideration of their state-of-the-art specifications doesn't make it right every time. When it makes it. What is of utmost importance, rather, is the supplier's skills in sorting out the very requirements that govern the final system performance and customizing the right solution for the right cost.
We specializes in supplying industry OEMs with specific solutions that exactly meet their exact vision or optical application requirements.
Here is another example of customization and application-specific solution:
a set of three linescan cameras embedded in a circular section PCB with their PCI grabber board used in a non-contact 3D measuring machine for the automotive industry.
|
|
The World's Smallest CCD Video Cameras for endoscopy.
Medigus manufactures micro CCD video camera systems with a 3.0mm x 3.0mm and a 1.8mm x 1.8mm camera head, the latter being the world's smallest CCD camera. The cameras provide excellent image quality.
The cameras are a ready for integration into various visulaization and inspection devices, such as endoscopes for medical and industrial applications.
In addition, Medigus offers endoscope design and manufacturing services, using its cameras as well as other proprietary technologies.
|
|
SILICON VIDEO 1310C is a 10-bit Bayer Pattern color camera system with the advantages of high resolution progressive scan image capture, low noise digital signaling, convenient software control, the availability of extensive processing, measurement, and analysis capabilities, and low cost. XCAP software provides control of all camera operations.
SENSOR BY KODAK - SILICON VIDEO 1310C camera is based on the KAC-1310 CMOS sensor from Eastman Kodak Company. This progressive scan sensor offers continuous and single frame rolling shutter modes, windowing, sub-sampling, anti-blooming, 10 bit dynamic range, and an active programmable array resolution of 1280 x 1024 pixels. Visit the Kodak web site for detailed sensor specifications.
SILICON VIDEO ® 1310C Camera Head
Infrared Cut Filter
Data, Communication & Power Cable
PIXCI ® D2X1 Digital Frame Grabber
XCAP-Lite Imaging Program
1280 x 1024 10-bit capture @ 14.5 fps
Sequence Capture (XCAP-Ltd or Std)
Triggered Sequence Capture
132 MB/s Burst Transfers
Camera Integration and Reset Control
PCI Bus: 32 or 64 bit, 3.3 or 5 volt
Win XP/2K/NT/ME/98/95 & LINUX
|
|

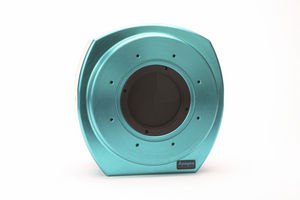

OEM Imaging Solutions
Apogee is a proven supplier of OEM imaging solutions. We can provide a modified version of any of our standard models or a completely new design to your requirements. Contact Apogee for more information on how we can be your preferred supplier of embedded imaging systems.
OEM Evaluation Program
We can help you choose the right sensor for the job. If we do not already support the sensor that you need, we can discuss adding it to our product line. Once a sensor has been chosen, we provide OEM customers with a system for evaluation. The best way to feel confident that our systems are right for you: try one out.
Cost
We supply the best price/performance in the industry. Researchers rely on Apogee to provide excellent value for their investment. OEMs rely on Apogee Instruments to make their products more cost effective and competitive. Please contact our sales team for a quotation for any quantity, large or small. We make it easy for you to get started with us.
Ease of Integration
All of our systems run on a single universal software driver. If you integrate control of one Apogee system into your custom software environment, you automatically have support for all of our systems. Based on the feedback we get from our customers, integration is simple and straightforward.
Broad Selection
We offer a wide selection of CCDs, from interlines to full frame front-illuminated to back-illuminated, from 512 x 512 up to 4096 x 4096. You can choose from a variety of sizes and shapes, from lowest cost to highest performance, knowing that you can build an entire product line around a single software integration
|
|
The World's Smallest CCD Cameras for Endoscopy.
1.8mm and 3mm Miniature CCD Video Cameras.
Medigus offers miniature color CCD video cameras for endoscopy in 3mm x 3mm and 1.8mm x 1.8mm formats. Both cameras provide excellent image quality. The 1.8mm camera is the smallest CCD video camera in the world.
The cameras are ready-for-integration into endoscopes and are suitable as visualization devices for companies that wish to develop their own flexible and rigid video endoscopes. The uniquely designed patent-protected camera head allows for decreased endoscope diameters for visualizing hard-to-access locations that are otherwise not visible.
The cameras are the proprietary technology of Medigus. All cameras and optics are assembled at Medigus facilities, which were designed specifically for this purpose. State-of-the-art optical testing equipment is utilized throughout the manufacturing process of the cameras.
The cameras are used in existing endoscopes manufactured by many large and small scale companies, including amongts others major medical device companies. In addition, Medigus offers endoscope design and manufacturing services, using its cameras as well as other proprietary technologies.
|
|
|
The Pantera TF 11M4 is an advanced, full frame camera that offers a unique combination of megapixel resolution, fast frame rate, large bit-depth, and a Camera Link™ interface. The camera's data rate of up to 2 x 36 MHz provides incredible throughput while its 4008 x 2672 pixel resolution enables you to reduce the number of cameras required for large-area surface scanning. With up to 14 bits of output, this camera is capable of discerning the tiniest differences between gray scales. The DALSA-made sensor used in the Pantera TF 11M4 has extremely low noise eliminating the need for voluminous and costly cooling mechanisms.
|
|
The CoolView VHR is a high resolution CCD camera which has 4000x2672 pixels and interline transfer architecture which allows the CCD to operate without a shutter and at 100% duty cycle. The CCD has a high quantum efficiency of typically 45% @ 550nm.
The camera is deep cooled with DT of 35°C, and uses a Peltier with secondary air cooling. A water cooled version for deeper cooling is also available. The camera has a fast 10MHz readout rate with digitisation to 12 bits and also features a high dynamic range 16-bit mode. The camera features on chip binning and sub area readout.
|
|
EMMY Award winning High Speed Camera with Mega Pixel performance to Two Thousand Frames Per Second.
The Photron APX sets new standards for high-speed imaging by offering a completely new and highly light-sensitive mega-pixel CMOS sensor. With over one million enormous 17µm pixels, the APX enjoys a receptivity to light that until now only older, lower resolution CCD sensor technologies could achieve. This feature makes it ideal for lower-light applications or those that required expensive, hot lighting setups.The APX's sensitivity to light enables fast shutter speeds that prevent motion blur.
In fact, this unmatched performance was a large part of the reason the ultima APX was recently awared the George Wensel Outstanding Innovative Technical Achievement Award Sporting Emmy at a special ceremony in New York as the high speed camera behind the success of 'Golf on CBS' SwingVision through our East Coast distributor; Tech Imaging Service
In addition to the ability to function under lower lighting conditions at very high speeds, the APX retains all the benefits long associated with Photron's existing CMOS cameras, including exceptional anti-blooming, an easy-to-operate approach and mega-pixel resolution.The APX provides full resolution up to 2,000 frames per second (fps), and reduced resolution all the way up to a phenomenal 100,000 fps.
The APX comes standard with a 16-foot (5m) and is supplied with both full control and image download software, for those who prefer to operate multiple cameras via PC, and an intuitive handheld control unit for easy operation where a computer is not required.
Features:
Full, 1,024 by 1,024 pixel resolution, up to 2,000 frames per second (fps)
10-bit monochrome, 30-bit color CMOS sensor with large pixels for increased sensitivity
Recording at frame rates up to 100,000 fps
Global electronic shutter to 4µs
Memory segment feature - enables 64 different recordings to be made in one session
IRIG or GPS timing is recorded in real time on every frame - not appended later
Lightweight tethered camera head enables easy access to hazardous or hard to reach locations
Camera can be controlled via Photron Gigabit Optical Network, Ethernet, FireWire and Keypad
Image memory can be expanded to 8 Gigabytes to facilitate 3 second record duration at maximum resolution and 2,000 fps or 6 seconds at 1,000 fps
|
|
The World's Smallest CCD Video Cameras for medical endosocpes.
Medigus manufactures micro CCD video camera systems with either a 3.0mm x 3.0mm or a 1.8mm x 1.8mm camera head, the latter being the world's smallest CCD camera.
The cameras are ready for integration into various visulaization and inspection devices, such as medical endoscopes. The cameras are designed for integratation into endoscopes by companies that manufacture endsocopes.
Applications for the cameras include colonoscopy, gastroscopy, nasopharyngoscopy, laryngoscopy, ureteroscopy, cystoscopy, laparoscopy, bronchoscopy, arthroscopy, urology, gynecology, bronchoscopy, ERCP etc.
The cameras are the proprietary technology of Medigus Ltd.
|
|
The World's Smallest CCD Cameras for Endoscopy.
1.8mm and 3mm Miniature CCD Video Cameras.
Medigus offers miniature color CCD video cameras for endoscopy in 3mm x 3mm and 1.8mm x 1.8mm size formats. Both cameras provide excellent image quality. The 1.8mm camera is the smallest CCD video camera in the world.
The cameras are ready-for-integration into endoscopes and are suitable as visualization devices for companies that wish to develop their own flexible and rigid video endoscopes. The uniquely designed patent-protected camera head allows for decreased endoscope diameters for visualizing hard-to-access locations that are otherwise not visible.
The cameras are the proprietary technology of Medigus. All cameras and optics are assembled at Medigus facilities, which were designed specifically for this purpose. State-of-the-art optical testing equipment is utilized throughout the manufacturing process of the cameras.
The cameras are used in existing endoscopes manufactured by many large and small scale companies, including amongts others major medical device companies. In addition, Medigus offers endoscope design and manufacturing services, using its cameras as well as other proprietary technologies.
|
|
The World's Smallest CCD Cameras for Endoscopy.
1.8mm and 3mm Miniature CCD Video Cameras.
Medigus offers miniature color CCD video cameras for endoscopy in 3mm x 3mm and 1.8mm x 1.8mm formats. Both cameras provide excellent image quality. The 1.8mm camera is the smallest CCD video camera in the world.
The cameras are ready-for-integration into endoscopes and are suitable as visualization devices for companies that wish to develop their own flexible and rigid video endoscopes. The uniquely designed patent-protected camera head allows for decreased endoscope diameters for visualizing hard-to-access locations that are otherwise not visible.
The cameras are the proprietary technology of Medigus. All cameras and optics are assembled at Medigus facilities, which were designed specifically for this purpose. State-of-the-art optical testing equipment is utilized throughout the manufacturing process of the cameras.
The cameras are used in existing endoscopes manufactured by many large and small scale companies, including amongts others major medical device companies. In addition, Medigus offers endoscope design and manufacturing services, using its cameras as well as other proprietary technologies.
|
|
HI-CAM CR, Gated Intensified High-Speed CMOS Camera
The HI-CAM CR camera allows image recording (up to 100.000 fps) of fast events at high time resolution. At the same time the camera offers single photon detection capability. Fast moving objects are recorded sharply by shuttering the image intensifier down to 40ns, optionally 5ns. This is achieved by using a dual stage (2-stage) image intensifier that is fiber-optically coupled to the CMOS sensor.
Advantages of having an image intensifier in front of a high speed camera:
• sensitivity increases for high-speed low light level applications (example: the object itself is emitting light at an intensity that is too low for normal high-speed cameras)
• no need for high power light sources.
• possibility of ultra short exposure times
Scientific & Industrial Applications include:
• Combustion research
• Plasma physics
• Time Resolved Fluorescence
• Dynamic phenomena in microscopy
• Laser Induced Fluorescence (LIF)
• Particle Image Velocimetry (PIV)
• Micro Fluidics
• Blood flow analysis
• Etc.
Recordings taken with the HI-CAM CR can be viewed at our website.
Highlights:
• 100.000 fps max. recording rate
• exposure times down to 40ns, optional 5ns
• Available with Gen2 & Gen3 intensifier
• Second intensifier stage for increased output brightness
• C-mount or F-mount input
• 1280x1024 square pixels
• CMOS sensor with global shutter
• Up to 8Gbyte internal memory
• Up to 13 seconds recording time @ 500fps and max. resolution
• Extensive software package for camera/intensifier control, image viewing and image storage
|
|
Lumenera's Lu160 CCD USB 2.0 Camera
Lumenera’s Lu160 series of megapixel cameras are designed to be used in a wide variety of applications,particularly in low-light conditions and where high dynamic range is required. Both color and monochrome, enclosed and board level product models are available.
This ultra high-performance USB 2.0 camera provides 15 fps at 1392x1040 pixels. Based on a high-quality 2/3" CCD sensor with fast global shutter - ideal for capturing objects in motion. 1.4 megapixel ExView HAD CCD provides capture in the lowest of light conditions with, 8 or 12 bit digital output. I/O control for synchronization with strobe and peripheral devices. Advanced camera functions are available through a comprehensive Software Developers Kit, with sample code and full technical support to quickly integrate camera functions into your application.
CAMERA SENSOR
Image Sensor 2/3" format, color or mono, 10.2mm x 8.3mm array
Effective Pixels 1392 x 1040, 6.45µm square pixels
Frame Rate 15 fps at 1392x1040, 30 fps at 640x480 (binned)
Sensitivity High
Dynamic Range 72dB
Exposure Manual
White Balance Auto / Manual
Dimensions (W x H x D) 2.00 x 2.50 x 1.63 inches
Mass ~150g
Power Requirement External 6VDC, 800mA (included)
Power Consumption ~6.0 Watts
Operating Temperature 0° C to +50° C
Operating Humidity 20%-80%, Non-condensing
Interface Connector Standard USB 2.0
Lens Mount C-Mount
Frame Buffer 1 frame buffer (optional expansion to 12 frames)
|
|
|
|
