The horizontal centrifugal pumps MB made in resin are highefficiency pumps operated by an electric motor in direct drive (max. 3000 rpm) for rapid transfer and/or emptying of fluid, with a flow rate of from 5 to 55 m3/hour. The particular open rotor construction allows fluids, even when very dirty, with an apparent viscosity of up to 500 cps (at 20°C) and with small sized suspended solids, to be pumped with a continuous flow. Two versions are available with different internal mechanical seals according to the service.
Other centrifugal pumps:
CENTRIFUGAL MOTOR PUMPS PERIPHERAL OR OPEN IMPELLER
Centrifugal motor pumps made in cast iron, stainless steel and bronze, with peripheral or open impeller.
Motors with powers from 0.37 kW to 7.5 kW.
Flow rates up to 1.200 L/min.
Heads up to 95 m.
NORMALIZED CENTRIFUGAL MOTOR PUMPS
Normalized centrifugal motor pumps made in cast iron and stainless steel.
Couplings: threaded or flanged
Motors with powers from 1.5 kW to 75 kW.
Flow rates up to 5,750 L/min.
Heads up to 95 m.
|
|
|
|
|
|
MAGNETIC DRIVE CENTRIFUGAL PUMPS
operations
A couple of magnets leads the operation of the pump; the outer magnet placed on the drive shaft transmits the motion to the inner magnet integrated with the impeller that is hermetically insulated. The pump impeller is not physically fixed to the drive shaft, seals are therefore eliminated and this consequently avoids leakages of the liquid drawn by the pump which are usually due to its wear and tear. The pump head is manufactured with few components, thus the maintenance of which becomes extremely easy. The materials used as standard are polypropylene (pp) and polyvinylidene fluoride (pvdf).
The pumps can’t run dry. Dirty liquids can reduce the pump life
Working temperatures: PP max 80°c / pvdf - ectfe max 90°c.
applications
DEBEM pumps are succesfully suitable for many different application fields such as: laboratory technique, medical equipments, photo processors, x rays film processors, laser beam systems, metal finishing machines, graphics, heat exchangers, aquariums, water treatment, filter units, chemical industry, galvanic industry.
MODELS AVAILABLE:
MAGNETIC DRIVE TURBINE PUMPS
MAGNETIC DRIVE SELF-PRIMING PUMPS
|
|
|

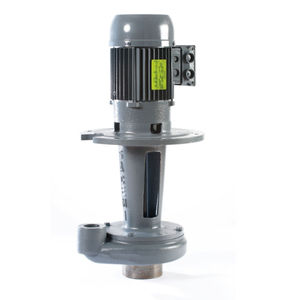

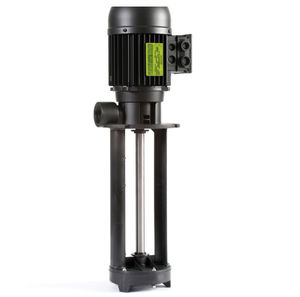

The vertical centrifugal pumps made in resin are high efficiency pumps for fixed installations with the pump immersed directly in a tank, operated by an electric motor in direct drive (max. 3000 rpm) for rapid emptying of fluid, with a flow rate of from 16 to 55 m3/hour. The particular form of construction of this pump, in addition to not using internal mechanical seals (subject to high wear), guarantees that any accidental leakage of the fluid is collected in the tank. The open rotor allows very dirty fluids, with an apparent viscosity of up to 500 cps (at 20°C) and small sized suspended solids, to be pumped with a continuous flow. The choice of the pump's composition materials allows you to determine the best chemical compatibility with the fluid and/or the environment without forgetting the correct temperature field.
|
|
Characteristics
- Single stage horizontal centrifugal pump.
- Horizontally split case.
- Flanged connections.
- Enclosed impellers, double suction provides hydraulic balance reducing axial thrust.
- Clockwise or counter clockwise rotation viewed from coupling side are available.
- Grease lubricated bearings.
Approvals
- Ruhrpumpen's Fire Pumps are listed by Underwriter's Laboratories Inc., and approved by Factory Mutual.
Operation Limits
- Capacity to 568 m3/hr (2,500 U.S. gpm).
- Head to 139 m (455 ft).
- Pressure to 14 kg/cm2 (197 psi).
- Temperature 10°C to 104°C (50°F to 220°F).
|
|
The APV PUMA+ Centrifugal Pump
The prime choice for standard duty operations
The APV PUMA is a single-stage, centrifugal pump designed specifically for standard duty applications in the food, dairy, brewery and beverage industries. Widely recognized for its low installation costs, problem-free operation, stringent hygiene standards and flexibility, the APV PUMA range comprises 3 basic pump configurations offering heads up to 7.8 bar, flow rates up to 135 m3/h, and system pressure up to 16 bar.
* Flexible Installation
* Easy Maintenance
* Reliable Components
* CIP/SIP Compatible
* All product contact parts Stainless Steel 1.4404 (AISI 316L)
* FDA Approved Elastomers
* EHEDG Approved
|
|
|
|
|
|
UREA DISPENSER
The new EURO 4/5 Directive, concerning the reduction of emission in the atmosphere, can be met with the installation of an SCR system in the truck. The system requires a special liquid (a water/urea mixture). Each truck will be fitted with an additional tank containing this liquid.
As a result of a through analysis of the problems to do with transferring this liquid, PIUSI has developed a reliable dispensing group using highly compatible components.
The complete group has been designed to be moved and connected to a new full container.
An accurate meter will visualize the quantity dispensed for a correct refilling of the truck.
The group is completed with an automatic nozzle, and a flexible delivery hose, for easy dispensing operations.
At the suction side we have two accessories available: suction hose with foot valve and filter or CDS quick connector.
Performances:
• Flow-rate 40 l/min
• Max delivery pressure 5 bar
• Self priming height up to 2 meters
• Meter accuracy +/- 1%
|
|
Advantages
• Optimum performance
• Low power requirement
• Quiet operation
• Small space requirements compared to standard pumps
• Materials resistant to abrasion
• Individually adapted to the performance curves
• Individual designs trough mechanical assembly technique
• Easy accessibility for maintenance and service
• High safety and reliability
• Special versions with dry run protection, sealing liquid chamber and for delivery of hot media
|
|
Plastic corrosion-resistant pumps
Pumps for processing chemically-aggressive liquids made from corrosion-resistant thermoplastics: PP, PVC, PVDF, PE-HD. No metal parts in contact with pumped liquid. Chemical process pumps designed around system specifications and chemical resistance.
Horizontal pumps model OMA
These centrifugal close-coupled horizontal pumps allow the transfer, recirculation and distribution of chemicals contained in storage tanks or process vats, the loading-unloading of tank trucks...
They are quipped with mechanical seal.
Their particular constructive features guarantee superior resistance to chemical aggression and an extended operating life.
Installations: flooded suction or with priming chamber (SP series). In this latter case the pump intake capacity is influenced by vapor pressure, foam, and temperature.
|
|
Type SM waste water pump with auto-matic suctioning:
From Schmalenberger’s industrial pump range. The pump is designed for media containing a high level of trapped air, along with media with coarse or excessive contamination and solid matter admix.
Applications:
Chemically-neutral media, such as lye, solvents, coolants, lubricants.
Areas of use:
Draining vats, containers, machine beds
|
|
Anticorrosion horizontal centrifugal pumps conceived for applications in industrial processes, production lines and ecological facilities where resistance to chemical aggression must be coupled with reliability and easy maintenance.
The special construction of these pumps eliminates the possibility of any contact between metal parts and the liquids, while the selection of materials and manufacturing technologies ensure full compatibly with the products handled, a long operating life and conformity with standards in force: in particular, the presence of a mechanical seal designed exclusively by Savino Barbera offers safe solutions for all industrial pumping needs.
Equipped with MECHANICAL SEAL
|
|
Materials: PP, PVC, PDVF, PE-HD
Flow rates up to 150 m³/h, heads up to 60 m w.c.
Steel nuts, bolts and shafts covered with the same material used for the pump
Sliding parts flushed by the pumped liquid
PVC support plates and base plates, in standard or specified sizes
Nozzles connections: hose adapter, flange or thread
|
|
Characteristics
- Radially split, horizontal single stage centrifugal pump.
- Centerline mounted.
- Single / double volute depending on size.
- Single suction, radial, closed impeller.
- Thrust compensation by balance holes.
- End-Top nozzle arrangement. Other arrangements on special request.
- Materials of construction per API 610. Other materials on special request.
Design Features
- Heavy duty process design according to API 610 latest edition.
- API Type OH2.
- Flood oil lubrication. Other methods of lubrication available.
- Replaceable front and back wear rings for casing and impeller.
- Special design for abrasive liquids available.
- Low temperature design on special request.
- Inducers for low NPSH available.
Applications
- Petroleum Refining, Production and Distribution.
- Petrochemical.
- Heavy-duty Chemical.
- Gas Industry Services.
- Power Plants.
- Utilities.
|
|
|
|
|
|
The APV W+ Centrifugal Pump
The most reliable pump in the world
The APV W+ pump is based on a unique hydraulic design which combines maximum efficiency with the highest hygiene standards.
Highest Hygiene Standards
* Meets the strict European hygienic standards (EHEDG)
* 3A Versions available
* Designed for both CIP (Cleaning in place) and SIP (Sterilise in place)
* FDA approved elastomers
* AISI 316L product contact parts
Exceptional Performance
* Extremely energy efficient design
* High efficiency electric motor
* Low power consumption
* Very low noise and vibration levels
Easy Maintenance
* Very easy maintenance with minimum downtime
* Easy visual inspection of shaft seal for leaks
Extensive Range
* 17 models, with capacities of 0.2 to 15 bar and 2 to 800 m3/hr
Flexible Design
* Extensive range of optional variants such as WA+ Aseptic version, multistage, WHP+ high pressure, WI+ Inducer version, WE+ Electropolished and many more..
The W+ pump with its flexible design and many variants is the proven solution for hygienic applications in industries such as Dairy, Brewery, Food, Beverage, Pharmaceutical, Personal Care and Chemical.
|
|
Features
With simpIe structure,easy dismount,adjustabIe foot height,vibration-proof device,Iow noises,high efficiency,Iong-term normal operation,easy maintenance,gentle and tender treatment, of materiaIs this sanitary centrifugaI pump series is your ideaI choice.It complies with food sanitary standard and guarantees original taste of your products.
Application
Mainly used in industries such as pharmacy,aIcohol,foodstuff chemicaI and beverage to deliver Iiquid in smaII flow with high pressure and high pressure filtering.
|
|
|
|
|
|
The APV Ws+ Self Priming Pump
Patented, revolutionary pump.
The APV Ws+ pump is based on a unique technology applied exclusively by APV, showing substantial improvements over traditionally designed self-priming pumps.
The Ws+ pump works according to the water ring principle. However unlike traditional self-priming pumps, the WS+ is equipped with an open impeller ensuring a flexible flow range and enabling you to choose a small pump for your task. The self priming effect is obtained by means of an air screw mounted on the pump inlet.
Highest Hygiene Standards
* Meets the strict European hygienic standards (EHEDG)
* 3A Versions available
* Designed for both CIP (Cleaning in place) and SIP (Sterilise in place)
* FDA approved elastomers
* AISI 316L product contact parts
Exceptional Performance
* The Ws+ is equally suitable as a CIP and product pump
* Extremely energy efficient design
* High efficiency electric motor
* Low power consumption
* Very low noise and vibration levels
* Particle friendly design due to open impeller
Easy Maintenance
* Very easy maintenance with minimum downtime
* Easy visual inspection of shaft seal for leaks
The Ws+ pump has been installed in numerous applications all over the world and proven successful in many industries and applications:
Dairies * Breweries * Butter plants * Cheese factories * Wineries * Distilleries * Food factories * Egg plants * Enzymes production * Colourings * Bio-pharma
|
|
These magnetic driven horizontal pumps can be used with aggressive liquids without risk of leakage.
Pump solutions are available in a wide assortment for all of the needs of the pump user.
General specifications:
Materials: PP, PVDF, Stainless Steel
Design: Single stage, self-priming
Threads: in accordance with ISO 68 standard
Flanges: in accordance with DIN 2501 standard
|
|
Simple and versatile, the BM horizontal magnetic drive centrifugal pumps can be used with chemically aggressive liquids eliminating any risk of external leakage.
Thanks to the their magnetic coupling (transmission occurs by means of opposing magnets) and to the absence of rotating seals, this type of pump guarantees safe operation and the least possible maintenance. The pair of magnets in fact makes up the pump-motor connection: the shaft-motor magnet transmits rotary motion to the other magnet coupled to the impeller.
The liquids pumped must necessarily be clean, without the presence of suspended solids.
A wide variety of series versions are available with solutions for all industrial pumping needs.
|
|
HORIZONTAL MULTISAGE CENTRIFUGAL ELECTRIC PUMPS OP
Supply of clean water and non-aggressive chemicals liquids. OP pumps are suitable for domestic use, for water automatic distribution by using small-middle pressuretanks for gardening, irrigation, water supply from wells. Furthermore, thanks to the high head, OP pumps can be used as pump pilot for pressurization units.
DATAS
Models subdivided in two series, with power from 0,37 kw up to 13,5 kw.
Q max: 40 m3/h (50 HZ)/ 48 m3/h (60 HZ)
H max: 126 m (50 HZ)/ 120 m (60 HZ)
Temperature of pumped liquid: min 0°C max 90°C
Ambient temperature: max 40°C
|
|
|
The centrifugal multistage horizontal pumps of series TM are used in irrigation systems, systems of high pressure lifting, refrigeration, heating, snowing, cleaning, in boiler systems, in condensed extraction and in fire-fighting systems.
|
|
Horizontal Split Case Multistage Pump
Characteristics
- Two and four stage horizontal centrifugal pumps, double volute.
- Horizontally split casing, lateral suction and discharge.
- Enclosed impeller.
- Counter clockwise rotation viewed from coupling end.
Design Features
- Oil lubrication.
- Flanged connections.
- Stuffing box allows for packing or mechanical seal.
Applications
- High Pressure Applications (Boiler Feed, Petrochemical, Chemical, Industrial).
- Power Plants.
|
|
Multi-stage vertical electric pumps of minimum overall dimensions, suitable for lifting plants with or without tank, irrigation systems and everywhere you need to reach higher pressure.
PERFORMANCES DATAS
93 models divided in 5 series with powers from 0,75 up to 30 kw.
Performances at 2900 rpm:
Q max: 40m3/h
H max: 315m
Temperature of the pumped liquid: min 0°C max +90°C.
TOLERANCES
Pump UNI EN ISO 9906 Appendix a
Motor: IEC 60034-1
|
|
APPLICATIONS
Compact multistage vertical electric pumps, suitable for lifting installations with or without autoclaves, fire-fighting installations, irrigation systems and wherever elevated pressures are required.CHARACTERISTICS
G20 cast iron spider.
G20 cast iron base.
X5CrNi1810 stainless steel pump pipe.
Thermoplastic polycarbonate diffusers.
Thermoplastic polycarbonate impellers.
AISI 431 stainless steel shaft.
Mechanical seal: sliding faces in hard metal, seals in ethylene propylene rubber.
EPDM rubber bushings.
Stainless steel sleeves with ceramic lining.SPECIFICATIONS
Maximum temperature of liquid 50°C.
Max. operating pressure 16 bar.
In-line connectors available on request, can be coupled to counter flanges.
Fitted with standardised vertical motor sized according to UNEL 13118; V8 arrangement; protected to IP55, class F insulation.
|
|
|
Vertical multistage centrifugal pumps for delivery of clean or slightly polluted liquids. Cantilever construction. Designed for tank installation. Immersion depth up to 800mm. Main fields of application: environmental protection technology, surface technic, filtration technic, coolant supply and as booster pumps. Synthetic versions for aggressive chemicals.
|
|
Thermoplastic vertical centrifugal pumps conceived for industrial applications, production lines and ecological facilities where resistance to chemical aggression must be coupled with reliability and easy maintenance.
Their particular construction eliminates the possibility of any contact between metal parts and the liquids, while the selection of materials and manufacturing technologies guarantees compatibility with the products handled a long operating life and conformity with the standards in force. The adoption of pumps with these characteristics eliminates, even in case of breaks, hazardous leaks and the need for openings on the bottom of the basins or tanks, allowing the absolutely safe pumping of chemical substances.
|
|
|
|
|
|
Plastic corrosion-resistant pumps
Pumps for processing chemically-aggressive liquids made from corrosion-resistant thermoplastics: PP, PVC, PVDF, PE-HD. No metal parts in contact with pumped liquid. Chemical pumps designed around system specifications and chemical resistance.
The production of Savino Barbera centrifugal pumps is specifically designed for service, including heavy service, with corrosive chemical substances and is intended for applications in industrial processes, production lines and treatment plants where the characteristics of resistance against chemical aggression must match with reliability, safe use and easy maintenance:
Petrochemical plants
Chemical: production and processing of basic products
Industrial chemical processes
Metal treatment in general
Galvanic industry, printed circuits, pickling and degreasing
Pharmaceutical
Gas treatment, scrubbers
Fertilizers
Food industry, canning, dairy, beverages and oils
Water: water purification, water softening, demineralization
Wastewater treatment and purification
Seawater treatment, desalination
Descaling piping and plants
Textile, tanning, and dyeing industries
Metallurgical industry
Production of electrical energy, batteries
Glass, ceramics, goldsmith and paper industry
Acquaculture, fish-breeding, hydroponic tanks
Photography
Laboratories, hospitals and heating facilities
|
|
|
Self-priming sewage pumps for clean and polluted liquids or media with gaseous inclusions. Main fields of application: coolant supply, environmenta protection technology, surface technic, water supply and -filtration. Special version with sealing chamber.
|
|
|
|
|
|
APPLICATIONS
Recircling plants, heating, air conditioning, heat recovery, plants of water supply procurement, pressurising units and fire-fighting systems.
CHARACTERISTICS
Hydraulics: pump body with dimension and performances according to EN 733 rules, closed impeller dynamically balanced and with balance holes for the for the balancing of the axial thrust. Shaft completely in stainless steel, greased ball bearings, flanges (UNI EN 1092-2): up to DN 150: PN16, from DN 200:PN10.
Mechanical seal; see page 152, special seals on request.
For constructive materials, please, refer to page 6.
Motor: asynchronous with 2 or 4 poles and with external ventilation.
Protection: IP55
Insulation: class F
Standard tensions: 220-240V up to 4 kW, 380-415V / 660- 720V starting from 5,5 kW.
Frequency: 50 Hz
Available in three different metallurgies: Cast iron, Stainless steel AISI 316, Bronze
SPECIFICATIONS
DN aspiration: from 50 up to 100 (150 for IR4P) –
DN delivery: from 32 up to 80 (125 for IR4P).
Qmax: 275 m3/h @ 2900 1/min • 400 m3/h @ 1450 1/min
Hmax: 100 m @ 2900 1/min • 43 m @ 1450 1/min
Temperature of the pumped liquid: from -15°C up to +120°C
Max operation pressure (see table at page 4 of the catalogue)
Max environment temperature: 40°C (for higher temperature, please, verify).
|
|
Single-stage vertical centrifugal pumps, suitable for transfer, recycling and distributing corrosive liquids and chemicals. The AS-series pumps are recommended for installation in cisterns, tanks or wells with variable head.
Materials: PP, PVC, PVDF, PE-HD.
Up to 3 meters long, depending upon the tank depth.
Suitable dimensioning of shafts, support columns and motor supports.
Nozzles with hose adaptor threaded or flanged.
Free of bearing bracket or intermediate bearings, it is guided by a pair of filled PTFE, ceramic or SiC wear bushings, and flushed by the liquid being pumped.
|
|
The Metso Minerals VF froth pump has been designed to increase the pumpability of frothy suspensions. The principle of operation is similar to that of hydro- cyclone separation.
Air is separated from the slurry in a vortex created by the impeller rotation and the tangential inlet to the pump ’s conical sump.This results in more efficient pumping at higher capacities and a smooth operation, free from pulsations caused by airlocking.
Summary of design features
Integrated unit for layout flexibility
Smooth operation of the open vortex created in the sump and vertical "wet end" inlet prevents air locking
Cantilever design does not require submerged bearings or shaft seals
Bearing assembly with double protection sealing
arrangement to prevent ingress of slurry
Wear parts are available in a variety of different materials
Simplified maintenance
|
|
Characteristics
- Multi-stage vertical centrifugal pumps with diffuser type bowl.
- Francis vane enclosed impellers.
- Counter clockwise rotation viewed from coupling end (as an option).
- Basket or Conical strainer according to pump requirements.
Design Features
- Product or Oil lubricated.
- Large bowl shaft sizing provides longer life.
- Enameled bowls 5" thru 15".
Applications
- Deep Well & Irrigation.
- Sumps, Condensate (Can Pump).
- Fire Service.
- Municipal.
- Industrial.
|
|
|
|
