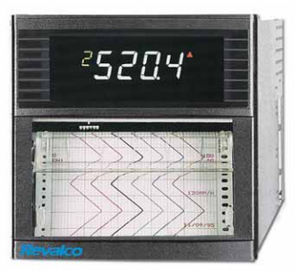

It is dotting style of 6 - channel chart recorder, universal input, low cost, short depth 150mm, light weight 1.5 kgs and IP65 water-resistance.
FEATURES
- 6-channel dotting
- Short depth in 150mm
- Weight 1.5kg only
- Dust-proof.IP-65 Water-resistance
- Standard RS-232 Communication interface
- Universal input and range
- UL, CSA, CE approved
|
|
Chart and Paperless recorders
Data Recording and Storage of the Data is fundamental in Process Control.
Quality and repeatibility of the manufacturing data need to be kept under close control for industries such as Food Processing, Conservation and Maturing, Beverage, Pharmaceuticals, Chemicals and Petrochemicals, Heat Treatments, etc.
Ascon offers high reliability and quality Chart Recorders with 100mm and 180mm chart widths and Videographic Paperless Recorders with several sophisticated functions such as Mathematical Functions, Ethernet Serial Communications and unalterable data storage.
The latest technological developments allow the Paperless recorders to compete with the Chart recorders.
|
|
The latest recorder collection
From the classic dot and strip recorder to the most up-to-date paperless recorders and powerful PC evaluation software – Endress+Hauser offer the best price / performance ratio for standard and application-specific solutions, as well as system connection and communication using interfaces, modem and Ethernet.
|
|
Circular Chart Recorder - Series LCR10
Record Temperature/Process, 1 Pen
Circular Chart Recorder - Series LCR20
Record Temperature/Process, 2 Pen
Minigraph Recorder - Series 1200
Record Temperature/AC-DC Current/Voltage, Stylus Type
|
|

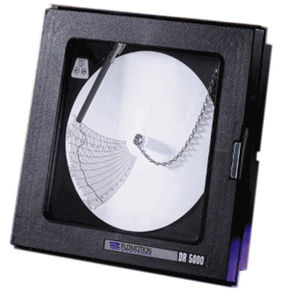

Circular chart recorder, pressure, temperature and flow
With more than one million BARTON DPU-based instruments in service around the world today, Cameron's Measurement Systems division is a premier supplier of reliable and accurate chart recorders, indicators, switches and pneumatic controllers. Originally developed in the early 1920s, our differential pressure technology features a welded bellows assembly that increases accuracy while dramatically reducing the effects of wear. To facilitate quick and easy repairs all DPU based instruments are supported with pre-calibrated exchange or repaired sub-module bellows assemblies.
|
|
Circular chart recorders are recommended for batch processes requiring a paper record. They allow for easy filing and copying for reference.The circular chart record displays the entire batch operation from one hour to 31 days.
DR4300
The DR4300 10" circular chart recorder is an economical, all-purpose microprocessor-based recorder that can handle a variety of process parameters such as temperature and linear signals from devices like temperature, humidity, pressure or flow transmitters.
DR4500
The DR4500 circular chart recorder is a 12" digital circular chart recorder that delivers top performance and comes in several models that address specific needs and markets.
|
|
254 mm (10") Chart
1- or 2-Pen Versions,
Thermocouple, RTD, dc Current, or Voltage Input
Programmable Inputs
4-Digit 14 mm (0.56") Display
|
|
|
|
|
|
EA series electronic recorder
- self-balancing instruments
- 250mm fan-fold chart paper
- alarm function.
Pen-writing types: 1-pen, 2-pen, 3-pen, and 4-pen,
Dot-printing types: 1, 2, 3, 6, 12, and 24-points
- a select-off function.
- Inputs: DC voltage, DC current, thermocouples, resistance thermometers and thermistors.
Can be used in various industrial variables.
Also
EH series recorders
- either continuous pen-writing or multi-point dot-printing systems
- 180mm chart
- record temperature, mV or DC voltage at 1 to 12points.
The measuring systems of mV, thermocouple, resistance thermometer or thermistor are available.
EL series recorders
- compact and modular in design to provide versatility, easy maintenance and reliable operation.
- inputs from mV, thermocouples, resistance thermometers or thermistors.
- 100mm width fanfold chart paper
- available in two versions, 1 to 6 points dot-printing systems and 1-pen, 2-pen or 3-pen continuous pen-writing systems.
ES600 series
- compact industrial analog recorders
- 60mm wide chart paper
- size of 96 x 144mm
- functions comparable with a large-size recorder including a highly reliable self-balancing system, an easy-to-install fanfold recording chart paper, etc.
|
|
|
|
|
|
AH3000 Series Hybrid Recorders
AH3000 series complying with CE, UL and CSA is 180mm multi-point type hybrid recorders with a simultaneous display of multi-channel data, alarm display/printings and other unique features.
Features:
-Universal Input
The recorders accept total 56 ranges of 10DC voltage ranges, 35 thermocouple ranges and 11 resistance thermometer ranges and these ranges can be programmed for each channel.
-Package software "KIDS" for data acquisition
The data acquisition software "KIDS" is available for data acquision with real-time data/trend displays and historical data/trend displays.
-Alarm display/printings
Alarm display(status and channels) and printings(channels, alarm types and alarm numbers)are executed. Up to 4 levels of alarm are programmable for each channel.
Optional alarm outputs are available.
-CE, UL and CSA
The recorders comply with CE and have UL/CSA approval.
-Other features
Universal power supply: 100V to 240VAC, 50/60HZ
Communications interface: RS-232C, RS-422A or RS-485 (options)
|
|
The Anderson line of electronic process indicators and recorders includes both 10 inch and 12 inch circle chart recorders and recording controllers. The Uni-Quad monitor offers digital display of up to four different variables in any combination and is directly compatible with any Anderson sensor. Anderson also offers a powerful 1/8 DIN controller in an optional NEMA4X enclosure with pre-piped I:P transducer, for stand-alone controller applications.
The revolutionary AV-9000 prints trends, scales, and alpha-numeric messages on plain paper in four colors. Its unique printing technology prints all four variables in "real-time", making it the optimum solution for critical autoclave and sterilizer applications.
If you would like to receive literature on any of the products below by mail please fill out our
|
|
Circular chart recorders are recommended for batch processes requiring a paper record. They allow for easy filing and copying for reference.The circular chart record displays the entire batch operation from one hour to 31 days.
DR4300
The DR4300 10" circular chart recorder is an economical, all-purpose microprocessor-based recorder that can handle a variety of process parameters such as temperature and linear signals from devices like temperature, humidity, pressure or flow transmitters.
DR4500
The DR4500 circular chart recorder is a 12" digital circular chart recorder that delivers top performance and comes in several models that address specific needs and markets.
|
|
Product : Linear

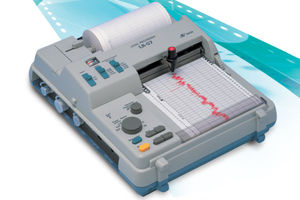

Reliable value-priced recorders designed to meet the needs of today’s research and quality control labs.
|
|
- Measuring and recording range freely configurable
- Maintenance-free recording system
- Six limit values with free channel allocation
- Alpha-numeric printing system with version KS 3930A
- Option: digital inputs and outputs
Applications
Recording of fast changeable process values, pressure, flow etc in industrial area
For mounting in control panels, control cabinets or control desks
Main attributes
Versions: 1-channel, 2-channel or 3-channel
Measurement cycle 180 ms or 300 ms
Channel display: scale
Standard input or universal input
Recording width 100 mm
Universal chart cassette for Z-fold or roll charts
Programmable at recorder or from a PC via EngineeringTool
|
|
With 1 to 4 line channels and electrical isolation between the measuring circuits, the LINAX 4000L can be used for all standard measurement signals.
The instrument is permanently configured for the desired measuring task at a reasonable price prior to shipment. The recorder can be used in aggressive environments thanks to its rugged housing with metal or plastic door (IP 54).
The LINAX 4000L records zero-frequency quantities, DC 0 / 4...20 mA or 0...10 V, with an accuracy of 0.5%, and is thus suited for use with precision physical or electrical measuring transducers. Measurement values can be archived on 32 m recording charts or 16 m fanfold charts with a chart speed of up to 600 mm per hour.
|
|
The use of the ink jet printing technology makes of the industrial Microjet recorder an unique and revolutionary device at present on the market. The silicon chip, already used in the manufacture of FCX transmitters, has been used by Fuji Electric in the design of this new printing system. The industrial recorders PHE, PHC (100 mm) and PHA (180 mm) allow continuous recording of 1, 2, 3, 6, 12 or 24 channels in 6 colours with an unprecedented quality and speed. Thanks to the small number of moving parts, this new technology reduces in a important way the number and the cost of the various maintenance operations, which were necessary for the traditional pen printing.
The ink jet head is based on a silicon chip. In printing mode, it is not in contact with the paper; this avoids any friction and allows a stable and accurate recording.
|
|
Horizontal chart recorder type XI
For continous recording of water level fluctuations in rivers and lakes.
Strip chart recorder type DELTA
Robust and reliable float operated chart recorder for water level recording in rivers.
|
|
- Chart recorders from 2 to 32 channels
- Real-time and post capture strip chart recording capability
- Chart widths from 3 to 16 inches
- Chart speeds from 1 mm/minute up to 200 mm/second
- Z-fold or roll paper versions available
Astro-Med data recording systems combine the best of old and new technology. They present and store your data in any format you want - traditional paper, real-time color display, internal hard drive, or all three! With these powerful systems, you can print your data in real-time on a continuous strip chart output. If real-time chart output is not critical, these systems let you capture data to hard drive and print it out in strip chart format or to the viewing screen, or both after the fact. Even better, attach your own USB or network printer and page print your data in full color!
|
|
|
|
