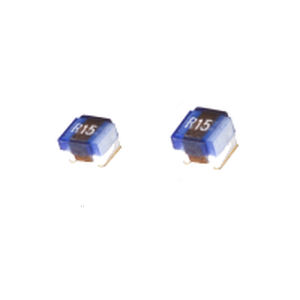

Wire Wound chip inductors
case size: 0603 to 1210
application signal and power line
Low Rdc and Low profile types
|
|
|
ATC's family of RF surface mount inductor components is intended to complement its high frequency ultra low ESR capacitor products. The WL Series wire wound chip inductors have been designed to provide excellent performance at competitive prices. The WL Series is especially attractive for all 800 MHz to 3.4 GHz wireless applications where cost and performance are major factors. These applications include but are not limited to: cellular base stations, broadband wireless services, point-to-point and point-to-multipoint radio as well as other RF and microwave telecommunications systems.
|
|
Ferrite Chip Beads
wide range of various impedance characteristics
case size: 0201 to 1812
|
|
Laird Technologies’ multi-line ferrite arrays provide economical filtering of differential mode EMI in densely packed PCB designs, available in surface mount and thru-hole PCB applications. These components provide high frequency suppression of differential mode EMI on multiple power and data lines.
Four line arrays require approximately the same board space as only three discrete parts. Our proprietary SMT construction yields rugged components, with a broad range of performance characteristics.
With rugged construction and rated for up to 10 amps with low DCR, these provide superior protection against transient events as well as much higher peak currents than many other EMI suppression choices.
|
|
| ... products without technical information |
| |
Chip inductor coil winding machine
Displayed Machine : NCI-0150
The NCI-0150 and NCI-0250 machines are specialized machines for inductor coil winding. The machine is controlled by 12-axis and is capable to wind multiple inductor specifications. Cross-winding is possible for transponder coils. The type of welding is selectable.
Features :
. Shortened cycle time by core supply, winding, welding and core unload simultaneous processing
. Consumes little floor space
. Reduced weight
. Indexer operated by direct drive motor. No maintenance required.
. NITTOKU`s original auto tuning system stabilizes welding temperature
|
|
|
|
