# B+K Precision offers a wide variety of current clamps for safe non-invasive current measurement. Measure up to 2000A with these reliable, rugged instruments. All of B K Precision clamps are much more than a current clamp offering the ability to measure, voltage resistance, capacitance and even frequency. Additionally, special features allow for the recording of minimum and maximum values, peak values, test diodes and for continuity. Any one of these products can be a total measurement solution. Measures up to 1000A
# Measures up to 1000VDC & 750Vac
# Jaw openings 2.24"
# Low battery indication
|
|
The Model 325 AC/DC True RMS Power Clamp Meter provides safe, non-invasive measurements of up to 400KW, 400 Amps AC, and measures up to 600 Volts AC/DC utilizing the pair of standard test leads. The lightweight, portable, battery powered clamp meter measures the most common ACV, DCV, ACA & DCA needed to troubleshoot residential and small commercial electrical systems. Back light 3 ¾ digit LCD display
# Auto range
# Auto power off
# Data Hold
# High speed bargraph
# Test ranges: ACV, ACA, DCV, DCA, Ohms, WATT, Frequency & Continuity
# Jaw opening 1.37%u201D (35mm)
|
|
F129T
Dual Display True-RMS ClampDMM™ with Detachable Current Head
The MAXIMA Series ClampDMM™ is a hand-held, battery powered digital multimeter with clamp-on current measuring capability, backlight and worklight.
Features:
- 3-3/4 digit, 4000 count LCD display
- Auto-ranging measurement with manual ranging (Amps or adapters only) capability
- MIN/MAX (Peak Hold) (all ranges except Frequency)
- Frequency/Duty Cycle/Data Hold
- Auto power off with manual override
- Detachable current probe makes the meter
compatible with all kinds of DC mV output
adapters
- Built-in test leads storage & magnetic mount
- Backlit display & Work light
- Temperature
- Non-Contact Voltage
- Dual display
- TRMS Measurement
|
|
3999 Count Clamp Meter ( DCM-033)
DCM-033 Features:
DC Voltage 400mV~ 600V (0.8%+1)
AC Voltage 4V ~ 600V (1%+5)
DC Current 40A/400A (2%+3)
AC Current 40A/400A (2.5%+5)
Resistance 400 ~40M Ohm (1%+2)
Frequency
Duty Cycle
Special Functions
Auto Ranging
Diode
Continuity Buzzer
Data Hold
Full Icon Display
Sleep Mode
Low Battery Display
Input Impedance for
DC Voltage Measurement
Around 10MW
Max. Display 3999
|
|
200A AC Mini Clamp Meter/Voltage Detector
Convenient compact size clamp meter with built-in AC Voltage detector
3-1/2 digit (2000 count) backlit LCD display
Measures AC Current up to 200A with 100mA resolution
2% basic ACA accuracy
0.9" (23mm) jaw opening
Built-in non-contact AC Voltage detector (120/240VAC, 50/60Hz) via clamp tip plus flashlight
|
|
Key Features
4000 count digital display
Backlit, large scale display
Analogue bar graph
AC current up to 600A
AC Voltage up to 600V
DC Voltage up to 600V
Resistance up to 400W
Continuity beeper
Display hold
Peak hold
Min Max hold
Frequency counter
Conductor size: up to 34mm dia.
CAT III 600V safety standard
Auto Power Off
|
|
F170
True RMS Digital Power Meter (3-phase)
The F170 is a True-RMS digital power meter including the energy integration function. This user friendly meter has many applications; appliance testing, checking industrial and commercial power systems, plant maintenance and inspection, and electric utility testing, etc.
Features
- CE-mark Certificated.
- 3 ¨ú digits, 4000 count display for power,
updates 4 times/sec. (6 digits display for
energy integrator.)
- True power, apparent power and reactive power.
- (AC to 750kW/kVA/kVAR) measurement.
- Power Factor (Cos ¥õ) [0.3 Cap... 1 ...
0.3 Ind] measurement.
- Energy (kWh, kVAh, kVARh) Integrator for
maximum 80 hours.
- 3-Phase adaptor (Optional Accessory).
- IEC 1010-1, CATIII600V safety protection.
- Time Stamp for the Energy Integrator.
- True-RMS reading.
- Auto ranging.
- MAX/MIN Record mode.
- Data hold.
- Auto-power-off.
|
|
Need the perfect tool to troubleshoot a system?
The ACD-16’s provide a full range of measurements, enhanced with data logging capabilities, to catch what the eye can’t see. Double the efficiency, with an optional PC interface kit.
TRMS & Backlight Screen (ACD-16 TRMS Pro only)
Measurements: AC/DC Voltage up to 600V, AC
Current up to 1000A, Resistance, Frequency and
Temperature
Data-logging 5400 points
Optional PC interface capability (RS-232 KIT2)
Audible continuity
Auto power off
Automatic polarity
Low battery indication
Data hold
Large, easy to read LCD display
Accommodates conductors up to 1.77” (45mm) in
diameter
Carrying case, thermocouple, test leads, batteries
(installed) and user manual included
Voltage overload protection for all functions up to
600V AC/DC
Safety CAT III 600V
|
|
The F09 is a new pocket-size, all-purpose, small-diameter clamp, operated with one hand.
Ideal for U1000RO2V-1X185 2and H07RNF-1x70 cables2 or 20mmx5mm bars, it is a professional measurement tool (600V Cat.III). Fully automatic, TRMS AC+DC, the F09 is a must for all your measurements
# clamping: ø26mm
# AC and DC intensity: 0.20 to 40/400A (600A peak)
# AC and DC voltage: 0.20 to 40/400/600V (900V peak)
# phase rotation (2-wire)
# inrush current
# power (single & three phased): 5W to 240kW ; 5 to 240kvar ; 5 to 240kVA
# power factor
# Hz frequency
# auto AC/DC - Hold
# automatic DC zero
# resistance: 0 to 40kΩ
# continuity / buzzer
# diode test
# min/max/peak
# automatic lead compensation
# backlit display
# range overrun buzzer
# battery charge level
# automatic stop
# dangerous voltage signal
# dimensions: 70 x 193 x 37mm - weight: 260g
|
|
- 30mm Jaw capacity
- Auto ranging
- AC/DC amps to 400A
- AC/DC volts to 600V
- Resistance
- Continuity buzzer
- AC amps peak hold function
- Data hold function
- Auto power off
- Protected to 600V Cat III
- Includes test leads, alligator clips and protective holster
|
|
| ... products without technical information |
| |
|
|
|
|
clamp on meter is a combination power analyzer, power quality logger, and clamp meter, and is ideal for monitoring electronic loads.
With the bright color power meter display to analyze the harmonic spectrum, a low-pass filter to remove high frequency noise, and a high EMC immunity design, the Fluke 345 power analyzer is ideal for troubleshooting power quality on switching loads. Additionally, the Hall Effect clamp meter design makes measurement of dc current possible without the need to break the circuit with the power meter. The internal memory of the power analyzer enables long-term power quality logging for analysis of trends or intermittent problems.
Applications
Setup and troubleshoot variable frequency drives and UPS systems - Verify correct operation by measuring key power quality parameters
Harmonics measurements - Uncover harmonic issues that can damage or disrupt critical equipment
Inrush capture - Check start-up current where spurious resets or nuisance circuit breaker tripping occurs
Load studies - Verify electrical system capacity before adding loads
|
|
Product ID: CA-60
AC/ DC mA Current Clamp-on Transducer
1. This miniature clamp meter features two Hall effect sensors
2. For use with any multimeter with 200mV or/and 2V ranges
for direct readout input impedance of least 1M ohm.
3. High conversion factor for low DC and AC mA measurement.
4. With the small jaw size it can fit into tight space in circuit panel
or wire bundle to take the reading
5. The high frequency response at 20 kHz is useful for
waveform monitoring on an oscilloscope.
6. Zero adjustment is made easy by just pushing the ZERO button.
7. It is best for locating small signal, industrial control,
battery leakage,and automotive usage
|
|
Current must always be measured in our power test systems, of course, but that's just the beginning. Amperage is an important measurement in hundreds of other data acquisitoin applications, too.

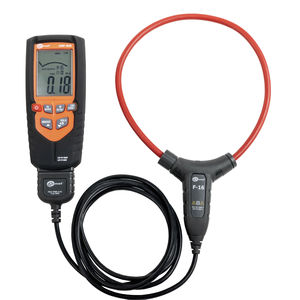

We understand that, so we provide more than one choice of current clamp, and also, convenient flexible current sensors (aka Rogowski coils). DEWETRON current sensors output voltage, so they can be used directly with our medium gain voltage input connections. Every current sensor has a phase shift, and this can be offset using the standard sensor database included with DEWESoft! Yes, we thought of that.
|
|
With its unique 100mm jaw opening, the Seaward Type L Plus large jaw current clamp meter is designed for the measurement of current in large diameter conductors and fuses.
With the ability to operate in the most difficult circumstances the instrument is capable of use on porcelain fuse carriers in distribution systems.
|
|
511 Clamp-On Meters
The Clamp-On Meter Model 511 is a general purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 511 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.
The Model 511 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.
The Model 511 is sized for a comfortable, one-handed operation. This model is average sensing and designed for traditional average responding electrical systems. The jaw opening for the Model 511 is 1.575" (40mm).
|
|
To ensure impeccable measurement quality, the F15 gives measurements in RMS, whether or not the current is deformed or sinusoidal. In addition, it offers DC measurement with fully automatic zero adjustment.
# AC (RMS) intensity: 0.2-400 and 700A (2 cal.)
# DC 400 and DC 1,400A intensity (2 cal.)
# accuracy: 2.5%+/-2ct *
# AC & DC voltage: 400 and 600V (5 cal.)
# accuracy: 1.5%+/-2pt *
# RMS
# auto AC/DC and auto-range (with manual selection possible)
# bandwidth: 45Hz-450Hz
# resistance: 0.5-400Ω to 4MΩ (5 cal.)
# audible continuity test: R < 40Ω
# frequency 1.00Hz to 4kHz (3 cal.)
# functions: automatic DC zero, memory, max/min and automatic stop
# adaptor calibre (ADP) 0-4,000mV, acc. 0.1%+/-15ct
# clamping: 1 cable ø42mm, 2 cables ø25mm, 2 bars 50 x 5mm
# electrical safety: IEC 1010 & IEC1010-2-032 600V Cat III-2
# dimensions: 254 x 97 x 46mm - weight: 600g
|
|
Easily monitor leak current fluctuations
Wide bandwidth, 5 Hz to 15 kHz (Waveform output)
High-sensitivity with a full scale of 10 mA (resolution:10 µA)
High-accuracy at ±1 %
True RMS measurement
Analyzer functions, for filtering and output signals
|
|
Clamp-on current probes or "current clamps" enable the user to measure currents without breaking the electric circuit. Current clamps are designed with jaws that can be opened, placed around the conductor and clamped closed to form a magnetic loop around the conductor.
Current clamps offer a safe, cost-effective, simple and accurate way to take current measurements.
|
|
