Hilliard MT Overrunning Clutches combine high torque, high speed capabilities, easy field repair and low cost – all in a compact size. With most overrunning clutches, shaft size is a major consideration. Hilliard’s new roller ramp design allows for greater shaft sizes than comparable size clutches offered by other clutch manufacturers. The assembly features the cam surface precision machined within the housing instead of the inner member, giving it the ability to reach much higher overrunning speeds and to attain greater torque in a much smaller space.
Typical applications include general backstopping and overrunning, such as suspended conveyors, indexing or ratcheting, and gear boxes.
Features:
• Flexible packaging as a clutch or clutch coupling
• Increased torque
• Compact design
• Increased shaft sizes in same physical-size units
• Custom mechanisms available
• Failure in overrunning mode; does not lock up
Clutches are available in various models from 82 to 43,600 lb.ft. at 1,000,000 cycles. Custom designs and rapid prototyping are available.
|
|
|
|
|
|
Hilliard Bi-Directional overrunning clutches replace expensive shifting and drive train assemblies. These clutches provide positive engagement automatically in either direction.
Manufactured exclusively by The Hilliard Corporation, these unique clutches feature rugged, field-proven components and are easy to service in the field. Because they can overrun in either direction, Hilliard Bi-Directional overrunning clutches are ideal for such functions as bi-directional and dual-source drives.
A specially designed unit was recently used by Polaris Industries to produce the first 4-wheel drive, all-terrain vehicle capable of providing automatic front-wheel drive engagement in both forward or reverse models.
Features:
• Senses driving direction and automatically shifts to
driving or overrunning modes
• Proven roller-ramp design
• Precision-machined components
• Bearing support and alignment of cam to drive shaft as required
Benefits:
• Reliable, durable and long lasting
• Positive engagement
• Automatic disengagement
• Constant drive maintained while engaged
|
|

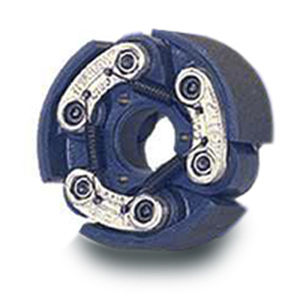

The Hilliard Extreme Duty Centrifugal Clutch has been engineered to provide long service life and is ideal for retrofit or new equipment applications. A thermodynamically designed clutch shoe increase the clutch’s capacity to absorb heat without damaging the integrity of the clutch.
• Bi-directional operation
• Overload protection
• Load-free starting
• Optional engaging speeds available
|
|
|

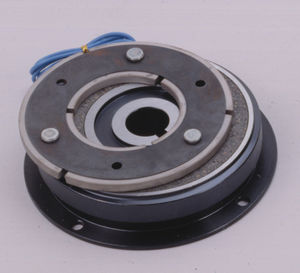

Ogura is the largest manufacturer of electromagnetic clutches and brakes in the world. Current manufacturing capacity is in excess of 30 million clutches and brakes per year. We have 14 manufacturing plants throughout Europe, the Americas, and Asia. All plants are certified ISO9001 and most have been certified ISO 14001 and TS16949. We have over 3,000 designs available. Besides the standard product shown we also make a variety of specialty products. Our products are used in automotive, industrial, mobile, factory automation, office automation, agricultural and construction machinery industries. Our clutches are made in the following styles: electromagnetic single face, multiple disk, tooth, hysteresis, eddy current, magnetic particle and permanent magnet. Torque range for standard products is from .0001nm to 8,400nm.
|
|
|
electromagnetic energise to engage pole face clutches - Half the wear | High torque security | Low noise | Short switching times / high switching frequencies | Correct function until end of wear | Large permissible shaft diameters due to large internal diameters of the magnetic coil bodies
|
|
|
Ogura is the largest manufacturer of electromagnetic clutches and brakes in the world. Current manufacturing capacity is in excess of 30 million clutches and brakes per year. We have 14 manufacturing plants throughout Europe, the Americas, and Asia. All plants are certified ISO9001 and most have been certified ISO 14001 and TS16949. We have over 3,000 designs available. Besides the standard product shown we also make a variety of specialty products. Our products are used in automotive, industrial, mobile, factory automation, office automation, agricultural and construction machinery industries. Our clutches are made in the following styles: electromagnetic single face, multiple disk, tooth, hysteresis, eddy current, magnetic particle and permanent magnet. Torque range for standard products is from .0001nm to 8,400nm.
|
|
|
|
|
|
Intermittent Drive Unit (IDU)
The Hilliard Corporation’s IDUs are packaged mechanical assemblies that produce precise intermittent motion – on demand – from a constantly rotating input.
IDUs feature a self-contained lubrication system, making them ideal for dusty, dirty, steamed or washed-down applications. The heart of these units is a Hilliard single revolution clutch. They are designed to provide up to 40 million cycles, with no accumulation of error in the stopping position.
When combined with an acceleration-deceleration unit (ADU), our IDUs provide smooth acceleration and deceleration through 360º - on demand.
Intermittent Drive Assembly (IDA)
Hilliard’s new IDA provides automatic control of intermittent motion from a constantly rotating power source.
This easy-to-install, self-contained package includes a solenoid-operated, single revolution clutch with anti-rollback and anti-overrun features. The rugged and proven, round-roller/cam-flat, single revolution clutch provides positive engagement at any point of revolution of the driving sleeve without slip, lag, or cumulative error.
Designed to replace and to provide greater life than wrap-spring assemblies, the Hilliard IDA is built to last through millions of cycles.
|
|
Heavy Duty Manual Clutches For Reliable Crushing Performance. Power Take Off Clutches tough enough for every application.Power Take Off Clutches for engine driven equipment. SAE mounting up to 2000hp. Simple manual operation with low, easy maintenance. These clutches are precision engineered with high quality materials and built to last, they represent great value for money.
Thousands in use throughout the world - proven performance and low breakdown rates.
|
|
|
Protect your machines against damage, loss of production and downtimes. With EAS-clutches your machine is completely safe. We offer the best and most attractive mechanical package. Indicate your drive requirements and we will ensure the security of your machines.
|
|
|
|
|
|
Magna Torque (MT) for Backstopping and Indexing
Hilliard’s line of overrunning clutches is economically priced and ideally suited for backstopping and gearbox applications. Custom designs and rapid prototyping are available.
Roller Ramp (MTR) for Clutch Couplings, Dual-Drive & Turning Gear
There is almost no wear during freewheeling operations in the Hilliard roller-ramp designed clutch because rollers are free to rotate between the outer member and the inner cam. Typical applications for this clutch are blowers, pumps, fans, conveyors and forming rolls.
Enclosed Overrunning Clutches
Hilliard’s enclosed overrunning clutch incorporates superior MTR design in a totally enclosed package. Designed for power transmission operations, this clutch is totally contained in a stationary housing for constant protection from hostile environments or washouts.
High-Speed Overrunning Clutches
The Hilliard high-speed overrunning clutch provides positive engagement and high torque on demand. Featuring a unique roller-ramp design, the clutch when engaged transmits power via the precision-machined cam and roller assembly connected to the input shaft. Typical applications include hydraulic, electric, and pneumatic turbine starters; turbine drives, and turbine auxiliary drives.
|
|
Industrial Clutch Parts manufacture a variety of industrial clutches, brakes, couplings & rotary unions for the global power transmission markets. Product line covers applications in industries such as: oil & gas, marine, pulp & paper, metalworking, mining, & textiles. Directly replaces Eaton Airflex®, Croft®, Renold®s, Fawick® etc.
|
|
|
Immediate, positive engagement with no slippage. High torque producing, compact profile. Rated for a maximum pressure of 100 PSI. Heat dissipating finned plates available on some models.
|
|
Friction Clutches
Air Champ II ® Sealed Bearing Units
Air Champ® Open Bearing Units
Dual And Quad Plate Clutches
Flange Or Foot Mounted IEC And NEMA Clutches
Metric Air Champ II ® Sealed Bearing Units
Metric Air Champ® Open Bearing Units
Multi-Disc Clutches
|
|
Characteristics
• Pneumatically applied - spring release
• 1, 2, 3 or 4 disc design
• For dry use only
Utilisation
• End-of-shaft mounting on bearing supported pulley, sprocket or flywheel
Typical Uses
• Fast engagement and cyclic applications
• High Torque requirements in a compact design
• General drive applications
Mounting Precautions
• Input and output halves of clutch must be individually supported
• Designed for horizontal shaft axis. Consult Wichita if vertical mounting is required
Saftey
• The clutch should be suitably guarded when in use
|
|
|
|
|
|
Ortlinghaus multiplate safety clutches are permanently engaged, this condition being maintained by spring pressure. They are able to transmit torque up to a particular, preset level, after which in the case of an overload in the transmission, they are designed, to slip for a limited period of time. They can thus be used to safeguard all types of transmission lines in machines and equipment from overloading and destruction. They have the task of smoothing out high torque peaks, at start ups, and during the operating of a line. This is done by the clutch plates slipping past each other for a short period of time when the desired maximum torque is reached.
The torque at which a clutch starts to slip can be varied, within limits. In this way these clutches safeguard gear wheels, shafts and other drive elements from damage and thus guarantee operational reliability for an extended period of time; in this way they also help to prevent the need for repairs. It must be kept in mind that when the clutch is slipping, frictional heat is produced and released within the set of plates and that the permissible amount of heat is limited. This thermal loading must be kept within the required limit with the aid of a slip monitoring device, which would switch off the drive. This is necessary with fast running drives where the critical amount of heat is reached very rapidly when slipping commences.
|
|
Low inertia pneumatic brakes and clutches, also available as spring-applied emergency brakes.
Air tube concept offers sensitivity and versatility to a huge number of high-frequency industrial processes.
The multidisc system gives very high torque in a compact size.
Max. torque from 210 to 49 500 Nm.
|
|
The most popular range of MEROBEL's EMP Brakes, offering tailored solutions for every needs from its 10 sizes and up to 5 different version (acceptable power dissipation level) for each size.
- EMP technology (ElectroMagnetic Particle)
- Torque proportional to the electric current, independent of the slipping speed
- 5 different versions (power dissipation) available
MEROBEL's EMP clutches are built from the addition of slip ring and brushes to the EMP brakes.
This range of devices is offering two different power dissipation levels for each size (without or with cooling fins)
|
|
Characteristics
- Pneumatically applied - spring release
- 1, 2, 3 or 4 disc design
- For dry use only
Utilisation
- End-of-shaft mounting on bearing supported pulley, sprocket or flywheel
Typical Uses
- Fast engagement and cyclic applications
- High Torque requirements in a compact design
- General drive applications
Mounting Precautions
- Input and output halves of clutch must be individually supported
- Designed for horizontal shaft axis. Consult Wichita if vertical mounting is required
Saftey
- The clutch should be suitably guarded when in use
|
|
Like the Hysteresis Brake, the Magtrol Hysteresis Clutch develops torque strictly through a magnetic air-gap, ensuring an absolutely smooth transmission of torque from the drive unit to the driven element. Designed to be powered without the use of brushes or slip rings, and being a pure hysteresis device, there is never any fear of contamination due to wear particles or leaky seals. This makes Magtrol Hysteresis Clutches and Brakes ideal for use in food processing and clean room environments.
|
|
The Model HC or HCD clutches are designed to be used in either an end of shaft or through shaft mounting configuration. Their compact size makes these units ideal for incorporating within a gear housing. Multiple speed transmissions use a variety of these units to effect fixed mesh speed changes, or they may be used as a stand alone device for disconnect service.
|
|
|
|
|
|

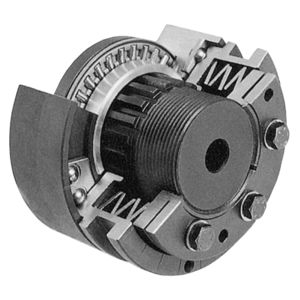

The Safegard series of overload clutches from Cross+Morse were developed to provide overload protection of high torque values with a compact unit. Directly interchangeable with other units in the market, this series offers low cost precision with minimal maintenance for a long reliable service life.
Safegard clutches are in two basic series, the Standard series, for optimum speed and torque, and the Mini series, for lower cost option on slower speed drives. Both series are also available as shaft couplings.
Four options of operation are available.
1. The basic Safegard CSF design, using ball driving system for high speed, non synchronous applications.
2. The Synchron CSY design, with roller drive for lower speed synchronous applications.
3. The Safe Lift CSL, also with roller drive, but remaining in constant drive, only indicating overload by axial movement onto the limit switch.
4. The Safebreak CSZ design where the unit is held on totally free running condition after overload and requires manual re-engaging
|
|
|
Free wheels with rollers, with flanges for assembling, self centring or requiring centring, used ad overspeed, non-return, intermittent feed.
|
|
Industrial Ratchet Freewheels from Cross+Morse provide positive one-way drive with high torque capacity within a small unit.
Sprag Clutches:-
MG Series - Standard clutch for general overrunning, backstop and index
applications, standard oil lubricated with option of grease.
MI Series - Has special sprag assembly designed for high speed indexing.
Always oil filled for optimum performance.
MO Series - Fitted with labyrinth seals for minimal drag on higher speed
overrun and backstop applications. Always grease lubricated.
MR Series - Utilises a special sprag cage arrangement to allow high speed
overrunning of the outer race. Oil lubricated clutch suitable as a higher
torque alternative to Roller Ramp clutches.
Download our catalogue for more information on the following:-
Roller Ramp Clutches:- CNAS, CNFS, AA, AE, ANF, ANR, AGF & AGFN
Backstop Clutches
Overrunning Clutches
Contact Free Overrun Clutches
Indexing Clutches
Standard Flexible Couplings
Stub Shaft Adaptor
PB Sprag Clutch
|
|
Simple to be intalled and compact; the Airing radial units are engaged by an air tube and can be used as drum brakes (in stopping and holding applications) or clutches (to connect two shafts directly or through a pulley).
Maximum torque from 40 to 4 000 Nm.
The high thickness friction pad and the reliable air tube ensure high performances and low maintenance cost.
|
|
The DC and DCV constricting drum clutches and brakes are found all throughout industry in general power transmission duties.
Constructed using an integral rim and tube actuator, the DC has low inertia and high misalignment capacity, offering a simple solution to less arduous clutch and brake requirements.
A full range of options is available: Dual flanges for back to back mounting giving double torque capacity. Multiple air inlets for increased response speed. Split construction to avoid removal of the shafts on in-line drives. And wether you require just the friction shoe or mounting pins, or a complete actuator and rim assembly, all are backed by the Wichita name for service and reliability
|
|
Flange Mount
Metric, Air Engaged, Straight Bore, Flange Mount, Tooth Clutches
Pilot Mount
Metric Air Engaged, Straight Bore, Pilot Mount, Tooth Clutches
Pilot Mount Enclosed
Metric Air Engaged, Straight Bore, Pilot Mount, Enclosed, Tooth Clutches
Pilot Mount Positioning
Metric Air Engaged, Straight Bore, Pilot Mount, Positioning, Tooth Clutches
Pilot Mount Positioning Enclosed
Metric Air Engaged, Straight Bore, Pilot Mount, Positioning, Enclosed, Tooth Clutches
Spring Engaged
Spring Engaged, Straight Bore, Tooth Clutches
With Integral Sprocket
Air Engaged, Straight Bore, Integral Sprocket, Tooth Clutches
|
|
Tooth clutches with and without slipring
for wet- and dry-running
11/12 Series 0012/0812 and 0013/0813
Non-slip, compact clutches with teeth for the
transmission of high torques in small spaces.
This type of clutch is the correct choice when static
engagement only, is required. Engaging at low
speeds can also be carried out subject to particular
electrical measures being taken. There is no
residual torque when the clutch is disengaged.
Power feed: In the case of 0012 via slipring and
brushes. In the case of 0013 via cables and
rectangular connectors.
|
|
The VARIMOT Electromagnetic Variators increase the versatility of the industrial equipment.
They adjust speeds for light, heavy and variable loads with precision.
They synchronize the speed of many machines.
They ensure longer useful life for the installed equipment, for the start-ups are soft.
|
|
|
|
|
|
Winch, Crane and Marine Products
Series 66H Pressure Applied Multi-Disc Clutch
These clutches are widely used in Marine Applications, and are designed for use in oil. The pressure supply is fed axially along the mounting shaft and radially outwards through the clutch hub into the cylinder. Positive disengagement is achieved by the use of release springs between the inner plates.
66H Features
* Clutch does not require adjustment
* Torques can be varied by regulating supply pressure
* Bearing-free design eliminates bearing life considerations
* Speed of engagement can be controlled by varying pressure supply flow rate
* Individual plate seperation ensures low drag torque
* Large friction area gives extended plate life
* Multi-disc design results in compact, high torque clutch
Series 56P Spring Applied Pressure Released Multi-Disc Brake
These brakes are widely used in Winch and Mining Applications, and are designed for dynamic breaking with oil in the disc-pack chamber, and can also be used dry as holding brakes.
They are engaged by disc-springs and disengaged by a pressure supply to the cylinder which moves the piston axially, compressing the disc springs and releasing the plates. The hub is usually fitted to the end of the shaft whuch is being braked.
56P Features
* Spring-applied, ensuring automatic braking in the event of a power failure
* With all working parts being enclosed, the brake is suitable for external mounting, even in unfavourible environments
* Provision is made for a thorough flow of cooling oil to give greater heat dissipation
* External mounting to shaft ends facilitates retro-fitting to existing machinery
|
|
WPT Power Grip PO Clutches:
for oilfield and general industrial applications from 14" through 30" diameter. 3,750 Lb.Ft(5,086 Nm) through 97,500 Lb.Ft.(132,239 Nm) static torque.
|
|
