The World's Smallest Video Camera for endosocpes.
The outer diameter size of this recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity.
The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with medical endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
|
|
Based on a camera architecture first introduced with the Phantom® v12.1, the v640 provides a 4 megapixel sensor and greater than 6 gigapixel/second throughput. That means full-resolution frame rates of over 1500 frames-persecond (fps), and 1920 x 1080 HD-resolution frame rates of over 2700 fps.
The v640’s high-resolution timing system yields a timing resolution of better than 20 nanoseconds. Frame rate, frame synchronization and exposure accuracy are all improved over previous generations of high-speed cameras. And, an external frame synchronization signal is available via a dedicated BNC for easier cabling and increased signal integrity. A GenLock input is available for synchronizing the playback of recorded cines to other video gear.
|
|
|
Shoot 1000 frames-per-second with the Phantom HD at 1920 x 1080 and 14-bits-per-pixel and you will need 3.6 GB of memory for each second of recording! A 4-second recording could take up to 15 minutes to save using standard Gb Ethernet. Equip the Phantom HD with a CineMag, and save the shot to non-volatile memory in about 10 seconds.
|
|
|
Rated to survive 100g acceleration, this rugged camera can take 800 x 600 pixel images at up to 1,200 frames-per-second (or 2,252 fps at 512 x 512). Reduce the resolution to 32 x 16 and achieve frame rates greater than 111,100 fps. With an ISO rating of 4800 (monochrome, saturation-based ISO 12232), the camera has the light sensitivity for the most demanding applications.
|
|
|
|
|
|
|

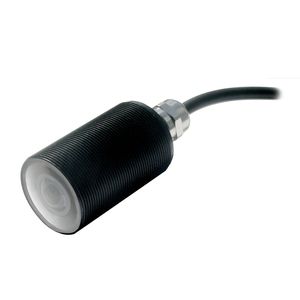

Kalypso 023-USB is the first CMOS camera series by Kappa. The round camera Kalypso with Aptina sensor provides strong performance at a low price. Its strong points are the special Kappa features like the rugged construction and the high signal quality. The operating temperature is between -20°C and +80°C. The 1/3“ cameras with global shutter come equipped with an USB 2.0 interface and offer 10-bit digitization depth at a resolution of 752 x 480 pixel (WVGA). With linear sensor characteristics the cameras achieve more than 55 dB, in the High Dynamic Range Mode they achieve more than 80 dB. Kalypso is used for industrial and non-industrial image processing applications. Even with dynamic scenes, under difficult light conditions and rough ambient conditions the Kalypso cameras deliver reliable performance and high image quality. An ultra-compact construction (50 mm diameter and 29 mm width) allows them to be used for machine vision in extremely confined spaces, also in customer-specific design.Kappa provides CCD cameras and CMOS cameras with standard and megapixel resolution, analog and digital interfaces. These are, among others, video, RS 422, Fire Wire, IEEE 1394, Camera Link, LVDS, USB, Gigabit Ethernet, HD-SDI, SDI. The CCD cameras and CMOS cameras are available as compact versions, with remote head for endoscopic tasks and as customer-specific versions. As technology supplier Kappa also provides CCD cameras and CMOS cameras as board cameras or with specific customized housing design. Kappa specializes in the area of CCD cameras and CMOS cameras for integration, rugged CCD cameras and CMOS cameras as well as customer-specific solutions.
|
|
|
|
|
|
|

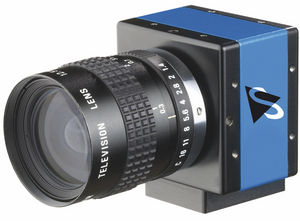

The Imaging Source - a multi-national manufacturer of industrial cameras - has just brought to market a new series of progressive scan, CMOS cameras, which ship with a USB 2.0 connector. The series of 12 different cameras includes color and monochrome models, with resolutions from 640x480 to 2048x1536. The cameras ship in robust industrial casing with a C/CS lens mount and optionally come with a fully integrated ring light system. The software support of the cameras leaves nothing to be desired: Both programmers and end-users immediately feel at home. Getting started with the cameras is a matter of minutes and integrating them into existing applications takes only a few lines of code. Drivers for LabView, Halcon, DirectX, Twain and WDM are included. All camera parameters and settings can be set via the shipped software. The cameras ship with drivers for Windows XP/Visa, the SDK IC Imaging Control and IC Capture. The latter is a powerful end-user application, which allows all cameras parameters to be set, live video to be displayed, singular images and image sequences to be captured.
|
|
|

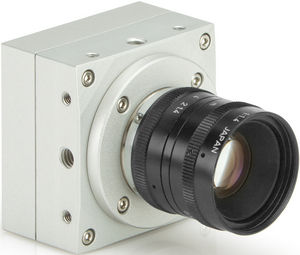

This high speed 12 bit CMOS camera system, pco.dimax, comprises advanced CMOS and electronics technology. With its sensitive 12 bit dynamic it enables remarkable fast image rates of 1100 frames per second (fps) at full resolution of 2016 x 2016 pixel. The system features also a variety of trigger options to cover all offboard applications that have been required by the automotive industry. The image data are transferred via GigE Vision or USB2.0 interfaces. For preview purposes a DVI interface is integrated. The pco.dimax has a smart battery control, which allows a full operation for 1 h and a data backup for 6 h. The available exposure times range from 2 μs to 1 s. This digital CMOS camera system is perfectly suited for high speed camera applications such as material testing, offboard crash or impact tests or super slow motion movie clips.
|
|
FASTCAM SA2
The Fastcam SA2 provides full, 2,048 by 2,048 pixel resolution, up to over 1,000 fps, and HDTV 1080 high (1,920 x 1,080 pixel resolution) to 2,000 fps. The 10µm CMOS pixel provides excellent 12-bit dynamic range and utilizes a global electronic shutter to 2µs to freeze the motion.
Available with three memory options:
8GB
16GB
32GB
An electronically cooled sensor, along with micro lenses fitted atop the sensor enable the SA2 to provide unsurpassed image quality and light sensitivity, making it ideally suited for a wide range of applications, including:
Television broadcast work.
Sports and documentary.
Micro PIV and DIC work
|
|
Outstanding Benefits:
- Reads all standard 1D and 2D symbologies
- High 99% read rate performance
- Setup in under 20 minutes
- Lower cost of ownership
- Easy “plug-and-play” replacement
- No routine maintenance
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
Imaging Module - digital camera for integration
An Imaging Module for digital image acquisition by JENOPTIK is reliable and provide an excellent price-performance ratio. It combines many years of experience in the development, design and production of high-quality image acquisition systems for various branches of industry or science.
If you look for a camera for integration into your system solution, we offer a broad range of products. The OEM camera module can be based on CCD or CMOS Technoloy, can be monochrome or color, can provide cooling or not.
|
|
|
|
|
|
* USB CMOS Color Board Camera
* 1/2 " Micron CMOS, progressive scan
* 2048x1536 pixel
* Up to 10 images/s
* Software included
General Behavior:
Video formats @ Frame rate: 2048x1536 RGB32 @ 10, 7.5, 5, 3.75 fps, 1024x768 RGB32 @ 35.5, 30, 15, 10 fps, 2048x1536 Y800 @ 10, 7.5, 5, 3.75 fps, 1024x768 Y800 @ 35.5, 30, 15, 10 fps
Sensitivity: 0.5 lx
Dynamic range: ADC: 10 bit, output: 8 bit
SNR: ADC: 8 bit at 25°C, gain 0 dB
Interface (optical):
IR cut filter: yes
Sensor specification: MT9T031 [314.02 KB]
Shutter: Rolling
Format: 1/2 "
Resolution: H: 2048, V: 1536
Pixel size: H: 3.2 µm, V: 3.2 µm
Lens mount: C/CS
Interface (electrical):
Supply voltage: 4.5 to 5.5 VDC
Current consumption: approx 250 mA at 5 VDC
Interface (mechanical):
Dimensions: H: 50.6 mm, W: 50.6 mm, L: 29 mm
Mass: 140 g
Adjustments (man):
Shutter: 1/10000 to 4 s
Gain: 0 to 18 dB
White balance: -6 dB to +6 dB
Adjustments (auto):
Shutter: 1/10000 to 4 s
Gain: 0 to 18 dB
White balance: -6 dB to +6 dB
Environmental:
Max. temperature (operation): -5 °C to 45 °C
Max. temperature (storage): -20 °C to 60 °C
Max. humidity (operation): 20 % to 80 % non-condensing
Max. humidity (storage): 20 % to 95 % non-condensing
|
|
pco.1200 hs
This high speed 10bit CMOS camera system comprises advanced CMOS and electronics technology. With the new approach to integrate the image memory (camRAM) into the camera itself, it enables unmatched fast image recording with 1GB/s. The system features an excellent resolution (1280 x 1024pixel) and low noise. It consists of a compact camera with an external intelligent power supply. The image data are transferred via customer selectable standard data interfaces to a computer (IEEE 1394 (“firewire”), camera link). The available exposure times range from 1µs(50ns optional) to 5s. This digital CMOS camera system is perfectly suited for high speed camera applications such as material testing, external crash testing or super slow motion movie clips.
|
|
|
|
|
|
EMMY Award winning High Speed Camera with Mega Pixel performance to Two Thousand Frames Per Second.
The Photron Fastcam SA3 sets new standards for high-speed imaging by offering a highly light-sensitive mega-pixel CMOS sensor with high-G performance. With over one million enormous 17µm pixels, the SA3 enjoys a receptivity to light that until now only older, lower resolution CCD sensor technologies could achieve. This feature makes it ideal for lower-light applications or those that required expensive, hot lighting setups.The SA3's sensitivity to light enables fast shutter speeds that prevent motion blur.
In fact, this unmatched performance was significant in the SA3's sister product; the ultima APX being awarded the George Wensel Outstanding Innovative Technical Achievement Award Sporting Emmy as the high speed camera behind the success of 'Golf on CBS' SwingVision through our East Coast distributor; Tech Imaging Service
In addition to the ability to functioning well under lower lighting conditions at very high speeds, the SA3 retains all the benefits long associated with Photron's existing CMOS high speed cameras, including the ability to reduce the dynamic range from 12-bits to 8-bits - providing a 50% increase in record duration.
The Fastcam SA3 is available in three memory configurations; 2GB, 4GB and 8GB to help match your requirements to your budget. Gigabit Ethernet connectivity enables multiple camera control via PC, or an optional intuitive hand-held control unit is available for easy operation where a computer is not required.
|
|
|
|
|
|
|
Thanks to its 400 MHz (3,200 MIPS) DSP, the VCLine scan Smart Camera from Vision Components is one of the fastest intelligent cameras on the market. The device supports three integration modes: the free-running mode enables a scan rate of 11 kHz. With a constant integration time, the camera can be triggered externally at a maximum scan rate of 5,5 kHz. A third mode allows for a variable integration time which is determined by external triggering, reaching a maximum scan rate of 11 kHz. The Smart Camera comes equipped with 32 MB DRAM and 4 MB Flash EPROM for program and data storage. It features both an Ethernet and a RS232 interface as well as four digital PLC inputs and four outputs, an image trigger input and a flash trigger output. Due to its small dimensions (90 x 50 x 35 mm), the VCLine can be easily integrated into machines and plants. Like all other Smart Cameras from Vision Components, it is especially suited for use in rugged industrial environments – due to its compact and robust housing, it withstands vibrations and shocks.
|
|
The World's Smallest Video Camera for endosocpes.
The outer diameter size of this recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity.
The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with medical endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
|
|
|
|
|
|
The World's Smallest Video Cameras.
Medigus offers the world's smallest micro cameras. The current offering includes a new revolutionary disposable CMOS camera, which has an outer diameter of only 1.2mm x 5mm long and is by far the smallest camera in the world. In addition the company offers reusable CCD cameras in two sizes: 3.0mm x 3.0mm and 1.8mm x 1.8mm.
The outer diameter size of the recently announced revolutionary disposable camera is only 1.2mm x 5mm long and it by far the smallest video camera in the world. The camera, which is based on an advanced CMOS image sensor, offers high performance at a low cost and combines superb sensitivity, resolution and dynamic sensitivity. The camera is completely disposable eliminating the need for the very costly sterilization process commonly associated with endoscopic procedures. As such, the camera is designed to be incorporated into disposable endoscopes or used in various diagnostic and surgical medical procedures.
The camera is also suitable for industrial applications and can be integrated into borescope, devices for Remote Visual Inspection (RVI), Non-destructive Testing (NDT), Machine Vision systems etc.
In addition, Medigus' CCD cameras (3.0mm x 3.0mm and 1.8mm x 1.8mm) offer excellent image quanlity and are suitable for both medical and industrial applications.
|
|
High Performance CCD Lens Assemblies :
These CCD/CCTV lens designs offer higher MTF response needed for today"s megapixel cameras. Each lens has an adjustable iris and focus.
|
|
|
monochrome progressive-scan frame-transfer image sensor, the FT50M offers 1k x 1k pixels at 50 frames per second through a single output. The combination of high speed and a high linear dynamic range (67dB @ 40 MHz) makes this device the perfect solution for high-end real-time medical x-ray, scientific and industrial applications. A second output can be used for mirrored and split readout.
|
|
|
|
|
|
The integration of high-quality digital cameras in the LMK system is an attractive possibility of recording luminance images in an easy and quick way, regardless of your measuring computer. For subsequent evaluation, the complete range of functions offered by the LMK LabSoft software can be utilized.
With the LMK mobile camera, the TechnoTeam company possesses substantial know-how and many years of experience in this field of luminance measurement, which is also proved by 140 cameras of this type being sold. The product range has been expanded by the second generation of modern mobile luminance measuring cameras type LMK mobile advanced.
Applications:
- Indoor measurements, for example in offices or at workspaces. Easy glare assessment according UGR standard.
- Fast and easy determination of luminances in outdoor areas. For example the illumination of public squares and places in the urban surrounding (veiling luminaces) or street and traffic way illumination (TI Threshold increment)
- Review the illumination on façades and of street lighting fixtures and other public traffic ways.
|
|
|
|
