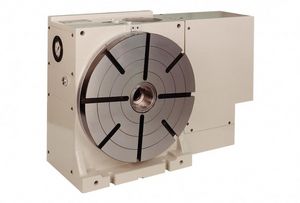

Rotary Table
The rotary table consists of three main parts -slide, bed and rotary clamping plate - while all are of an X-braced casting that was thermally stabilized. The clamping plate lies on cross roller taper bearing resistance that secures high load capacity with minimal passive resistance.
The rotary movement is secured by two pinions. Each of them has its own servomotor with a gearbox. The principle of its operation is often described as a Master-Slave Function.
|
|
The BMGL rotary index linear tables permits any type of division and circular milling:
» Continuously revolving rotary tables, 360,000 positions.
» Load capacity of up to 150 TN.
» Table dimension of up to 4000mm x 5000mm.
» Highly resistant tables with positioning precision.
» Hydrostatic guidance on all the axes
|
|

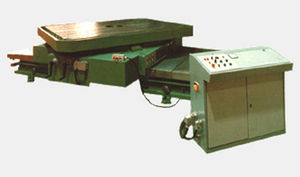

The roto-traversing tables, with load capacity from 25t to over 500t, are equipped with hydrostatic bearing for table support and rotation and with pre-loaded hydrostatic guideways between the bed and the saddle; all our tables are suitable for continuous 5-axis machining.
Table top centering by precision bearing.
Table translation by recirculating ball screw with double preloaded nut or hydrostatic worm screw (V-axis).
Table rotation by means of double preloaded pinion with backlash compensation and crown gear (B-axis).
Checking of angular position by high precision transducer installed directly on the rotation shaft.
Clamping in any position by hydraulic clamping devices.
|
|

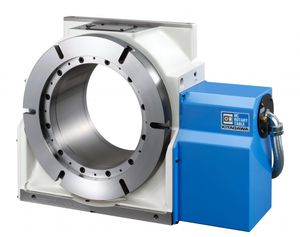

The MRT series up to a size of 1250.
The MRT (Milling Rotary Table) series up to a machine size of 1250 is designed for horizontal and vertical machining centres and used for milling and boring in positioning and continuous operation modes. The design is adapted to the specific purpose of each machine. Adjustable bearings permit different variations in load within a particular series. The product range also features individually constructed pallet changing systems and swivel tables perfectly suited to the particular application.
|
|

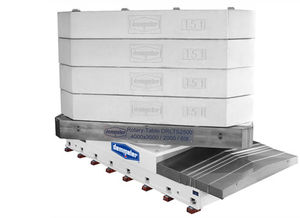

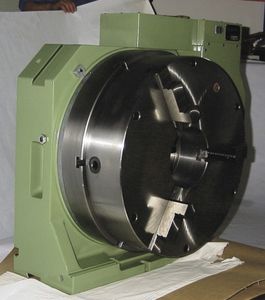

The BPTF rotary index linear tables permit any type of milling and turning operation:
» Lathe bed of up to 4500mm diameter and 102Kw power.
» Continuously revolving rotary tables, 360,000 positions.
» Highly resistant tables with positioning precision.
» Rotation and hydrostatic linear displacement.
» Double tandem drive configuration.
|
|
The BMGL rotary index linear tables permits any type of division and circular milling:
» Continuously revolving rotary tables, 360,000 positions.
» Load capacity of up to 150 TN.
» Table dimension of up to 4000mm x 5000mm.
» Highly resistant tables with positioning precision.
» Hydrostatic guidance on all the axes
|
|
EA-430 focus
* Spindle Ø90/KK8
* Gear train 120:2
* Drive location: left
* Automatic spindle clamping (monitored clamped/unclamped)
* MAVILOR AC motor, optionally FANUC, SIEMENS etc. as per dimension drawing 015-5086a...
* Cabled ready to be plugged in, HARTING
* Pressure regulator with water separator
|
|
EA 420 focus
* Spindle HSK-A63/KK5
* Gear train 60:1
* Drive location: left
* Automatic spindle clamping (monitored clamped/unclamped)
* MAVILOR AC motor, optionally FANUC, SIEMENS etc. as per dimensional drawing 015-5081a...
* Cabled ready to be plugged in, HARTING
* Pressure regulator with water separator
|
|

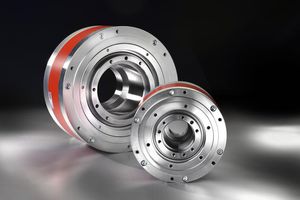

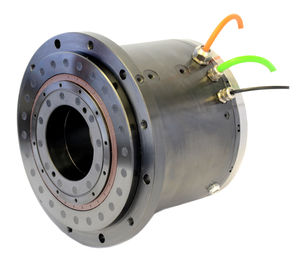

ROTOspeed - torqued rotary tables:
* ultra-fast
* crash improofed (no gear)
* short tilting-times
4 Sizes
* min. centre height 100...180 mm (various heightening options with standardised base plates)
* housing dimensions (HxWxD) of 157x110x113 mm to 312x265x270 mm
2 Technical product lines
* 700: 2 models, direct drive, medium-speed, primary use as a horizontal rotational axis (optionally vertical)
* 800: 2 models, direct drive, high-speed, primary use as a horizontal rotational axis (optionally vertical)
2 Product families
* EA-type rotary tables: with 1 CNC axis and 1 workspindle
* T-type rotary tables: with 2 CNC axes and 1 to 4 swivelling workspindles
1 Technologies
* ROTOspeed: direct drives with torque motors
1 Concept
* A modular design that has been developed continuously for over 30 years
|
|
EA-410 focus
* Spindle HSK-A63/Ø80
* Gear train 45:1
* Drive location: left
* Automatic spindle clamping (monitored clamped/unclamped)
* MAVILOR AC motor, optionally FANUC, SIEMENS etc. as per dimension drawing 015-5026a...
* Cabled ready to be plugged in, HARTING
* Pressure regulator with water separator
|
|
|
|
|
|

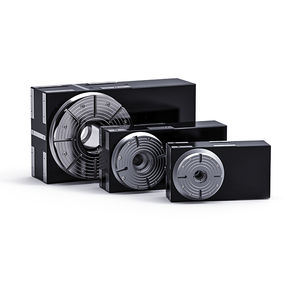

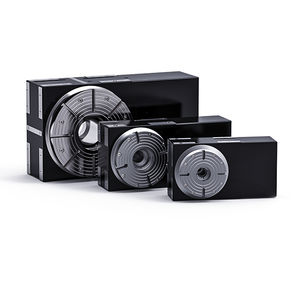

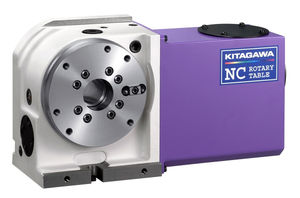

Rotary tables
pL LEHMANN has been a manufacturer of CNC rotary tables for over 30 years:
Characteristics
* Compact
* Highly precise
* Rigid
* Fast
* Modular
10 Sizes
* min. centre height 100...180 mm (various heightening options with standardised base plates)
* housing dimensions (HxWxD) of 157x110x113 mm to 312x265x270 mm
4 Technical product lines
* 100: 2 models, gear technology, primary use as a vertical rotational axis
* 400: 4 models, gear technology, used for both horizontal vertical rotational axes
* 700: 2 models, direct drive, medium-speed, primary use as a horizontal rotational axis (optionally vertical)
* 800: 2 models, direct drive, high-speed, primary use as a horizontal rotational axis (optionally vertical)
3 Product families
* EA-type rotary tables: with 1 CNC axis and 1 workspindle
* M-type rotary tables: with 1 CNC axis and 2 to 4 workspindles
* T-type rotary tables: with 2 CNC axes and 1 to 4 swivelling workspindles
2 Technologies
* ROTOgear: preciGEAR pL high-precision worm drive, or optional powerGEAR duplex worm drive
* ROTOspeed: direct drives with torque motors
1 Concept
* A modular design that has been developed continuously for over 30 years
|
|

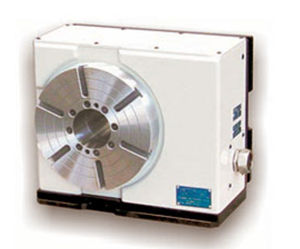

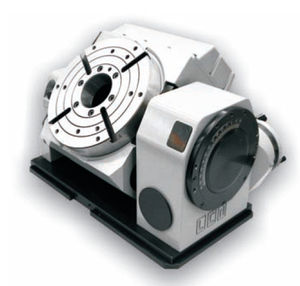

Features
- High quality - low cost design
- Dual lead worm for increased rigidity
- Cross roller bearing for increased rigidity, compact design, low friction and cooler operating temperature
- Disc brake for positive clamping and low distortion
- Superior accuracy
- Horizontal and vertical mounting
- Large through bore
Kit Includes
- Table with motor
- Electrical harness interface
- Cable mounting hardware
|
|
Hardinge manufactures a family of rotary products to increase your productivity.
- 5C, 16C and 3J Rotary Indexing Table Systems
- Direct-Drive A2-4 5C High-Speed Rotary System
- Direct-Drive A2-5 16C High-Torque Rotary System
- Trunnion Products
- All digital Servo Control
- Tailstocks
- Collet Closer Options
- Collets, Expanding Collets, Step Chucks, Chucks and Face Plates
Buy Collets, Collet Chucks, Chucks, Tool Holders and Rotary Products online at www.shophardinge.com
|
|

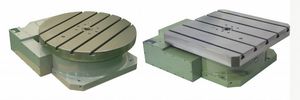

FIBROPLAN® NC indexing tables
with backlash adjustment worm drive or torque motor for use in machine tools for universal positioning and round and multi-axis processes (simultaneous operation). High precision positioning is achieved through the special design with high precision rigid bearings and the use of high resolution measuring systems. Hydraulic clamping in position allows high load forces. Available in various models, option levels and variations multi-axis versions and combinations with sliding tables versions with pallet clamps and pallets custom solutions.
|
|
