Foldable large containers
A large proportion of containers are empty during return transport, which wastes space and increases freight costs. The foldable container, a flexible storage box made from plastic, has been especially developed for long distances and a large number of return trips.
Large foldable containers have the strength required to meet the demands of any supply chain and to achieve ease of access for the end users. As the container can be folded and stacked inside another, it offers considerable cost and space savings. It is an alternative returnable solution to both the rigid containers and one-way cardboard/wooden pallet containers.
Schoeller Arca Systems offers a comprehensive range of foldable pallet containers. Our range of storage boxes is constantly growing to meet the plastic packagaing demands from our customers world wide. Products are available in different sizes and versions for a multitude of applications.
Our storage boxes, due to their plastic and stable design, are ideal for bulk quantities of product, as product is not lost or damaged. They are very sturdy in relation to their weight, and do not collapse during use. User friendly, the storage boxes are 100% recyclable, as they are made entirely from plastic. Plastic solutions such as the large storage boxes are easy to clean, due to their plastic design and smooth surface that prevents soiling. They are stackable, easily folded for return transport, and used for various applications along the supply chain due to their light weight and cleanliness. Simple repair minimises the cost of owning and operating this container.
|
|
Collapsible boxes are pallet boxes whose walls can be folded. This saves a great deal of space if the boxes are stacked empty or if they are returned. The boxes have the same features as ordinary pallet boxes. Various combinations of dimensions and heights are possible. Engels has the biggest range of large-volume collapsible boxes. These can be moved with a forklift truck or pallet truck.
The walls can be both closed and perforated. The boxes are manufactured as standard from frost-proof and foodstuff-proof HDPE and have a load-bearing capacity up to a maximum of 3500 kilos when stacked and a maximum of 1000 kg per box. The boxes can be equipped with many extras like lids, locks, hinges and even indelible imprints.
|
|
Collapsible boxes are pallet boxes whose walls can be folded. This saves a great deal of space if the boxes are stacked empty or if they are returned. The boxes have the same features as ordinary pallet boxes. Various combinations of dimensions and heights are possible. Engels has the biggest range of large-volume collapsible boxes. These can be moved with a forklift truck or pallet truck.
The walls can be both closed and perforated. The boxes are manufactured as standard from frost-proof and foodstuff-proof HDPE and have a load-bearing capacity up to a maximum of 3500 kilos when stacked and a maximum of 1000 kg per box. The boxes can be equipped with many extras like lids, locks, hinges and even indelible imprints.
Aside from our standard combinations in base and height, Engels can manufacture your desired product custom-made. We provided custom-made Smartbox for the collection of neon tubes.
|
|
The RPC-6423X is the middle height RPC in the series of five collapsible containers with identical footprints, but variable heights. All RPCs stack and nest together whether erect or collapsed.
External Base Dimensions:
60.0 cm x 40.0 cm - (23.62” x 15.75”)
Internal Base Dimensions:
57.0 cm x 37.0 cm - (22.44” x 14.57”)
External Height: 24.7 cm - (9.72”)
Internal Height: 23.5 cm - (9.25”)
FEATURES
- Standard 60 cm x 40 cm Euro footprint
- Lift & Lock™ assembly secures four walls into place
- Collapsible walls reduce storage space required for empties
- Ergonomically designed hand holds for maximum comfort
- Sculpted interior maximizes container volume
- Knock-Down™ quick release latches increase productivity
- Ventilated side walls and bottom aid cooling and extend produce shelf life
- Rigid vertical side walls increase functional storage space
- One footprint with multiple heights allows options for efficient packing
|
|

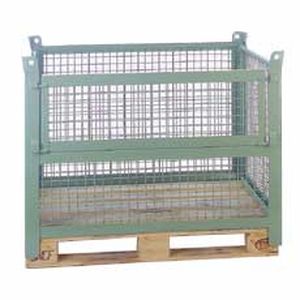

No More Wired Mesh Boxes
must be used when the new foldable pallet boxes called Mega-Pack is introduced.
The Mega-Pack system allows extra heavy loads or high volume loads to be transported in a light-weight yet robust re-usable container. A solid foldable sleeve made of corrugated PP is fitted into the nesting pallet. A solid lid seals the container perfectly. Easy handling and a reduction in volume of up to 80% make good economic sense.
|
|
COMPONENT MONO PLASTIC PARETALE
* MONOMATERIALE
* TO MODULATE
* COLLAPSIBLE
* SOVRAPPONIBILE
* RIUTILIZABILE
* ECOCOMPATIBILE
* WASHABLE
* STERILIZZABILE
* RICICLABILE
* STURDY
* LIGHT
* PERSONALIZZABILE
Product in the measures standard or any other demanded perimetrale measure from the customer allows the realization of box with variable height to multiples of 20 cm
It can be used or on pallet in plastic that on pallet in wood, is supplied of cover and it can be used also for sopraelevare containers in plastic to fixed height.
|
|

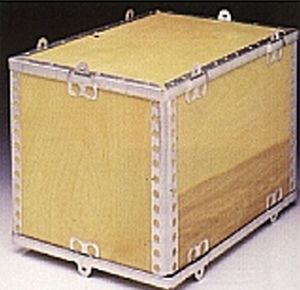

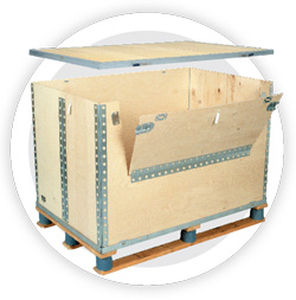

plywood pallet box consisting of:
a pallet with 4 insertion holes
a foldable lining
a cover hood
Solid, the box can transport several hundred kilos without problems.
reusable many times
closes with nailing or strapping
available in plywood thickness of 4, 5, 6 or 10 mm
customisable: print your logo, pictograms
ISPM15 compliant
|
|
Collapsible Bulk Boxes :
Buckhorn offers the industry's most comprehensive line of collapsible bulk containers - we're unmatched in our ability to meet your particular application size and capacity requirements.
- The most comprehensive selection in the industry- including the new Buckhorn XT (Xytec) lines!
- Footprints: 32" x 30", 48" x 40", 48" x 45", 57.25" x 48", 64.5" x 48", and 70" x 48"; multiple heights available.
- Choose Heavy-Duty, Extra-Duty, Standard, and General Purpose to fit your application.
|
|
You save from the first day following purchase with the HyBox®. Transport and handling run faster and more smoothly, so that you save on labour costs. Due to its unique structure and composition you can clean the HyBox® quickly and efficiently in all conditions. This saves considerably on maintenance costs.
Your HyBox® is guaranteed to last for an extra long time. The substantial material and robust structure bear witness to this. Any damage can almost always be restored perfectly.
The HyBox® is also a sensible investment with regard to the environment, since it is fully recyclable. You will even be paid if you allow IPS to process an irreparable HyBox® into reusable material.
|
|
Foldable Case-pallet - folded up Height 365 mm
Dimensions: 1200x1000x847 mm - 920x1120x654 mm
Volume: 673 liters
Completion: Fund & Openwork Parois Full or Fund & Parois
Weight: 40/45 kg
Matter: Virgin or recycled EP matter - PP
Colors: Gray full model - Green openwork Model
Accessories: Side door 782x326 mm - Door Labels - Impression
|
|
Haft - Pallet
Height of 8 Cargo Fold folded = 3 unfolded
- CARGO FOLD 700
- Foldable
- Recyclable
- Maximum Load: 600 Kg
- Maximum Load in Rack: 2 400 Kg
|
|
|
|
|
|

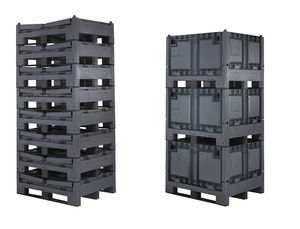

CARGO FOLD 700 - THE FIRST CARGOPALLET WITH COLLAPSIBLE WALLS AND AVAILABLE ON WHEELS
The new Cargo Fold 700 is completely folding. With this system, in case of transport and storage of empty containers, you shall earn 63% in volume: a stack of eight folded Cargo is the same height as three open ones.
Available in polypropylene or polyethylene, both very resilient and sturdy. No metal inserts at all, Cargo Fold is completely recyclable. Feet, runners, hinges and locking mechanism in black colour are immediately visible, and appear very nice with the grey or green walls and base. Every wall can be fitted with card for an immediate identification of the content and can be personalized with the company logo.
A range ready for everything. 32available variants developed for every application. With flat walls for industrial goods, or grilled for fruits and vegetables. With or without folding door. Equipped with 4 feet, or 2 runners, or 3 runners for heavy loads, and today also with the 4 white polyamide wheels.
The version for fruits and vegetables are designed with smooth grilled opening, having an internal radius, to avoid any damage at the most delicate goods. Rounded edges and corners to easy cleaning for the maximum hygiene.
The versions with folding door makes easier the manual loading / unloading operations.
|
|
