TOOL AND MATERIAL CLAMPING SYSTEMS
Description of tool holders and tool carriers
Tool holders are mainly clamps and expandable dollies and also derivatives of clamps.
Tool-carrier ranges are manufactured to meet ISO and HSK standards as well as Schaublin’s standards which have often become the standards for the world. We also produce cylindrical tool-carriers, Morse tapers and specific adaptations of particular machines or applications.
Schaublin also develops, on request, special applications that require clamping abilities tailored to the customer’s requirements.
Operation and uses
Clamps are used to grip the material, parts in rotation and counter-rotation or tool shanks. These clamps are of pull or thrust type where the force on the taper closes the clamp onto the part to be gripped.
Clamps are generally steel, sometimes brass or with inserts of other materials.
|
|
Hardinge is the world's largest manufacturer of spindle tooling. With over a century of experience, we are your trusted partner for all workholding applications. Hardinge collets are renowned for their accuracy and durability with the best total indicator reading (TIR) in the industry. Let Hardinge solve your workholding problems such as hard-to-grip shapes and surfaces, part length control, thin-wall turning, etc.
Hardinge manufactures and stocks collets for ALL brands of lathes, automatic screw machines, rotary transfer machines and turret lathes in various sizes and shapes. We also specialize in custom manufacturing.
Buy Collets, Collet Chucks, Chucks, Tool Holders and Rotary Products online at www.shophardinge.com
|
|
|
|
|
|
Hardinge continues to expand their line of European-style collets to meet the increased demand from multi-spindle machine owners around the world. Hardinge will manufacture and inventory solid collets, master collets & pads, solid feed fingers and master feed fingers & pads. They will fully support Euroturn, Gildemeister, Index and Schütte machines with 24-hour shipping of standard fractional and whole metric sizes. Decimal sizes and products for other brands of machines will be available within a 5 to 7 day delivery. Hardinge will offer a semi-finished blank program for pickoff burring collets and special-shape collets for fast turnaround. “Hardinge will strive to be the supplier of choice for collets, feed fingers and pickoff collets for the automatic multi-spindle machines,” states Cal Macomber, Director of Sales and Marketing for Hardinge Workholding Group.
Hardinge stocks spindle tooling for automatics, turret lathes and rotary transfer machines. Buy collets, feed fingers, pads and quick-change collet systems online at www.shophardinge.com.
|
|
|
|
|
|

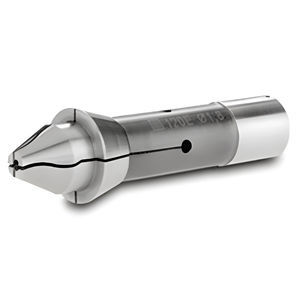

Hardinge Swiss-type Collets are ground to precise size and TIR to meet precision machining requirements with a standard accuracy that rivals the industry! Every collet and guide bushing is inspected on a Hardinge Super-Precision (.000015" TIR) headstock before reaching the stockroom.
Hardinge manufactures to Swiss quality for all brands of Swiss-style machines and cam-operated lathes. Extended-Nose Collets feature added nose length, flat or tapered, for doing pick-off work or to compensate for tooling interference. An Emergency Collet can be machined to the desired bore size. Emergencies are also available in extended-nose for added nose length.

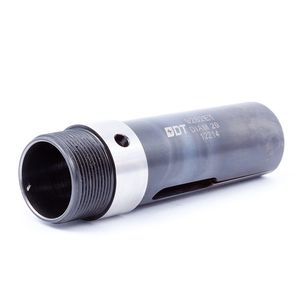

Hardinge round Swiss Guide Bushings are carbide-lined to keep the stock clean and unmarked. Specials are available in hardened steel, Meehanite lining, angular & zig-zag slotted and extruded shapes. Escomatic counter collets and guide bushings can be manufactured to order. Hardinge also carries bar loader collets.
Buy Collets, Collet Chucks, Chucks, Tool Holders and Rotary Products online at www.shophardinge.com
|
|
|

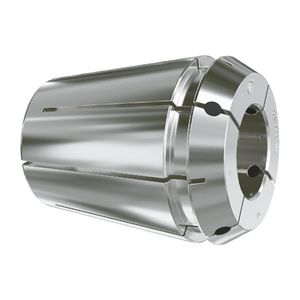

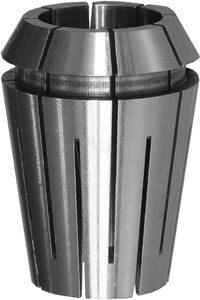

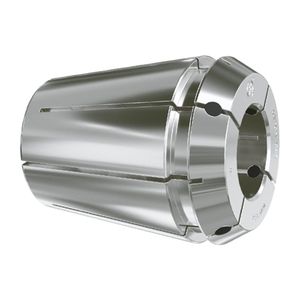

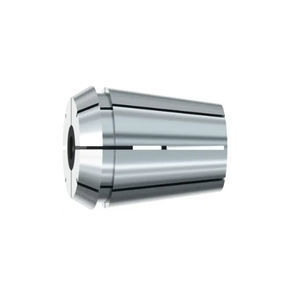

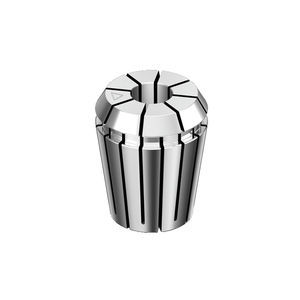

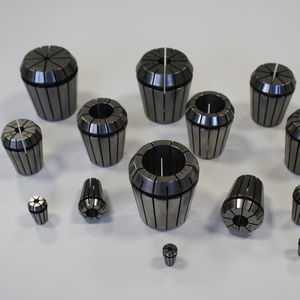

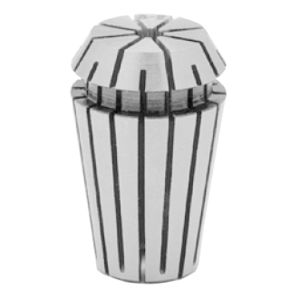

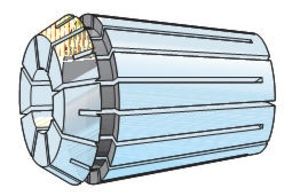

Quick-change ER collets for holding carbide tools or HSS - all popular styles including inch, metric sizes, coolant collets, quick-change tap, rigid tap, and steel sealed ER collets for coolant up to 2,000 P.S.I.
|
|
Multisize Collets For KC, PC And DC Chucks
Each multisize collet has a gripping range of 3.2mm enabling metric or imperial sizes to be gripped in the same collet. Six full length blades give positive and parallel grip on round or hexagonal bar. Collets may be fitted with end stops or ejectors for short components. Serrated blade collets are available for use on black bar for applications which require extra grip. Serrated collets are for use in power chucks only.
Range 1.6mm to 63.5mm
|
|

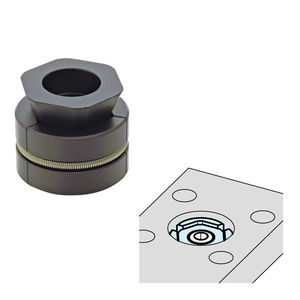

The base on machinetables, in dividers and spindles
Connection to other EROWA tooling systems
Workpiece holders without collet functionality
Blank collets for specific adaption
Application accessories
|
|
ITW Workholding provides a ride range of collet chucks to suit your turning / milling / or grinding needs. Used in both rotating and non-rotating applications, we can design and build a collet chuck to suit your process.
IDEAL FOR Transmission, Gear Box and Gear Manufacturers.
STANDARD FEATURES:
* High RPM
* Stock Standards
* Sealed Collet Design
* Multiple machine mounts available.
* Easily modified for special Applications.
* Modular design allows interchangeability.
* Fixed Endwise Location
* High Gripping Force
* Pull Back Design
DESCRIPTION:
* Sealed Leaf Style Collet
* Drawbar/tube Actuated
* Conical Taper Mechanism
IDEAL FOR:
* 2nd & 3rd Operation
* Machining Center Applications
* Pallet Fixtures
* Tombstones
* Robot End effectors
|
|
Every expanding mandrel or collet chuck supplied by Chevin can have the following features:
* Single taper sleeves
* Positive clamping and release
* High levels of concentricity – to 0.0002" T.I.R
* Controlled datums
* Sleeve interchangeability
* Generous expansion capacities
All of the above permit quick and secure clamping creating versatility and ease of use.
|
|
|
|
|
|

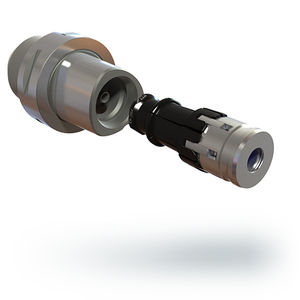

Hardinge FlexC™ Collet Systems are flexible, sealed collet heads that interchange in seconds and are available with spindle mounts for all brands of CNC lathes.
Pull-back thru-hole, pull-back stationary stop and push-to-close dead-length® styles are available for main and sub-spindle CNC lathe applications. Hardinge FlexC collet heads are fully interchangeable with competitor’s models. Hardinge guarantees accuracy within .0004" (.010mm) TIR for the collet system models A and D, and .0008" (.020mm) TIR for style DL.
The changeover concept is simple using a manual wrench to compress the collet for quick removal or replacement in seconds. A typical FlexC collet head has a gripping range of .020" (.5mm) above and below its nominal size to allow variation in bar stock without having to change the collet. Parallel clamping minimizes stock "push back" and requires less draw bar force to achieve the same gripping capability as conventional collets.
Emergency collets are reusable. Standard hardened and ground collets are stocked in round smooth, round serrated and hex shape. Square sizes are made to order. Special applications including stepped holes, special shapes, off-center, etc. can be custom-made from stock blanks.
Purchase FlexC collet systems online at www.shophardinge.com
|
|
|
|
|
|
HSK Tooling Types Offered:
• Four types of MEGA Chuck series optimises high speed and precise cutting with drills and endmills.
• The Fullcut Mill, the world's first indexable insert endmill, offers both accuracy and toughness.
• KAB tool shanks, the original and #1 modular boring system in the world!
Premium Material Selection
Since HSK is a hollow taper shank, the material has a critical role for optimum performance. BIG uses carefully selected high grade alloy steels. Particularly, BIG uses die steel materials for HSK 40 and smaller where the cross section of shank taper is very thin.
Important Tool Retention Feature
Internal clamping of HSK tools is defined by the location of highly concentrated forces from the machine tool. Accuracy and position of this form will affect the righdity, repeatability, and precision of tool holders. BIG provides finish machining of this area after heat treatment.
Drive Key Form
HSK Shanks according to Form A are designed to carry out torque transmission by the round shaped key-way at the end of the taper. Because of the importance of this round shaped geometry, BIG provides finishing of this feature after heat treatment.
Pre-Balanced Design
Since HSK Form A has non-symmetric keyways, it is not balanced. BIG Form A holders are pre-balanced near the tool change V-Groove recommended by ISO standard and can therefore be used for high speed applications.
Hole For Manual Clamping
BIG HSK Form A holders have a manual clamping hole as a standard and can therefore be used in place of HSK Form C which is manually mounted in spindles.
|
|
- Every collet chuck comes with our exclusive "Power Coat" nut that holds up to 75% tighter than standard nuts. (greater holding force improves T.I.R., rigidity, and reduces tool slippage to extend collet life)
- Tolerance measured from taper O.D. to collet pocket I.D. is only 0.0001" (our competitors average 0.0002")
- Every collet chuck is lab tested and delivered with a full report documenting T.I.R., balance, taper, etc.
- Our standard precision collets feature T.I.R. of only 0.0004" (our competitors average 0.0006" - you gain 20% tool life)
- Each holder is factory balanced to 18,000 RPM @ G2.5 (great balance reduces vibration at all RPM's - saving toolife, spindle bearings, and improves surface finish)
- Each taper is precision ground to a tolerance of AT3 or better!
- All products are backed by our 100% satisfaction guarantee.
Advantages:
- Flexibility (fits a wide range of tool shanks)
- Accurate (when maintained to specifications)
- Fast and easy tool changes
|
|
|
|
|
|
To achieve best results with centerdrill we recommend the following basic equipment:
1x collet chuck with cooling ring, clamping nut and spanners.
1x centerdrill collet, optional Ø 6, Ø 8, ..., Ø 20mm
1x 250 gr. parting paste for flow punch forming
1x 0,5 l lubricant for thread forming
Due to the extreme thermal fluctuation and the radial load, proper clamping of the workpart and the flow punch former is critical. The warmth generated during the process must not be allowed to enter the spindle but instead must be deflected or cooled. Customary three-part chucks can cause breakage of the flow punch former if it is not clamped centrally!
For this reason a collet chuck with cooling ring was developed especially for flow punch forming with centerdrill, with which the heat can be dissipated ideally and a secure clamping can be ensured. For optimal concentricity and secure clamping, a special collet is used to locate the centerdrill.
Parting Paste
Moistening the centerdrill with our highly heat-resistant parting paste, matched to the respective material to be processed, is important for the service life of the centerdrill. The paste can be applied manually or with a spray device.
Lubrication during thread forming
The use of our lubricant is highly recommended during thread forming. It should be applied before each operation on the center- tap. Our lubricant is ecologically tested according to DIN.
For further details and more information, please visit our website.
|
|
|
|
|
|
HAIMER Collet chucks in different versions:
HSK, DIN 69871, JIS (MAS403)
SK 40 form ADB DIN 69871
Form ADB means: central coolant supply and coolant channels through the flange which can be sealed again
The Power Collet Chuck is the collet chuck for the highest machining capacity in high-speed manufacturing. The optimized design with better construction combines high rigidity with vibration dampening features, giving more protection to machines, spindles and tools. The universal Power Collet Chuck is a unique high performance chuck that can also be used with standard collets.
– High runout accuracy: 0.005 mm at 3 x D with Haimer Power Collets
– Also for standard collets ER according to ISO 15488 (formerly DIN 6499)
– High rigidity
– Smoother running thanks to vibration absorbing geometry, therefore better surface quality and protection of tools, spindles and machines
– Increased machining capacity due to higher spindle speed, higher feed and larger cutting depth
– Shorter processing times
– Higher machining accuracy
– High clamping force
– Equally suited to high-speed manufacturing and heavy milling
|
|
KC Key-Operated Collet Chucks
This is the simplest and most accurate of the chucks in the range. The chuck mounting and collet cone are made in one piece which ensures maximum accuracy. The operating key provides sensitive control of the gripping force and there is also provision for tommy bar operation.
Maximum capacities 38.1, 50.8, 63.5mm.
|
|
Need collet capability on your jaw chuck lathe? Hardinge HCAC Collet Chucks offer collet capability for higher precision and accuracy when you need it.
Increase productivity, capability and control when compared to 3-Jaw chucks:
- Faster job changeover using collets
- Higher spindle speeds for reduced cycle times
- Larger work envelope
- Achieve higher precision
- Improved concentricity for optimum part roundness
- Exact part length control
- Interchangeable Style "S" master pads accommodate a wide range of workpiece sizes and configurations
Buy Collets, Collet Chucks, Chucks, Tool Holders and Rotary Products online at www.shophardinge.com
|
|
|
We manufacture millions of excellent quality geared and rapid-action chucks, which is only possible using the most modern manufacturing and assembly technology. As links between the machine and the clamping tool, we can offer tapered mandrels, reducing sleeves, extension sleeves, drill and reamer extensions, short clamping chucks, adjustable adapters and split taper sockets. Quick, robust and accurate, Röhm offers NC tools such as draw-in collet chucks, precision short drill chucks, hydraulic expanding chucks and the induction shrink technology for clamping HM and HSS tool shafts.
|
|
|
Collet tensioning spindles take on important tasks under advanced conditions in the fields of fine machining, turning, grinding, hobbing and checking.
|
|

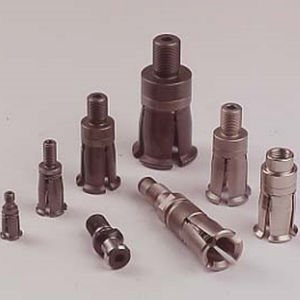

EXPANDING MANDRELS
Features and Advantages
• Ability to accommodate a very generous component bore tolerance
whilst maintaining concentricity.
• Quick and secure clamping.
• Facility to link to existing machine mechanisms.
• Consolidation of components against backstops.
• Positive clamping and release mechanism.
• Single tapers to ensure maximum support, where feasible.
• Interchangeable sleeves to cover a range of component sizes.
• Controlled datums.
Opportunity to Achieve:
• Higher machining precision(concentricity to 0.005 mm TIR)
• Lower production costs.
• Increased output.
• Reduction in operational sequences.
• Reduction in loading, unloading and ejection times.
• Reduction in reject rates.
|
|
The N.A. Woodworth Tork-Lok collet line offers flexibility and affordability, with much of the product available from stock. The Tork-Lok Arbor locates straight and tapered holes on ture center within .0005 T.I.R. These arbors feature patented inclined flats that provide full arbor / collet contact throughout the range of operation for highest accuracy and torque transmission. Features include:
- Flat surfaces are in constant contact on both expansion and contraction, providing higher accuracy.
- Precision mated flats provide for greater torque transmission .
- Built in safety stops control both expansion and contractions, thereby reducing collet breakage
- Metal to metal contact excludes foreign matter which in turn reduces wear and assures accuracy
- Preload features assures easy part removal
|
|
|
|
|
|
EXPANDING MANDRELS AND COLLET CHUCKS
Expanding mandrels are the ideal solution to many workholding problems. By holding parts on most of the datum bore (or outside diameter in the case of a collet chuck) the clamping forces are evenly distributed, reducing distortions during part manufacture.
Mandrels also provide a superior method of holding parts which are high volume, have short cycle times or require the highest levels of concentricity.
Chevin manufacture expanding mandrels tailored to your exact specifications. Many different mounting styles are available, including: spindle nose, between centers, Morse taper and faceplate. Different actuation methods can be used, such as drawbar, cantilever nut and front nut.
Every expanding mandrel or collet chuck supplied by Chevin can have the following features:
* Single taper sleeves
* Positive clamping and release
* High levels of concentricity – to 0.0002" T.I.R
* Controlled datums
* Sleeve interchangeability
* Generous expansion capacities
All of the above permit quick and secure clamping creating versatility and ease of use.
|
|
Double E Safety Chucks hold shafts safely in place for winding. Some of the safety chuck benefits include:
Jaw design compensates for shaft deflection; safety chuck does not bind.
Sliding action sharply reduces possibility of finger jamming.
Patented push button ensures roll security and operator safety.
Patented circular engagement allows high torque while reducing noise and vibration.
Removable jaws extend chuck life; easy and inexpensive to replace.
Easy cross-reference for replacing existing safety chucks.
|
|
|
We can provide any kind of soft jaws and special jaws on demand and are authorized BISON dealers to provide any BISON product you might need.
|
|
Jaws for ALL brands of chucks
Hardinge Sure-Grip Power Chucks are lever-operated, counter-centrifugal and dynamically balanced. This enables you to continually operate your CNC lathe at higher spindle speeds and feed rates with less concern for loss of jaw force normally associated with wedge-style chucks.
Sure-Grip Power Chucks mount directly to ANSI A2-4, A2-5, A2-6 and A2-8 spindles, eliminating the added tolerance buildup when using special adapter plates. Sure-Grip Power Chucks come standard with 1.5mm x 60 serrated master jaws designed to ISO specifications. Quick-change chucks available.
Hardinge manufactures a complete line of jaws for all brands of chucks.
Buy Collets, Collet Chucks, Chucks, Tool Holders and Rotary Products online at www.shophardinge.com
|
|
KOMET® Adapters
As the interface between the tool and the machine, adapters have a great influence on the result and the economy of the complete machining process. KOMET® tool adapters offer a comprehensive range for every requirement.
Your PLUS:
- Maximum tool changing accuracies
- Perfect static and high radial rigidities
- Ideal dimensions
- Low weights
- Productivity improvement
- ABS® modularity
KOMET® Adapter range:
- HSK adapters
- Steep-angle taper adapters, SK
- KOMET ABS® adapters
- Flange adapters
- VDI adapters
- Hydro-expansion clamping chucks
- KOMET KomLoc®
- THERMOGRIP® shrink-fit chucks
|
|
NC-Drill ChuckF
1. It is available in capacity of 1 to 13 mm / 3 to 16 mm, with BT shank (MAS 403); SK shank (DIN-69871), and HSK63 shank (DIN 69893).
2. The integral shank makes this chuck more suited to CNC machine applications because overall length is shorter than that of normal keyless drill chuck mounted with an arbor.
3. The Integral shank provides greater accuracy and eliminates the possibility of the chuck slipping on an arbor.
4. Balanced.
|
|
|
|
