Color is one of the essential features of a product that has to be “just right“.
A reliable method of checking and controlling the color of a
product is needed. But when is a color “just right“ and who is the judge? Ultimately, it is the consumer or product user who passes judgment on the quality of a color.
Human color perception determines whether the color is right or not. Given this fact, product manufacturers have been eager to find a way to accurately simulate the “visual impression“ of the human eye in industrial color control.
The A. KRÜSS Optronic perceptive color sensor CS8 “recognizes“
color just like humans do, which means it possesses the same spectral sensitivity.
Thus the sensor “perceives“ different shades of color in the same manner as the human eye. This feature is what sets the KCS8 apart from other color sensor systems, as the KCS8 can mimic the human eye when determining the right color.
|
|
Verify the presence of targets that can be differentiated by color, faster and with greater control. A ColorMax-1000™ color sensor lets your machine see up to 15 colors and RGB intensity. What's more, innovative technology improves sensitivity and speed, so you can maximize the pace of manufacturing.
Recognizes 15 colors. Use fewer sensors. No need to reprogram when you change setups.
Traditional color sensors output only a "match/no match" condition, but the ColorMax™-1000 also outputs the analog values for each RGB reading. Now machines and operators can see not just which color, but how much color - enabling tighter control.
2 to 5 times faster sample speed - for fast manufacturing.
The only color sensor in an M30 package.
Highest resolution and repeatability specs in the industry.
Sophisticated algorithms ignore luster
PC-based configuration; lock out unauthorized changes
|
|
The color sensors of SI-COLO Series operate according to the 3-color-range principle, with a white-light LED as a light source.
Except of the sensors of SI-COLO1 series, the color sensors can be parameterized under Windows® through the serial RS232 interface.
|
|
|
|
|
|
SPECTRO-3 Series - Color Sensors "True Color"
Human vision and recognition - but a thousand times faster
With the SPECTRO-3 series there now is a family of color sensors that has been specifically designed for "true-color" detection ("human color reception") and high switching frequency. The sensors can be operated both in AC and in DC mode, with integrated or external light source. With the included SPECTRO3-Scope software illumination can also be turned off with a simple mouse-click, which then also allows the color and brightness inspection of self-luminous objects such as LEDs, automobile tail lights, halogen lamps, or fluorescent lamps. Up to 31 colors can be provided through the 5 digital outputs, the maximum switching frequency is 30 kHz.
Apart from a super-bright white-light source, a high-performance UV light source also is available, which allows a color and brightness differentiation of fluorescent colors without any problems. Different optical frontends make it possible to implement operating distances of almost 0 mm up to 500 mm, with detection areas of Ø 0.5 mm to approx. Ø 100 mm. The use of an optical fibre version allows applications in Ex areas.
In combination with a reflected-light optical fiber and a neutral-absorber attachment unit the SPECTRO-3-FIO (version for use with fiber optics) makes it possible to perform a color inspection of different self-luminous objects.
|
|
SPECTRO-3-UV Series - Luminescence color sensors
High-speed color detection of fluorescent objects
In addition to brightness differentiation, the luminescence color sensors of the SPECTRO-3-UV series also perform color differentiation. Teaching of the fluorescent objects can be performed either with the SPECTRO3-Scope software, with the TEACH button that is integrated at the sensor, or through digital input INØ. The 40 kHz scanning frequency and the 30 kHz switching frequency also guarantee a reliable detection and recognition of fast-moving fluorescent marks.
|
|
The CMYX combines small spot size and fast response to achieve high-speed mark detection capable of detecting standard one-track PHARMA-CODE (0.5mm thin bar width) at 2000ft/min. The CMYX is perfect for printing or packaging applications that require the ability to differentiate between background and color marks during high-speed operation. The CMYX provides the accuracy and precision for reliable process control.
High color contrast sensitivity and resolution.
High detection speed, 25-microsecond discrete output response.
Broad-spectrum white LED light source allows detection of all colors.
Calibration feature allows manual user sensitivity adjustment.
Remote teach input allows for automatic adjustment to background.
Unique numerical display indicates measured levels making process setup easy.
Circular spot allows for any orientation of sensor to marks.
|
|
MTCSiCS in LCC8 packaging
JENCOLOUR product family / True Colour Sensoren
The MTCS true colour sensor, based on the standard spectral value function CIE 1931 (DIN5033), makes it possible to measure colours in the three-range method, in accordance with DIN 5033.
- Detection/ measurement of colours more accurately and much faster than human eye
- low dark current
- Signal input frequencies >100 kHz
- RoHS compliant
- Values display as XYZ
- Calibration in system L*a*b
Typical Applications:
- Conceptual formulation from the colour and white metrics
- Low-cost colour measurement
- Colorimeter (measurement and calibration e.g. display screen)
- Illuminate regulation (video projector and RPTV)
- LED test
- Control of coloured light sources
|
|
|
|
|
|
FT 50C – A new ray of light in colour detection
With the FT 50 C colour sensor, SensoPart has set another milestone in the technical development of colour sensor technology: the first colour sensor with only one light source in the small standard size, which guarantees the precise detection of objects in the whole working area. And which shows many other technical features that make it capable of a top performance as a standard. The exceptional quality of the FT 50 C is its operational principle with only one light source.The LED emits visible white light. At a large distance range, objects are detected by a patented optical system independently of their shape. The colour to be detected is learned simply by teach-in and the FT 50 C is at once ready for use. It compares the target object with the taught-in reference colour and if they match, it sets one of the three available switching outputs.
Field-proven applications
The FT 50 colour sensor simplifies and speeds up sorting and control tasks within a broad spectrum of automated working processes. Whether it is the distinction of the degrees of browning of cookies in the food industry, the positioning of register marks on packings in the pharmaceutic industry or any other detection task: the FT 50 C is the right sensor whenever all the others have had enough of it.
FT 50 C- 3 Colour sensor
Generates a rectangular light spot of 1 mm by 5 mm. Designed for the detection of oblong objects.Typical applications: checking the presence and correct order of stranded conductors in a flat cable.
|
|
|
|
|
|
Color is one of the last qualities still being checked by human eyes in most applications. Color sensors such as the CS24D are changing this. Electronic color sensors are increasingly being used in automated applications to reduce automation errors and improve quality at production line speeds.
Delta's color sensors and sorters are based on our patented pulsed LED technology and offer the benefits of rugged, long-life, solid-state lighting with a wide range of colors from blue to near-infrared.
While most color sensors use a single white LED and filtered detectors, Delta's color sensors are different. They use multiple ultra-high intensity LEDs for smooth, bright lighting and unfiltered large-area precision photodiodes for better signal-to-noise ratio. And the resulting large sensing areas provide superior performance on textured materials.
Be confident the color you want is traveling down your production line. Delta's color sensors provide superior performance in a wide variety of applications, even with textured and other difficult materials.
|
|
LC CLARYS: The High Performance Colour sensor.
A simple solution for the most complex industrial applications.
HIGH PERFORMANCE !!!
LC CLARYS is the 1st colour sensor really able to solve the complex applications in the constraints of industry:
- Detection of even indistinguishable extremely fine nuances
- Detection of dark colours (plastic...)
- Stability of the recognition of colour, even in the event of variation of distance thanks to dedicated optics
SIMPLE AND INTUITIVE SETTING !!!
The use of simple multi-lingual menus makes it possible to exploit the performances of detection without difficulties.
SOLUTION ADAPTED TO ALL THE APPLICATIONS !!!
- Amplifier 5 or 26 colours
- 4 High Performance fibres with great depth of field
- Compatible with standard fibres.
|
|
The CIELab Color Sensor PR0094 is a System with integrated high power lightsource.
Technical data:
- test parameters delta L and delta ab
- 31 different products teaching to the sensor
- Resolution 13 bit
- Dynamic >100 dB
- power supply 24V DC +/- 5%
- Serial and parallel interface useable in parallel
- Cycle time approx. 25ms for 1 product
|
|
"New Technic" white light LED transmitter with no limit in life time and colour resolution
4 cannels included
1 ms response time
"Teach In" function
9 bit resolution
LED illumination (RGB)
fibre optics adaption
2-50 mm sensing distance
4 outputs
Option: RS 232 interface
Option: on request: 12 Channels, 0,5ms response time,
RS 232 interface (WLCS-M-12)
|
|
We offer a variety of sensors and modules for LCD color monitoring and simple color detection. These photosensors are color sensors using a 3-element (or 2-element) photodiode with color sensitivity assembled in one package. Modules for TFT-LCD monitor and evaluation circuits are also provided.
|
|
FP11PCT80 & FP04PCT80
Those color sensor are capable of evaluating up to three colours simultaneously. A small spot and a large working range are made possible thanks to single-lens optics. All sensor settings can be selected by means of Teach-In, as well as via the RS-232 interface. Values generated by the sensor can be read out via the interface or digital switching outputs. The sensor has 3 PNP switching outputs and supplies RGB color values via the interface.
FD01
The FD01 is part of a modular color sensor system, which can be adapted to any application with the help of glass fiber optic cabel.
|
|
| ... products without technical information |
| |
|
|
|
|
The color sensors enable shades of color and shades of gray which lie close to one another to be differentiated and among other things, are suitable for monitoring the shade color in connection with installed parts, for checking the color of lacquered components or for filtering out faulty parts and/or for sorting materials on the basis of color markings. The parameterization of the color sensors takes place using the RS232 in a Windows environment, wherein 31 colors can be tought-in and stored via a PC, SPS or diffuse reflection sensors. With a view to respective applications, different versions are available.
As such, devices with diffuse illumination units are suited for applications where glare effects on surfaces have to be reduced. In turn, variants with focused light sources are recommended for matt and dark surfaces. In addition, the special sensors can be fitted with a polarizing filter for inspecting high-gloss surfaces or for transmitted light applications used to differentiate color shades in panes of glass. Even special color detectors which simulate the sensitivity of the human eye are available. Apart from the special color detectors, a light source (D65) is used here which is adapted to the daylight. With this, it is possible to suppress the metamerism effect (known from the field of optics, as generating the same color impression amongst different spectra of an illuminant to the human eye). These so-called ‘true color’ systems have been specially designed, in order to securely differentiate similar shades of color. So-called ‘spotlight sensors’ can be employed in these type of applications if a small light spot is necessary for checking components.
|
|
|
|
|
|
The World's Smallest CCD Cameras for Endoscopy.
1.8mm and 3mm Miniature CCD Video Cameras.
Medigus offers miniature color CCD video cameras for endoscopy in 3mm x 3mm and 1.8mm x 1.8mm formats. Both cameras provide excellent image quality. The 1.8mm camera is the smallest CCD video camera in the world.
The cameras are ready-for-integration into endoscopes and are suitable as visualization devices for companies that wish to develop their own flexible and rigid video endoscopes. The uniquely designed patent-protected camera head allows for decreased endoscope diameters for visualizing hard-to-access locations that are otherwise not visible.
The cameras are the proprietary technology of Medigus. All cameras and optics are assembled at Medigus facilities, which were designed specifically for this purpose. State-of-the-art optical testing equipment is utilized throughout the manufacturing process of the cameras.
The cameras are used in existing endoscopes manufactured by many large and small scale companies, including amongts others major medical device companies. In addition, Medigus offers endoscope design and manufacturing services, using its cameras as well as other proprietary technologies.
|
|
MTCSiCT in TO39 packaging, clear plastics
JENCOLOUR product family / True Colour sensors
The MTCS true colour sensor, based on the standard spectral value function CIE 1931 (DIN5033), makes it possible to measure colours in the three-range method, in accordance with DIN 5033.
- Detection/ measurement of colours more accurately and much faster than human eye
- low dark current
- Signal input frequencies >100 kHz
- RoHS compliant
- Values display as XYZ
- Calibration in system L*a*b
Typical Applications:
- Conceptual formulation from the colour and white metrics
- Low-cost colour measurement
- Colorimeter (measurement and calibration e.g. display screen)
- Illuminate regulation (video projector and RPTV)
- LED test
- Control of coloured light sources
|
|
The 1/10" sensor is an interline CCD solid state image sensor suitable for PAL ultra-small color cameras. Ye, Cy, Mg and G complementary color mosaic filters are used.
At the same time, high sensibility and low dark current are achieved through the adoption of Super HAD CCD technology. This chip features a field period readout system and an electronic shutter with variable charge-storage time.
Recommended range of exit pupil distance: -4mm to -10mm.
|
|
High Powered RGB Digital Fiberoptic Sensor
• SUPER HIGH POWER RGB sensor Industry's best color differentiation
• High resolution amplifier for triple 16-bit calculation
• Dual digital display & Direct access
• New UV sensor head for fluorescent Detection
• New Luster Detection sensor head
• Three detection modes for every target [Super I / C' / C+I]
Digital, 7 light color combinations RGB fiberoptic sensor with 16-bit accuracy. Including a new UV sensor head, luster detection head, 2-color digital display and unique color element detection. Detects targets conventional sensors cannot.
|
|
|
|
|
|

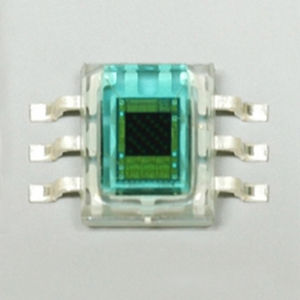

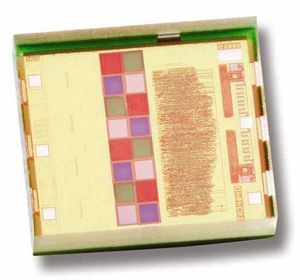

The TCS3404 is a digital color light sensor designed to accurately derive the color chromaticity and illuminance (intensity) of ambient light and provide a digital output with 16-bits of resolution.. The device includes an 8x2 arry of filtered photodiodes, analog-to-digital conveters, and control functions on a single monolithic CMOS integrated circuit. Of the 16 photodiodes, 4 have red filters, 4 have green filters, 4 have blue filters, and 4 have no filter. With the advanced patent pending in-package trim capability, device-to-device and sytem-to-system tolerance can be minimized allowing very precise repeatability to be attained.
* Internal Filter Eliminates Signal Fluctuation Due to AC Lighting Flicker--No External Capacitor Required
* In-Package Trim Provides an Easy and Accurate Means to Achieve System-to-System Repeatability
* 16-Bit Digital Output with 100 KHz SMBus
* Programmable Analog Gain and Integration Time Supporting 1,000,000-to-1 Dynamic Range
* SYNC Input Synchronizes Integration Cycle to Modulated Light Sources
* Operating Temperature Range of -40 C to 85 C
* Operating Voltage of 2.7 V to 3.6 V
|
|
|
Integrated Color LTV Sensors : The integrated color LTV sensors combine a photodiode, color filter, and transimpedance amplifier on a single die. The output is then fed to an ADC for digital processing. TAOS’ solution requires fewer components, saves board space and reduces assembly cost over a discrete photodiode approach. TAOS’ solution also simplifies design and board layout because sensitive analog circuitry is integrated on-chip, which also improves the noise immunity. The Color LTV devices are ideal for applications such as colorimetry, printing process control, display color correction, and selectively ambient light detection or rejection.
|
|
|
The CA-210 LCD Color Analyzer is Konica Minolta's "next generation" color analyzer designed to measure color luminance, gamma characteristic and flicker on various types of Flat Panel Displays including LCD and EL. Faster than previous generation analyzers, the CA-210's measurement of luminance and chromaticity at up to 20 times/second makes it ideal in high production environments. (AND it can simultaneously measure up to five points on the screen. ) The CA-210's special optical design limits acceptance angle to within ± 2.5 degrees, thus eliminating the influence of the LCD's viewing angle dependency. Matrix calibration allows for high measurement of LCD displays that provide colors through additive mixing of three monochrome colors (R,G,B). A new low luminance capability enables measurements as low as 0.1cd/m2
|
|
For more than 10 years, the Konica Minolta CRT Colour Analyzer CA-100 has set the standards for white balancing and colour control on CRT monitors for computer and broadcast displays.
With the new CRT COLOUR ANALYZER CA-100Plus, Konica Minolta presents a new reference instrument with highly improved functions and accuracy to confirm its leadership in display measurement technology, while maintaining the ease of use, functionality and compatibility to the famous CA-100.
Measurement speed has been improved as well as the measuring range, which has been expanded for the low luminance range.
The CA-100Plus is characterised by its ease of use. The lightweight receptor head is simply held in front of the television or monitor and the measurement values appear immediately on the large display. A rubber lip on the receptor head minimises the effects of ambient light.
|
|
|
COLIBRI™ – a unique modular colour-matching product line that helps users to boost both productivity and efficiency and thus reduce costs - with an unequalled 16 flux algorithm, heritage from more then 30 years experience in colour matching, covers even most complex pigment applications.
|
|
|
|
