A compactPCI (cPCI) interface card is characterized by metric 3U or 6U Eurocard format, which allows it to be used as part of an industrial chassis assemblage adhering to the same norm.
These cards use PCI standards for data exchange with the bus. The norms define geometry and limitations concerning their use in backpane assemblies, such as in a VME chassis. Up to eight cards can be grouped, more with the addition of bridges.
Such devices are usually intended for industrial use. The 3U format (100 x 220) works with a 32-bit bus. Unused backpane connections are used for I/O or to shift to a 64-bit bus. The 6U cards are always 64-bit. Operating voltage ranges from 3.3 to 5 V, and hot swapping is possible.
Choice will depend on the other cards used in the assemblage and operating voltage.
 |
  |
CANopen - CompactPCI interface card CPCI-CAN/400-4 esd
CAN interfaces according to ISO 11898-2 with electrical isolation Capable of 100% CAN bus load Enhanced diagnostics...
 |
 |
DeviceNet - CompactPCI interface card 125 - 500 kBaud | CIF 80-DNM Hilscher
If Master or Slave, Fieldbus with its various standards is a well established technology in the PC based automation and will keep on competing with the emerging Real-Time-Ethernet systems for several years. Over the last 15 years the well-proven CIF cards from Hilscher have successfully been used in different applications and have finally established...
 |
 |
CompactPCI serial interface card GX3903 Series Geotest - Marvin Test Systems
The GX3903 is a 3-port, cPCI asynchronous communications interface board supporting RS232 and RS422 levels. Optionally, the board can support RS485 signaling. Each port is configured at the time of order...
 |
 |
Multipurpose Intelligent Sub-System Communications for 6U CompactPCI Systems Eight Fully Programmable High Speed Channels Supports Standard PCI Bus and PICMG 2.16 128MB of Shared DRAM Memory Motorola MPC8255...
 |
 |

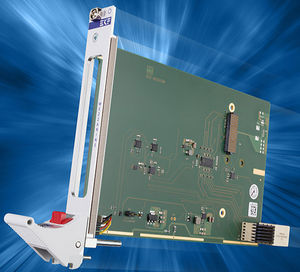

CompactPCI serial interface card SK2-SESSION EKF Elektronik
The SK2-SESSION is a peripheral slot board for PICMG® CompactPCI® Serial systems and acts as carrier card for a XMC-style mezzanine module. XMC modules are specified...
 |
 |
CompactPCI serial interface card MEN Mikro Elektronik
The G100 is used in combination with the F100 to connect a CompactPCI® Serial system to a CompactPCI® system. The CompactPCI® Serial backplane and the CompactPCI® backplane can...
 |
 |

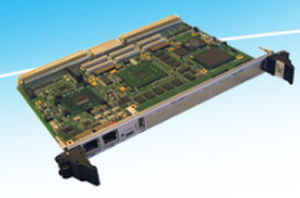

6U CompactPCI CPU board Core2 Duo | IC-DC2-cPCIa Interface Concept
Company Countries White papers Interface Concept Intel cPCI - PICMG 2.16 Single Board Computer Standard & Extended grades (*) Datasheet User Manual Interface Concept is a General Member...
