Compressed air valves

DN: 0.25 in - 2 in
Pressure: 0 bar - 10 bar
Temperature: -10 °C - 150 °C

Pad Valves offer a reliable and economic solution to fluid control. The valve is manufactured with a 2 way Bronze body and actuated pneumatically using either a single or double acting compact cylinder ...

DN: 0.125 in - 1 in
Pressure: 2.5 bar - 13 bar
Temperature: -5 °C - 50 °C

• Progressive start-up valve • Available in 4 sizes with flow rates up to 15000 Nl/min and connections from 1/8” to 1” • Suitable for downstream system gradual pressurization • Downstream circuit filling time regulated ...

DN: 0.5, 1, 0.25, 0.375 in
Pressure: 13 bar - 20 bar
Temperature: -30 °C - 80 °C

• Pneumatic by-pass • Available with 2 threaded connections • Atex certification (II 2GD or II 3GD)

DN: 0.125 in - 0.5 in
Pressure: 0 bar - 10 bar
Temperature: 0 °C - 80 °C

These are bidirectional control valves made entirely of nickel-plated brass, with NBR seals and a technopolymer control knob. They are suitable for regulating compressed air, water or ...

DN: 4, 6, 8 mm
Pressure: 0 bar - 10 bar
Temperature: -10 °C - 90 °C

Suitable for small, compact and resistant spaces, the mini ball valves are easy to operate on air and fluids networks, specifically dedicated to the opening or to the closing of the circuits. Equipped ...

DN: 0.25, 0.125, 0.375 in
Pressure: 2 bar - 10 bar
Temperature: -5 °C - 50 °C

... main air path at about 50% of the value of the inlet pressure » Upper air intake to connect a pressure switch or to extend switching time » Additional air intakes with the same characteristics ...

DN: 63, 40, 160, 16 mm

Angle valves, electropneumatic, with position indicator (PI), with pilot valve (PV) Electropneumatically actuated Angle valves from Pfeiffer Vacuum are characterized by their high level ...

DN: 63, 40, 160, 16 mm

Angle valves, pneumatic, with position indicator (PI), without pilot valve (PV) Product description • - One-box design - All in one: With position indicator in one and the same housing • - Drive: ...

DN: 40, 16 mm

Inline valves, manual Product description • - Manually actuated Inline-valve • - With visual indication of open and closed positions • - Housing material: Stainless steel • - Service life: 10000 ...

DN: 0.125 in - 1 in
Pressure: 0 bar - 15 bar
Temperature: -10 °C - 50 °C

This device separates the compressed air circuit from the main air supply. It is a three-way valve that relieves the downstream system in the closed position. This makes it useful for ...

DN: 0.25 in - 2 in
Pressure: 0 bar - 15 bar
Temperature: -10 °C - 50 °C

The job of this valve is to make the circuit independent from the air supply. It is basically a three-way valve. In the closed position, it cuts off the air supply and ...

DN: 4, 8, 6 mm
Pressure: 1 bar - 10 bar
Temperature: -20 °C - 60 °C

The VSR L quick-exhaust valve belongs to the LINE ON LINE® family, which means it can be connected to all the other components in series or in parallel.Available in the version for pipe-pipe connection with two push-in ...

DN: 8 mm - 50 mm
Pressure: 16 bar - 40 bar
Temperature: -30 °C - 220 °C

Compact angle seat motor valve for on/off and control operation with neutral and aggressive media. A version with fail-safe option is available. Size: DN 8 - DN 80 Pressure: PN16, PN 40 ...

DN: 15 mm - 150 mm
Pressure: 0 bar - 40 bar
Temperature: -60 °C - 350 °C

... control valve type 8020 with NAMUR interface for universal positioner assembly is suitable for a wide range of process applications. Media such as steam, liquids, gases, etc. are easy to handle. For high speed and cycling ...

DN: 15 mm - 200 mm
Pressure: 0 bar - 50 bar
Temperature: -60 °C - 350 °C

The pneumatic flanged sliding gate control valve type 8621 in GS3 design with integrated positioner designed according to ASME B16.34, API RP 553, API 598, ASME B31.1 and ASME B31.3 incl. flange connection ...

DN: 8 mm - 100 mm
Pressure: 0 bar - 63 bar
Temperature: -20 °C - 200 °C

2-way, 2-way manual or 3-way: the stainless steel ball valve VZBE controls various media, in both process automation and industrial automation. • 2-way manual, with lockable hand lever • 2- and 3-way with ISO 5211 ...

DN: 15 mm - 63 mm
Pressure: 40, 25 bar
Temperature: -20 °C - 150 °C

The ball valve series VAPB offers high-quality ball valve solutions with full through-flow, for industrial applications. In brass (MS) or stainless steel (CR) for enhanced corrosion resistance. • Automatable ...

DN: 15 mm - 100 mm
Pressure: 40 bar
Temperature: -10 °C - 200 °C

the automatable, compact, flanged, 2-way ball valve for control of media. • Automatable 2-way ball valve with compact flange • Stainless steel design • Short installed length • Blow-out proof shaft • ...

Pressure: 10 bar - 17 bar
Temperature: -20 °C - 65 °C
Flow rate: 21 l/s

- Assists machine designers in complying with the European Machineries Directive - Can help existing machinery to comply with PUWER (Provision and Use of Work Equipment Regulations) - Controlled increase of downstream pressure on start ...

Pressure: 17, 10, 3 bar
Temperature: -20 °C - 80 °C
Flow rate: 147 l/s

... Use of Work Equipment Regulations) Controlled increase of downstream pressure on start up Port size: - G1 Actuation: - Air/Spring Voltage: - No solenoid

Pressure: 0 bar - 16 bar
Temperature: -20 °C - 80 °C
Flow rate: 23 l/min

... Automatically resets after failure correction High air pressure rating Medium: - Compressed Air Mounting: - In-line two way valve. To be inserted between fixed ...

DN: 2 mm
Pressure: 0 bar - 12 bar
Temperature: -10 °C - 60 °C

... lever and joystick among others. The tool can be operated with 5 micron filtered, either lubricated or non lubricated compressed air. Also suitable for other media that conforms to ISO-VG 10.

DN: 2 mm
Pressure: 0 bar - 12 bar
Temperature: -10 °C - 70 °C

This valve is operated by an independent pilot pressure unit. This assures that the valve can be functional even in the presence of different pilot pressures. NC and NO switching functions are possible ...

DN: 6, 14, 8, 10 mm
Pressure: -1 bar - 20 bar
Temperature: -30 °C - 130 °C

FEMALE RP ISO 7 - FEMALE RP ISO 7 VALVE The GHILUX miniature ballvaves have been created and engineered by Aignep in the 90’s. The supercompact dimensions and the excellent performance respond to the growing demand ...

DN: 10, 6, 14, 8 mm
Pressure: -1 bar - 20 bar
Temperature: -30 °C - 130 °C

TAPER MALE R ISO 7 - FEMALE RP ISO 7 VALVE The GHILUX miniature ballvaves have been created and engineered by Aignep in the 90’s. The supercompact dimensions and the excellent performance respond to the growing demand ...

DN: 5.5 mm
Pressure: -1 bar - 40 bar
Temperature: -15 °C - 180 °C

FEMALE RP ISO 7 - FEMALE RP ISO 7 VALVE The 66.000 serie is made of stainless steel AISI 316L function fittings: flow controls for cylineders, in-line and banjo fittings, unidirectional valve, quick ...

DN: 0.5 in - 2 in
Pressure: 0.8 bar - 10 bar
Temperature: -10 °C - 180 °C

... Operator Port Connections. More Number Of Gland Packings At Valve End & Operator End For Longer Life. Operator With Threaded / Namur Ports. Lubricated Pilot Air Not Necessary. Applications: Air ...

DN: 25 mm - 200 mm
Pressure: 0 bar - 16 bar
Temperature: -20 °C - 60 °C

... electric or pneumatic rotary actuator. Gas ball valves are mainly used to shut off the gas flow in gas trains or gas installations before and after other equipment like gas pressure regulators, gas ...

DN: 0.375 in - 2 in
Pressure: 10 bar
Temperature: -20 °C - 150 °C

... Coil: The solenoid valve has an electromagnetic coil wrapped around a ferromagnetic core. When an electrical voltage is applied to the coil, it generates a magnetic field around the core. Armature or piston: Inside the ...

DN: 4, 6, 8, 10 mm
Pressure: 0.2 MPa - 1 MPa
Temperature: 0 °C - 60 °C

Industry's First! (Patent no. 5578502) The function of a shock absorber is built in a speed controller. Two-stage exhausting flow rate adjustment make the same control as a cylinder with a shock absorber possible. No more cylinder ...

DN: 3 mm - 12 mm
Pressure: 0.1 MPa - 1 MPa
Temperature: 0 °C - 60 °C

Flow rate can be set with indicator. Reducing the task of initial flow settings or their maintenance / replacement. The scales are on the side (upper / lower) and the top. Flow rate is proportional to the knob turns. 2 types with ...

DN: 3 mm - 12 mm
Pressure: 0.1 MPa - 0.9 MPa
Temperature: 0 °C - 60 °C

The most standard Speed Control Valve for driving devices. The tube lead-out directions are free. The resin body rotates and the tube lead-out direction can be changed. For Free type, the fitting part rotate. For ...

DN: 15 mm - 65 mm
Pressure: 0 bar - 10.2 bar
Temperature: 0 °C - 180 °C

... with analogue control. Compressed air for remote control necessary. The stroke is made proportional to the flow through the paraboüc contour of the piston. The valve shuts tight and is of anti-water hammer ...

DN: 0.125 in - 1 in
Pressure: 0.8 bar - 10 bar
Temperature: 0 °C - 70 °C

... unidirectional connection, non-return valves, slide valve, quick exhaust valve Flow regulators 041, 042, 043 Unidirectional flow regulator (block shaped) Valves in ...

DN: 0.125, 0.5, 0.25, 0.375 in
Pressure: 0 bar - 10 bar
Temperature: 0 °C - 70 °C

... unidirectional connection, non-return valves, slide valve, quick exhaust valve Flow regulators 041, 042, 043 Unidirectional flow regulator (block shaped) Valves in ...

DN: 0.125, 0.25 in
Pressure: 0 bar - 8 bar
Temperature: 0 °C - 70 °C

... unidirectional connection, non-return valves, slide valve, quick exhaust valve Flow regulators 041, 042, 043 Unidirectional flow regulator (block shaped) Valves in ...

DN: 3 mm - 28 mm
Pressure: max 689.0 bar
Temperature: -53 °C - 648 °C

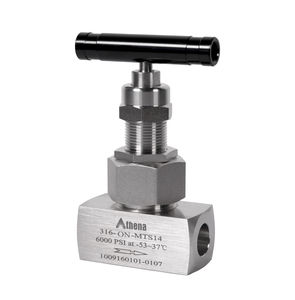

Athena Forged Needle Valve Performance -Compact forged design for high temperature and high pressure -Rolled threads of packing bolt ensures longer life service -Cold rolled threads of valve stem -Stellite ...

DN: 3 mm - 18 mm
Pressure: max 413.0 bar
Temperature: -53 °C - 260 °C

Athena Integral-Bonnet Needle Valve Performance -Compact valve body -Packing nut makes outside adjusting possible -Full supporting packing reduces adjusting requirement -Cold rolled threads of valve ...

DN: 3 mm - 12 mm
Pressure: max 689.0 bar
Temperature: -53 °C - 648 °C

... Union-Bonnet Needle Valve Performance -Compact design for special extreme working conditions -Cold rolled threads of compact valve stem -Non-rotary ball type lower stem and adjustable lower stem available -Union-bonnet ...

DN: 0.25 in
Pressure: 0 bar - 10 bar
Temperature: 5 °C - 60 °C

> - Type: 3X2 > - Design: Spool with Cartridge Type > - Port Size: In/Out/Exhaust -1/4" BSP > - Media:Compressed Air, Filtered & Lubricated > - Ambient/Medium Température: - 5°-60°C > Materials ...

DN: 0.25 in
Pressure: 0 bar - 10 bar
Temperature: 5 °C - 60 °C

Type - 5X2 Design - Spool with Cartridge Type Port Size - In/Out- 1/4" BSP & Exhaust - l/8" BSP Media - Compressed Air, Filtered & Lubricated Ambient/Medium Température - 5°- 60° C Materials of Construction Aluminium, ...

DN: 0.25, 0.125 in
Pressure: 0 bar - 10 bar
Temperature: 5 °C - 60 °C

Type - 5X3 Design - Spool with Cartridge Type Port Size - In/Out/Exhaust - l/4" BSP & Pilot Port l/8" BSP Media - Compressed Air, Filtered & Lubricated Ambient/Medium Température - 5°- 60° C Materials ...

DN: 0.5 in - 6 in
Pressure: 1 bar - 13 bar
Temperature: -15 °C - 180 °C

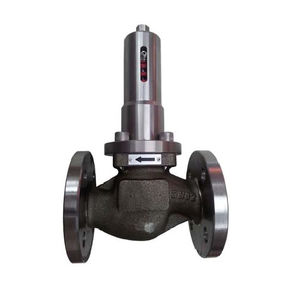

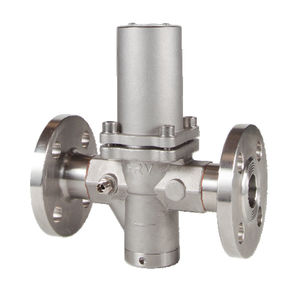

Model RET-DS / REF-DS are the Direct Acting Pressure Reducing Valve designed with Duplex Stainless Steel material providng more options for different industries. Pressure Reducing Valve protecting the ...
