Mix and match from STRONGARM's ever increasing array of mountings, displays, touchscreens, keyboards, pointers and options below to create your optimal system.
Your system will arrive pre-assembled, tested and ready-to-install.
You'll also benefit from the advantages of split architecture, in which the PC is separated from the display. Options include an internal micro PC, a desktop PC in a protective local enclosure, or a remote PC up to 3000' away connected by a simple CAT 5 cable.
|
|
DESCRIPTION:
Mobile Workstation
Steel structure
Easy front and rear access
OBJECTIVES:
ADJUSTABILITY: increased compatibility
USER-FRIENDLINESS: screen at a height of 1.40m from the ground and keyboard about 1m (user-friendly height for working when standing)
MOBILITY: easy to manoeuvre without effort, very stable
SAFETY: stable on floor and 360 vision
2 COMPARTMENTS :
-Printer compartment on a sliding tray
-Energy compartment which can be use in a deep freeze environment. It was designed to fulfill his exact requirements and to feed various consumers with various stabilized tensions (5VDC, 12VDC, 20VDC, 230). At the end of the day, the user connects the box to the sector, which reloads the batteries via an integrated battery charger.
Possibility to protect the IT materials as printers inside of the MOBIRACK:
Isolated panels on each face
Easy front and back access with 2 doors (front and back)
|
|
On paper, all industrial workstations can cut a fine figure. But often when placed in difficult operating conditions they fail to deliver the necessary level of success. The new WS-6000 from Bernstein not only looks good, but has the intrinsic qualities required to deliver oustanding performance and reliability:
With robust steel lower cabinets and solid aluminium control housings, it provides permanent and dependable protection for sensitive control electronics
in arduous production environments.
Whether the threat is from vibration, impact, dust or moisture - the WS-6000 is unshakeably impressive with its well conceived, unique ergonomics. With
numerous possible variations and a wide range of accessories, the WS-6000 from Bernstein offers the tailor-made solution for your demanding applications:
e.g. for system controllers, as a QA workplace or a signalling stand.
|
|
|
|
|
|

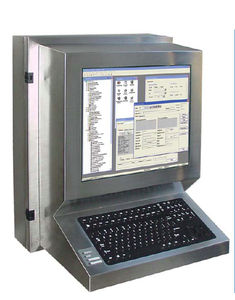

Mix and match from STRONGARMs ever increasing array of mountings, displays, touchscreens, keyboards, pointers and options below to create your optimal system. Your system will arrive pre-assembled, tested and ready-to-install.
Youll also benefit from the advantages of split architecture, in which the PC is separated from the display. Options include an internal micro PC, a desktop PC in a protective local enclosure, or a remote PC up to 3000' away connected by a simple CAT 5 cable.
Features:
Operator friendly interface
Compact and repositionable including three levels of vertical travel (13", 23", 30")
Available in NEMA 4/12 and 4X stainless steel
Internal, local, or remote PC (Internal MicroBox PCs available from STRONGARM)
Available display sizes: 21.3", 19.1", 17.1" and 15.1"
Multiple touchscreen selections (Resistive, Infrared, Surface Acoustic Wave (SAW))
Multiple keyboard and pointer selections (including STRONGARM's revolutionary Stainless Steel Mouse)
Feature panel for easy pushbutton additions
Division 1 and Division 2 versions available
UL approved, non-incendive systems that eliminate costly purge/pressurization hardware
Optional purge system for hazardous areas is fixed to the mounting allowing the MiniStation to move freely
Post Mount, Machine Top Mount, Wall Mount and Ceiling Mount available
Horizontal and vertical extension capabilities
|
|
These Mobile Work Stations are optimized for Statistical Process Control (SPC). Consider the benefits. By mobilizing the scale stations, fewer units are required...saving expense and set-up time. Additionally, the scale and computer equipment are not continuously exposed to the environmental wear and tear of the production area.
Features:
Completely self-contained and portable
Operator friendly interface
Tightly integrated and compact for deployment in small areas
Available in NEMA 4 and 4X stainless steel
Internal, local, or remote PC
Swivel Display
Available display sizes: 21.3", 19.1", 17.1" and 15.1"
Multiple touchscreen selections
Multiple keyboard and pointer selections
Deep cycle battery and charge system for 16 hours of continuous operation
Low Power PC with RF network
Optional hand held bar code scanner
Optional internal printer
|
|
All DYNICS integrated workstations are designed to be able to withstand high vibrations, temperature extremes, and the harshest industrial environments.

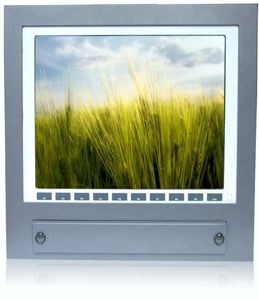

The IC Monitors Series utilizes the DYNICS "Quick Release" system for simple servicing and is a replacement for Legacy DYNICS systems: M15 & M17 Monitors. The IC is also stud mounted and fits all computer chassis modules. The IC monitors have high bright displays and are available with touchscreen options, ultra-high resolution and modular design for quick installation and removal.
The Back Chassis are industrial computer modules which are rugged modular steel construction built to order. Choose from an extensive selection of chassis to better match your industrial needs. Your choice of Active or Passive Backplanes.
|
|
|
The Silicon Graphics Fuel visual workstation maximizes the performance of your desktop applications while offering you unprecedented price/performance value. A premium blend of industry-leading technology from SGI, Silicon Graphics Fuel features the latest MIPS R16000 processor and the unparalleled VPro 3D graphics system for IRIX in a new high-bandwidth architecture. Drive your creativity and productivity to a new level with Silicon Graphics Fuel.
|
|
All DYNICS integrated workstations are designed to be able to withstand high vibrations, temperature extremes, and the harshest industrial environments.
The monitors have high bright displays and are available with touchscreen options, ultra-high resolution and modular design for quick installation and removal.
The Back Chassis are industrial computer modules which are rugged modular steel construction built to order. Choose from an extensive selection of chassis to better match your industrial needs. Your choice of Active or Passive Backplanes.
|
|
LCD Screen 15ff TFT LCD
Max resolution 1024 x 768
Contrast 500:1
Luminance 350cd/ u
Touch Screen 4-wire Analog Resistive, RS-232 or USB interface, optional
Power supply Support ATX/PS2 Power supply
Support Motherboard 8-slot backplane
Drive Bay 1 x 5.25ff, 2 x 3.5ff
Vibration 5~17 Hz, 0.1" peak-peak 17~640 Hz, 1.5G peak acceleration
Shock 10G peak acceleration(11m sec. duration)/operation
Operating Temperature/Humidity 0~50/5-95%, non condensing
Dimensions 483mm x 354mm x 265 (W x H x D)
|
|
|
|
|
|
Interactive Kiosk Standard Configuration
LCD Monitor
Panel size: 19" TFT LCD
Active area: 376.32x301.056(mm2)
Pixel Pitch: 0.2940.294mm
Resolution: 12801024@75HZ
Contrast Ratio: 700:1
Brightness: 250cd/m2
Viewing Angle:H:170 V:170
Displaying Color: 16.7M
Response Time tr/tf: 2/6ms
Band width: 135MHz
Input port: VGA
Main Board
Chipset: Intel 945G,LGA775,FSB 533/800Mhz
CPU: Dual Core E2160 (1.8GHz)
HDD: SATA 80G,
RAM: 1G DDRII Ram
Wireless LAN: Embedded 54M Wireless Lan with External Antenna
I/O Ports: 1xSerial, 1xUSB, 1xRJ45,
Speakers: Build-in 2x5W Speakers,
Kiosk
Material: Cold rolled steel ST12 SPCC, 3.0cm thickness
Color: Piano Black Color
Dimension: (H)163.9cm(W)45.6cm(Thickness)6cm, Super Slim Kiosk
Bottom Dimension: (H)50.6cm(W)25cm(Thickness)0.8cm
Power: 110V-220V Power Supply,
Temperature: +5℃ ~ +35℃;
Humidity: 40% ~ 80%,
Touch Screen
Vandal-proof, Water and dust proof, Surface Acoustic Wave Touchscreen(SAW)
Packaging
Both Paper Box and Fumigation Wood Box for Strict Shipping Security
Warranty
One year panel warranty, 2 Year Parts and Labour Warranty
Certification
FCC, CE, RoHS
|
|
"There's always room for a Mini-Console" is the comment we hear most often. Corporate Project Engineers, who need a one-small-size-fits-anywhere solution, add that the Mini-Console is "...great for multi-plant deployment projects where site surveys aren't always practical". The low, console-height design provides a clear line-of-sight of the process. The tilted back display and slightly angled keyboard are ergonomically optimized for the standing operator. Small and simple, the Mini-Console is also easy
to deploy.
|
|
The Suite-Station is designed specifically for flush mounting into the wall of a pharmaceutical manufacturing suite. The Suite Station can be opened for servicing via a front door with concealed hinges. The front door is manufactured from a sturdy " thick 304 stainless steel plate and machined to precise tolerances for tight sealing with low force.
The new Aseptic Display option is designed to provide superior cleanability for pharmaceutical applications by eliminating the ledge associated with a traditional Panel Mount display. The entire display and bezel assembly is rear mounted into a precision cutout in the front face of the enclosure, creating a smooth, crevice-free exterior surface that provides superior cleanability-ideal for aseptic pharmaceutical applications.
|
|
FX-ATX7.
Industrial Integrated Computer The FX Front Module is a bracket-mounted competitive drop-in replacement front interface module. The various FX Modules can be combined with the various ATX7 Chassis to from a complete industrial computer solution in a powerful active backplane PC format, ideal to suit your industrial needs.
All FX-ATX7 Is an industrial computer module that can be connected to FX Modules or on its own to form a complete industrial computer solution with 6 slots, ideal to suit your industrial needs. The ATX7 Series are rugged modular steel construction built to order.
|
|
| ... products without technical information |
| |
|
|
|
|
Beltronic total solutions for command and control include rugged workstations and consoles. The modular approach of these consoles allows for easy customization and configuration to user preferences. They significantly reduce design time, resulting in a lower cost for both the system integrator and end-user. They are available in PC104, ATX, PCI and cPCI configurations.
* For a multitude of unusual applications and extreme site conditions see the following list of the certification for Beltronic RCS Products
* Shock MIL-STD-810E, method 516.4 Procedure I, 30G 8ms
* Vibration MIL-STD-810E, method 514.4 Cat. I, 10 to 500Hz 1,2g
* Temperature MIL-STD-810E, method 501.3 Procedure II and MIL-STD-810E, method 502.3 Procedure II
* Saline MIL-STD-810E, method 509.3 Procedure I, trial period 48h, 35C, 5%NaCl Environment
* Humidity MIL-STD-810E, method 507.3 Procedure I, 3% to 95% non condensing
* Altitude MIL-STD-810E, method 500.3 Procedure II, up to 10000 feet operating
* Water tightness MIL-STD-810E, method 510.3 Procedure I, 30min. speed 20mph
* EMC/EMI MIL-STD-461E, CE102, CS101, CS114, CS116, RS103, RS105
* Power supply MIL-STD-1275A
* Tempest Level II
|
|
| ... products without technical information |
| |
The new dimension at the interface between man and machine for enhanced
- workspace
- safety
- ergonomics.
Industrial Workstations are more than just combinations of individual components. Individual customer requirements are achieved cost-effectively and to perfection.
Examples include compact solutions for scanner or laboratory workstations, individual worktops, combinations with the AP console system or Command Panel - there are virtually no limits to your creativity.
The concept is convincing because it is so simple: IW modules are equipped with climate control and electronic components, centralised security controlling, plus an extensive range of accessories, for a complete solution.
Perfect solutions from a single source. We develop and manufacture according to the principles of ergonomics and safety engineering.
|
|
Crash Cart Enclosures. The modularity of the DYNICS Crash Cart will allow you to essentially build your own "custom" box. Once the enclosure is specified with the Crash Cart Configurator, DYNICS will develop a drawing and then send for your approval ensuring that the appropriate solution has been created. Some of the Crash Cart features include:
- Painted Steel OR Stainless Steel Construction
- Rugged Modular Construction
- Configurable Cable Connections
- Gasketed Doors and Openings
- Lockable Front Doors and Keyboard Tray
- Swivel Touchscreen Display
- Non-Marking Caster Wheels
|
|
