The SIGMASCOPE® SMP10 is a hand-held instrument which provides rapid, simple, on-the-spot and, if necessary contact free, measurement of the conductivity of non-magnetic metals.
The corresponding measurement probe ES40 operates at the measurement frequencies of 60 kHz, 120 kHz, 240 kHz and 480 kHz. For automatic temperature compensation of the conductivity measurement the current temperature of the specimen can be measured using either the temperature sensor integrated in the probe ES40 or an optional external sensor.
For the conductivity measurements of very thin Aluminum platings of only about 0.2 mm thickness in the aircraft industry the SIGMASCOPE® SMP10-HF is available. The measurement frequencies are 60 kHz, 240 kHz and 480 kHz with probe ES40 and 1.25 MHz with probe ES40-HF.
Applications
- Absolute measurement of electrical conductivity during the production process of aluminum copper, etc.
- Monitoring heat-treatment processes, strength and hardness of aluminum wrought alloys in the aerospace and automobile industries.
- Checking the electrical conductivity before anodizing aluminum.
- Determination of the degree of purity and scrap metal sorting.
|
|
Activation of up to four ranges
Activation of up to four temperature coefficients
Concentration measurement of
- caustic soda NaOH
- nitric acid HNO3
- a freely definable curve (through the setup program)
Fast-response temperature sensor
Temperature compensation
- linear
- natural water
- individual characteristic (learning function)
Operation
- via keypad and LC display
- through setup program
Operator languages: English, French, German, Italian, Dutch, Spanish, Polish, Portuguese, Russian, Swedish
By using the setup program:
- user-friendly programming
- plant documentation
Learning function for the temperature coefficient
Individual characteristic for concentration indication
Dilution control
|
|
LE 52 Pt (Conductivity measuring cells with built-in Pt 100)
The various versions differ in cell constant C
(in cm): LE 52 Pt C 0.05
LE 52 Pt C 0.2
LE 52 Pt C 1
|
|
This economically designed meter is ideal for use in process control monitoring or anywhere a small, accurate meter is needed. The VARIO is small, light, handy, waterproof and has a robust firmgrip rubber armoring.
Miniature precision, the VARIO Cond Sets:
• The VARIO Cond KIT with 4 electrodes conductivity cell: The globally renown measuring cell TetraCon® 325 was specially shortened and modified for the VARIO Cond. Therefore very precise measurement in the range from 10 µS to 200 mS can be done.
• The VARIO Cond KIT with ultrapure water cell and flow-through vessel: A 2 electrodes stainless steel cell for ultrapure water with plug head and flow-through vessel and a cell constant of 0.1 enables measurements down to 0.1 µS.
Increased precision through the omission of cable connectors – the VARIO Cond is suitable for all measuring tasks for drinking water, process technology, semiconductor technology or pharmaceutical industry.
|
|
Bürkert....The Smart Choice for Fluide Control System
|
|
Display in µS, mS, kohm, Mohm, ppm (TDS)
Simulate Function
Programmable Temperature Compensation
Relay Options
Dual Output Option Allows Temperature and Process Signal Transmission
2 x 16 Character Dot Matrix LCD
Chemical Resistant Enclosure and Self-Healing Window
Large Pushbuttons
Clearly Marked Terminal Labels
*Applications
RO/DI System Control
Rinse Tank Control
Cooling Tower, Scrubber or Blowdown Control
Environmental Study (TDS)
Desalination Monitor
Water Quality Monitoring
Leak Detection
Chemical Concentration
|
|
|
Sartorius offers a broad spectrum of meters and electrodes and other sensors ranging from compact, portable pH meters to multiple-mode meters that meet the highest requirements in pH, redox (ORP), ionic concentration and conductivity measurements.
|
|
|
|
|
|
|
The CDTX-300 two-wire transmitter is widely used for process control in industry today. This instrument is particularly useful in industrial conditions where electrical interference is an important factor. By galvanically isolating the signals, any interference created is prevented from reaching the transmitter. A loop powered isolator may be required when connecting to data acquisition equipment. The CDTX-300 uses two wires which reduces costs and eliminates the need for expensive coaxial cable. Two-wire transmitters are ideal when used in remote applications that do not have AC power available. The CDTX-300 series conductivity transmitter uses top of-the-line, 4-Ring Potentiometric probes. As opposed to the more widely used 2-Ring Amperometric method, the 4-Ring Potentiometric method provides the highest accuracy and repeatability attainable. When measuring liquids that have a high conductivity, the 2-Ring system is susceptible to polarization. 4-Ring electrodes eliminate the polarization effect by splitting the four rings into 2 current electrodes and 2 voltage electrodes. When placed in a conductive liquid, the 2 current electrodes take the alternating voltage and create a current. This alternating current produces a Buffer Field from which polarization is absent. The voltage is then measured in this field assuring no altered readings.
|
|
For monitoring process waters, wastewater treatment plants, and the quality of drinking waters, surface and underground waters.
Conductivity Range : 0-200 ; 0-2 000 ; 0-20 000 ; 0-200 000 µS/cm.
Standard delivery with a sensor with 4 electrodes (2 platinum and 2 graphite) and with a cable of 3 meters (up to 30 meters). For cable length over 30 meters, you must choose the sensor with an integrated amplifier (max. 110 m).
|
|
|
The Verimet® M4900C is especially well-suited for measuring the conductivity of aluminum and aluminum alloys. It tracks the temperature coefficient (typically aluminum) using a single-knob control to adjust the readings. Compensation is accurate to 0.5% I.A.C.S. over the full range of 12% to 110% I.A.C.S. (5.75% to 52.8% MegaSiemens). The M4900C has an accuracy of 0.3% over the aluminum range of 30% to 62% I.A.C.S. The Verimet® M4900C tester works well on rough or finished surfaces, including forgings, castings, sheet stock and small parts of reasonable mass. Penetration depth is constant, irrespective of material or conductivity.
|
|
Jenway manufacture several ranges of conductivity meter, including simple portable conductivity meters, waterproof conductivity meters and laboratory conductivity meters.
Top-of-the-range models include TDS and Salinity measurement with adjustable reference temperature and automatic temperature compensation - the later can be switched off for applications that conform to USP or EP regulations.
All models are supplied with standard probes and accessories that enable immediate use on delivery, while a full range of application specific probes and calibrants are also available.
Jenway products are designed for ease of use and reliability, producing successful results for novice and experienced users alike.
|
|
Model 532T1
Our most popular model for many years, this instrument offers three very useful ppm ranges. Like other three range and single range models, it features a unique electronic Internal Standard for easy and fast field calibration and range doubling.
|
|
|
|
|
|
Provides measurement of electrical conductivity of solvents and paint formulations for electrostatic spray applications.
- Stainless steel probe
- Solvent resistant housing - a must for usage in the paint laboratory
When measuring conductivity, the liquid builds up a specific ohmic resistance to the electric current, depending on the applied voltage. The reciprocal value is the conductivity. The measured resistance depends on the geometric arrangement within the measuring cell. In order to be independent of the measuring cell, the measured resistance has to be divided by the cell constant "C" which yields the so called specific resistance. The specific resistance describes the application and performance properties of electrocoating paints.
The BYK LC 2, BYK-Gardner Conductivity Meter, was developed in cooperation with the VDA (Association of German Automotive Industry) following VDA standards.
Measurement of the resistance of liquid paints is carried out in the annular passage of the dip probe. The measuring cell consists of two separable parts. The electrodes are arranged concentrically (Cat. No. PW-1710) or parallel (Cat. No. PW-1712), thus forming an annular passage. They are insulated from each other.
The electrodes of the measuring cell are made of stainless steel, with the surface polished and therefore easy to clean. Only an absolutely clean measuring cell guarantees that the entire surface of the electrode is available for measurement. The probe is impervious and can be immersed in solvents for a short time.
|
|
Measuring and control instrument for the inductive conductivity measurement
- Easy and safe operation by plain text menu guidance
- Safety by password function
- Linear and non-linear special pure water temperature compensation
description
The K 100 (W) IL is a sophisticated single-channel instrument for measuring and control the inductive conductivity. Additionaly temperature measurement of the measuring media is possible. The instrument is available in a panel mounted housing (K100 IL) and in a wall mounted housing (K 100 W IL).
|
|
|
|
|
|
Honeywell offers a wide variety of conductivity cells to satisfy your process needs, from sensitive ultra-pure water applications to highly conductive industrial processes. Our cells are constructed of rugged materials, guaranteeing longer cell life. Honeywell offers both contacting and toroidal cell designs allowing you to select the conductivity cell best suited for your application, providing a wide range of capabilities and ensuring accurate conductivity measurements. All conductivity cells have integral temperature compensators that are compatible with Honeywell instrumentation. An assortment of mounting options—in-line, immersion or insertion/removal—reduces your installation costs. Honeywell’s complete line of conductivity instrumentation—cells, analyzers/controllers and transmitters—ensures the most reliable conductivity measurements available.

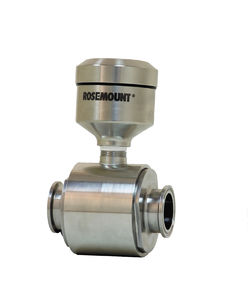

The Model 5000TC inductive magnetic field cell operates on a different principle than the traditional contacting electrode cell. This type of cell is also known as an electrodeless cell or toroidal cell. The instrument sends an alternating current of known value through one of the coils, the primary coil. This current creates a magnetic field and induces a current in the process liquid. This current, in turn, induces a current in the pickup coil. The induced current in the pickup coil is directly proportional to the conductivity of the liquid. No direct contact is necessary between the coils and the solution, thus eliminating potential maintenance problems
|
|
|
|
|
|
Honeywell offers a wide variety of conductivity cells to satisfy your process needs, from sensitive ultra-pure water applications to highly conductive industrial processes. Our cells are constructed of rugged materials, guaranteeing longer cell life. Honeywell offers both contacting and toroidal cell designs allowing you to select the conductivity cell best suited for your application, providing a wide range of capabilities and ensuring accurate conductivity measurements. All conductivity cells have integral temperature compensators that are compatible with Honeywell instrumentation. An assortment of mounting options—in-line, immersion or insertion/removal—reduces your installation costs. Honeywell’s complete line of conductivity instrumentation—cells, analyzers/controllers and transmitters—ensures the most reliable conductivity measurements available.
The Model 5000TC inductive magnetic field cell operates on a different principle than the traditional contacting electrode cell. This type of cell is also known as an electrodeless cell or toroidal cell. The instrument sends an alternating current of known value through one of the coils, the primary coil. This current creates a magnetic field and induces a current in the process liquid. This current, in turn, induces a current in the pickup coil. The induced current in the pickup coil is directly proportional to the conductivity of the liquid. No direct contact is necessary between the coils and the solution, thus eliminating potential maintenance problems
|
|
Measuring range
conductivity 0,0...200.0 mikroS up to 0,0...200.0 mS
temperature -5,0...+100,0 °C
Accuracy
conductivity ± 0,5v. MV, /± 0,3 % v. FS
temperature ± 0,2 % v. MV ± 0,3 K
Supply 9 V battery
Hold function, min./max. -memory
Output RS 232 or USB
|
|
Orion 3-Star Plus Portable Conductivity Meter
- Improved stability algorithm to increase calibration and measurement accuracy
- Average slope and slope of segment printed with measurement
- Ability for ATC temperature calibration
- Increased data log points: 1000
- Ability to turn off data log
- Ability to print or view last 10 calibrations
- New Individual method passwords
- Third decimal point for cell constant entry
- Added 5 and 10°C as reference temperature options
- Added second decimal point to temperature compensation
- Ability to calibrate conductivity temperature sensor
|
|
|
|
|
|
The WEC/WDEC410 Series Single and Dual Input Electrodeless Conductivity Controllers measure conductivity of a solution via an encapsulated, non-contacting sensor to control replenishment pumps and alarms. They may be installed in a variety of very harsh chemical control applications, including oily cleaner baths, chromates, rinse tanks, fume scrubbers and other concentrated chemicals up to a conductivity of 1000 mS/cm.
Four conducivity ranges may be selected to configure the controller over a wide range of applications. Choice of measurement units is µS/cm, mS/cm, ppm and % concentration. The non-contacting, toroidal sensor technology is immune to thin coatings and the contamination and calibration problems that direct contacting sensors are prone to.
Integrated datalogging is available to validate performance. A USB memory stick is all that’s needed to extract data and event logs that include conductivity measurements, temperature and relay status. Download log files from the USB stick to a PC at your convenience. It couldn’t be easier!
|
|
|
Quality for highest demands without compromises. The user is supported perfectly and all the requirements to GMP/GLP/ISO are totally fulfilled.
|
|
No water supply is completely pure. Every industrial, commercial, or natural source contains dissolved solids or salts. These impurities contribute to scale, corrosion, poor taste, and environmental pollution that endanger animal and plant life.
Myron L Company has two proven ways to measure such impurities. Our DS Meters™ provide fast, accurate, on-the-spot measurements of total dissolved solids (TDS) or conductivity. pDS Meters™ test conductivity or TDS, plus pH. Readings from their highly stable circuitry help assure product quality, prevent equipment damage and verify in-line instrumentation in a wide range of applications, some of which are listed above.
|
|
|
|
|
|
electrical current. As the ranges in aqueous solutions are usually small, the basic units of measurements are milliSiemens/cm (mS/cm) and microSiemens/cm (µS/cm).
Conductivity is used widely to determine the level of impurities in water supplies for domestic consumption as well as industrial use. Industries that employ this method include the chemical, semi-conductor, power generation, hospitals, textile, iron and steel, food and beverage, mining,
electroplating, pulp and paper, petroleum and marine industries.
Specific applications include chemical streams, demineraliser output, reverse osmosis, stream boilers, condensate return, waste streams, boiler blowdown, cooling towers, desalinisation, laboratory analysis, fruit peeling and salinity level detection in oceanography.
Some applications require the measurement of Total Dissolved Solids (TDS) in mg/L, parts per million (ppm) or parts per thousand (ppt). The TDS concentration can be obtained by multiplying the conductivity value with a factor which is empirically determined. The total TDS is a mass estimate and is dependent on the mix of chemical species as well as the concentration while Conductivity is only dependent on the concentration of chemical species.
Eutech offers a wide range of conductivity meters for these various applications.
|
|

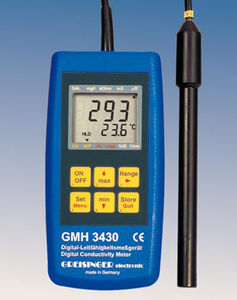

Conductivity handheld instrument
- Automatic or manual temperature compensation
- 4 measuring ranges with automatic changeover
- min/max value memory, hold function
description
All-purpose portable instrument for measurement of conductivity and temperature. Sensor with integrated temperature sensor is attached.Sensor, instrument and portable case are included in delivery.
|
|
|
|
|
|
HI 8633 and HI 8733 have been designed specifically for use in areas of production and quality control. It is often necessary to test samples with different concentrations ranging from deionized water to brine.
The amperometric system would require constant recalibration and probe changes, thus making the measurement process very time consuming and unreliable. To solve this problem, HANNA instruments has developed the HI 8633, which uses a 4-ring potentiometric probe. The rugged probe is made of PVC - ideal for indoor, as well as outdoor measurements.
By using one point calibration, it is now possible to obtain accurate readings across a very wide range, from 0.1 to 199900 µS/cm.
If temperature of the solution fluctuates, HI 8733, with a built-in temperature sensor and Automatic Temperature Compensation, is the perfect instrument.
As an accessory, HI 721313 is available. The kit includes a rugged carrying case with a beaker, a calibration screwdriver and standardizing solution at 12880 µS/cm.
|
|
Routine conductivity meter
Basic conductivity meter for routine measurement with outstanding performance: The large display with the easy-to-understand symbols provides the user with a clear overview and useful features otherwise available only with stationary laboratory instruments.
Routine conductivity meter
* Automatic endpoint recognition
* Automatic temperature compensation
* Data memory for 30 GLP data points
* Clear display of measured value and settings
* Complete range of electrodes
|
|
|
|
|
|
2-channel Sanitary Conductivity Meter (Low Concentration type) HE-960CW
Product Overview
The HE-960CW is ideal for the conductivity control of the purified water, pasteurized water, and water for injection that are used in the production of pharmaceuticals.
And we have developed a lineup of electric conductivity sensors that can be used in conjunction, from the conventional insertion type to the flow-through type with improved cleaning and sanitary properties.
Product Features
- Diverse measurement range
The HE-960CW, which is used in conjunction with the FS Series conductivity sensor, measures the water conductivity ranging from purified to 2000 µS/cm.
- 2-channel simultaneous measurement
Monitoring of the desalinity rate and diagnosis of film deterioration are also possible by simultaneously measuring and comparing two locations pre- and post-processing, such as with RO film, etc.
- 2-channel simultaneous outputs
The HE-960CW includes 4 transmission output circuits built-in.
- Four contact alarms
- Built-in Communications Function (RS-485)
The HE-960CW is equipped with an RS-485 interface to allow you to check measurements and check/change the set points from a remote location.
|
|
One high accuracy multi-range sensor measures four parameters (Conductivity, TDS, Salinity and Temperature)
* Autoranging meter offers 3 ranges to measure from pure water to salinity solution to waste, boiler and cooling water using the same conductivity cel
* 6 selectable units of measure:
µS, mS, ppm, ppt, mg/L, and g/L
* Internal memory stores up to 15 labeled readings for easy recall
* Adjustable Conductivity to TDS ratio factor from 0.4 to 1.0
* Self calibration on power up
|
|
|
|
|
|
Micro Processor Base Salinity Meter ( SM-850)
Model SM-850 Features:
_Portability and simplicity one-hand operation
_Dual display Salinity and Temperature
_Automatic Temperature Compensation
_Average calculation, interval measuring, gram-conversion
_Use highly accurate NTC temperature sensor
_Auto power off function
_CE-Mark approval
Specifications:
Low battery indication: The "Battery symbol " is displayed when the
battery voltage drops below the operating level.
Operating environment: 0 C to 50C, <75% R.H..
Storage environment: -20C to 60 C, 0 to 80% R.H.
with battery removed from meter.
Accuracy: Stated accuracy at 23 C +/- 5 C, <75% R.H..
Dimensions: 167mm(H) x 48mm(W) x 24mm(D).
Weight: Approx. 330g. (including probe and battery)
Temperature:
Sensor: Thermistor temperature sensor
Range: -20 C to 60C, -4 F to 140F
Resolution: 0.1 C / 0.1 F
Accuracy: +/-0.5 C ,0 C to 45 C;
+/-1 °C -20 C to 0 C, 45 C to 60 C;
+/-1 F : 32 F to 113F
+/- 2 F:-4 F to 32 F, 113 F to 140 F
Relative Salinity:
Relative Salinity:
Range: 0.1% to 10%
Temperature compensation: -5 C to 60C, Automatic Accuracy:
0% to 0.9% (+/- 0.1)
1.0% to 1.9% (+/- 0.2)
2.0% to 2.9% (+/- 0.3)
3.0% to 4.9% (+/- 0.5)
5.0% to 7.9% (+/- 1.0)
8.0% to 10.0% (+/-1.5, depend on the way of measuring)
Applications:
Water monitoring, Liquid Foods, Beverage
|
|
The total TDS is a mass estimate and is dependent on the mix of chemical species as well as the concentration while conductivity is only dependent on the concentration of chemical species. Some applications require the measurement of Total Dissolved Solids (TDS) in mg/L, parts per million (ppm) or parts per thousand (ppt). The TDS concentration can be obtained by multiplying the conductivity
value with a factor which is empirically determined. Eutech offers meters that allow the direct reading
of TDS values. These include the TDSTestr™ series, EcoScan TDS 6, CyberScan Standard Portables CON 11, CON 110 and Waterproof Portable CON 410. Bench meters for advanced level laboratory research are the CyberScan CON 510, CON 1500 and colour touchscreen research-grade CON 6000.
|
|
Four-digit display for full 9999 readings with autoranging capability up to 200 ppt/200 mS
Powerful microprocessor-based surface-mount circuitry
Display prompts for simple pH calibration
Real Time Clock
Memory for 100 readings with Date & Time Stamp
Factory-calibrated with NIST traceable solutions, each PoolPro may be supplied with both certification of traceability & NIST traceable solutions for definitive calibration
pH/ORP Sensor protective cap
Fully automatic temperature compensation
Auto-shutoff maximizes the life of the single 9V battery to more than 100 hours/5000 tests
Non-volatile microprocessor provides data back-up, even when the battery is changed; this assures all calibrations and memory data are retained
Extended life pH/ORP sensor is user-replaceable in the field
|
|
|
|
