Multi-pole connectors for multi-couplings / docking systems MC multi-pole connectors are used in manually or automatically actuated multi-couplings, tool change systems and docking systems.
These connectors meet high plugging frequency requirements, for over 1 million plugging cycles. They are rugged, reliable and easy to apply. The contacts have crimp connection. In the unplugged condition the complete socket and pin parts are longitudinally waterproof over the contacts.
|
|
1. Bayonet connectors derived from MIL-C-26482 series 1 but using size 16 contacts (1.6mm).
- UTP - Full plastic version.
- UTG - Plastic connector with metal bayonet coupling system.
- UT0 - Metal circular connector offering top class performance characteristics.
2. High density bayonet connectors using size 20 contacts (1.0mm).
- UT0W - Metal circular connector offering top class performance characteristics.
3. Mixed power / signal connectors.
- A range of connectors with contact arrangements offered with a mix of signal and power contacts up to 44 A.
4. Push-pull connectors using size 16 contacts (1.6mm).
- MBG – Plastic connector with metal quick mating feature.
|
|
Straight Connector, Female Thread
Straight Connector, Male Thread
|
|
The Han® R 23 series comprises circular connectors with high contact densities.
The inserts with 6, 9, 12, 17 or 19 contacts plus a PE contact are available with crimp, solder or screw terminals. The connectors are rated for 7 ampere or 15 ampere at 50 volt.
|
|
M1 and M3 Series universal industrial connectors are designed for safety and reliability in harsh ambient conditions. Vibration, dust, aggressive liquids or vapours are often the cause of failures and serious safety problems. Sealed to IP67, our M1 and M3 Series circular connectors are dustproof, pressure proof and water protected when mated. They are
also resistant to the effects of most acids and alkalines as well as the extremes of temperature.
You can use our M1 and M3 Series connectors for various applications, especially where high reliability under harsh environmental conditions is important. Typical applications are: mining, ship-building, power plant construction, mechanical and traffic engineering, environmental technology or food processing. We hold numerous official approvals.
|
|
M1 and M3 Series universal industrial connectors are designed for safety and reliability in harsh ambient conditions. Vibration, dust, aggressive liquids or vapours are often the cause of failures and serious safety problems.
Sealed to IP67, our M1 and M3 Series circular connectors are dustproof and water pressure-tight. They are also resistant to the effects of most acids and alkalines as well as the extremes of temperature.
Sealed to IP67 when not mated: By assembling additional O-rings between connector shell and contact insert as well as between contacts and contact insert, the M1 Series connectors are sealed to IP67 (immersion protected).
Thus protected, the connectors are water tight even when not mated, and ingress of water into electric equipment through the connector is not possible.
|
|
|
Modular jack connectors, a cornerstone of communications technology, have been used in the telecommunications and ethernet industry for many years. The main reasons for this are the simplicity and reliability of these products. Whether integrated in a simple telephone system, or in a gigabit application, “mod. jacks” represent the standard for network connections. Mod. jacks can be obtained in many different versions. Increasing data rates and space-saving requirements are driving increasing requests for these connectors with integrated filter components.
|
|
|
|
|
|
The new SRC connector from Colder Products Company provides medical personnel with a new alternative: a tubing connector that is designed to eliminate potential misconnections that can occur with luer fittings. In medical settings, accidental tubing misconnections to the wrong line or device, such as an air hose to an intravenous line, can be extremely dangerous to patients, if not deadly. As a result, the SRC connector is an excellent choice for a wide range of liquid media and gas applications such as blood and bodily fluid handling, and air driven devices.
The SRC is a safer small bore connector for medical tubing applications. Not only does it eliminate the potential for dangerous tubing misconnections with luer fittings, it has a more secure latch design and allows tubing rotation to prevent accidental disconnections or kinked tubing.
There is no twisting required to connect tubing. Users simply push the two halves together for an obvious, secure connection.
Colder’s SRC connector features a dual elastomeric seal. Integral to the body it creates a smooth, gap-free flow path for improved flow characteristics, without any areas for fluid to collect.
Designed for use with 3,2mm and 4,8mm inside diameter (ID) tubing, the small bore connector provides a smaller profile than other quick disconnect couplings. The SRC is made from Class VI, animal-free materials and can withstand gamma, e-beam and EtO sterilization.
# # #
CPC, Colder Products and Colder Products Company are registered trademarks
with the U.S. Patent & Trademark office.
|
|
|
Known for their reliability and precision, the Fischer Connectors products are used in fields requiring faultless quality. Our plastic, hybrid and disposable connector series are ideally suited for use in medical applications.
|
|
The development of the product line "Connectors for Medical Applications" incorporates our many years of experience with Multilam technology and the manufacture of high-quality plug connectors.
The new product line Medicalline includes plug connectors and electrode clips for the collection of body action potentials (e.g. for ECG) and for the transmission of voltages and currents (to muscle stimulators, cardiac pacemakers etc.), as well as plug connectors and leads for potential equalisation in rooms used for medical purposes.
The use of gold-plated contact elements and insulating materials which are suitable for steam sterilisation guarantees that all plug connectors are extremely reliable and takes account of the special needs of medical applications.
On request, we also make special types according to the customer’s individual requirements.
|
|
ODU – as a specialist for customized solutions have all key competences under one roof: design of parts, tools, manufacturing equipment, own tooling shop, molding, stamping, plating, turning, In-House-Design and manufacturing of assembly equipments.
With all these possibilities we are able to offer “customized” solutions for our customers.
Reasons for a custom specific solution are:
Function, Design, Exclusiveness, Costs
Examples for custom solutions: Connectors for MRI, Heart Assist Device, house hold appliance, Connectors for Chip Card reader for diabetes device, Connector for Patient monitoring, compl. Industrial control and so on.
|
|
|
Specifically designed for disposable medical devices, the Fischer L.U.C.TM (Limited Use Connector) truly plugs low cost into high performance.
|
|
|
For different ERbic bus systems, the interface connectors combine compact dimensions with horizontal or vertical cable termination. The color coding describes different bus systems, nodes, and termination versions with integrated termination resistors. The integrated switch of ERbic switch versions allows the flexible configuration of Profibus systems. The switch turns the termination on and off and can be externally operated. The MAX housing is made from die-cast metal and is ideal for use in rough environmental conditions, and for meeting EMC requirements. The MAX housing is also equipped with an axial cable output in the connecting direction, and therefore, has a slimline shape.
|
|

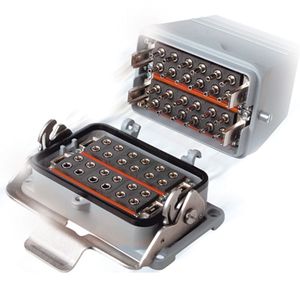

The Han D® / Han DD® series is designed for high pin-count industrial interconnect applications.
All connectors, with the exception of Han® 8 D, also have a PE contact.
The 8-pole Han® 8 D connector is designed for a working voltage of 50 V and a working current of 10 A. All other Han D® and Han DD® connectors are designed for a working voltage of 250 V and a working current of 10 A.
|
|
|
|
|
|
ERmet ZD connectors were specially developed for differential high-speed signal transmission in telecom applications with data rates of up to 10Gbits/sec.
This robust, high quality modular connector system is just as well-suited for use in conjunction with the 2mm HM (IED 61076-4-101) ERmet line of connectors.
The inline design of the signal and ground contacts makes simple, economic routing (conductor track routing) possible. Signal and ground contacts have different connection levels with a gap of 1.5mm, thus ensuring a safe connection. In addition, the contacts are assembled into a robust housing.
The ERmet ZD connector utilizes an optimal grid construction that reduces signal interference and offers ample room for conductor track routing. Its optimized design and effective shielding allow the ERmet ZD system to exhibit superb performance when it comes to crosstalk and reflections.
The ERmet ZD connector has been selected as the backplane interconnect for the PICMG 3.x (ATCA) industry standard.
|
|
|
ERNI M8/M12 circular connectors can be used to implement a flexible I/O or field bus connection on the circuit board. With the modular design concept, connectors can be quickly and easily manufactured in different heights and versions, e.g. 2-, 3-, 4- and 5- pin M12 connectors as well as 3- and 4-pin M8 connectors. We use a variety of SMT, pressfit or THR technology, depending on the customer's requirements. M12 connectors are currently recommended as field bus connectors for almost all field bus specifications, and are also available with coding. The introduction of the new M8/M12 connectors illustrates ERNI's commitment to develop a reliable and flexible I/O or field bus connection on the circuit board.
|
|
Description
Derived from 851 / Mil-C-26482 I
Shells in stainless steel: high resistance to corrosion
Sealing level IP 67 enhanced with interfacial seal on receptacles
3 different keying positions color coded:
-keying N : gray
-keying G : red
-keying H : blue
-keying U : green (universal keying)
Two layouts available: shell size 20 with 16 contacts and shel size 16 with 8 contacts
Plugs delivered without coupling ring
Not intermateable with Mil-C-26482 series 1
|
|
FEATURES
■ Rugged aluminium body to ensure long service life in the
harshest environment.
■ Optimum space and weight saving whilst achieving maximum
strength.
■ Option of either size 22 or 26 gold plated crimp contact or PCB
contact available.
■ Environmental sealing from interfacial seal and rear grommet.
■ Positive locking mechanism with locked colour indicators.
■ 6 colours coded keyway orientations.
■ Boot termination feature.
■ Conductive black zinc plating.
|
|
Panel Connector, Male Thread, Front Mounting
Panel Connector with knurled Nut, Front Mounting
Right Angle Panel Connector, Male Thread, rotating
|
|
|
|
|
|
ODU MINI-SNAP:
- Push-Pull Connector made out of plastic
- 5 Series L, K, B, S, F
- 8 Sizes - Outer diameter 6,5 up to 42 mm
- Positions: 1-40 ways, Special inserts
- More than 300 Inserts in the catalogue
- Certificated according to UL, MIL and VDE
- Solder-, Crimp- and PCB Termination
- High number of mating cycles
- IP 50 and 68
- Modification of the catalogue version possible
ODU MINI-SNAP PC:
- Push-Pull Connector made out of plastic
- 3 Sizes - Outer diameter 12,5 up to 19 mm
- Positions: 2-27 ways, Special inserts
- Colour: Black and (medical) white
- Mating compatible with ODU MINI-SNAP Series F
- Housing 100 % Touch Proof
- Solder-, Crimp- and PCB Termination
- Low weight
- Low mating and demating forces
- High number of mating cycles
- Certificated according to UL
- Stamped and turned contacts
- Modification of the catalogue version possible
ODU MEDI-SNAP:
- Push-Pull Connectors made you of plastic
- 7 Colour-Codings
- Solder- and PCB termination
- 1-14 postions, Special Inserts e.g. Fiber optic, Fluid
- sterilizeable / autoclaveable
- Easy mounting of the connector
- Housing 100 % Touch proof
- Low weight
- Low mating and demating forces
- High chemical resistance
- Special solution like "Disposable"
- Modification of the catalogue version possible
|
|
Right Angle Connector, Male Thread
Right Angle Connector, Male Thread, EMC
Right Angle Connector, Male Thread, MZ
Right Angle Connector, Male Thread, MZ EMC
Right Angle Connector, Female Thread
Right Angle Connector, Female Thread, EMC
Right Angle Connector, Female Thread, MZ
Right Angle Connector, Female Thread, MZ EMC
|
|
|
|
|
|
ODU ROB:
- Connector for industrial robot systems and units
- Simple installation because the contacts lock in place
- IP 67 when inserted
- Flammability class UL 94-V0
- Cable housing can be rotated in any direction
- Pilot contacts are possible
- Very good electric characteristics (operating voltage up to 800VAC)
- Cable housing can be rotated in any direction- straight or
right-angled cable outlets
- Simple packaging of the cable housing
- Cost savings with system solution (connector & cable)
ODU DOCK:
- Connectors for robots, docking systems and tool changing systems
- 4 sizes
- Connector diameters from 28 to 75 mm
- Interchangeable contacts
- Contacts fastened with metal clip (barbed hook)
- ODU springwire contacts for high contact stability
- Version with quick-change head available for extremely
high number of mating cycles
Heavy Duty Connectors:
- Up to 1,500 A
- Up to 252 contact positions
- More than 100 different pole images
- Threaded and bayonet locking
- ODU springwire contacts for high contact stability
- Suitable for the most hostile environmental conditions
- Very long life span
- High packing density
- Mechanically robust
|
|
|
|
|
|
Connectors for signal transmission – uninterrupted connections even under adverse ambient conditions: DN Metal and DN Plastics connectors from Schaltbau.
With the DN Series the proven spring-loaded contact technology from military communication will set new standards for signal transmission when it comes to industrial applications. Our water tight connectors ensure uninterrupted connection in harsh environments. The DN Series connectors feature bayonet interlock. The spring-loaded contacts with self-cleaning faces, patented by Schaltbau, guarantee a long design life and high resistance to shock and vibration. The constant low contact resistance provides for high contact reliability even with low voltages and currents within a wide temperature range.
The modular design of the DN Metal Series allows for additional shielding of the connector against electromagnetic influences.
Schaltbau DN Series connectors: The cost-effective and technologically attractive alternative to commercially available push-pull connectors!
|
|
- Springwire- and Lamella System, Slotted contacts
- High numer of mating cycles – above 1 Mio.
- Extremely reliable connection
- Low mating and demating forces
- Æ 0,6 up to 50 mm
- economical solution
- Also: ODU Springwire Flat-Socket
- Modification of the catalogue version possible
|
|
|
The SMC line of versatile connectors offers a great deal of design application flexibility. Different modules (such as straight and angled male and female multipin connectors) in combination with other options (e.g. IDC versions) afford users the freedom for an optimal assembly design. The connectors are reliably produced on state-of-the-art, fully automatic manufacturing machines. Due to the high contact density and small space required, SMC connectors offer a number of new application possibilities. The precision manufactured contact guarantee a reliable mate. SMC connectors are available in several different heights. The combination of standard profile and low male and female connectors support four different board-to-board stack heights (8.0 - 14.0mm).
|
|
Since 1984 B&B Thermo-Technik GmbH develops and manufactures successfully Thermocouple Connectors.
The high quality thermocouple connectors are available as Standard and Miniature Connectors. The connectors might be executed in plastic, high temperature plastic or ceramics.
Just have a look in our temperature-shop at:
www.temperature-shop.eu
There you will also find a lot of accessories all around connectors, cables, and temperature measurement.
|
|
- Dynamic IP68/IP69 - Waterproof connectors in mated an unmated conditions
- Design based on MIL-DTL-26482 connectors or equivalents such as BS 9522 FOO17, NFC93422, HE301B, VG 95328.
- Protection of electronics inside the equipments/boxes in case of maintenance, unmated conditions or cable damage.
- Salt spray resistance:500h
- Temperature range: -40°C +105°C
- Mechanical performance: 250 matings/unmatings
- RoHS compliant
|
|
|
Rosenberger FAKRA*-RF connectors have been especially designed to fulfill the tough requirements of the automotive industry. A comprehensive coding system offers 11 mechanically keyed and colored coded housings for modern automotive applications, e. g. GPS, keyless entry or GSM mobile radio.
|
|
The overmolding system offers follwing features:
- Clock cycle 20 sec. for 4 units
- Vertical plastics injection moulding machine
- Resistance welding unit for THT-Resistor
- Feeding stamping grid via endless metal carrier band
- Stamping, bending and separating unit for contact grid
- Special handling unit for feeding metal contact grid with welded-on resistor into molding form
- Molding form for 4 units (hot runner system)
- Testing and palletizing units
- Cycle time 20 sec. for 4 units
- Rohwedder services: Process planning, system development and design, complete supply and implementation of production line, production assistance (SOP)
|
|
|
|
|
|
SAL Connectors
The dimensions and construction of the CONEC SAL connector series comply with IEC 61076-2-101.
They are used in many applications in the field of automation technology for signal transmission, power transmission or for data communication in field bus technology.
...with overmoulded cables
reduce installation costs and save time drastically, through the use of connectors with integral wires.
The choice of material and the construction of the connector enable it to be used in a dirty and damp industrial environment.
...for special requirements
are often made of special materials concerning their chemical resistance and temperature stability. CONEC has developed special products for these areas. Special materials are available for a temperature range of 125°C for 6000 h.
Field attachable connectors ...
can be assembled freely and are often required for individual cable lengths, e.g. for the construction of special purpose machines.CONEC offers 4 and 5-pin models here in an axial and angled construction for connectors and adapters. In the angled construction the cable outlet is adjustable in a 90° pitch to the pin layout.
Chassis connectors
Installation flanges are used to produce an M12x1 connection on the device. A newly developed modular system makes it possible to produce a wide variety of combinations among one another.
Fieldbus technology ...
has increased dramatically in the industrial sector over the last few years. CONEC offers connectors for Profibus DP and Industrial Ethernet. Integral M12x1 connectors with corresponding pin layout coding (in acc. to IEC 61076-2-101 standards) are available for both bus systems.
|
|
|
|
