bioniq is the new Suspension Arm System from ETA that offers an unrivalled level of flexibility, styling and performance. Users can select from a range of user-friendly components to configure a quality look system.

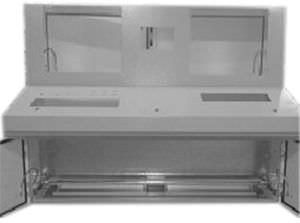

To complement the Suspension Arm, 2 styles of operator enclosures are available each offering a flexible design that compliments today's hi-tech environment.
|
|
Swing Arm / Command Arm
A significant feature of the new General catalogue is a chapter devoted to swing arms (Page 380). Although OEM’s will be the initial target, it is worth mentioning this chapter to all industrial users, as the product range is not only comprehensive, but is aesthetically pleasing and well made.
In our 2006/2007 catalogue, there is information on three different ranges:
- OICP, Operator Interface Panel Control
- SA SL, Mild Steel Swing Arm SL
- SA SS, Stainless Steel Swing Arm SS
Although we haven’t taken on the complete range, you will find the most popular sizes, and all the accessories you need to be able to compete in thisniche market.
Traditionally, the swing arm user knows what he wants, which will be very specific to his machine or application. Fortunately, this product range is very versatile, and should meet the majority of our customers requirements.
|
|
The 1001 Series is a keystart control panel fully equipped with all the necessary instruments and protection
Construction and finish
- Components installed in a heavy duty sheet steel enclosure
- Phosphate chemical pre-coating of steel provides corrosion resistant surface
- Polyester composite powder top-coat forms high gloss and extremely durable finish
- Lockable hinged panel door provides for easy component access
Mounting
- Mounted to generating set baseframe on robust steel stand
- Vibration isolated from generating set
- Located at rear of generating set with excellent panel visibility
- Installed as an integral part of the enclosure on-enclosed generating sets
Instrumentation
- AC instruments are 90° deflection, 72 mm square, flush mounting
- AC instruments in accordance with IEC60051 and 60529, DIN43700 and 43718, BSEN60051 and 61010, UL94
- Engine gauges are heavy duty, 52 mm diameter, electrically operated
|
|
|
With a complete range of Touch Panel PCs, Industrial Panel PCs, and Industrial Flat Panel Monitors, Advantech offers a wide range of HMI products for industrial automation needs. By creating value-added, standard product solutions and by offering customization, Advantech can provide platforms to meet any requirement.
|
|
|
|
|
|
Features of full graphic-capability operator terminals for controls:
- Many PLCs supported,
- Temperature controllers & inverters directly connected to HMI via Modbus
- Friendly multiple languages supported to the end users
- Many available sizes like 12.1" color, 5.7" color & mono, 4.1" & 2.5"
mono
- Data logging, bar graphs, trends and alarms
- Animation: display/hide, flash, color changed
- Data entry and data display from /to PLC registers directly
- Free Windows based configuration software for all HMIs
- Upto 65535 screens in each project, pop-up screen and associated
screen supported
- Ladder programming (Soft PLC) supported in HMI and Ladder online
monitoring
- Screen security
- Floating point supported
- Ready made registers for Real Time Clock
- Unique Tag database for HMI and PLC registers
- 256 real-time alarms, and 30 or 2000 historical alarms
- Global & power-on tasks, list of predefined and screen tasks-before, while and after
- Ready made lamps, button, data entry, data display, trend, alarm,
bitmaps & meters
- Action for graphical objects from list of predefined tasks
- Ready made system coils for changing RTC data by sec,min, hour, day, month, year
- IP65 design, CE, cUL, UL certificates
|
|
HMIs & Displays
The scalable product line of the new HMI systems (Panel PCs, Micro Clients, Touch Panels)offers a wide range of processor capacities and display dimensions from 7.0" up to 19". The 100% industry-capable Panel PCs and displays meet toughest industrial requirements concerning shock, vibration and temperature resistance. However specific your requirements we supply you with semi- and full-customized Panel PCs and displays for your control and visualization applications.
|
|
|
|
|
|
HMI solutions for every application
Mitsubishi Electric has pushed forward the development of its visualisation programme, realigning the products in this sector with a new concept called Vision 1000. This concept is built around three series of products: the GOT1000, E1000 and IPC1000 series. All three series share flexibility, openess and seamless compatibility with all Mitsubishi Electric automation systems.
GOT1000 Series
The GOT1000 series is the ultimate in control unit quality and performance. The impressive array of functions and simple touchscreen operation give users everything they want and need.
E1000 Series
The new control units are also packed with advanced Mitsubishi technology standards, such as comprehensive communications support, which includes networking, Internet and SMS mobile network text messaging capabilities - along with features like multi-language user interfaces and dual driver support.
IPC1000
Personal computers are a part of everyday life as Industrial PCs are a part of Automation and process control. Mitsubishi’s new IPC1000 Series including Eco panels and flexible Business panels, bring together the very best of open PC technology with a long understanding of the rigors of the industrial environment.
|
|
RAFI produces complete control panels and data entry systems including electronic circuitry and interfaces. We design our systems with special emphasis on reliable data input and convenient operation. A wide range of technological and design options enable RAFI to quickly implement individual solutions. For example, we utilise the following equipment for in-house production:
CAD development tools (3D)
Screen printing machines for the production of overlays
Sheet metal machining equipment for front panels
SMD and conventional assembly of printed circuit boards
Individual assembly and testing facilities
|
|
Advanced Input Systems integrates a wide variety of display technologies into user interface products—with great design and cost flexibility. We translate your needs into the ideal display solution to meet variable lighting, environmental and user conditions.
The myriad of end applications suited for display technologies today has created a diverse portfolio of choices. From text delivery to complete integrated solutions, each display technology provides unique capabilities and functions best matched to a specific need. Advanced Input Systems offers the necessary experience to integrate whatever choice of display technology OEMs require to meet technology, time to market and cost parameters.
Available Technologies:
1) LED: Segment and Dot Matrix Light Emitting Diode (LED)
2) LCD: Active, TFT (Color)
3) LCD: Passive
4) Passive LCD
5) Electro-Luminescent (EL)
6) Vacuum Florescent
7) Touch Screens
8) Display Controllers
|
|
Control panels up to 500 x 500 mm
We offer a customized production of such control panels. So we are able to take all your wishes into consideration.
We supply them both, for suface wiring and concealed wiring.
The following designs are available:
Mat aluminium, brushed surface
drawn aluminium, glossy surface. Anodized in nature, gold, dark bronze and black
As plastic mosaic panel
Upon request, the instrument panels can also be engraved, e. g. with letters, numbers, flow charts, symbols, etc.
All the control panels are also available assembled with Schlegel or DUX control units.
Mounting dimensions:
- 16 mm
- 22 mm
- 30 mm
or according to customers' requirements
|
|
The 950 Series includes a compact, single channel device and a deluxe, multi-channel device for operation of up to four mass flow instruments. The 950 Series is designed for use with the Sierra Model 830L, 830M, 840L and 840M instruments, but can be used on any brand of MFM or MFC. Both of these powerful digital systems supply power (+/- 15 VDC), display the flow rate, and offer set point control for MFC’s.
951 UNIQUE PRODUCT FEATURES
- 5 digit LED display
- Front-panel pushbutton set point, calibration and alarms
- Integral power supply (+/- 15 Vdc)
- Compact size—1/8 DIN
- CE Approved
954 UNIQUE PRODUCT FEATURES
- 4 line, 20 character LCD display
- Valve Close, Valve Open (Purge) pushbutton override
- Front-panel menu adjustable:
- Flow units
- Set Point
- Totalizer
- Gas K-factors
- Alarms
- Master/Slave Ratio Control
- Calibration
- Analog Outputs: 0-5, 0-10 VDC and 4-20 mA
- Digital Output: RS-232 and RS-485
- CE Approved
|
|
Whether you require an intricate device incorporating multimedia options, cursor control, and touch screen or perhaps just a single-station keypad, Advanced Input Systems is dedicated to providing end-to-end solutions. Rapidly and cost effectively.
Hybrid keyboards use a combination of two or more switch technologies. Hybrids are particularly useful when a high-speed typing array is combined with a large number of special function keys. These keyboards give our customers yet another way to differentiate their products from the competition and to meet the needs of their unique application.
|
|
Beijer Electronics H-series H-T80c/H-T100t, touchscreen panel with color STN/TFT LCD 7.5”/10.4” display
Display: Color STN LCD/ Color TFT LCD
Presentation form: 7.5”/10.4” (diagonal), 640 x 480 pxl
Keypad: 1 Menu key and 6 user-defined function keys
2 USB Hosts, 1 USB Device, CF-card
The H-series offers valuable HMI functionality at an affordable level. The series include keypad and touch screen interfaces and is available in seven different sizes from 3 to 10.4 inches. Offering three levels of functionality – Standard, Plus and Network – the H-series enables you to select and pay for what level of HMI technology you need.
|
|
IndraControl V - The Front-End for Operation, Monitoring and Diagnostics.
Are you looking for an operator terminal or industrial PC with robust, reliable technology and flexibility? Would you like to have a choice in the location of your operator controls? The Rexroth IndraControl V series always provides the right solution that is tailored to your specific automation application.
|
|
|
|
|
|
|
For additional information please contact sales@nematron.net. An enhanced version of the PowerView 6000/8000 Series brings higher performance and greater hardware expansion capabilities to Operator Interface Terminal applications. The extensive communication support for a wide range of popular PLCs and Servo Controllers will allow simultaneous connection of up to 16 different controllers along, with Peer-to-Peer and Global variables functions. A comprehensive range of hardware interfaces are offered as standard and extend application support for USB, Compact Flash, Hard Disk, Bar Code Scanner, Wireless and many other devices. Free downloadable ViewBuilder 8000 configuration software supports all standard HMI functions, and includes macro, math and logic capability for advanced operations. Included with ViewBuilder is a subset of the popular Symbol Factory 2.0 graphics library, containing over 2,000 graphical objects. ViewBuilder 8000 takes full advantage of the PV8000s high resolution display with a wealth of application development tools. Enhanced graphics capability provides support for BMP, JPG, and both static and dynamic GIF file formats. The advanced object libraries containing bar graphs, trend displays, list & dropdown menus, user configurable shapes and engineering icons facilitate fast mimic and screen development reducing project implementation time. Alarm management, historical and real time event & trend functions bring performance and functionality typical of larger scale SCADA Systems to the PV-8000 Operator Interface Terminal. Ethernet, OPC Server (optional), and Serial are amongst the extensive Communication options.
|
|
Operating and monitoring with the PMI Pilz Machine Interface and PIT control and signal devices
Diagnostics and visualisation :
Pilz offers the most diverse range of systems to perform diagnostic and visualisation tasks, from the diagnostic device PMImicro diag through to powerful operator terminals with touchscreen, PMIvisu and PMIopen. So it's easy to implement customised, complete solutions that meet your requirement.
Control and signalling :
Selection of the correct control/signal device is a key factor for the safety of man and machine. Rely on a safe solution with Pilz E-STOP pushbuttons, muting lamps and manually operated control devices.
|
|

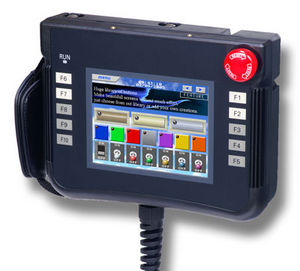

Handypanel, AGP3000H range : 3 models, screen 5.7", colour or monochrome. A new generation of portable graphic operator interfaces for your mobile applications.
AGP3000H range:
- Screen 5.7"
- 3 models
- Colour TFT : 65536 colours / Colour STN : 4096 colours / monochrome : 16 shades of grey
- 8 MB FEPROM
- SIO x 1 / Ethernet / USB x 1 / CF card
- Designed for super portability with a lightweight, easy-to-use cable
- Emergency stop switch: to stop the machine when a circuit fault or other emergency occurs
- Three position device
- Dimensions : 224mmW x 174mmH x 87.1mmD
|
|
|
|
|
|
Discover the G315: much more than an HMI !
As with all G3 panels, the G315 arrives standard with an integrated protocol converter, allowing the HMI to act as a communication hub between any and all connected devices. Programmed via Red Lion Controls FREE Crimson™ 2.0 software, data exchange is achieved in seconds using the built-in driver list and drag and drop register mapping. Your PLCs can now communicate with any drive, SCADA and serial or Ethernet enabled devices.
“With integrated features such as multiple-protocol support, data logging and built in web and FTP servers, the G315 performs SCADA-like functionality—at a fraction of the cost,” said Jesse Benefiel, product manager, Red Lion HMI products.
Using the G315 integrated data logger, information can be recorded in “IT-Ready” CSV files on a CompactFlash card for further analysis or troubleshooting. In addition, the embedded Web Server provides remote viewing and control capability with no extra software required, just a simple web browser. Users can monitor and control their application or download data logs using HTTP or FTP access.
SOME FEATURES:
- 15-inch TFT Active Matrix 32K Color XGA 1024 X 768 Pixel LC
- 10-button keypad for on-screen menus
- Three front panel LED indicators
- Resistive Analog Touchscreen
- Up to 6 RS-232/422/485 Communications Ports
(2 RS-232 and 2 RS-422/485 on board, 1 RS-232 and 1 RS422/485
on Optional Communications Card)
- 10 Base T/100 Base-TX Ethernet Port Supports Multiple Protocols Simultaneously
- Built-in Web Server and FTP Server/Client
Accessories :
G3CN CANopen Option Card
G3DN DeviceNet Option Card
G3PB PROFIBUS Option Card
G3RS RS232/RS485 Option Card
|
|
|
|
|
|
G3 SERIES: COMMUNICATION GATEWAY WITH HMI 2-IN-1
Red Lion's G3 operator interface panels give you complete HMI functionality for PLCs, motor drives and other communications-capable devices. With Ethernet as standard on all G3 models, you can network-enable any serial devices connected to the panel. In addition to the G3, Red Lion also offers Paradigm operator panels, plus message centers, slave displays and large digit displays in a variety of configurations.
"Legacy devices communicate with their own protocol," said Jesse Benefiel, Product Manager. The G3 HMI is the first to feature an integrated protocol converter that allows it to function as a center point of data gathering, converting disparate protocols while relaying all the data to a remote location. This makes the G3 an ideal tool to collect and move data, or control multiple devices including PLCs, PCs, drives, PID controllers and others, from anywhere in the world," added Benefiel.
SOME OF THE FEATURES AVAILABLE IN STANDARD ON G3'S:
- Web server enabled in few clicks
- Data logging on CF and FTP server/client function
- Multi com ports
- Protocol conversion ability (200 drivers included)
- Email/SMS messaging
- Security/Events/Data logging
- Pass-Through programming
...etc...
SOME OF CUSTOMER'S BENEFITS :
- Remote PLC reprogramming & Remote alarms = Remote Maintenance
- Reduction of down times
- Remote control & monitoring
- Development of raw protocol
...etc...
|
|
The Silver Series touchscreen operator interfaces have been one of our most popular product lines for many years. With thousands of units out in the field, the Silver Series products have proven to be a reliable graphic OIT.
Reliability is not the only feature that the Silver Series offers. Extensive graphics libraries, pop-up windows, animation and a simulation mode make the Silver Series powerful and easily configurable. The extensive set of communications drivers allows connection to most major brand PLCs and controllers on the market today.
Best of all, the list price of the Silver Series is much lower than that offered by other OIT manufacturers.
Considering the many software features, time-tested quality and low cost of these graphic OITs, the Silver Series is truly a great value at a competitive price.
|
|
True Analogue Touchscreen
Compatible with a Wide Range of PLC Protocols
Retentive Internal Data Storage
Real Time Trending
Trend Stored Data
Alarming and Alarm Storage
Alarm Frequency
Event Storage (History)
USB Programming
USB Memory Storage
USB Printer
Add I/O
Macro Programming
Multi-Language
Recipe Storage
Auto-Scaling Application to Migrate Programs from 10 to 4" Displays
On-Line Simulation
Off-Line Simulation
10-Level Password Protection
|
|
|
Omron provides high quality industrial rated HMI products. Broad range of screen sizes and functionality that allow the product to meet the needs of OEM's and /or end users.
|
|
|
Machines and systems must be safe and, most importantly, easy to operate. To meet these requirements, Lenze offers a graded and uniform range of products for your automation system - from text displays right up to high-resolution touch screens.
|
|
|
|
|
|
Advanced Input Systems specializes in meeting the needs of underserved customers that are constrained by traditional design solutions or unable to implement hardware differentiation. We routinely produce application-specific devices by integrating standard elements into more complex control interfaces. These deterministic systems combine platforms of standard building blocks from a wide variety of technology providers to meet customer-specific complexity and performance.
Technology Approaches
Customizable, Fundamental Keyboard Platforms Including:
-Flat panel
-Plastic key over elastomer-based laptop
-Backlight full-travel
-Metal kiosk keyboards
-Elastomer-based mobile keyboard
Components and Incorporation of:
-Optical and mechanical encoders
-Displays and touch panels
-Audio devices
-Pointing devices
-Illumination strategies
-User interface strategies
-Sealing solutions
-Graphic overlays
-Structural and cosmetic enclosures
Common Building Blocks:
-Numerous switching techniques
-Industry standard network interfaces
-Common user interface control devices
-Reusable 8051 firmware modules
|
|
Beijer Electronics EXTER T60c/T60m, touchscreen panels with 5.7” display
Display: Graphic 64K color STN/Graphic 16 grayscales
Presentation form: 5.7”, 320 x 240 pxl
USB Host
Front protection class: IP66 (waterproof even when exposed to high pressure washing).
With EXTER™, you get an operator panel that is ready to impress you. Its high-performance Intel Xscale® processor, robust construction and multiple communication ports make it a futureproof choice for your machines and processes. There are fourteen models to choose from - seven with touchscreen display, six with keypad control and one mobile operator panel. The award-winning, slim design and the powerful performance make EXTER™ an operator panel beyond the ordinary.
|
|
Microvision Light (2 axis interpolated controller)
Suitable both for simple machines and for intelligent and programmable equipments, it integrates in a sole unit HMI, PLC and CNC functions with an excellent relation price/performances. Drivers can be connected to the controller either through analog +/- 7,5V signals or digital PWM or Step / Direction. It’s basic equipment of 12 Inputs and 8 Outputs can be expanded using the 2 available CANopen serial ports.
|
|
In view of increasing requirements with regard to production conditions, the spectrum of the so-called man-machine interface grows further and its functions are increasing continuously. HMI devices as well as a compatible, consistent HMI software, i. e. a visualisation software, are basic components of the production lines and production sequences of today.
HMI devices and software by Lenze ensure that you can operate your machines and systems in a safe and simple manner, control processes, and adjust your data accurately.
|
|
The introduction of Micro-Browser Technology for operator panels is a major innovation step in the HMI technology. It brings the Web Look and Feel from the PC / Windows environment world to the small display sizes that are typically used in industrial, designed HMI devices for automation. It opens up new possibilities, shifting paradigms and breaking conventional limits
Saia® Web Panel with Micro-Browser technology are touchscreen operator panels displaying web pages. The Saia® S-Web-Editor is an easy and convenient way of creating dynamic web pages for the Saia® PCD.Web-Server. No knowledge of HTML or Java-programming is required. Pages are edited by positioning and configuring graphical objects, which have been specially designed for Saia® PCD devices.
|
|
Pro-face presents the new touch terminal model "special well-lighted locations" : 1000cd/m2. Low-light reflexion and ultra-brightness model.
- 5.7" model
- Colour TFT - 640 x 480
- 65536 colours
- RS232/RS422/RS485 - USB - Ethernet
CF-Card - ultra High-brigthness: 1000cd/m2
- Power supply: 24VCC
A new solution for applications installed in Well-lighted locations.
|
|
unipo® control panel UCP250
The individually configurable compact control panel
The profoundly variable compact control panel UCP250 is unique with its modular built: customisable front plates, different display sizes, optional touch screen and variable keyboard. It presents the perfect solution for special purpose plants and under-stored control stations.
Further advantages are the optionally integrable hardware-SPC, the implementation of Linux to improve the safety of your application, its flexibly adjustable communication and the integrated central database function (extendable for usage as a data collector or Q-system).The unipo® firmware-runtime saves additional software expenses and completes the image of the perfect control panel solution.
Contact us for your customised quotation - only your requirements, what you really need for your panel, bases our price.
|
|
|
|
