CONTACTORS
- Three-pole versions up to 630A in AC3 duty
- Four-pole versions up to 1600A in AC1 duty
- Versions for power factor correction up to 60kvar at 400VAC
- Four-pole versions with 2NO+2NC or 4NC main poles
- Low-consumption versions with DC control circuit for control relays and
9-38A contactors in AC3 duty
- Versions with AC or DC control
- Extensive choice of add-on blocks and accessories
- Certified by primary international authorities.
MODULAR CONTACTORS
- Two, three and four-pole versions, 20A to 63A
- Very silent during operation or control phase
- Operation flag indicator
- Add-on auxiliary contacts.
MOTOR PROTECTION RELAYS
- Thermal overload relays for currents between 0.09 and 420A
- Phase failure sensitive and non phase failure sensitive versions
- Automatic and/or manual resetting Independent or direct mounting on
contactor
- Thermistor protection relay.
ELECTROMECHANICA STARTERS
- Direct-on-line starters in insulated enclosure complete with or without
thermal relay
- Versions with RESET or START/STOP push buttons
- Insulated enclosures for customer-assembled starters
- Reversing and changeover contactor assemblies
- Star-delta starters, open frame and in insulated enclosure versions.
|
|
Contactor Series C195
Single pole NO contactor for 250 A AC and coil voltage 24 V with coil suppression and 2 auxiliary contacts. The C195 contactor features a compact design, double-break contacts, a high breaking capacity, and a contact area which is almost fully enclosed. The high contact force of the contact system ensures the failsafe operation of the contactor even in harsh environments. Type B contactors are designed for use with AC applications. They come with an arc chute which guarantees that the generated arc is extinguished reliably.
Features
- Suitable for many years' continuous operation
- Compact design
- Double contact interruption
- Arc chamber
- Wide coil voltage tolerance
- Dimensions (mm): 143 x 142 x 68
- Weight: 2000 g
|
|

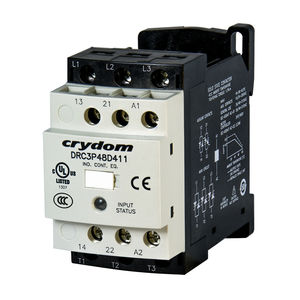

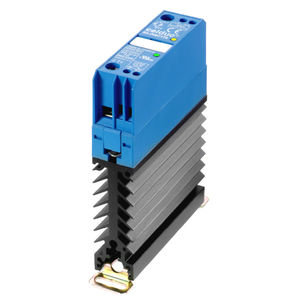

Solid State Contactors are designed for fast and demanding switching of loads such as heaters, solenoids, transformers and motors. Solid State Contactors are ideal replacement for electro-mechanical devices or mercury contactors. They can switch single and dual phase heaters up to 50 A, and three phase heaters up to 20 A.
Available from 15-50 A
Line Voltage 24-600 VAC 50/60 Hz
Control Voltage 5-24 VDC 24-230V AC
Advantages
The contactors are burst fired for reduced EMC emission, have LED status indicators and accept universal control voltage ranges. The units are panel or DIN rail mountable, complete with heatsink and require no additional components.
|
|

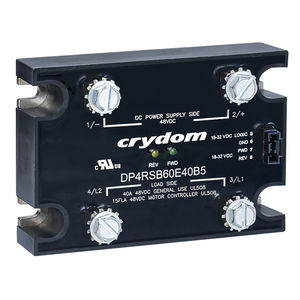

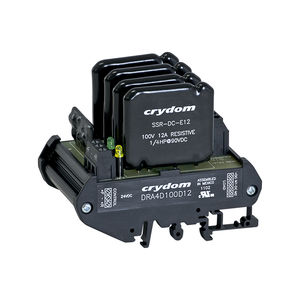

DC Solid State Relays : your needs ... our solutions
celduc® relais offers a complete range of solid-state relays up to 1200Vdc, 0 to 150A for DC applications.
All possible technologies can be available :
1) MOSFET : Latest MOSFET technology generation SSRs combine technical performance with low turn on/off time (50µs) and price competitiveness :
-Overcurrent capability
-Low dissipated power
2) BIPOLAR :
This technology should be prefered if low control current is needed
3) IGBT :
IGBT technology SSRs combine technical performance and price competitiveness ;
-For high voltage applications (<600VDC)
-Low dissipated power
|
|
Yaskawa low voltage clapper-type magnetic contactor Type HU is designed for operation on either DC or AC power supply. Electrically stable and mechanically rigid, this magnetic contactor is suitable for use under heavy service conditions. It is designed for surface mounting and provides easy access to any parts of the unit.
In addition to a standard series of contactors, there are avaiable modified products including those with normally closed contacts, and those with reversible mechanical interlocks. Select the types best suited to your application need.
FEATURES;
1.Variety of contat arrangements
2.Greater mechanical withstandablility under Heavy Duty
3.High Performance and long electrical life
4.Greater environmental immunity
5.Ease of inspection and maintenance
|
|
|
|
|
|
celpac 2G :
22,5 and 45mm pitch
More and more the seek for cost reduction implies easy and quick assembling in electrical cabinets, and in the smaller space if possible : the new generation of our celpac products is the answer
Performances & reliability :
-Maximum voltage up to 1600V (690VRMS), 600VAC and 1200VAC as standard,
-Thyristor rating up to 95A (IRMS = 96A @ 100°C ; IRMS = 125A @ 85°C,
-Large input range : 3-32VDC with regulated current models,
-AC input control available,
-Input status yellow LED
-Over-voltage protection on input,
-New generation of TMS² technology for thyristors for a longer life expectancy
-Quick and easy connections,
-Designed according to European standards EN60947-4-3 (IEC947-4-3) and EN60950 (VDE0805 reinforced insulation) -UL-cUL
-IP20 protection with removable flaps (SU range) or cover (SA range)
-Other protection devices in option : RC snubber, VDR, self turn-on
-Fixation screws compatible with SO or SC relays in hockey puck style
Price-effective & small-size solution :
-The 22,5mm pitch of our Solid state Contactors reduces space to the minimum,
-Reduced assembling time, easy cabling
-Reduced maintenance thanks to a very long life expectancy
-One single screw driver for input and output
Different types are available :
-SAL and SAM range : with screws connection - transparent protective cover – « ready to use » on 22,5 and 45mm heatsinks,
-SUL and SUM range : with pluggable connector on inputs - removable flaps for protection - « ready to use » on 22,5 and 45mm heatsinks.
|
|
Description :

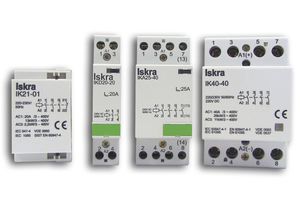

Modular contactors are used for installation into home switch cabinets with a number of different purposes, such as:
- switching-on electric lighting
- switching-on all types of pumps
- switching-on electric heating appliances
- switching-on electric motors
The basic types of the above mentioned modular contactors are R20, R25, R40 and R63, intended for installation on
standard mounting rails with a width of 35 mm (EN 50022).
The contactors can be leaded by means of a lead cover, also available is an auxiliary contactor block RH 11.
A great advantage of our contactors is a relatively silent operation, long lifetime of the mechanism, and high-quality
manufacturing of the mechanism itself.
Technical specifications according to:
EN60947-4-1; EN60947-5-1; VDE 0660, IEC 947-4-1; IEC 947-5-1
|
|
|

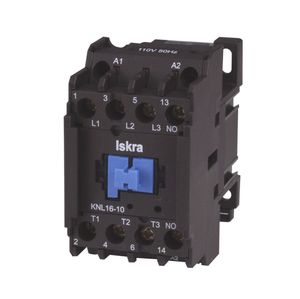

Contactors KNL 40/65 are used mainly for motor starting. They can also be used for switching on other ohm, inductive and capacitve loads. Uniform marking of connection terminals in compliance with EN 50005 and 50011 standards.
|
|
Contactors
- mini-contactors type CRMI up to 9A AC3 duty
- contactors type CRNI up to 100A AC3 duty
- contactors type CRLI from 110A to 400A AC3 duty
Thermal overload relays
- for the protection of electric motors from overload and phase fault
- adjustable rated range from 0,1 A to 400 A
|
|
CONTACTORS
• Complete line (7 to 800A / AC-3)
• Quick mounting on DIN rail 35mm
• Direct mounting on overload relays
• Overload relays with phase failure sensitivity, according to IEC60947-4-1
standard, tripping class 10
• Possibility to install relays separate from contactors using of individual
supports
ACCESSORIES AND SPARE PARTS
• Accessories for contactors from 7 to 300A (modular line)
• Four-terminal coils up to 40A and three-terminal coils up to 800A
• Coils available in AC (50Hz, 60Hz and 50/60Hz) and DC
• Spare parts for the whole line (Ex.: contact set)
MINICONTACTOR CWC
• AC3 operation up to 16A
• Line with AC and DC coil with the same dimensions
• Allows operation under the AC-4 duty
• Low-consumption DC coil
• Complete line of accessories
Contactors for Power Factor Capacitor Switching
• Available for the switching of capacitors up to 50kvar/400/415V
• Same accessories used with CWM contactors line
• Integrated pre-charge resistors with early-make contacts block
|
|
|
IDEC IEC contactors and starters are designed for switching motor loads, but can be used in many other applications. Like all IDEC products, each model is engineered for long life, minimum maintenance, dependable operation and superior performance.
|
|
|
IDEC IEC contactors and starters are designed for switching motor loads, but can be used in many other applications. Like all IDEC products, each model is engineered for long life, minimum maintenance, dependable operation and superior performance.
|
|
* Various accessories
* Compliance with international standard
* Certification: KEMA CB certification, CE mark
* Ratings
(1) Magnetic Contactors
- Complete ranges 3-pole and 4-pole up to 800A Contactors (4kW ~ 440kW at AC3 380/440VAC)
- 3 pole contactors: 20 rating classes in 8 sizes, AC/DC controls are available.
- 4 pole contactors: 19 rating classes in 7 sizes, AC/DC controls are available
(2) Mini contactors
- 2.2kW~7.5kW at AC3 380~440VAC according to IEC60947-4
(3) Starters
- Enclosed motor starters: 4~45kW AC3 380/440VAC
- D.O.L starters: 2.2kW~440kW AC3 380/440VAC
(4) Overload Relays: 0.1~800A
- GT series: Thermal Overload Relay - 0.1~800A
|
|
IDEC IEC contactors and starters are designed for switching motor loads, but can be used in many other applications. Like all IDEC products, each model is engineered for long life, minimum maintenance, dependable operation and superior performance.
YS Series
Simple, compact and rugged IEC contactors and starters with cadmium-free contacts for environmental safety. They are rated for loads as small as 1/3HP to 200HP. Reversing models are also available.
|
|
|
|
|
|
EV100 contactors are designed for use in DC applications with lead-acid batteries or rectified power. They perform power switching functions for electric vehicle traction drives as well as pump and other power switching applications.
The contactors have been successfully applied to meet UL standards, and are listed under UL file number AU1793.
- Amp ratings :100, 150 and 300 amps at 50% Duty Cycle
- Voltage : 24 to 80V
Features and Benefits:
- Special bonding of alloy tip material to tip supports maximize tip life.
- Double-break operation assures good contact and minimizes tip bounce time.
- Solenoid design allows for smaller size and mounting flexibility.
- Design criteria optimizes tip velocity, pick-up time and low-voltage operation for improved performance with solid-state controllers.
- High-fidelity mechanical operation assures consistent high tip parting velocities.
- Mechanical life in excess of six million operations
- Electrical life in excess of two million operations. Actual life will vary depending on application, duty cycle, maintenance and battery condition.
|
|
DC CONTACTORS AND DISCONNECT SWITCHES
- Specify your continuous current rating.
Curtis/Albright contactors for Power Systems and Telecommunications applications are available at ratings of 125, 200, 250, 400, 600, 800 and 1200 Amperes.
Curtis/Albright contactors for Vehicle and Industrial applications are available at ratings of 100, 125, 150 and 250 Amperes.
Select the general product type and specific configuration that fits your needs.
|
|
Series SD-Q Features
Low coil power consumption: By combining an electromagnet with permanent magnet, coil operating current is reduced to DC24V 55mA (1.3W) for SD-Q11, Q12 and 75mA (1.8W) for SD-Q19.
Compact construction: Width 45mm, Height 51mm, Depth 66.5mm in Type SD-Q11
Can be mounted on 35mm rail
Coil surge absorber
Safety clear terminal cover
Easy wiring: All terminals are in the same plane
UL/CSA approved
Auxillary contact block available for SD-Q11 and SD-QR11Type Designation
|
|
Application :
Build-in switch is used as a main switch in distribution boxes in houses or as a switch for individual electric circuits.
With a build-in switch we can completely replace the cam switch. Build-in switch can be sealed either in ON or OFF
position.
Advantages :
Build-in switch has a more robust and simple construction and therefore it has more reliable operation. It also shows
the status of the contacts. With an additional label, the circuit in which the switch is built in, can be marked. Switches
with In. 63A have a double switching off.
|
|
IKA20-R, IKD20-R, IKA25-R and IKD25-R are upgraded versions
of basic types of installation contactors
• Besides basic functions they enable manual control with a handle
• Description of the handle positions:
- A: the contactor functions as an installation contactor without manual control
- O: permanently switched off control voltage
- I: at manual shifting the handle from position A to I, make contacts
are closed and break contacts are open. When control voltage is
applied, the handle is automatically set to position A.
• IKD20-R and IKD25-R are provided with a varistor for overvoltage
protection and a rectifier, which enables control with AC and DC
voltage
• Contactors with manual control enable
- switching depending on tariff (selection of the most convenient tariff)
- switching when control voltage is not applied
• Degree of protection IP20
|
|
EMR4-A Unbalance Relay – Reliable Phase Loss Detection
Unbalance Relay Protecting the motor from destruction
The EMR4-A unbalance relay with its 22.5 mm module width is the ideal protective device for phase loss protection. The detection of phase loss on the basis of phase shift means that reliable phase loss detection is ensured and overloads, even when large amounts of energy are regenerated to the motor.
The relay can be used for protecting motors with a rated voltage of UN = 380 V – 415 V at 50 Hz.
Features of the EMR4-A
* Phase loss detection even with 95 % phase regeneration
* Phase sequence detection
* On-delay 0.5 s
* LED status indication
* The relay has its own power supply, i.e. an additional supply voltage is not required.
|
|

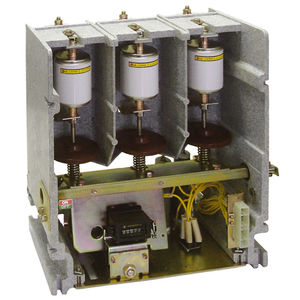

Tri-MEC vacuum contactors are mainly used for the switching of motors, transformers, capacitors in AC power lines. They can be installed in multi-stack cubicles.
A vacuum contactor comprises several assemblies such as switching mechanism including vacuum interrupters, magnetic actuator, high strength molded front cover and auxiliary devices. Stable and high operating cycle is executed by the vacuum interrupters made of high alumina ceramic tube which makes it possible to degas in a high temperature with excellent mechanical strength.
Actuating is available either at instantaneous or continuous excitation. Functions for safety in connecting and disconnecting are also provided.
Operation conditions
1) Ambient temperature : -5 to 40°C
2) Maximum temperature of 24-hour mean : 35 °C
3) Altitude : 1000m
4) Humidity : 24-hour measured average - max. 95% RH
1 month measured average - max. 90% RH
5) Applied standards : IEC Pub. 60470, IEC 60282-1, JEM 1167, KEMC 1126
|
|
|
|
|
|
Application
FEAS semiconductor contactor of the series HR3. 3-polige is electronic load relays, which scolded to the loudless with high switching frequencies in 3-Phasen alternating voltage systems are used. By contactless scolded is almost unlimited the life span. The robust power semiconductors scolded in tension zero crossover and produce so no additional high frequency malfunctions. The equipment is integrated into a functional and sturdy housing, which makes it insensitive to shock demand and vibrations. Also an employment in aggresiver pollutant environment is unproblematic.
An inserted temperature monitoring signals an excessively high temperature rise before the equipment protects themselves and switches off. The integrated phase failure monitoring prevents a starting of the engine in case of failure a phase.
Temperature rise and phase failure are indicated in each case by relay contact.
Operational principle
The semiconductor relay HR 3.2.230.20 - 400 works according to the principle of a zero crossover or a zero voltage switch. After the creation of the control voltage scolded the power output (load circuit) of the semiconductor relay with the first zero-run of the mains voltage.
The typical response time is smaller than the half period duration and amounts to with 50Hz less than 10mS. Due to their excellent behavior with current peaks and reverse voltages these semiconductor relays are particularly suitable for applications with inductive and capacitive loads.
Execution
Inserted and completely poured in an aluminum housing for the direct assembly on DIN rail.
|
|
|
|
|
|
Single Line Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Easy to operate
- Very Economical
- By-Pass Switch to accommodate other workholding devises
Single Line Vacuum Safety System units are used with a single vacuum source and a single vacuum chuck.
Single Line Vacuum Safety System with a Buzzer and Light Combination to alert the machine operator of a problems with low vacuum levels. These units are used with a single vacuum source and a single vacuum chuck.
Multiple Zone Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Vacuum sensor to detect current vacuum levels
- Warning alarm buzzer (86 dbs)
- Warning indicator light
- Easy and convenient 110 VAC operating voltage
Multiple Zone Vacuum Safety System units for use with routers and large multiple zone vacuum chucks. The unit indicates which zone has a vacuum leak.
Multiple Line Vacuum Safety Systems
- Terminal connections to wire emergency stop of machine tool
- Vacuum sensor to detect current vacuum levels
- Warning alarm buzzer (86 dbs)
- Warning indicator light
- In-line filter with sight jar
- Easy and convenient 110 VAC operating voltage
Multiple Line Vacuum Safety System units for use with a central vacuum system and multiple machines in operation. The unit includes a vacuum solenoid valve.
|
|
|
The stop switch is used to shut down the wind generator if it is not to be operated or to prevent starting of the rotor when working on it. Wiring the stop switch is not obligatory if a charge regulator has been installed.
|
|
|
|
|
|
Circuit-Breakers and Switch-Disconnectors up to 6300 A
Intelligent and capable of communication
The IZM was the realisation of an idea for air-break circuit-breakers which has now become the standard worldwide. The compact circuit-breaker in the rated current range 630 to 6300 A utilises the very latest protective measures from the field of panel building – new technology which, in many respects, has set new standards: in terms of performance with higher switching capacities; in terms of function through the increased signalling and information features; and in terms of handling through front access to the operating components and in terms of installation through the identical connection positions for fixed or withdrawable installation.
The IZM is available in three frame sizes up to 6300 A. The new compact frame size 1 from 630 A to 1600 A only requires a 400 mm wide area in the control panel – and that saves space. Frame size 2 covers the wide range from 800 – 3200 A, simplifying both engineering and handling. The new frame size 3 up to 6300 A is even more compact and now has its operating panel situated in the centre. The same door cutout fits all breaker sizes.
Accessories and auxiliary equipment are identical for the entire range, thus enabling retrofitting to be carried out on site for all versions. Each size of IZM is also available as an IN switch-disconnector. Both accessories and operation are identical to those of the IZM circuit-breaker.
The IZM: Crammed with good ideas.
|
|
| ... products without technical information |
| |
|
|
