The Container Lifter was developed for the needs of the container haulage industry in mind - a growing sector according to Combilift MD Martin McVicar: ”Using containers is the cheapest way to transport goods around the world, but the loading and offloading process can be awkward, involving extra costs for the hire of cranes and ramps, and time wasted waiting for offloading equipment to arrive. The integrated Combilift Container Lifter offers significant benefits as it eliminates the need for ramps, cranes, waiting time, and additionally allows much safer ground level loading and unloading.”
The crane arms of the Container Lifter hydraulically move along the chassis enabling it to cope with varying container lengths, and it will lift 20, 30 and 40 Foot containers up to a weight of 34 tonnes. It can lift two smaller 20’ containers simultaneously, and offloading takes a mere two minutes.
Containers can also be transferred directly from one trailer to another. The Container Lifter is a high tensile steel construction, with rear axle steering for better manoeuvrability in enclosed areas and a 2.70m jack leg for excellent stability.
|
|
Maneuverability, productivity and economy are the themes underlying the FX20/GX20 series design.
A high-performance engine for better power, highly reliable wet-disc brakes, a highly rigid mast, and electrically controlled four-speed transmission for excellent travel speed and acceleration make FX20/GX20 machines a joy to operate, as well as strong contributors to a company's bottom line.
|
|
|
|
|
|
It is a full electric control and high quality engine with strong power, high efficiency, economical energy, low noise and low displacement;
The high quality gear box can automatically gear and shift, can anti-reversion forward and backward, can stably drive, and with low noise and be free of maintenance;
The heavy load driving axle can lubricate and cool independently;
The imported multi-functional heavy box swing lifting tool makes the lifting be convenient, safe and reliable;
The hydraulic system, adopting the technology of the load detection with turning preference function and the flux magnification, brings easy and flexible operation, and high working efficiency. The system produces less heat and low noise, and is precise in control and stable in turning;
The cab and balance weight employs the patented drive movement technology;
The graphics context LCD displays all the working parameters, and indicates the malfunctions and alarm information. The machine has multiple automatic protection system.
|
|
|
|
|
|
To extend the successful product line of maritime cargo handling equipment, Liebherr has introduced its own reachstacker concept which offers so far unseen handling possibilities and other extraordinary features. A unique design of a curve-shaped, telescopic boom means unrivalled reach and provides extra space for stacking.
A unique design of a curve-shaped, telescopic boom means unrivalled reach and provides extra space for stacking. Other striking features allow the loading or unloading of containers from/to below ground level without special boom extension whereby high travel comfort and maximum efficiency are provided by a fully hydrostatic transmission.
The Liebherr reachstacker LRS 645 is designed to lift containers as heavy as 45 metric tons into heights of six containers in the first row. In addition, in 4-high by 3-wide block stacks, the LRS 645 can remove the top container in the second row without first removing the top one in the first row. In 3-high by 3-wide block stacks, such striking reach even applies to the top tie in the third row.
|
|
With the capacity to handle containers of all types, combined with the ability to lift heavy loads up to 45 t, the range of Linde container handlers, empty and laden, can effortlessly position containers to a height of more than 15 m.
Their top-class performance is reflected by an ability to handle and position containers with speed, manoeuvrability, and precision.
The operational abilities of the Linde machines makes them an ideal partner in container and freight terminals all over the world.
|
|

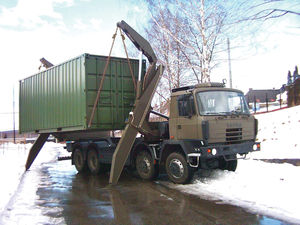

The SB300 S is a truck-mounted kit, normally fixed to the chassis frame. It can also be engineered for a demountable application. This model is suitable for commercial and military uses.
The truck can be a 6x4 or an 8x4 axle model to support the container weight. The hydraulic system of the truck-mount is PTO /pump driven.
This kit comes with an internationally approved radio remote control, and can also be supplied as a cable remote with a 10m cable.
The SB300 series can also handle transfers to other vehicles.
|
|
Pneumatic rope balancer with special double fork handling attachment, with adjustable width, provided with mechanical locking of the handled part. Properly designed to handle metallic and/or plastic boxes and cases.
Available also in version with rotating device for the emptying of the contents.
Max capacity 80 kg.
|
|
Equipment designed for the “weightless” picking and moving of sacks - in polythene, cardboard, hessian, plastic fibre etc...Simple to use, this range of Dalmec machines allows the operator to move bags quickly, accurately and safely within the operating area.
The bags are picked with either a suction head or with a pneumatically clamp. Vacuum is created by an electric motor or by a Venturi ejector.
This range of manipulators offer maximum flexibility in type, design, dimensions and picking systems order to suit the specific requirements of the user and environmental conditions of the working area.
|
|
Pneumatic manipulating model Standard with tool of taken for movement bags
Description
The standard solutions allow to head at the certainty of the repetitive and optimized solution as from the numerous solutions supplied on similar demands. FAMATEC Standard offers to perfectly definable times of delivery and a precise definition of the technical aspects in phase of offer.
Technical details
In the event specific draft of an endowed manipulating of a system of taken flowing along the revolving and equipped arm of vertical movement through a detail is arranged of raising of the product. The solution is the ideal for who must enliven similari bags or products quickly (as an example scato them). The taken one happens through a ventosa and successively the product can be raised and moved on the horizontal plane in every point inside of the workspace.
The illustrated solution is available on autostabile base and fixed column.
The maximum capacity 65 kg
Range 4000 milimeter
|
|
The Tube of Lifting uses the same flow of aspiration for the catch of the product, the lifting and the transfer of the load. Thanks to this system of aspiration of reliable and robust design, it is possible to handle loads without effort in any safety for your operations of handling, palletization or depalettisation.
Charge up to 200 kg
Type charges: bags, paperboard, drum
|
|
To support all types of controls on the ground: pushbutton box, control for stages, various levels or staircase...
With detent pawl: allows to block control on the ground with the desired height, to free to draw downwards.
Automatic recall by spring.
Rope steel covered plastic.
Drum painted steel, support aluminum.
N.B. to take account of the weight of the pushbutton box as well as weight of the electrical cable to support
|
|
Pneumatic linear manipulator with pneumatic gripping tool for parcels of ceramic tiles or for any part that can be gripped pushing on the sides.
Max capacity 200 kg.
Max work radius 7 m.
Max vertical stroke up to 2100 mm.
|
|
|
|
|
|
HANDLE YOUR PRODUCTS INTUITIVELY WITH ZE'SOLUTION SAPELEM
ECONOMICIAL
Electric energy.
Eliminate MSD.
INTUTIVE
Follow operators' nature gestures.
No bouton necessary to make movements.
No adjustment necessary to adapt mass changes.
REACTIVE
Reaction time < 0,1 s.
Acceleration up to 1 g.
Max Speed 2 m/s.
POWERFUL
From 0 until 300 kg.
Arm up to 4,7 m.
PRECISE
At Millimeter.
Arm in aluminium : Movements without resistance.
SECURE
Detector of hand presence.
Active security through embedded software.
Power-Cut Management.
ERGONOMIC
Ergo Conception : lightness, sensibility, visibility …
Design for left and right handers.
Effort to make movements < 20 grammes.
ALL PRODUCTS
Cans, boxes, bags, doors, windshields, bumpers, tanks, tubes, bottles, pallets, tyres, ham, spools, eggs, motor parts (water pump, etc.), metallic systems, windows, dashboards, sand core, equipments, moulds, parts of fuselage, yoghurt pots, exhaust system, car batteries, shower trays, sinks, sunroofs, motorbikes engines, bus windscreen, car doors, bonnets, steel cabinets, car seats, aeronautical parts …
ALL FIELDS
Food industry, aeronautics, car industry, textile, cardboard, glass, woodworking, plastic, chemistry, sheet metal, medical, warehouses, electronics, equipments, pharmacy ...
|
|
|
The manipulator with cable makes it possible to handle paperboards going from 0 to 300 kg with a suction cup gripping while optimizing the operating areas available, in perfect ergonomics and in full safety for the men and the material.
|
|
| ... products without technical information |
| |
|
|
|
|
Specialised lifting systems for mobile devices
Our Lifting supports are modular in design, so that low-cost solutions are available for your specific requirements.
Depending on the application of the supports, the following technical parameters can be achieved: Container carrying capacity from 2.5 t to 20 t, Lifting heights from 500 mm to 1,750 mm (Optional maximum: 2,000 mm), Attachment to ISO corners and Position Control.
Innovative inclinometer-based position control is a special characteristic of our lifting systems and allows lifting and lowering action parallel to the ground during loading operations in uneven terrain, automatic initial inclination registration, inclination offset to zero degrees, control precision: +/- 0.2 degrees, safety shutdown when the inclination exceeds 3.5 degrees (or more, if required). Individual support control unit available as optional attachment.
In addition to our standard products, we offer customized designs:
Non-standard lifting heights, modified basic carrying capacity, specially adapted mounting and interlocking systems, special base plates, holding fixtures for easy lifting support transportation, tailor-made solutions with regard to functionality and intended uses, advice, assistance and support to customers implementing specific projects as well as special colours and paint coats.
Furthermore our products are accompanied by expertise and therefore offer appropriate performance in tests, trials and provision of samples. Our products are TÜV tested. Each product is subjected to functional and load tests performed on our own test equipment.
|
|
Incorporated lifting/tilting device
Incorporated lifting/tilting device with compactors or static waste compactors. These work much like separate lifting/tilting devices. When paired with roll on and off compactors, the lifting/tilting devices can be designed according to the dimensions required by highway code regulations.
|
|
The BBC Lift
The Comb Lift for the Big Bite provides the unique combination in container handling flexibility.
|
|
Dalmec offer a wide range of manipulators designed for the “weightless” handling of cardboard boxes, packaged wooden cases, products covered in film (polythene, shrink - wrap etc….).
Simple to use, they allow the operator to move a whole variety of packaged products, cardboard boxes and wooden cases quickly, accurately and safely throughout the working area.
Boxes can be picked either with suction tooling or with a pneumatic gripper head. Vacuum is created by either by an electric generator or by a ”Venturi” ejector.
The type, design, dimensions and picking system of the manipulators offered are tailored so as to suit the specific requirements of the user and to the varying environmental conditions available.
|
|
Handling attachment with vacuum pad. Indicated for handling of cardboard boxes or parcels.
It is the quickest and economic way for this kind of handling.
Vacuum generation by electric vane pump.
Max capacity 180 kg.
Accessories: quick disconnection for suction pads, angular adaptor, flexible extended manouvre handle, etc.
|
|
Scaglia INDEVA offers the most complete range of industrial manipulator on the market, including both traditional pneumatic manipulators and state of the art electronic manipulators, better referred to as INDEVA.
Pneumatic manipulators are ideal to handle offset loads while Indeva are ideal anywhere speed, fluid movement and exact positioning of the load are required.
|
|
With Protema lifts, difficult and potentially harmful lifting can be avoided and an ergonomic method of moving goods can be achieved. The first Protema lifter was developed in 1977. Today’s third generation lifts are a result of years of practical experience and development. Industrial kitchens, pharmacies, libraries and manufacturing companies use electric lifts to lift boxes, rolls, reels and other goods.
Lifting boxes
Protema lifts are manufactured with an emphasis on functionality, flexibility and reliability. They are lightweight, low-maintenance and battery driven with a built-in charger.
|
|
Lev 300
Capacities :
Grip width between 400 - 800 mm Lift height up to 3,00 m Max load = 300 kg up to 1,70 m Length of forks : 570 mm and 720 mm with sliding plates.
Description :
The LEV 600 and the LEV 300 have been designed to convey loads that cannot be handled with a conventional stacker. They are particularly suited for moving loads sitting directly on the floor
|
|
Mobile lifting/tilting devices have four wheels, two of which pivot and two others which are fixed. They also come with separate motorisation equipment, a separate control panel and a 3 kw motor, as well as with appropriate jacks which are able to lift up to 500 Kg.
Various kinds of forks are available: DIN, male, double male, AFNOR or may be designed and specified by the client.
Robust piping and netting offer side protection while still allowing the operator optimum visibility, even on the sides. An electric eye/ photocell guarantees front protection. In no way, not even by accident, will the machine function if the operator or any other person is within the rotating area.
If the lifting/tilting device is joined with either an electric roll on and off compactor or a stationary compactor, an extra control unit will be mounted on it, so that the operator will have the commands on hand at the front of the dumper.
|
|
ANVER Vacuum Tube Lifters are easy to learn and simple to operate for loading and unloading cartons without manual lifting, bending, and stretching.
ANVER Vacuum Tube Lifters can be equipped with an extension handle that allows one person to unload and stack boxes without excessive reaching, stretching, or back strain. Models are offered to handle loads from 5 lb (2.3 kg) for non-porous loads, all the way up to 660 lb (300 kg).
|
|
|
|
|
|
The TCA-DE is a front line fully automatic split wheel bin lift with the following key features;
- Efficiency, fast automatic cycle time of 8 sec. plus dwell time, which can be adjusted between 0,5-3 seconds.
- Trade containers, at the turn of a switch the TCA-DE can be changed over into manual 'trade' mode to lift the full range of four wheeled containers including Paladin bins fitted with conversion bars, cycle time manual trade 13 sec.
- Low weight, the TCA-DE weighs only 695 kg.
- Safety, the unique Terberg geometry means that containers do not kick back towards operators as they are lifted, enabling that the safety arms whilst conforming to EN1501.1 to be user friendly and unobtrusive.
- Practical operation, exceptional ground clearance coupled with automatic reverse raise means that the TCA-DE is an invulnerable to damage as it is possible to be.
- Automatic Shaker, an adjustable automatic bin shaker allows 'sticky' materials suchs as grass cuttings to be handled with ease.
- Packing Cycle Delay Control, to take full advantage of the high mounting height and subsequent increase hopper volume, the TCA-DE can be pre set to cycle after a set number of bin lift cycles.
- Diagnostics, a text display is mounted in a durable box on the side of each bin lift to provide simple fault diagnosis in order to minimise down time.
|
|
